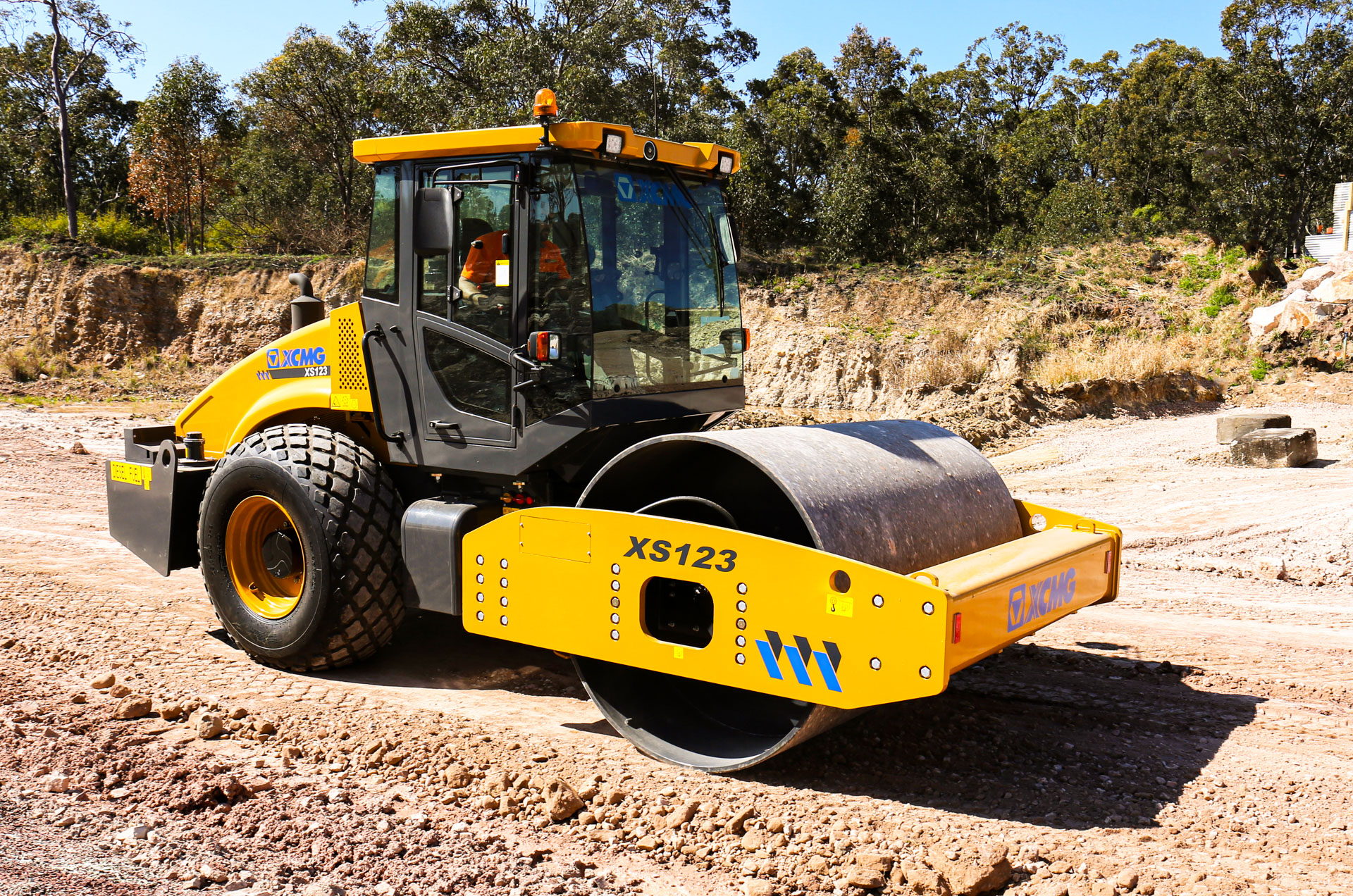

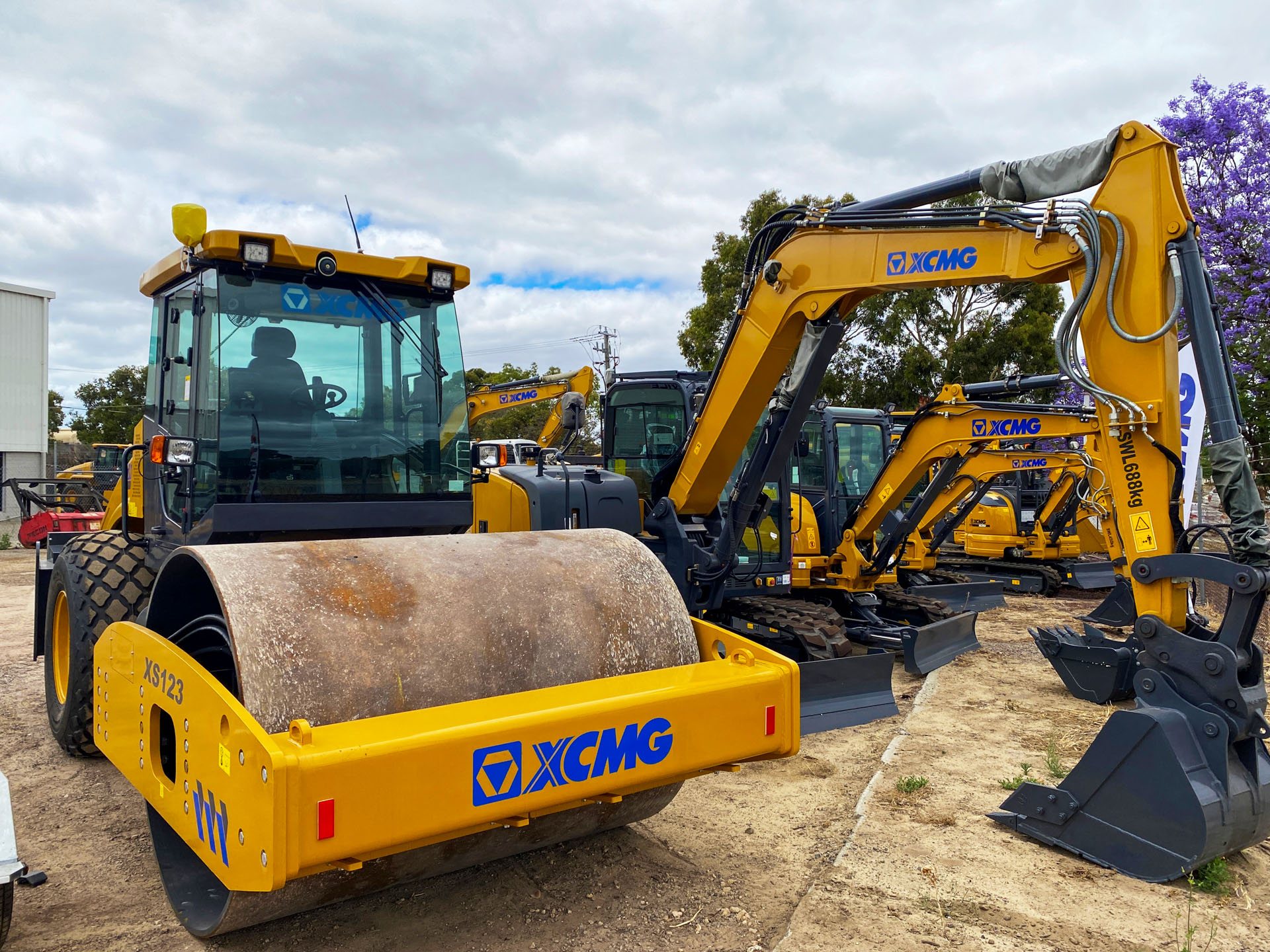

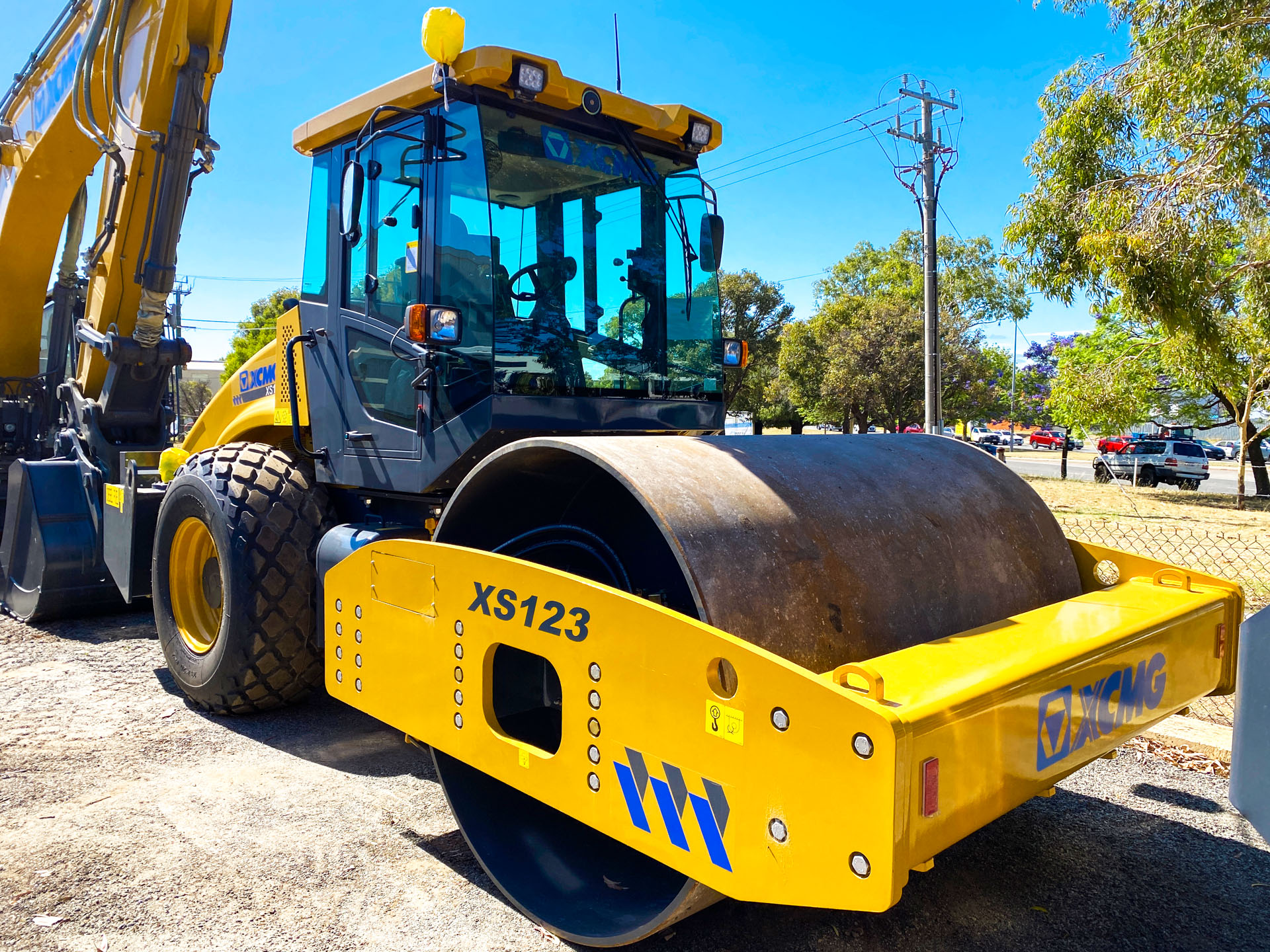

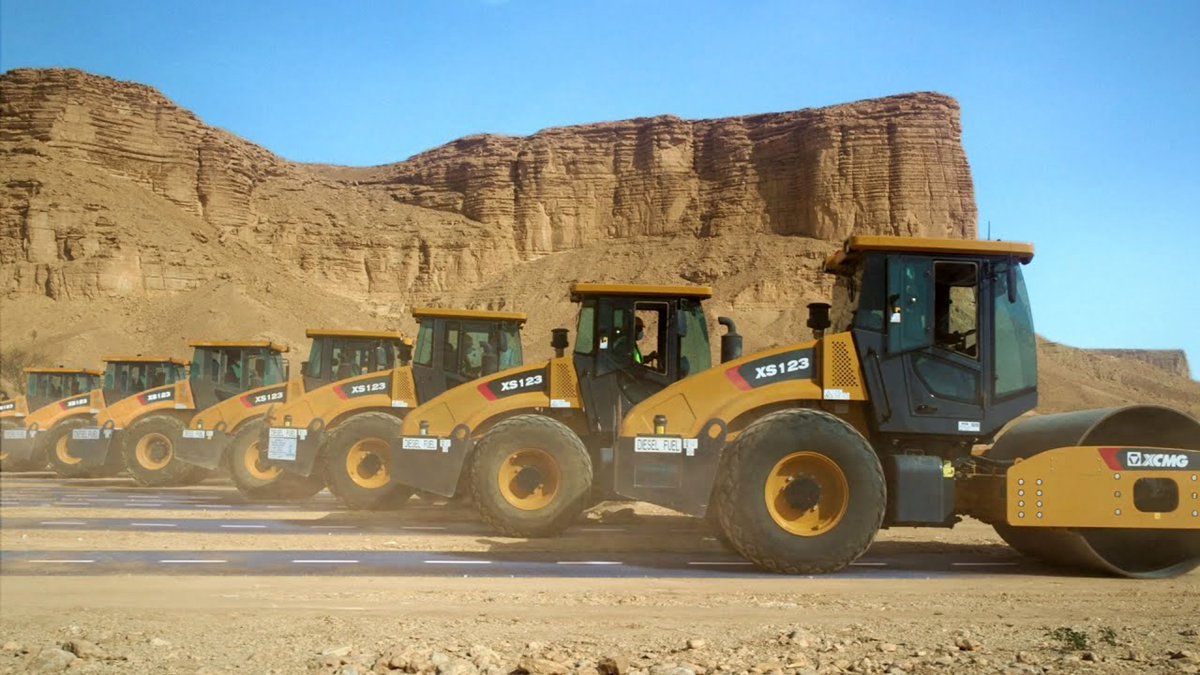

Single Drum Roller – Model: XS123
Explore the XCMG Single Drum Roller – Model: XS123, your ultimate solution for asphalt compaction and construction projects. This reliable and compact roller delivers top-tier performance, making it ideal for your needs. Whether you require a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS123 ensures outstanding results, cementing its place as the perfect choice for your construction endeavors.
Product Overview
| Operating Weight | 12000 kg |
| Front Axle Weight | 6700 kg |
| Rear Axle Weight | 5300 kg |
| Static Linear Load (Front /Rear Drum) | 31.5 kg/cm |
| Speed Range | 0-5; 0-11.2 km/h |
| Theoretical Gradeability | 45 % |
| Minimum Turning Radius | 4500/6800 mm |
| Minimum Ground Clearance | 393 mm |
| Wheel Base | 3010 mm |
| Steering Angle | 330 |
| Oscillation Angle | 10o |
| Vibrational Frequency | 30/35 hz |
| Nominal Amplitude | 1.8/0.9 mm |
| Exciting Force | 280/190 kN |

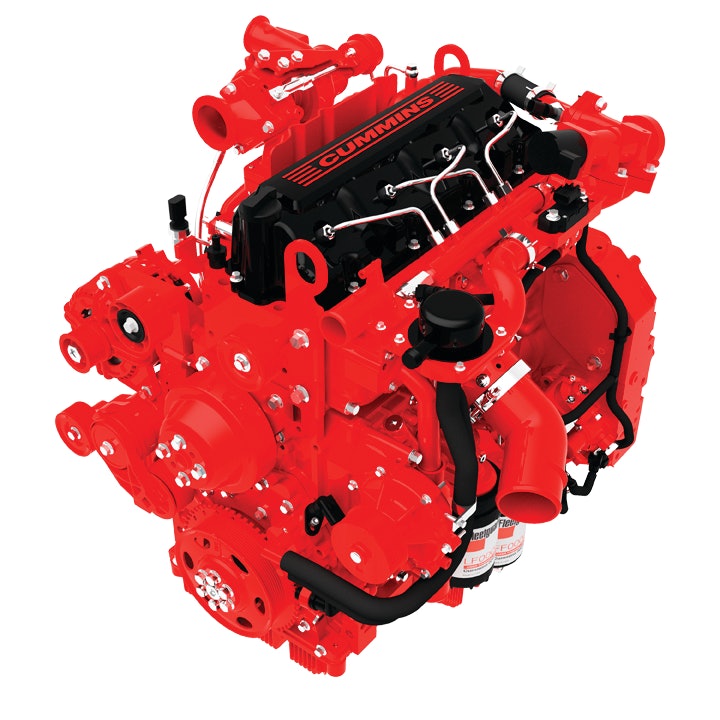

| Engine Type | Cummins QSF3.8 |
| Rated Speed | 2200 rpm |
| Engine Rated Power | 104/139 kW/hp |
| Charge Pressure of Drive System | 2.4 MPa |
| Relief Pressure of Drive System | 35 MPa |
| Relief Pressure of Vibration System | 30 MPa |
| Relief Pressure of Steering System | 16 MPa |
| Overall Length | 5940 mm |
| Overall Width | 2300 mm |
| Overall Height | 3150 mm |
| Overall Distance Between Drums | 3010 mm |
| Drum Diameter | 1523 mm |
| Drum Width | 2130 mm |
| Operating Weight | 12850 kg |
| Front Axle Weight | 7550 kg |
| Rear Axle Weight | 5300 kg |
| Static Linear Load (Front /Rear Drum) | – |
| Speed Range | 0-5; 0-11.2 km/h |
| Theoretical Gradeability | 45 % |
| Minimum Turning Radius | 4500/6800 mm |
| Minimum Ground Clearance | 443 mm |
| Wheel Base | 3010 mm |
| Steering Angle | 30o |
| Oscillation Angle | 10o |
| Vibrational Frequency | 30/35 hz |
| Nominal Amplitude | 1.6/0.80 mm |
| Exciting Force | 280/190 kN |
| Engine Type | Cummins QSF3.8 |
| Rated Speed | 2200 rpm |
| Engine Rated Power | 104/139 kW/hp |
| Charge Pressure of Drive System | 2.4 MPa |
| Relief Pressure of Drive System | 35 MPa |
| Relief Pressure of Vibration System | 30 MPa |
| Relief Pressure of Steering System | 16 MPa |
| Overall Length | 5940 mm |
| Overall Width | 2300 mm |
| Overall Height | 3250 mm |
| Overall Distance Between Drums | 3010 mm |
| Drum Diameter | 1523 mm |
| Drum Width | 2130 mm |
