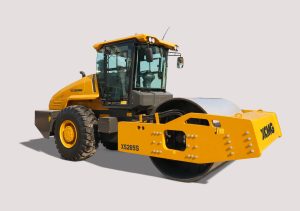

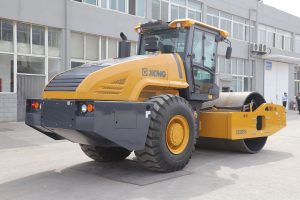

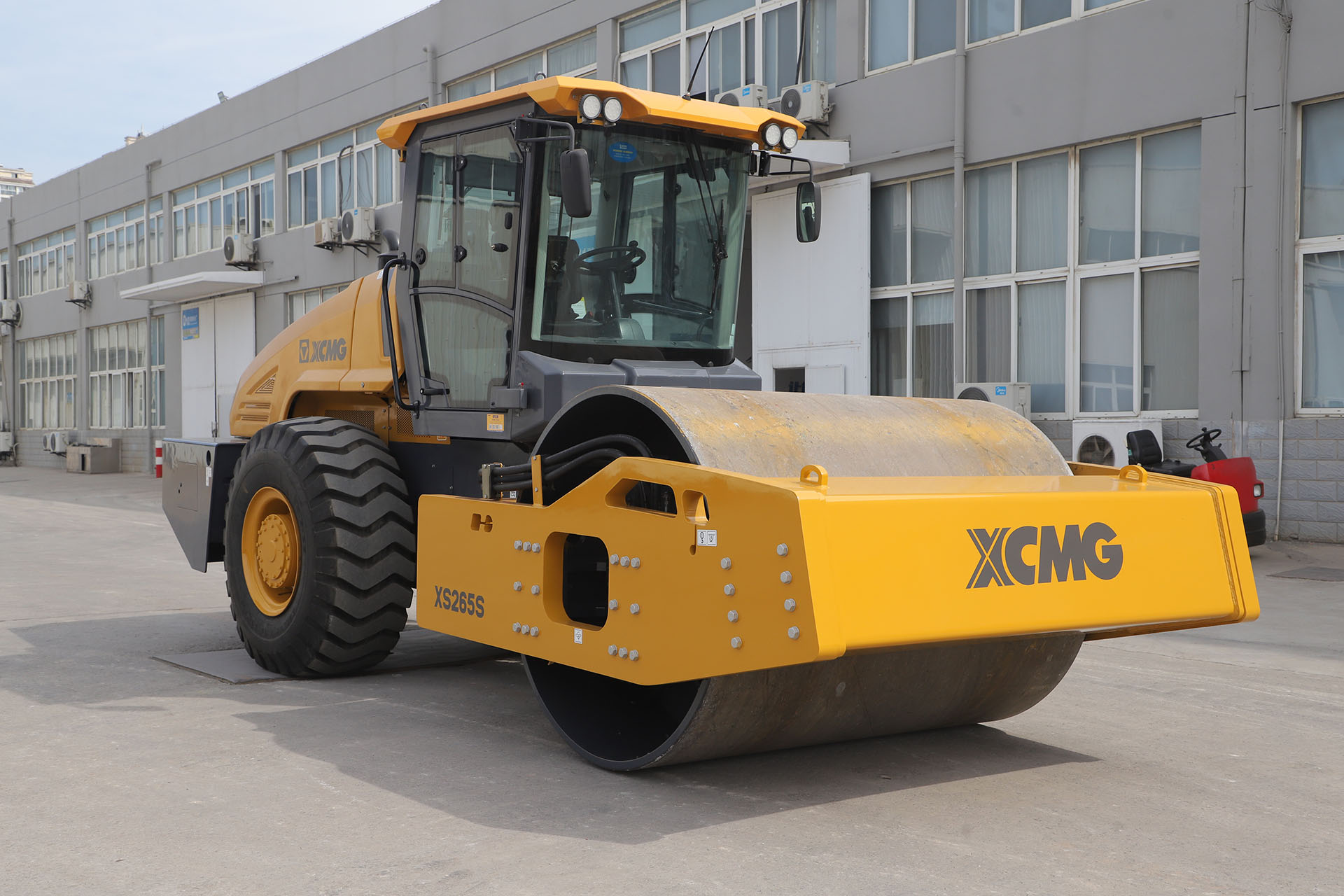

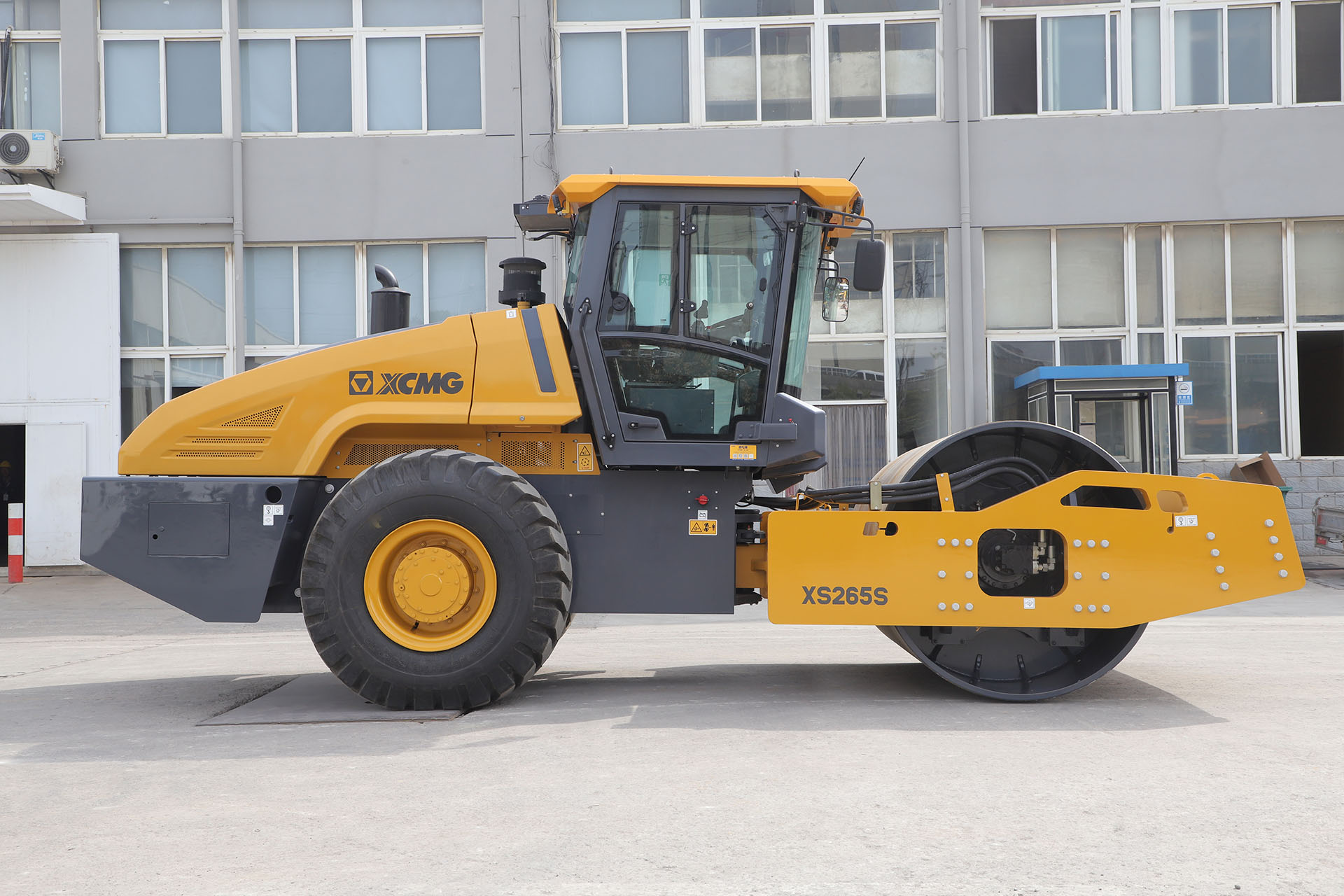

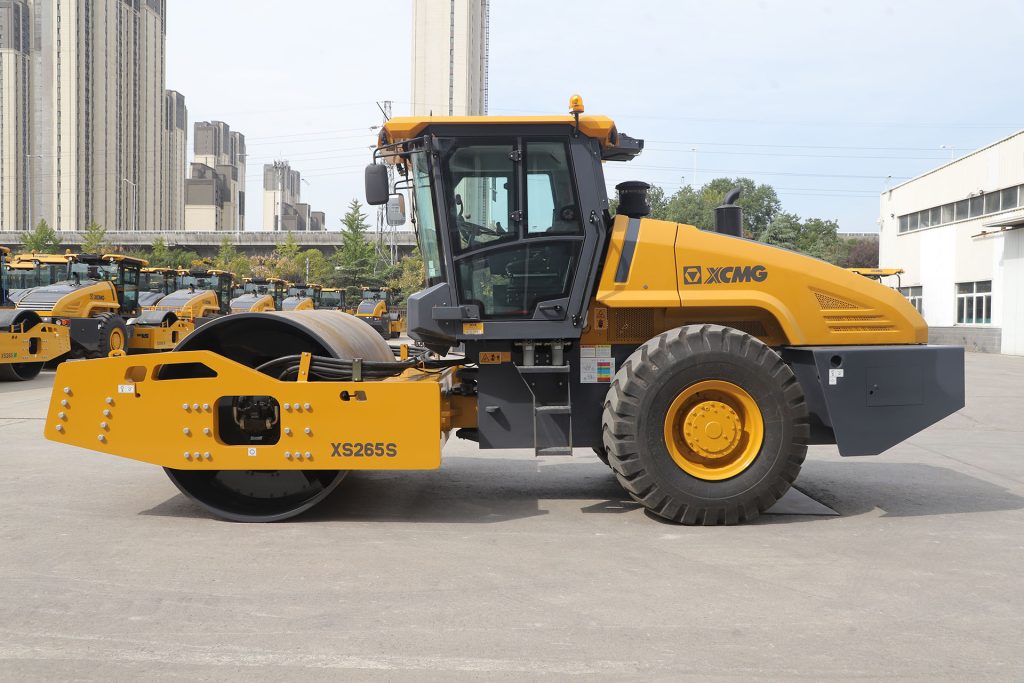

Single Drum Roller – Model: XS265S

Unearth the capabilities of the XCMG Single Drum Roller – Model: XS265S, your go-to solution for asphalt compaction and construction endeavors. This dependable yet compact roller is engineered to provide top-tier performance. Whether you require a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS265S consistently achieves remarkable results, cementing its position as the ideal choice for your construction requirements.

Key Specs

Engine

Cummins QSB6.7

Static Linear Load

784 N/cm

Rated Power

164 kW

Op Weight

26000 kg

Product Overview

Operating Weight	26000 kg
Front Axle Weight	17000 kg
Rear Axle Weight	9000 kg
Static Linear Load (Front /Rear Drum)	784 N/cm
Speed Range	0 – 10.6 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6920 mm
Minimum Ground Clearance	540 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	27/32 hz
Nominal Amplitude	2.05/1.05 mm
Exciting Force	435/315 kN
Engine Type	Cummins QSB6.7
Rated Speed	2200 rpm
Engine Rated Power	164 kW
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2470 mm
Overall Height	3260 mm
Overall Distance Between Drum and Wheels	3430 mm
Drum Diameter	1600 mm
Compaction Width	2170 mm

Operating Weight	26800 kg
Front Axle Weight	17800 kg
Rear Axle Weight	9000 kg
Static Linear Load (Front /Rear Drum)	–
Speed Range	0 – 10.2 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6920 mm
Minimum Ground Clearance	540 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	27/32 hz
Nominal Amplitude	1.7/0.90 mm
Exciting Force	435/315 kN
Engine Type	Cummins QSB6.7
Rated Speed	2200 rpm
Engine Rated Power	164 kW/hp
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2470 mm
Overall Height	3260 mm
Overall Distance Between Drum and Wheels	3430 mm
Drum Diameter	1812 mm
Compaction Width	2170 mm
