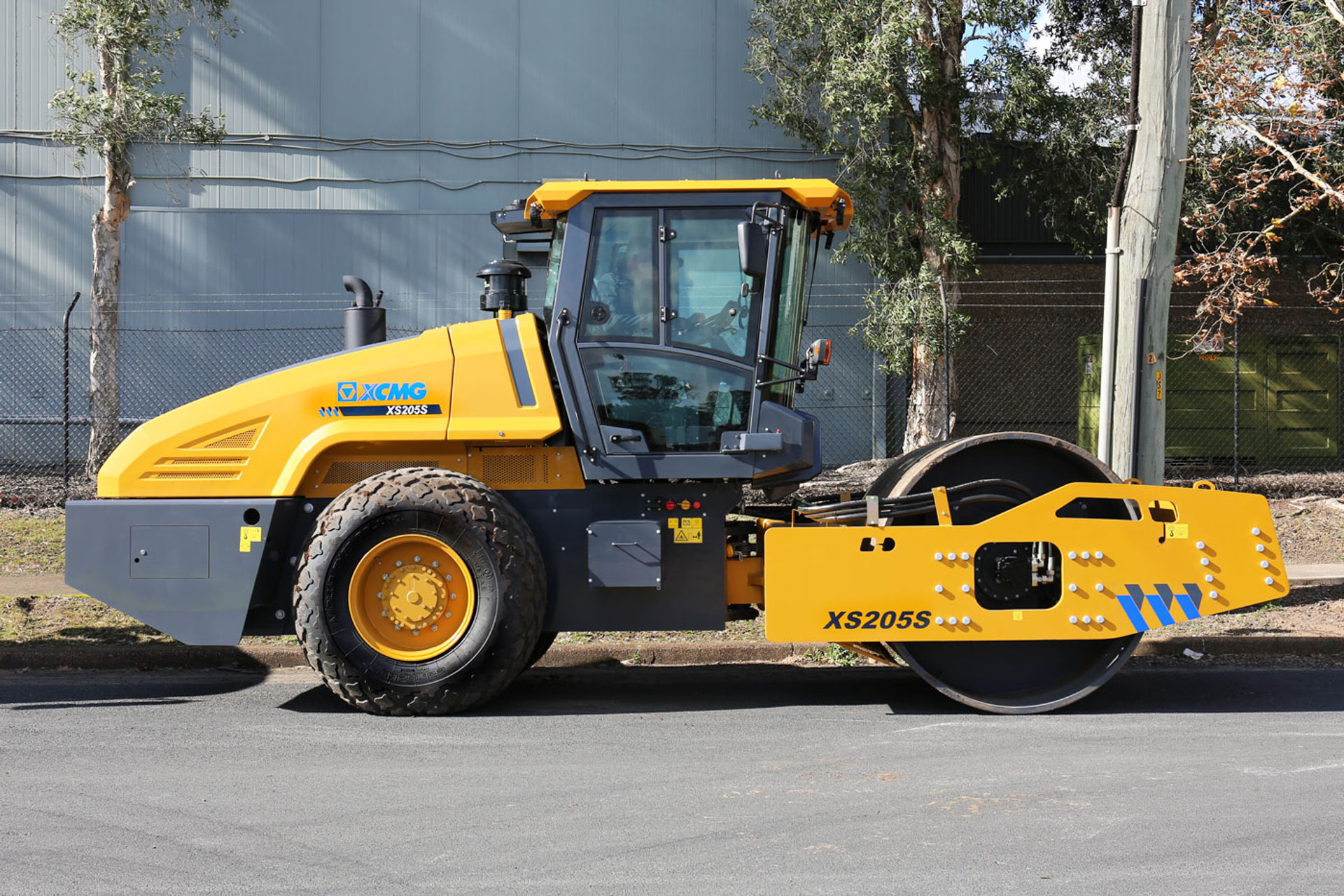

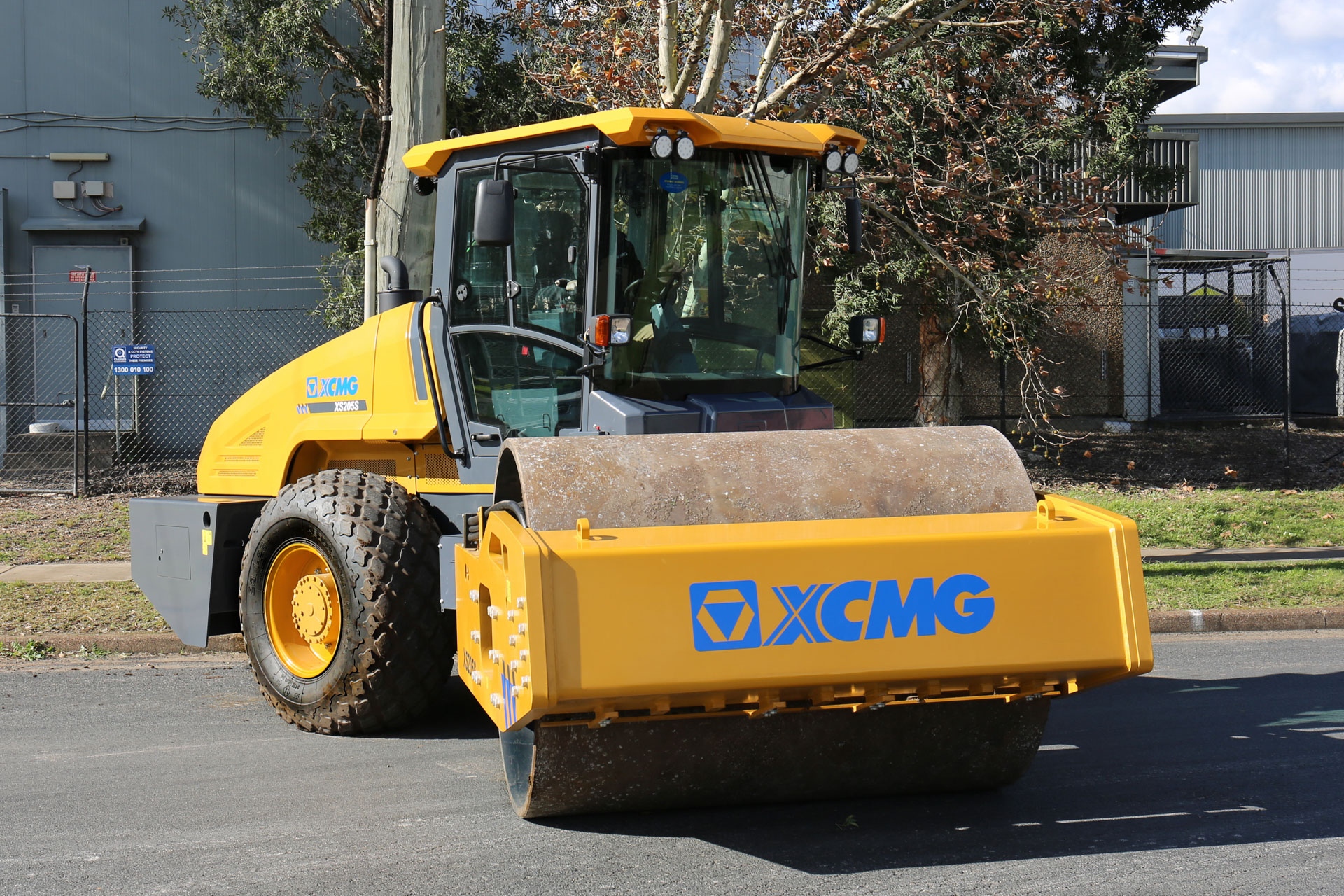

Single Drum Roller – Model: XS205S

Explore the capabilities of the XCMG Single Drum Roller – Model: XS205S, your ultimate companion for asphalt compaction and construction projects. This dependable and compact roller is engineered to provide top-tier performance. Whether you’re in need of a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS205S consistently delivers exceptional results, making it the ideal choice for your construction requirements.

Key Specs

Engine

Cummins QSB5.9

Static Linear Load

621 N/cm

Rated Power

142 kW

Op Weight

20000 kg

Product Overview

Operating Weight	20000 kg
Front Axle Weight	13500 kg
Rear Axle Weight	6500 kg
Static Linear Load	621 N/cm
Speed Range	0 – 10.6 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6900 mm
Minimum Ground Clearance	490 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	28/33 hz
Nominal Amplitude	1.90/0.95 mm
Exciting Force	385/270 kN

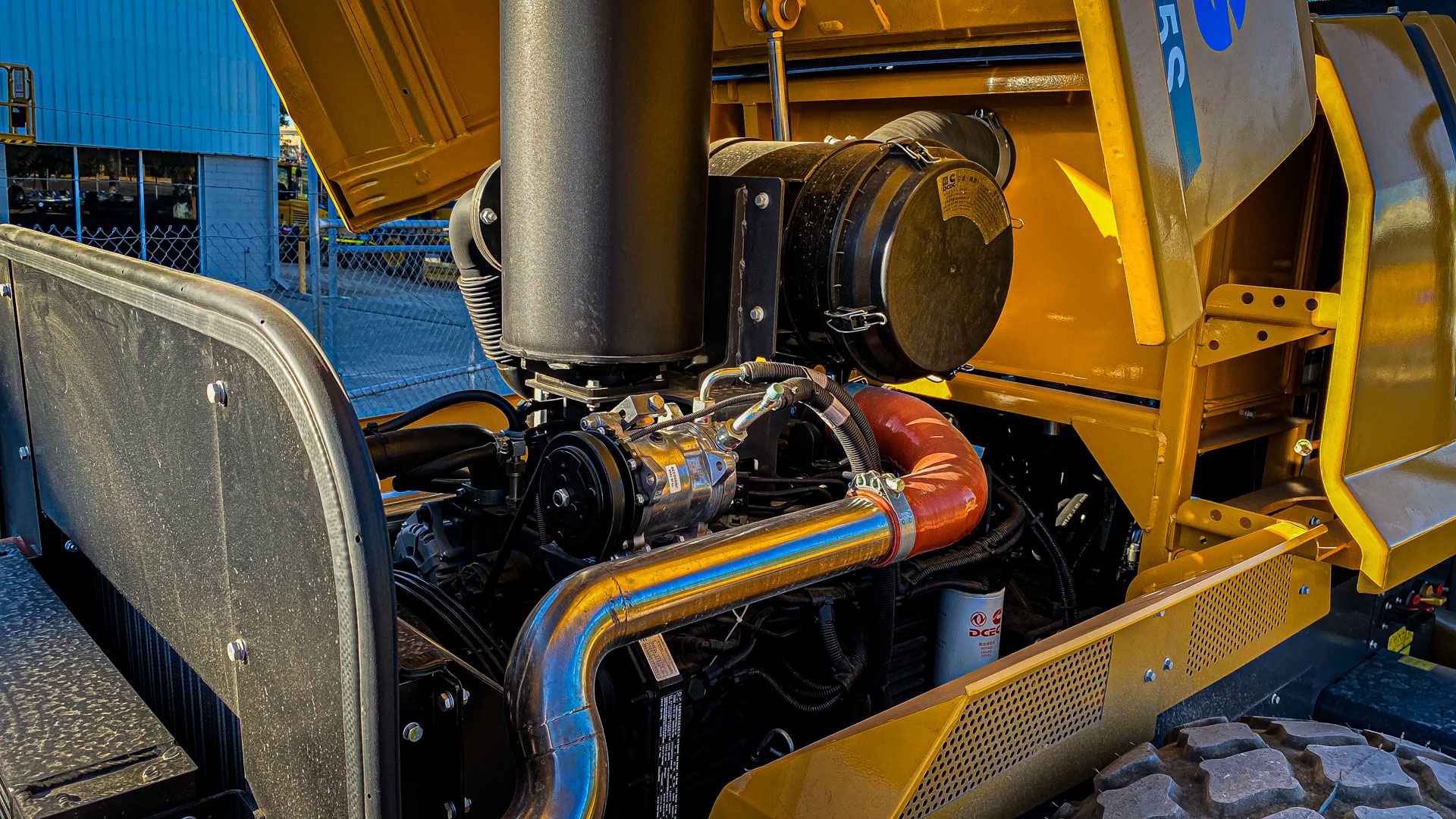

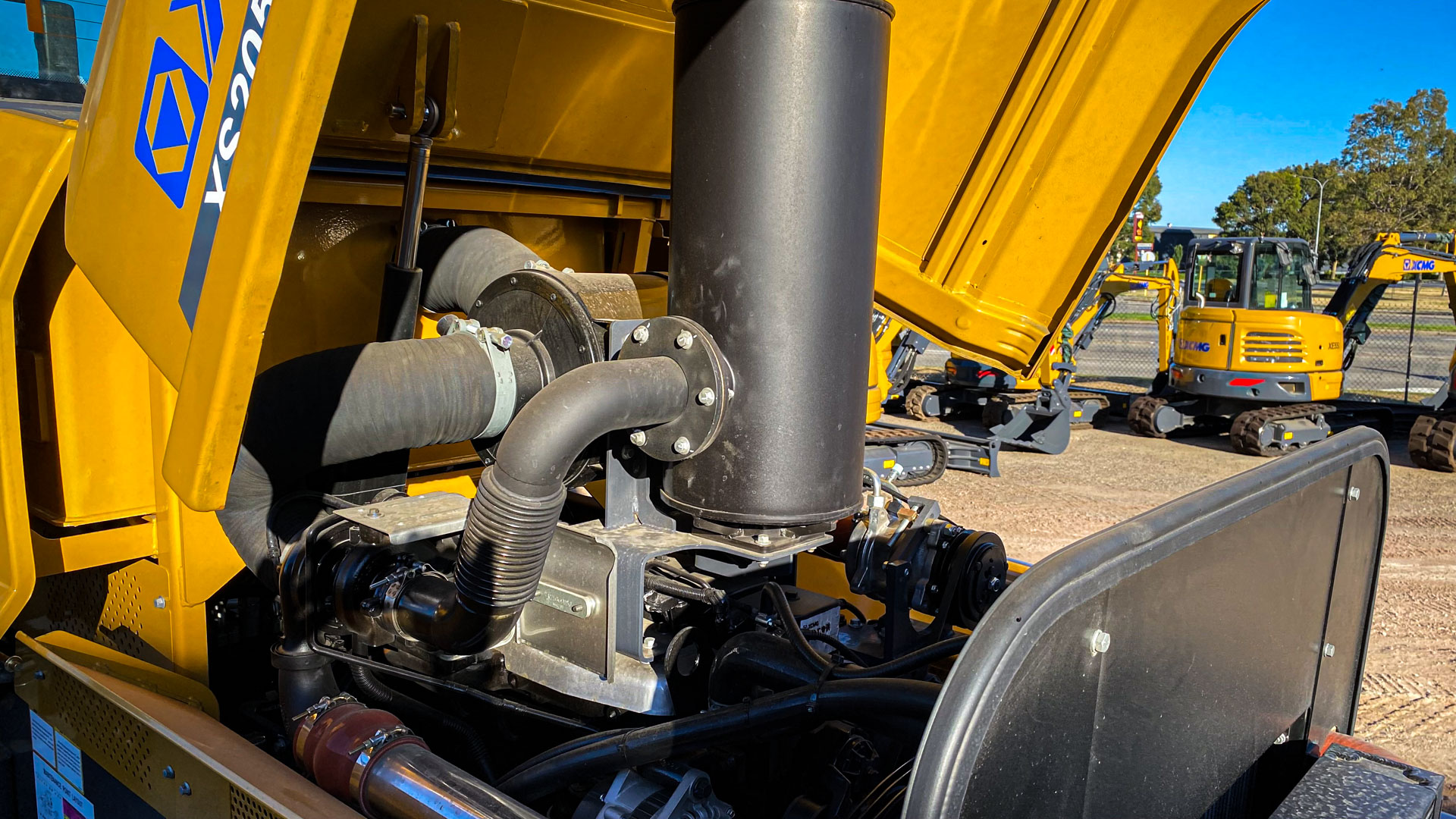

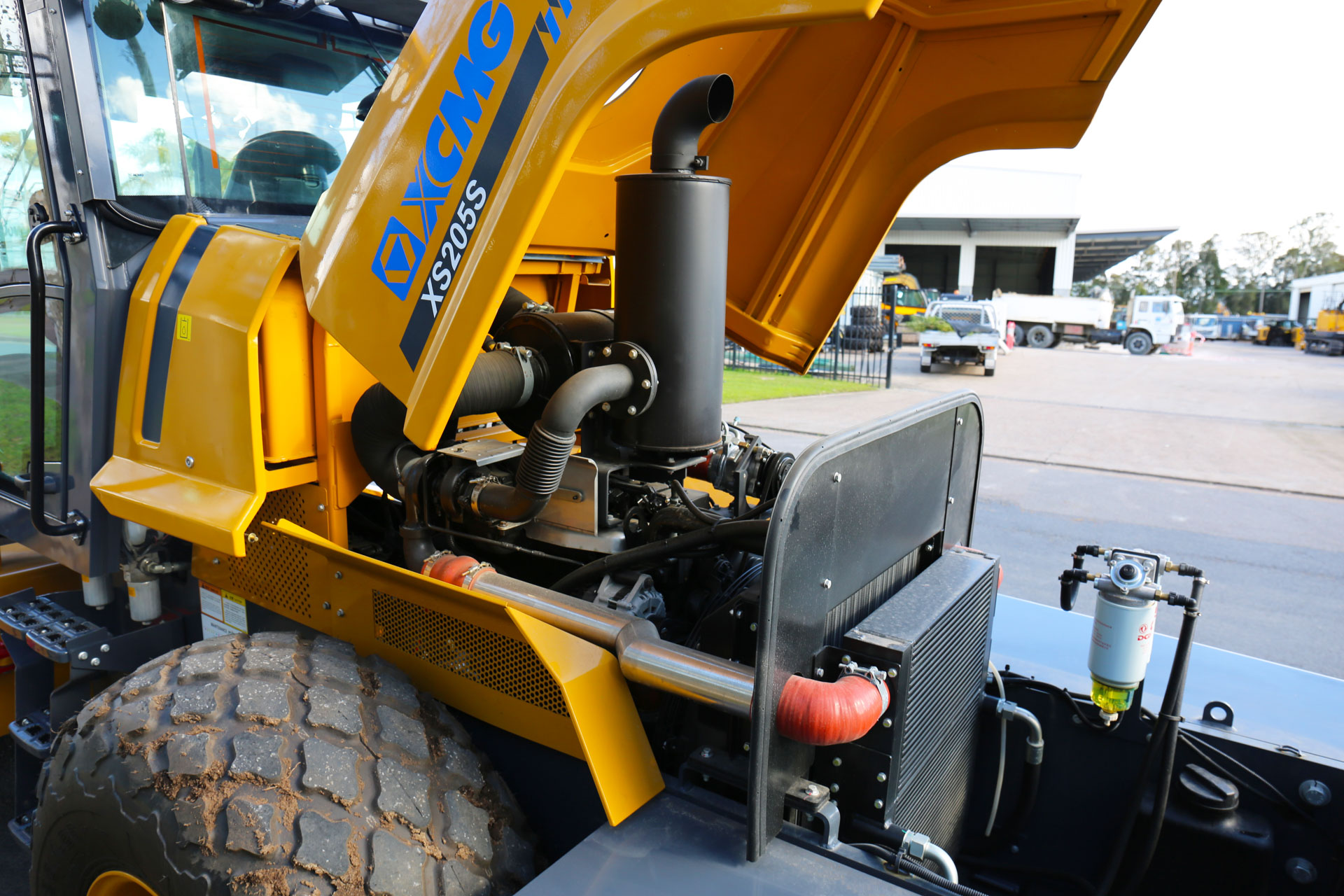

Engine Type	Cummins QSB5.9
Rated Speed	2200 rpm
Engine Rated Power	142 kW
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2350 mm
Overall Height	3200 mm
Overall Distance Between Drum and Wheels	3430 mm

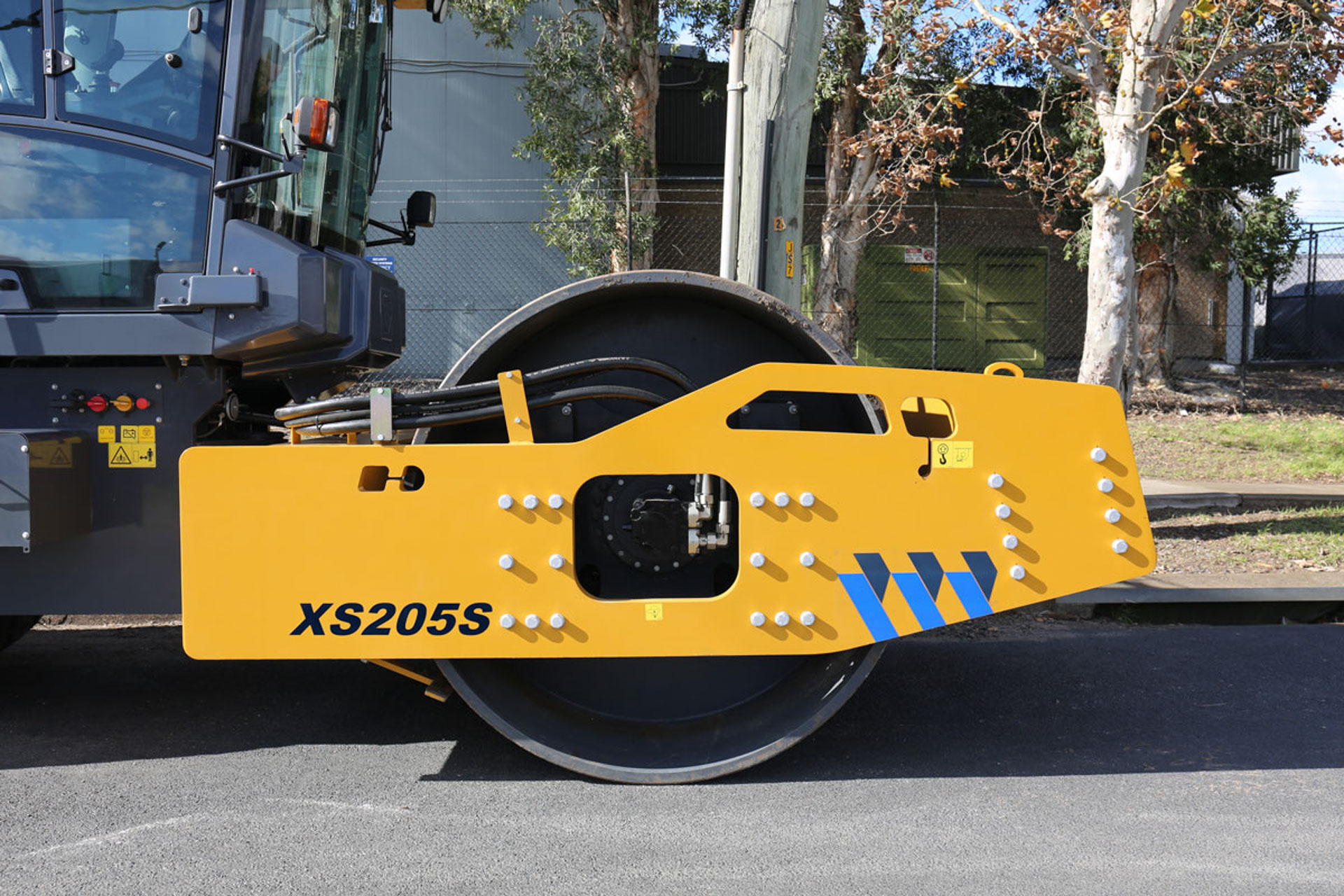

Drum Diameter	1600mm
Compaction Width	2130 mm

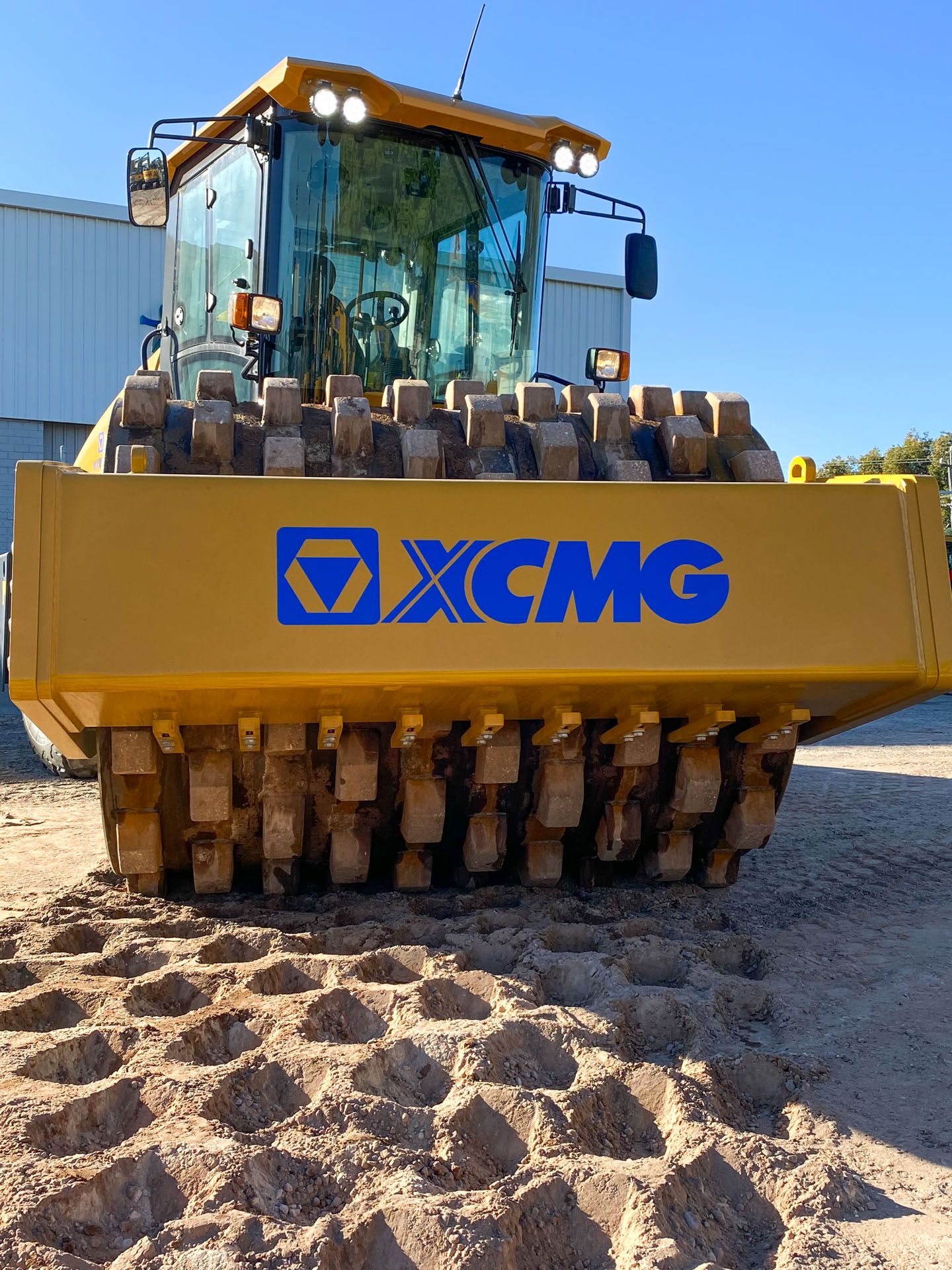

Operating Weight	20800 kg
Front Axle Weight	14300 kg
Rear Axle Weight	6500 kg
Static Linear Load (Front /Rear Drum)	–
Speed Range	0-11.3 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6900 mm
Minimum Ground Clearance	490 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	28/33 hz
Nominal Amplitude	1.65/0.80 mm
Exciting Force	385/270 kN
Engine Type	Cummins QSB5.9
Rated Speed	2200 rpm
Engine Rated Power	142 kW
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2350 mm
Overall Height	3200 mm
Overall Distance Between Drum and Wheels	3430 mm
Drum Diameter	1812 mm
Compaction Width	2130 mm
