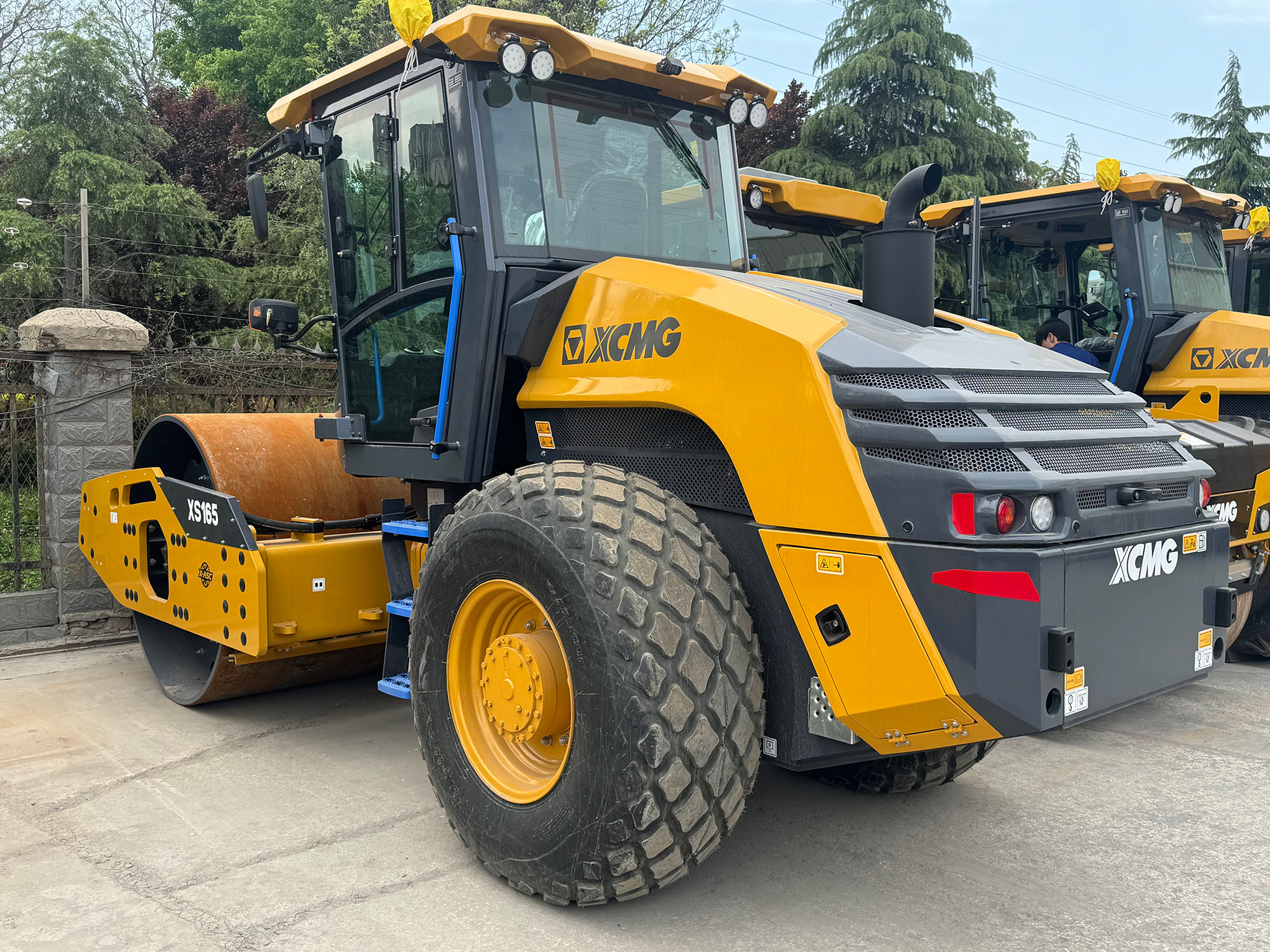

Single Drum Roller – Model: XS165
Unveil the XCMG Single Drum Roller – Model: XS165, the ultimate solution for your asphalt compaction and construction projects. This dependable roller packs top-tier performance into its compact design. Whether you seek a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS165 consistently delivers outstanding results, solidifying its position as the perfect choice for your construction requirements.
Product Overview
| Operating Weight | 16000 kg |
| Front Axle Weight | 10800 kg |
| Rear Axle Weight | 5200 kg |
| Static Linear Load (Front /Rear Drum) | 507 kg/cm |
| Speed Range | 0-11 km/h |
| Theoretical Gradeability | 60 % |
| Minimum Turning Radius | 3766 mm |
| Minimum Ground Clearance | 417 mm |
| Wheel Base | 3060 mm |
| Steering Angle | 35o |
| Oscillation Angle | 10o |
| Vibrational Frequency | 28/33 hz |
| Nominal Amplitude | 2.0/1.0 mm |
| Exciting Force | 340/236 kN |
| Engine Type | Cummins QSB4.5 |
| Rated Speed | 2200 rpm |
| Engine Rated Power | 119 kW |
| Fuel Tank | 260 L |
| Urea Tank | 12 L |
| Overall Length | 6010 mm |
| Overall Width | 2300 mm |
| Overall Height | 2390 mm |
| Overall Height With Cab | 3040 mm |
| Overall Distance Between Drum and Wheels | 3060 mm |
| Drum Diameter | 1523 mm |
| Drum Width | 2130 mm |
| Compaction Width | 2130 mm |
| Operating Weight | 8730 kg |
| Front Axle Weight | 4530 kg |
| Rear Axle Weight | 4200 kg |
| Static Linear Load (Front /Rear Drum) | – |
| Speed Range | 0-5; 0-11 km/h |
| Theoretical Gradeability | 50 % |
| Minimum Turning Radius | 4000/5860 mm |
| Minimum Ground Clearance | 330 mm |
| Wheel Base | 2680 mm |
| Steering Angle | 33o |
| Oscillation Angle | 10o |
| Vibrational Frequency | 30/35 hz |
| Nominal Amplitude | 1.5/0.75 mm |
| Exciting Force | 125/85 kN |
| Engine Type | Cummins QSB4.5 |
| Rated Speed | 2200 rpm |
| Engine Rated Power | 74/99 kW/hp |
| Charge Pressure of Drive System | 2.4 MPa |
| Relief Pressure of Drive System | 38 MPa |
| Relief Pressure of Vibration System | 30 MPa |
| Relief Pressure of Steering System | 14 MPa |
| Overall Length | 5355 mm |
| Overall Width | 1860 mm |
| Overall Height | 3120 mm |
| Overall Distance Between Drums | 2680 mm |
| Drum Diameter | 1220 mm |
| Drum Width | 1680 mm |
