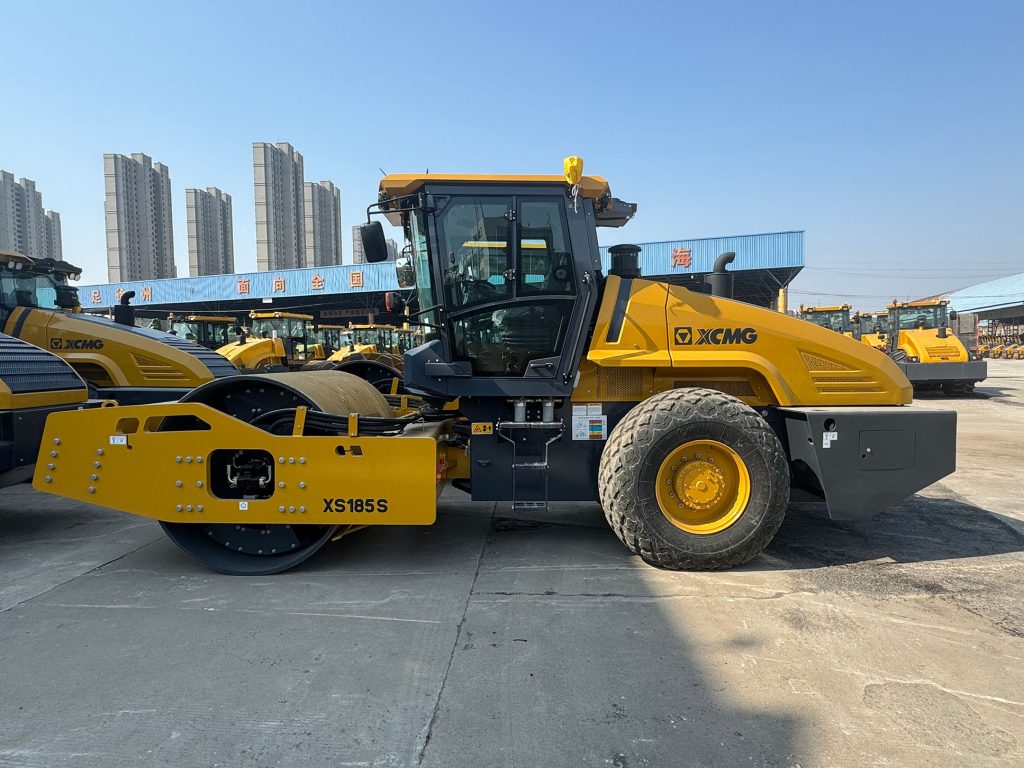

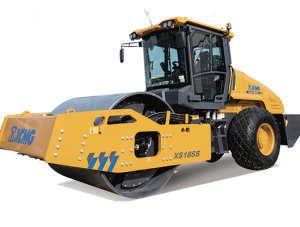

Single Drum Roller – Model: XS185S

Explore the XCMG Single Drum Roller – Model: XS185S, the ideal solution for your asphalt compaction and construction ventures. This dependable and efficiently designed roller delivers top-tier performance. Whether you require a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS185S consistently achieves outstanding results, establishing itself as the optimal choice for your construction projects.

Key Specs

Engine

Cummins QSB5.9

Static Linear Load

540 N/cm

Rated Power

142 kw

Op Weight

18000 kg

Product Overview

Operating Weight	18000 kg
Front Axle Weight	11500 kg
Rear Axle Weight	6500 kg
Static Linear Load (Front /Rear Drum)	540 kg
Speed Range	0 – 10.3 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6900 mm
Minimum Ground Clearance	490 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	340/240 hz
Nominal Amplitude	1.8/0.9 mm
Exciting Force	340/240 kN
Engine Type	Cummins QSB5.9
Rated Speed	2200 rpm
Engine Rated Power	142 kW
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2350 mm
Overall Height	3200 mm
Overall Distance Between Drum and Wheels	3430 mm
Drum Diameter	1523 mm
Compaction Width	2130 mm

Operating Weight	18800 kg
Front Axle Weight	12300 kg
Rear Axle Weight	6500 kg
Static Linear Load (Front /Rear Drum)	–
Speed Range	0-11 km/h
Theoretical Gradeability	50 %
Minimum Turning Radius	6900 mm
Minimum Ground Clearance	490 mm
Wheel Base	3430 mm
Steering Angle	33^o
Oscillation Angle	10^o
Vibrational Frequency	28/33 hz
Nominal Amplitude	1.60/0.80 mm
Exciting Force	340/240 kN
Engine Type	Cummins QSB5.9
Rated Speed	2200 rpm
Engine Rated Power	142 kW
Fuel Tank	300 L

Overall Length	6990 mm
Overall Width	2350 mm
Overall Height	3200 mm
Overall Distance Between Drum and Wheels	3430 mm
Drum Diameter	1735 mm
Compaction Width	2130 mm
