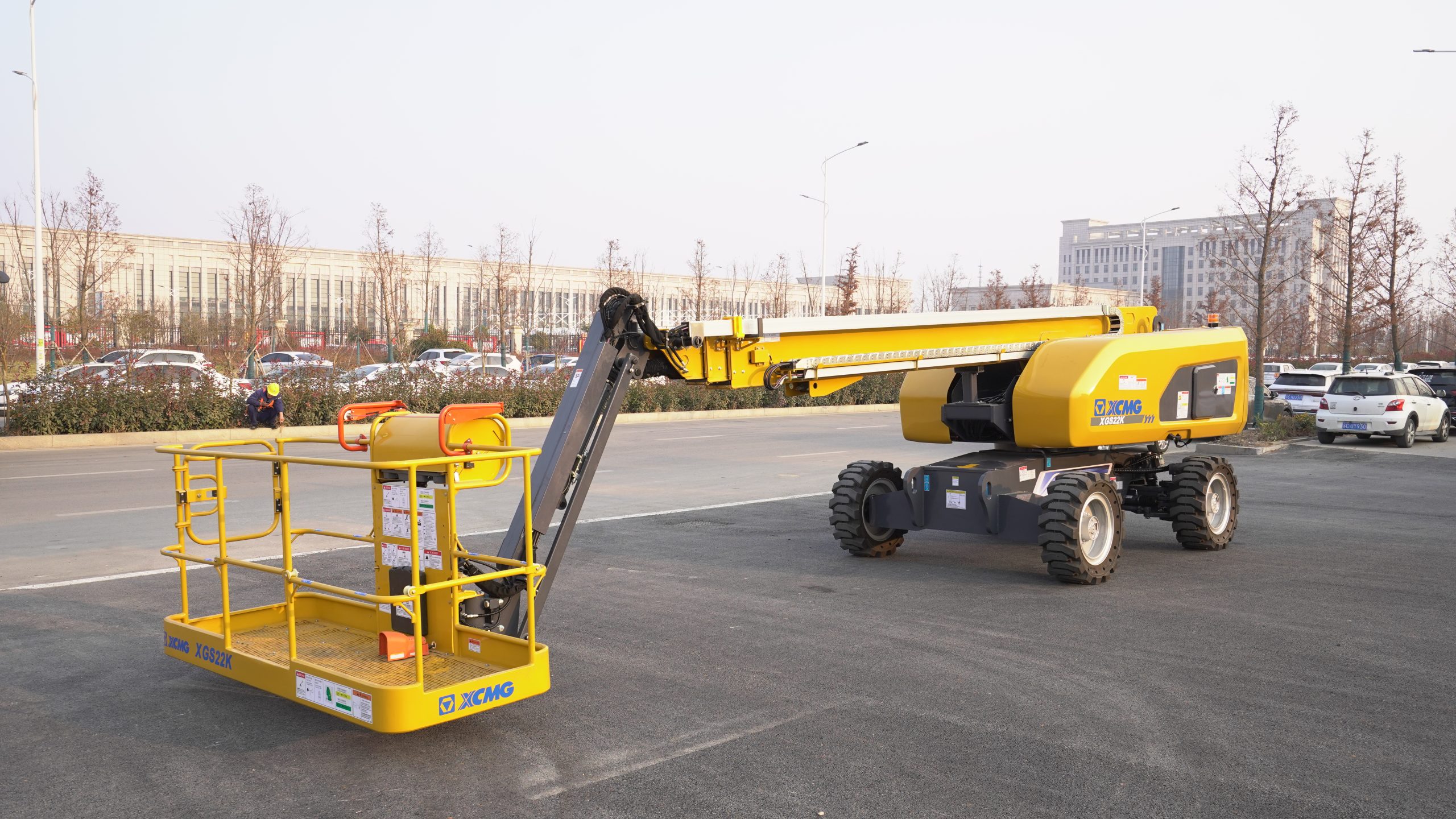

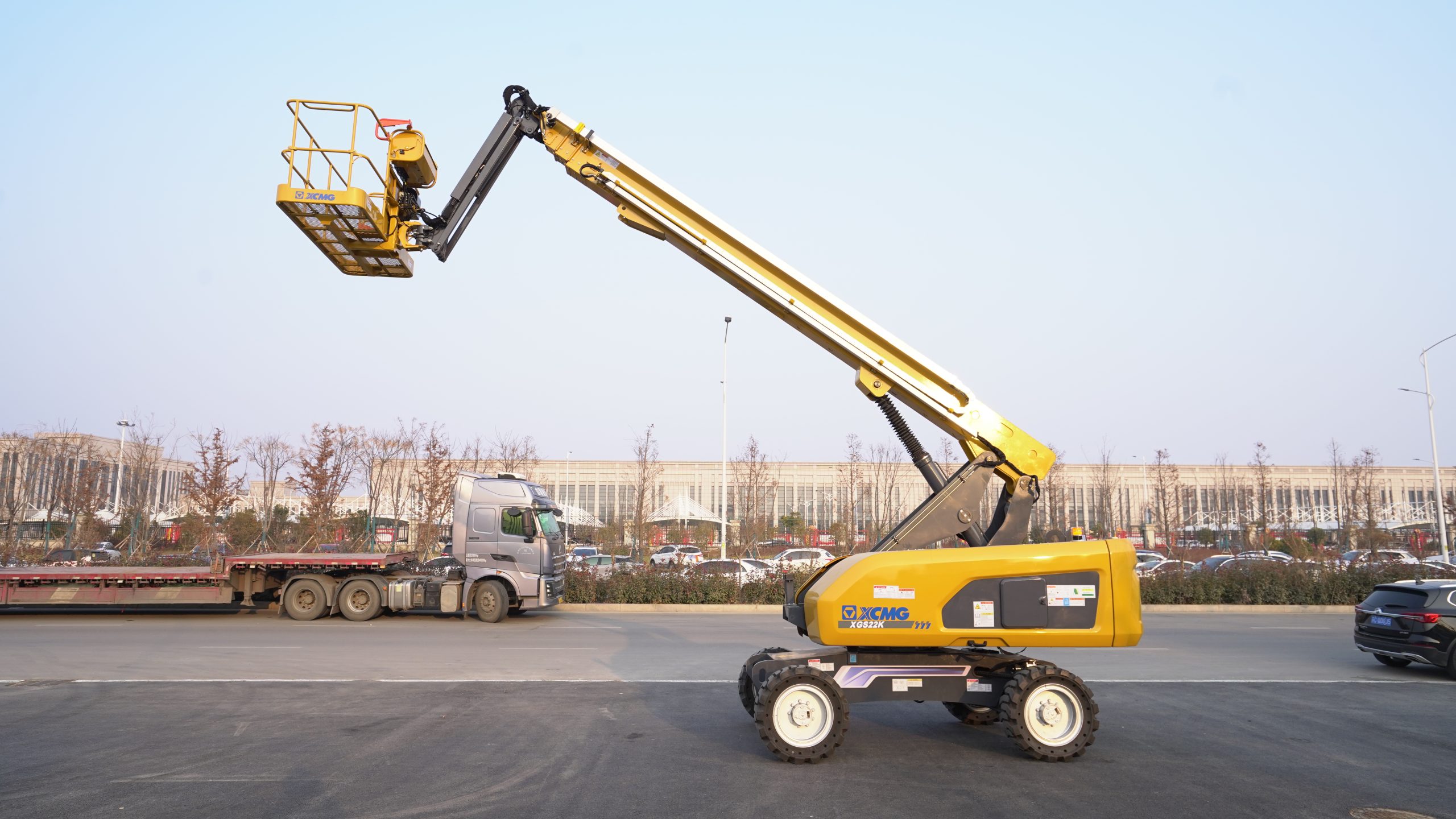

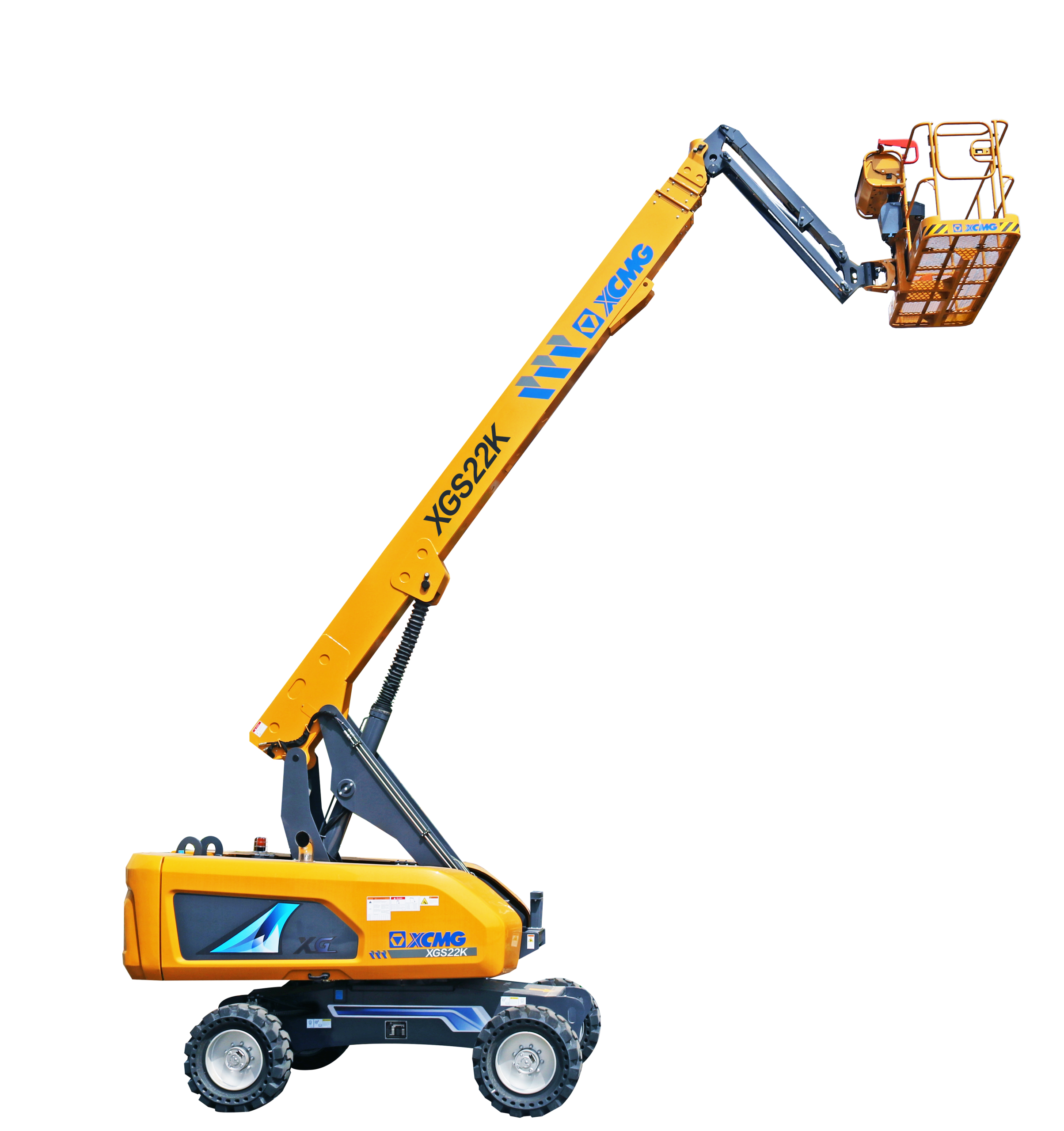

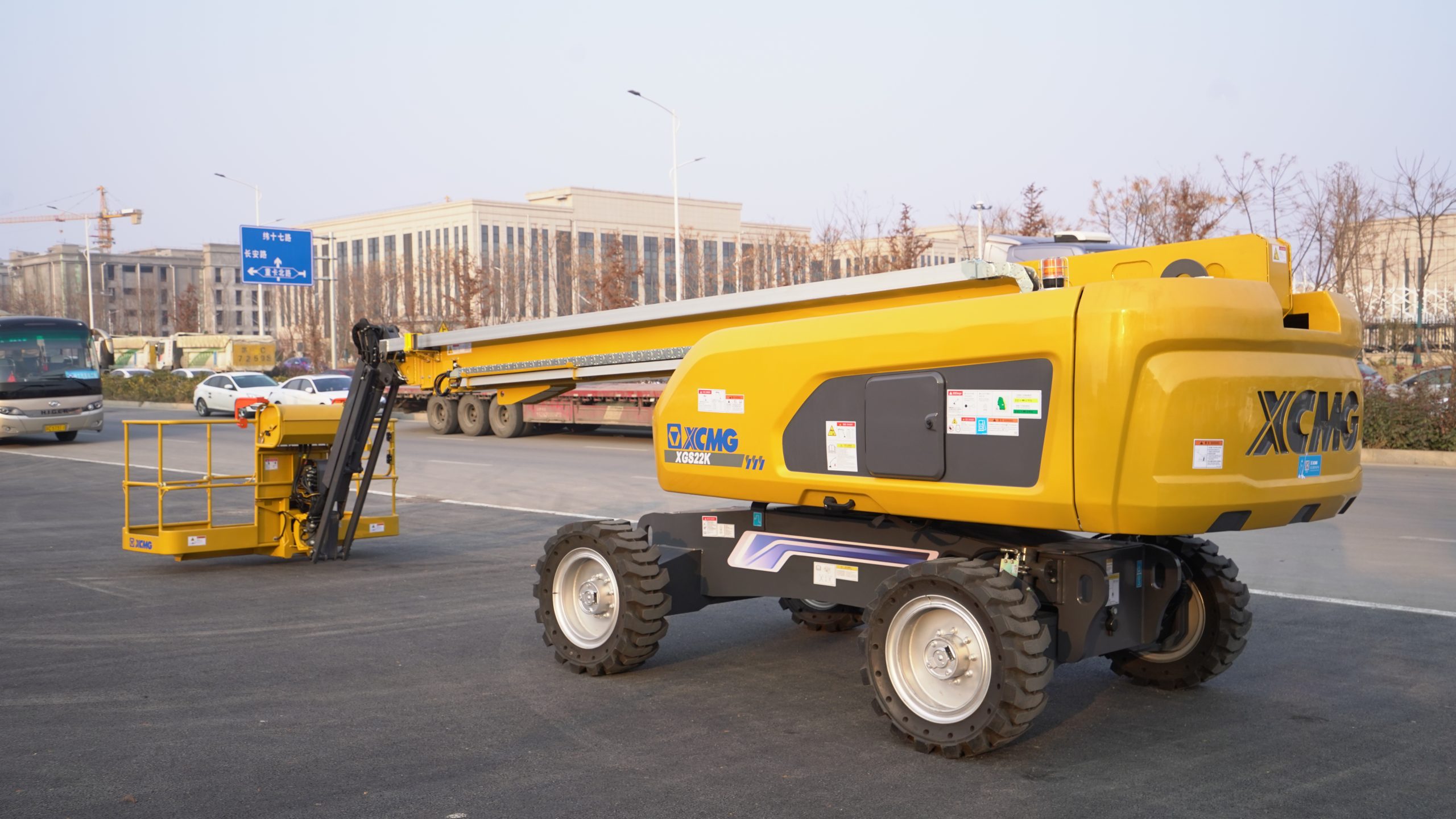

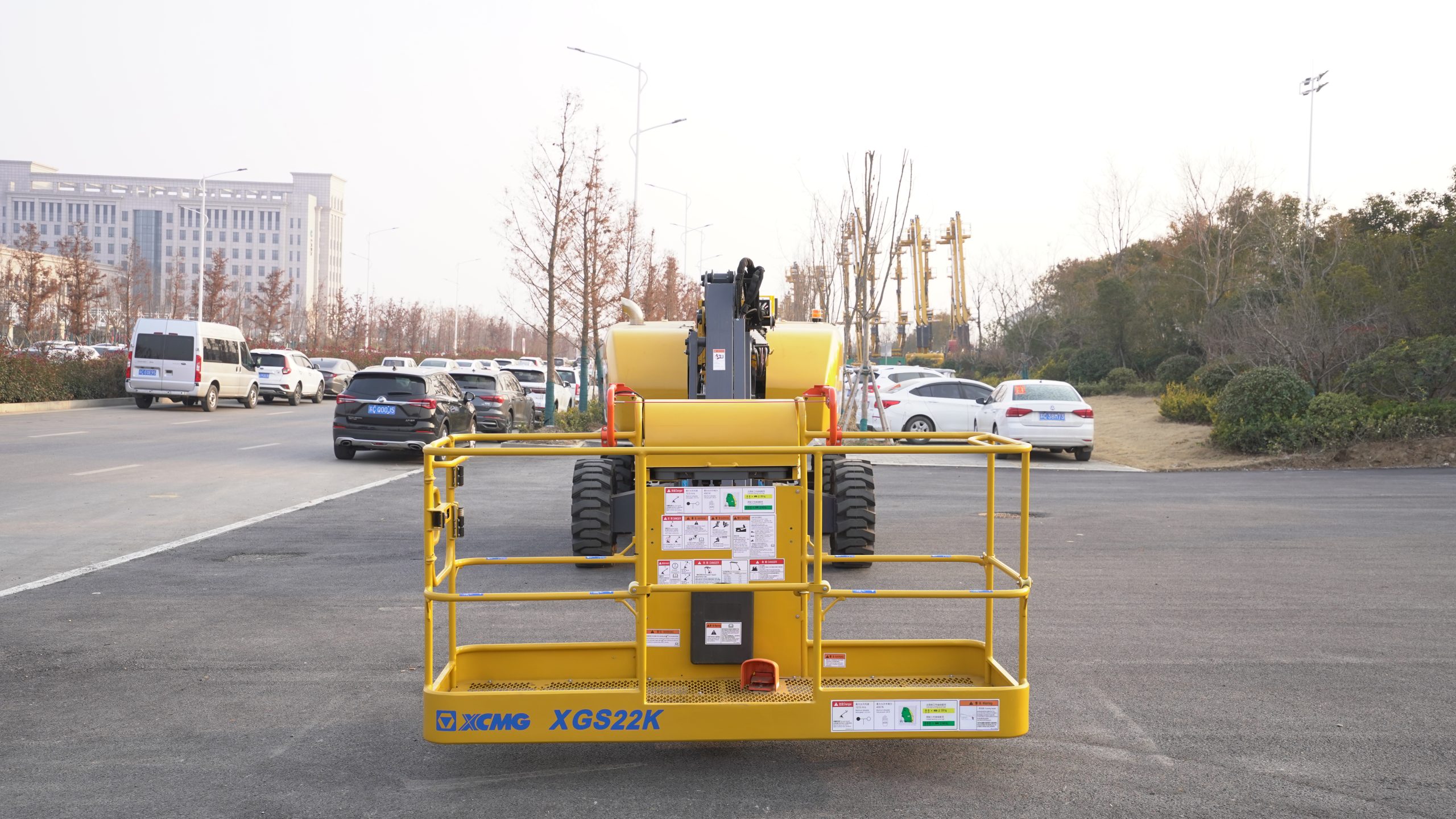

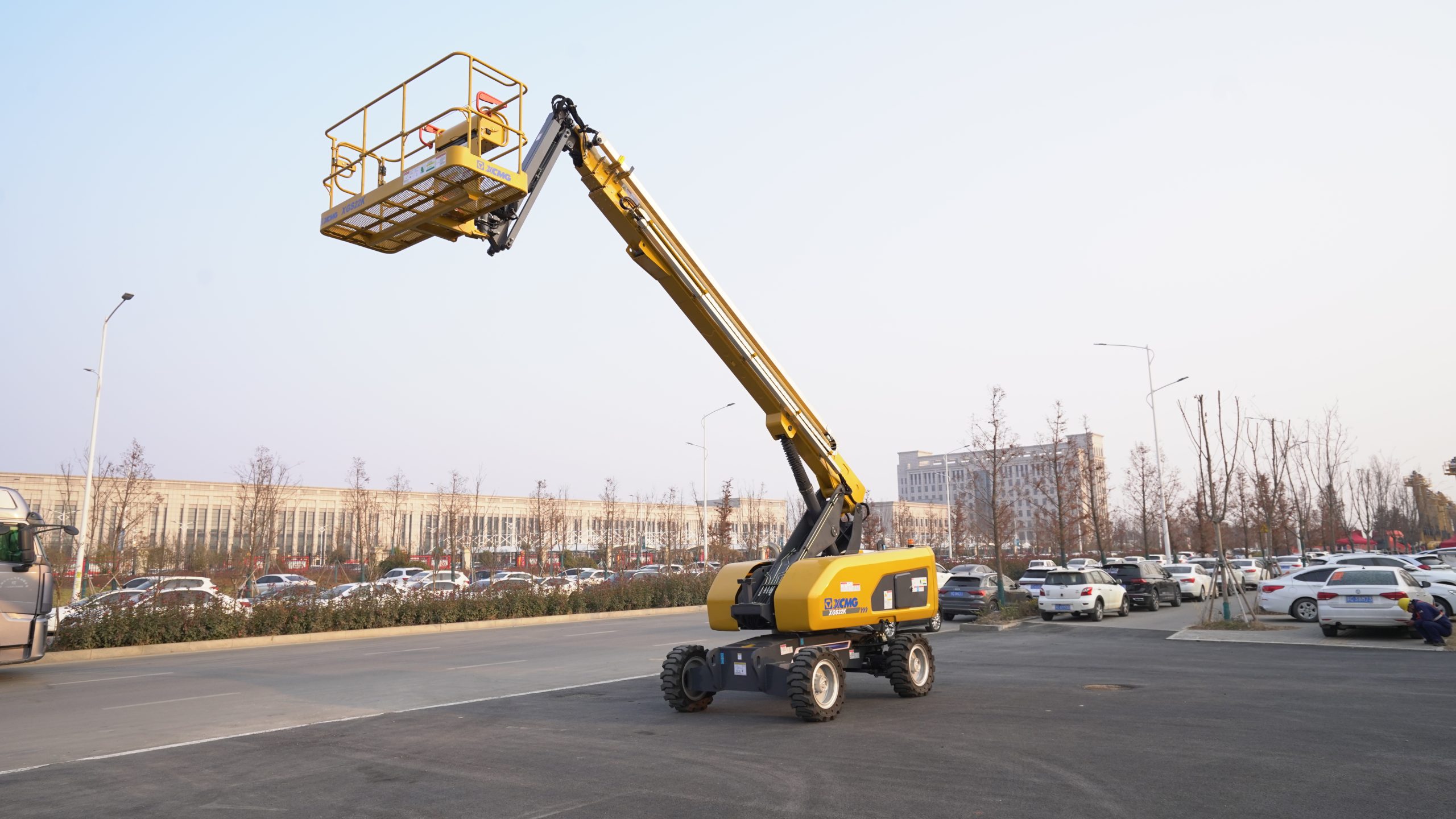

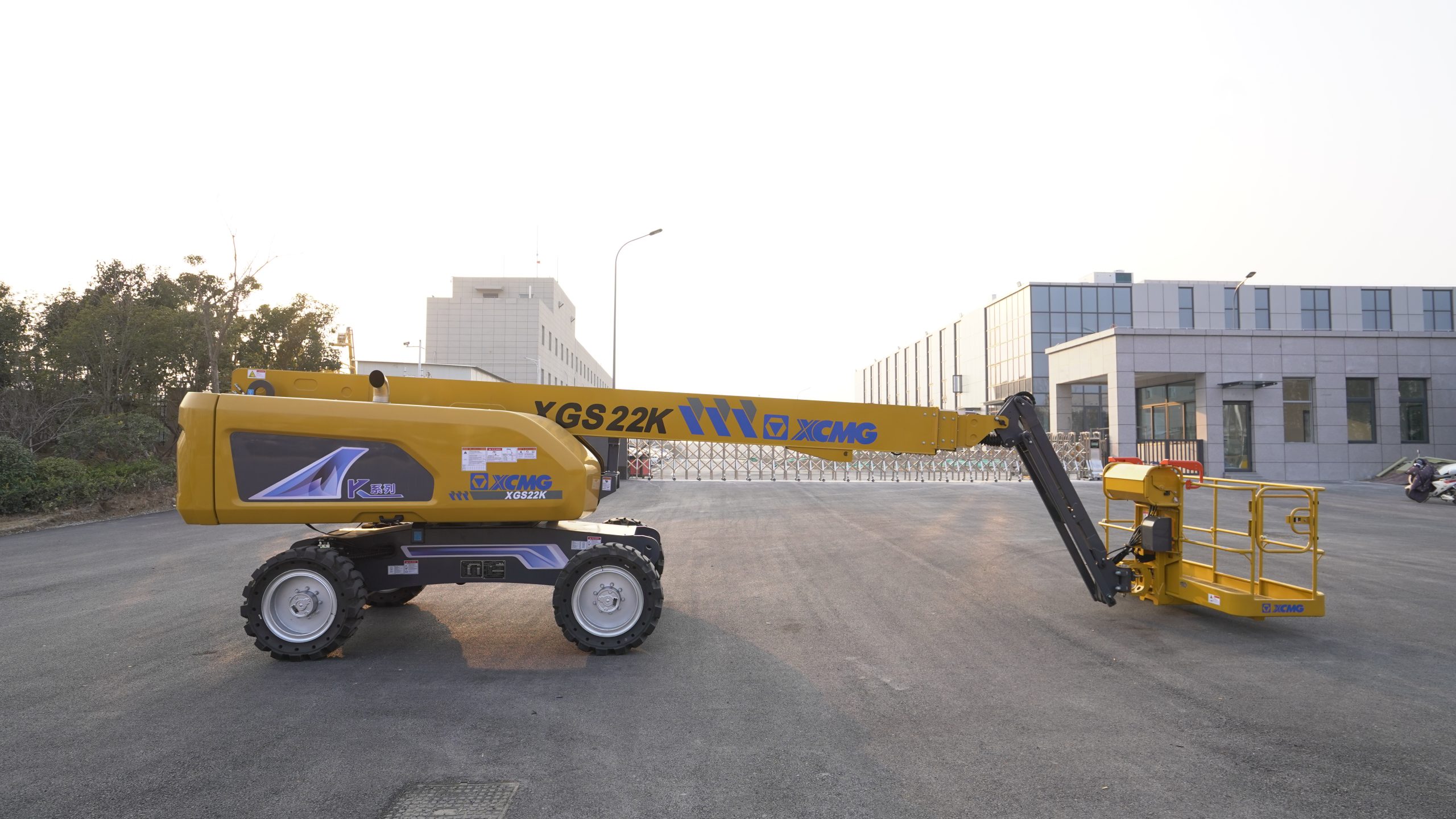

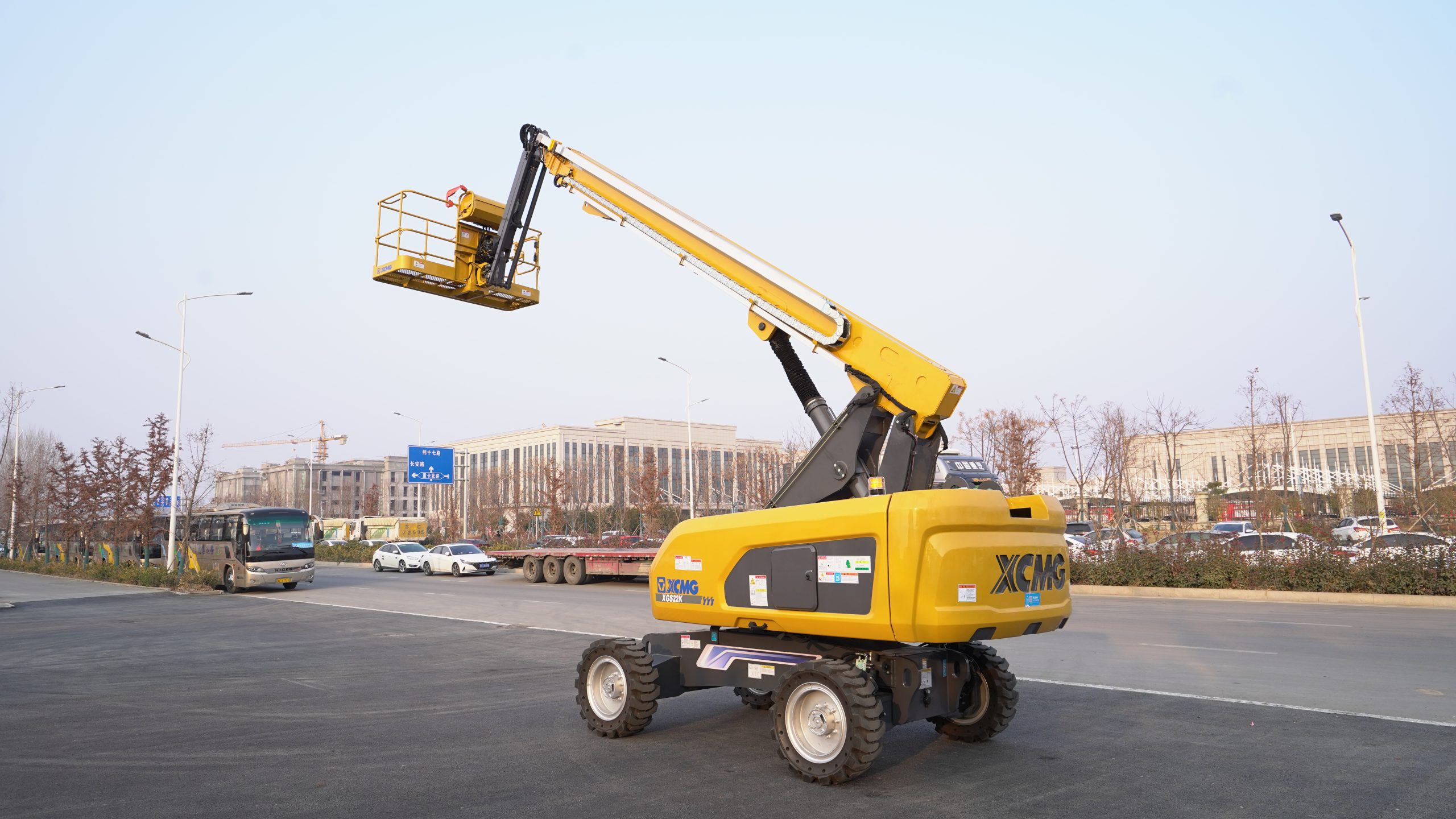

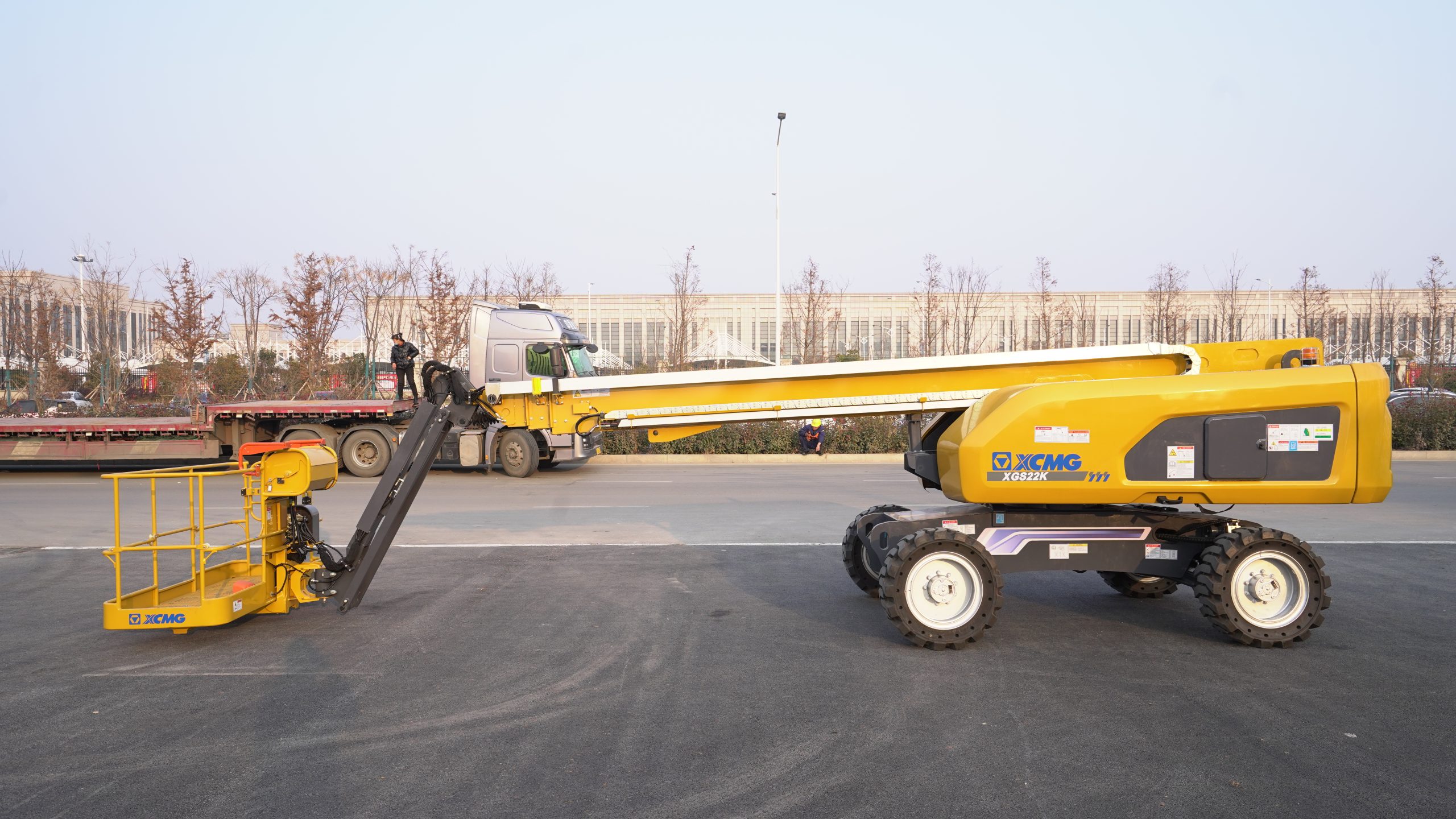

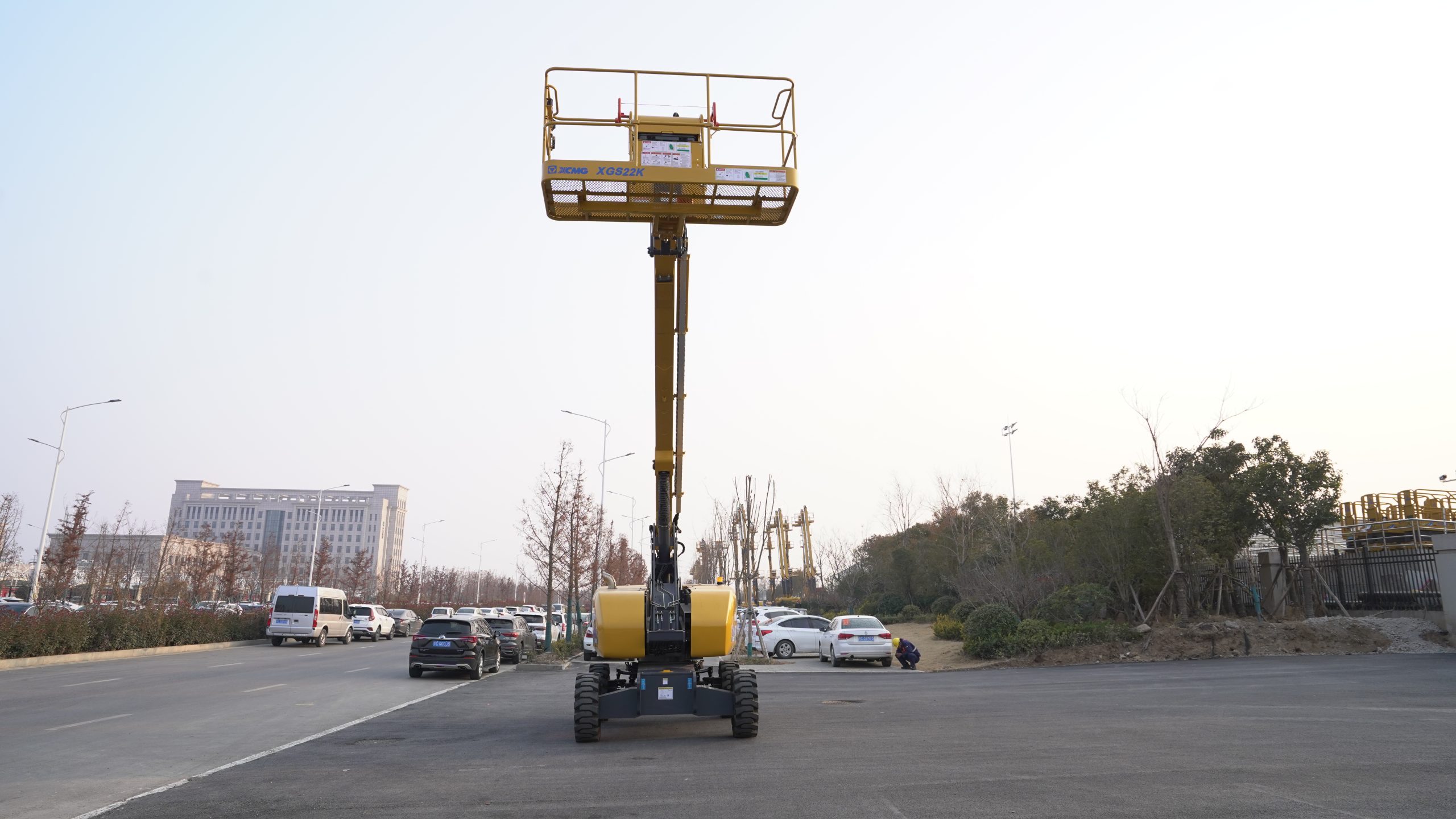

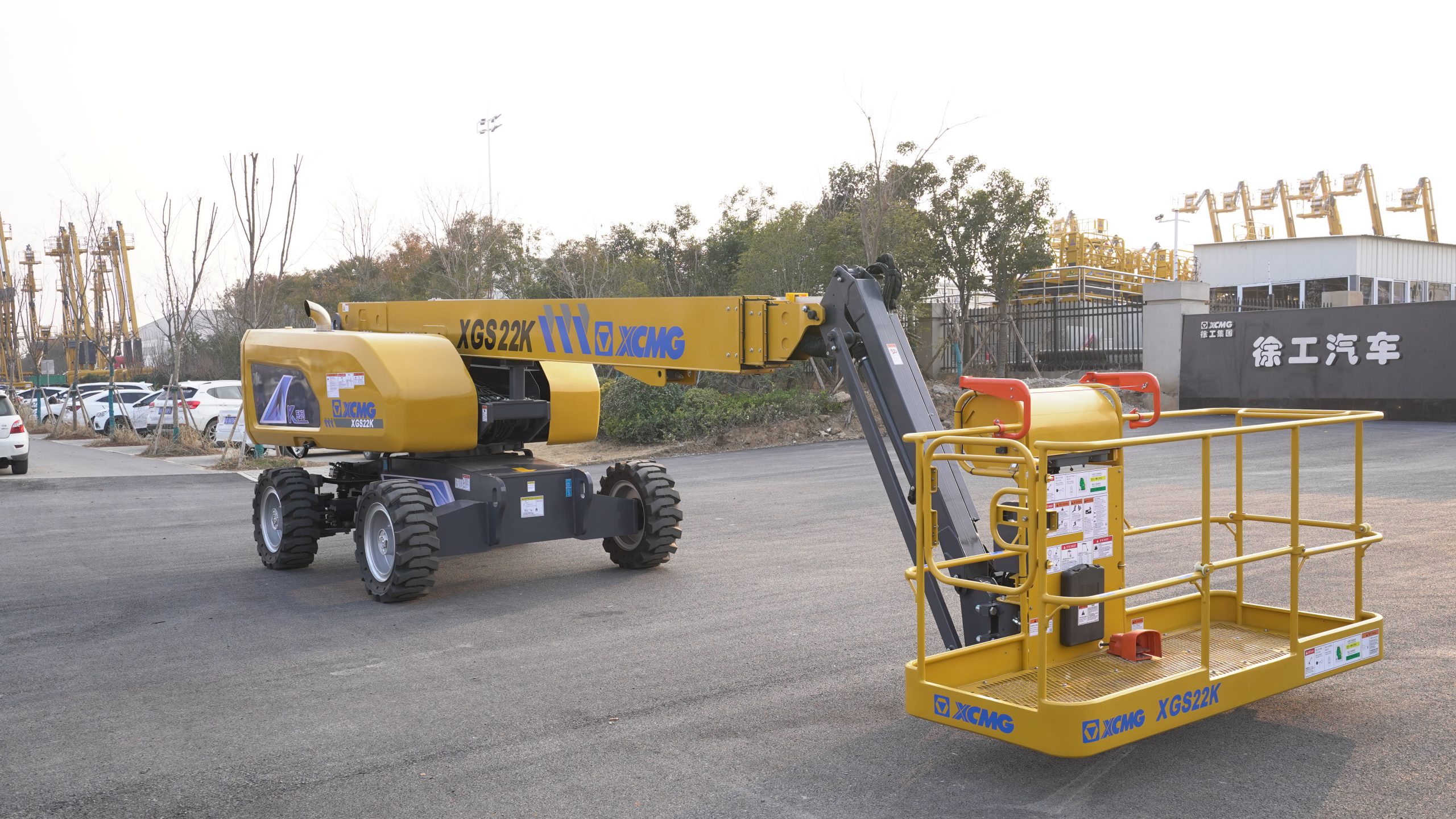

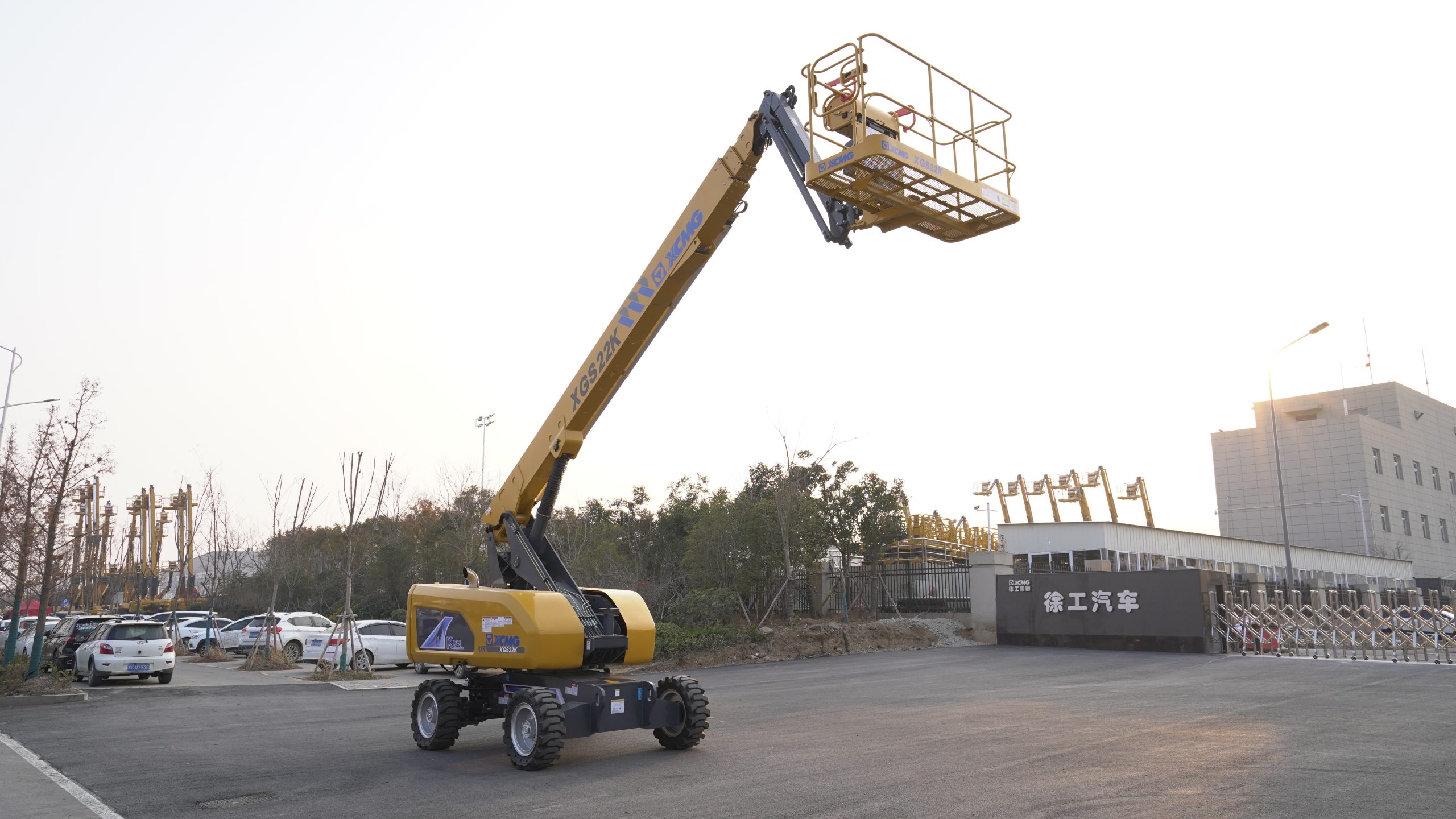

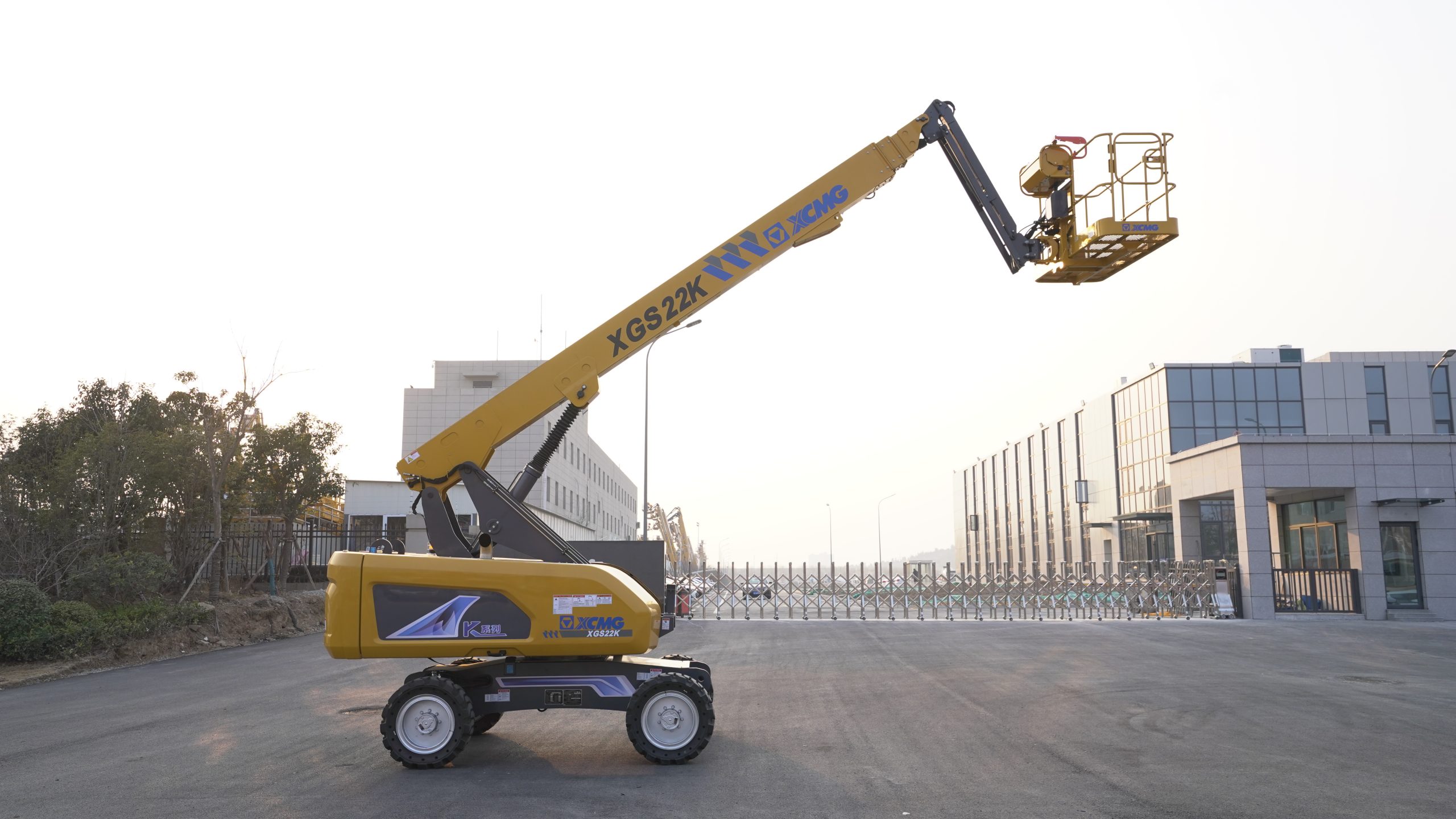

Boom Lift – Model XGS22K
The XCMG Australia XGS22K Boom Lift is engineered for dynamic material handling in warehouse and industrial settings. With robust strength and advanced features, it ensures precise and efficient elevation, handling capacities from 240kg to 1.5t. This boom lift combines power and agility, offering reliable solutions for Elevated Maintenance Platforms, Personnel Lifts, and Facilities Platforms. Explore our range of Electric Boom Lifts and Outdoor Access Equipment, all designed to optimize operational efficiency. Trust XCMG Australia’s commitment to delivering innovative material handling solutions.
Product Overview
| Maximum Working Height | 22 m |
| Maximum Platform Height | 20 m |
| Load Capacity | 300 / 460 (Limits) kg |
| Minimum Ground Clearance | 230 mm |
| Working Radius | 17.2 m |
| Minimum Turning Radius | 3.28 m Inside 6 m Outside |
| 1st Boom Lufffing Range | -3～+73 Degrees |
| Fly Jib Luffing Range | -65～+70 Degrees |
| Rotation Angle of Turntable | 360o |
| Maximum Tail Wagging | 1310 mm |
| Platform Size | 2440 x 900 x 1150 mm |
| Rotation Angle of Platform | 160o |
| Total Machine Weight | 12460 kg |
| Maximum Travel Speed | 6.3 km/h Stowed 0.6 km/h Raised |
| Maximum Gradeability | 45% 24o Counterweight End Up 30 % 17o Counterweight End Down |
| Overall Length | 10.08 m Stowed in Operation 9.85 m Transport Short Arm Folded Down |
| Overall Width | 2.49 m |
| Overall Height | 2.53 m |
| Tyre Specifications | 36×14-20 355/55D625 |
| Wheelbase | 2.5 m |
| Fuel Tank | 150 L |
| Hydraulic Tank | 120 L |
| Rated Power | 36.5kW/(2600r/min) |
| Engine Type | Kubota V2403BM-DI-CTO4e (stage Ⅲ) 36.0kW/2600rpm |
