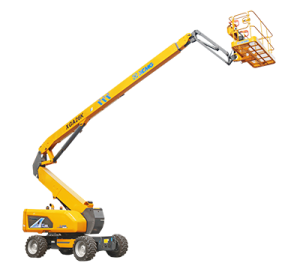

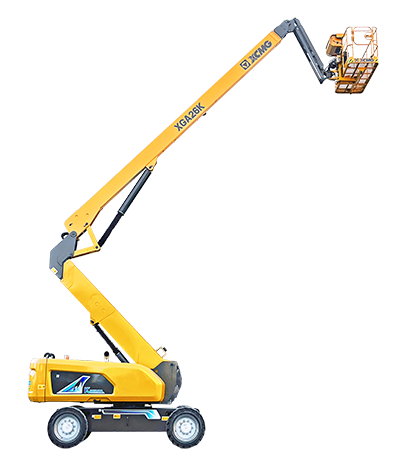

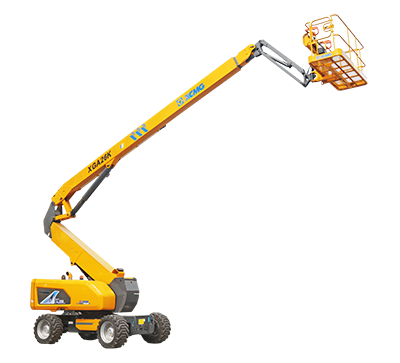

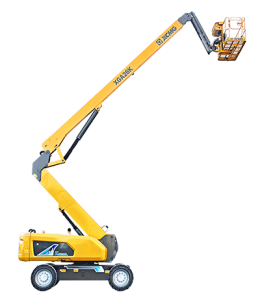

Boom Lift – Model XGA26K

The XCMG Australia XGA26K Boom Lift is designed for dynamic material handling in warehouse and industrial settings. With a load capacity of 150/256 kg and a weight of 18,100 kg, it ensures precise and efficient elevation. Combining power and agility, this boom lift offers reliable solutions for Elevated Maintenance Platforms, Personnel Lifts, and Facilities Platforms. Explore our range of Electric Boom Lifts and Outdoor Access Equipment, all engineered to enhance operational efficiency. Trust XCMG Australia’s commitment to innovative material handling solutions.

Key Specs

Max. Working Height

26.6 m

Max. Platform Height

24.6 m

Load Capacity

150 / 256 kg

Total Weight

18100 kg18100

Product Overview

SPECIFICATIONS

Maximum Working Height	26.6 m
Maximum Platform Height	24.6 m
Load Capacity	150 / 256 kg
Minimum Ground Clearance	380 mm
Working Radius	19.5 m
Minimum Turning Radius	2.2 m Inside 4.4 m Outside
1st Boom Lufffing Range	-1～+70 Degrees
2nd Boom Lufffing Range	-35～+68 Degrees
Fly Jib Luffing Range	-65～+70 Degrees
Rotation Angle of Turntable	360^o
Maximum Tail Wagging	1330 mm
Platform Size	2400 x 900 mm
Rotation Angle of Platform	160^o
Total Machine Weight	18100 kg
Maximum Travel Speed	5 km/h Stowed 0.6 km/h Raised
Maximum Gradeability	45%
Overall Length	11760 mm 9900 mm Transport
Overall Width	2490 mm
Overall Height	2950 mm
Tyre Specifications	36×14-20 355/55D625
Wheelbase	3000 mm
Fuel Tank	180L
Hydraulic Tank	150 L
Rated Power	48 kW/(2400 r/min)
Engine Type	Kubota V2607
