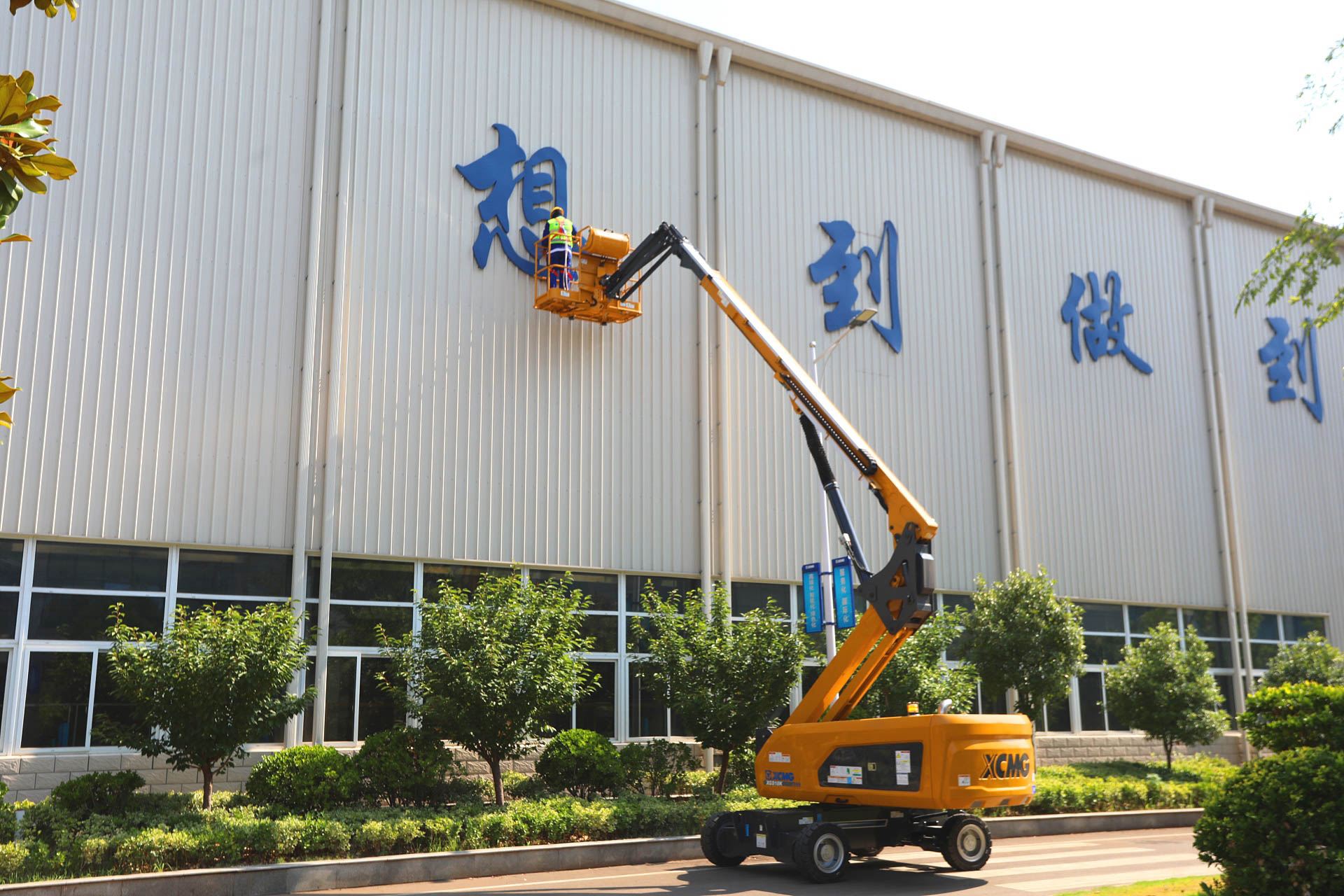

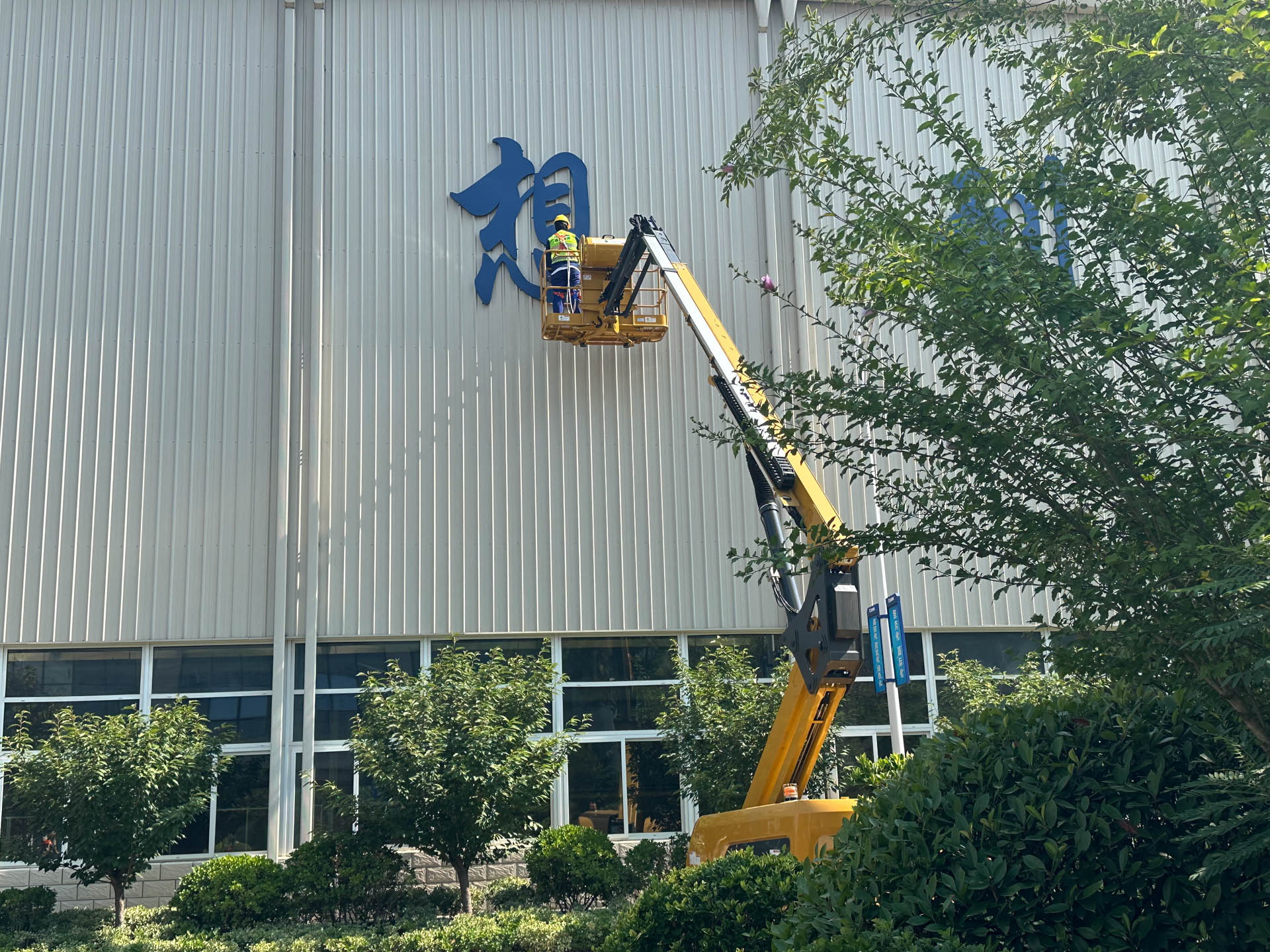

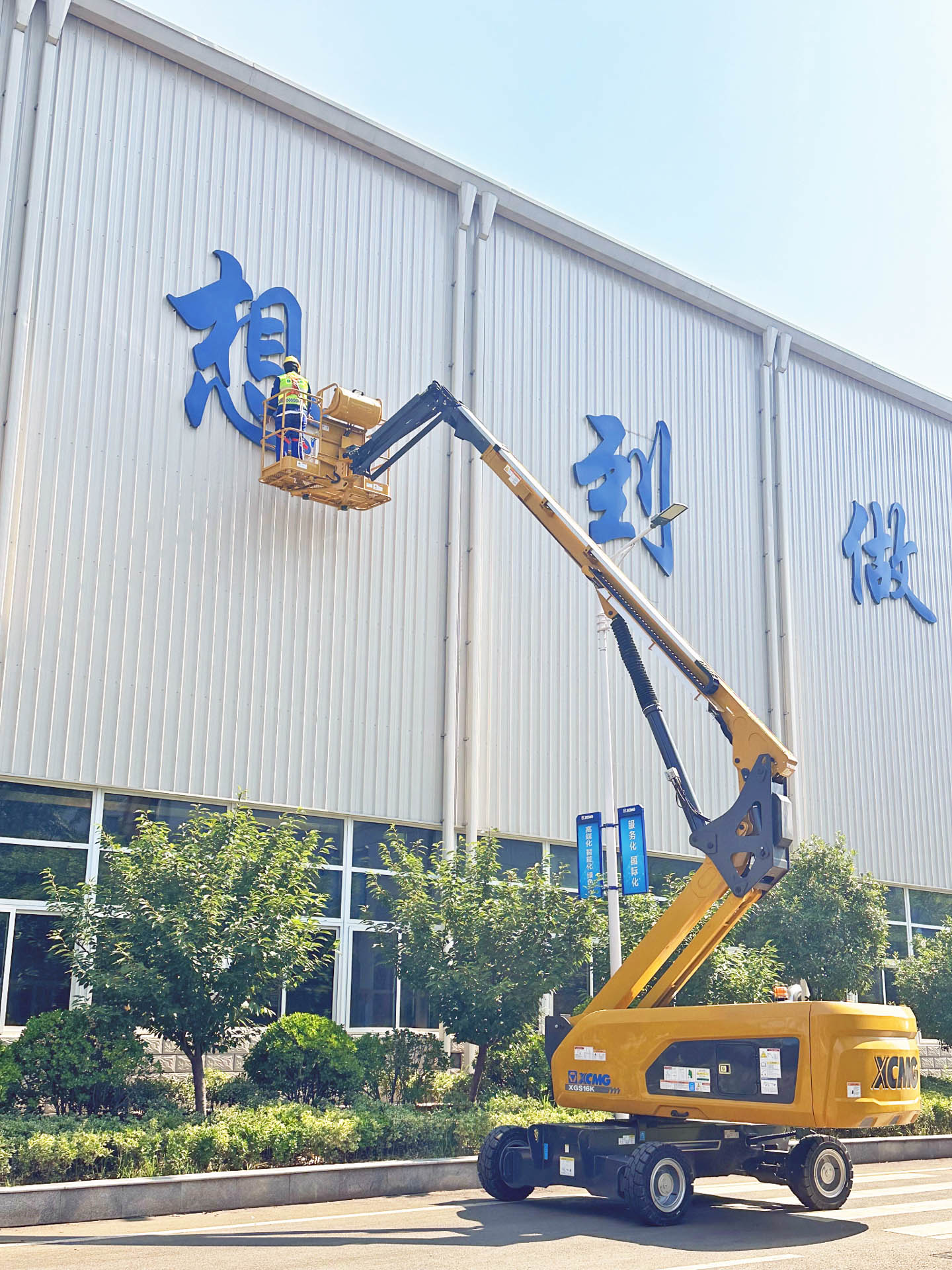

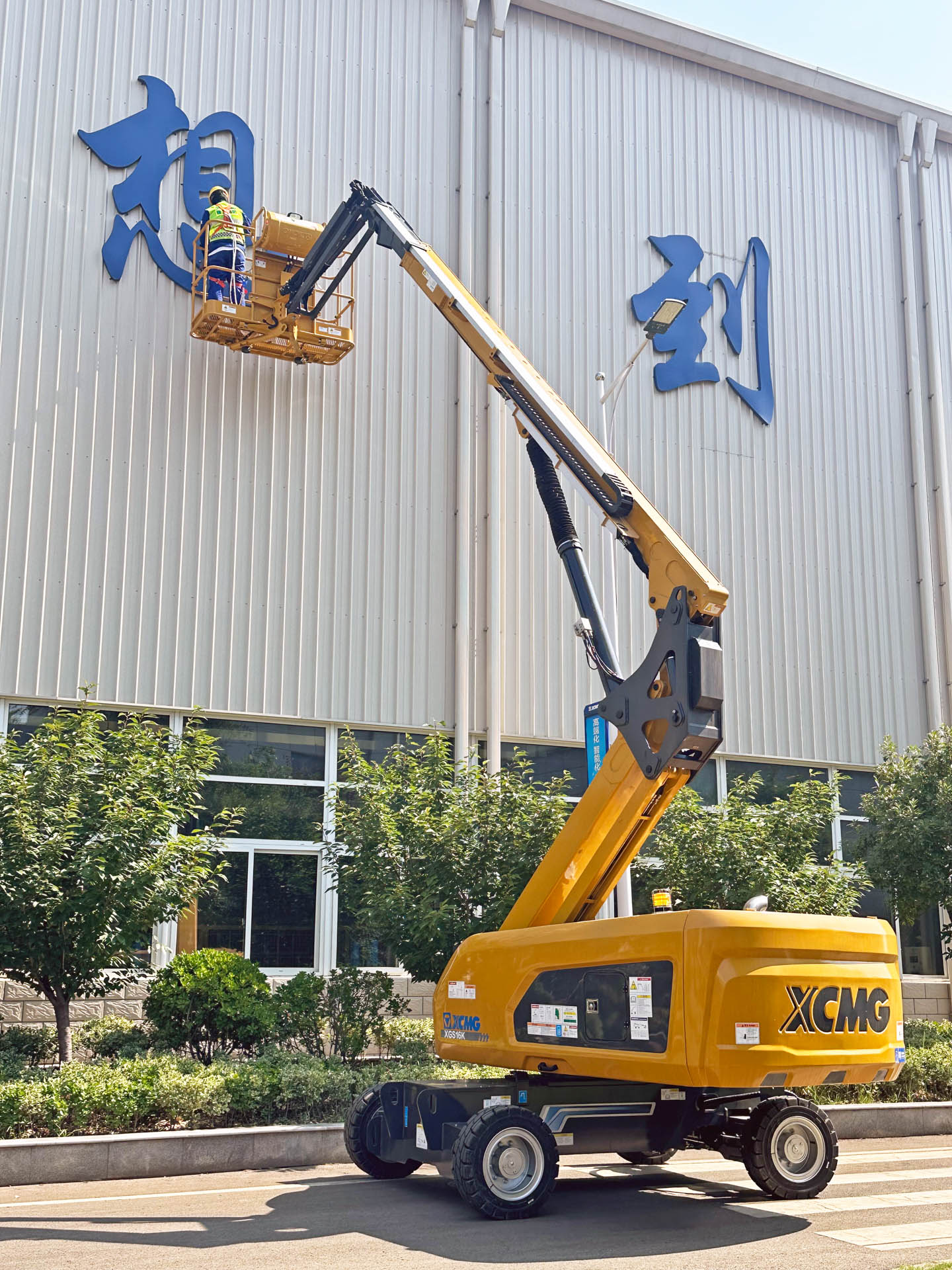

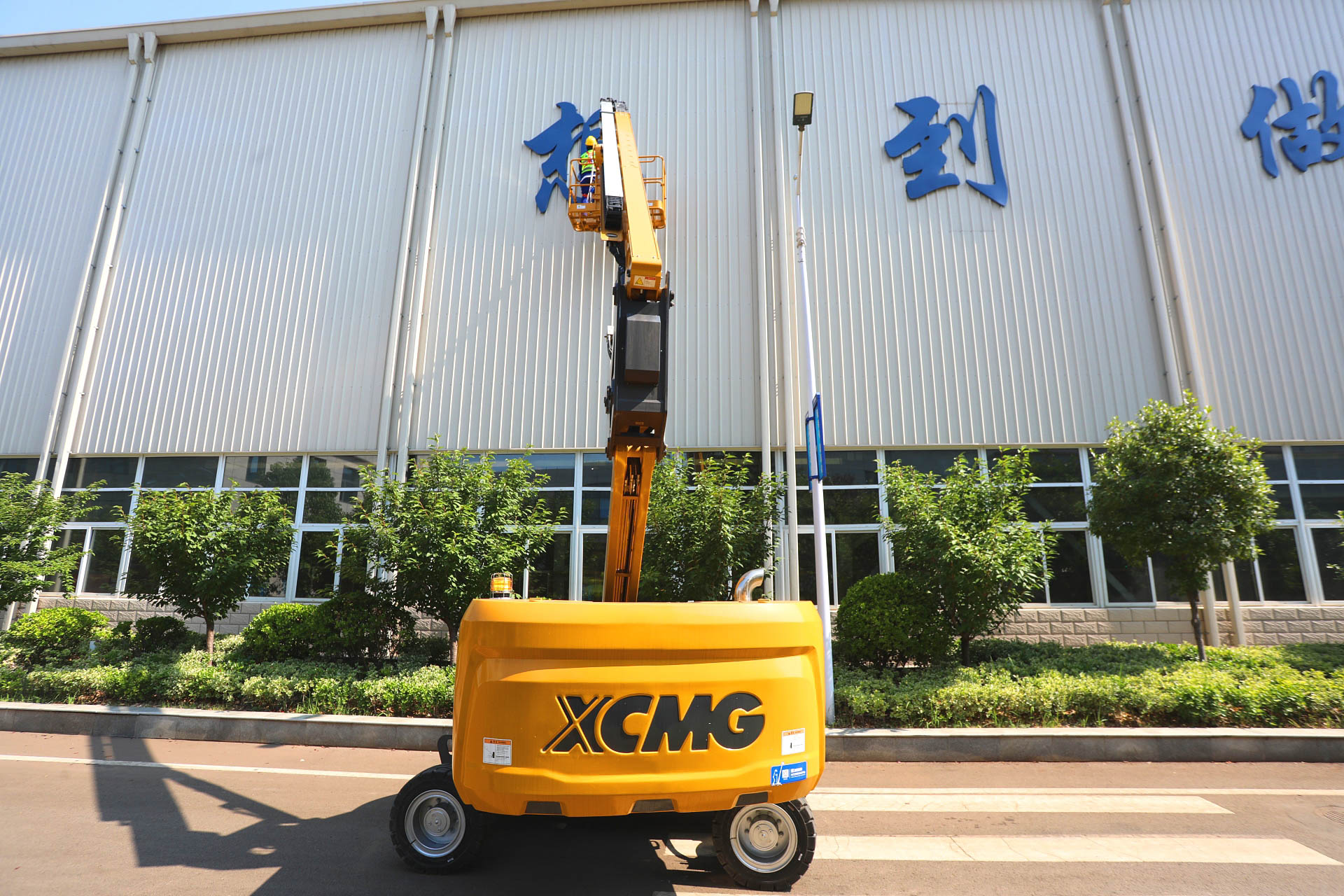

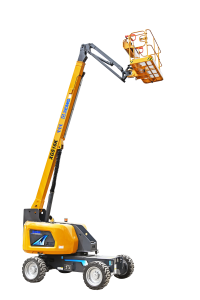

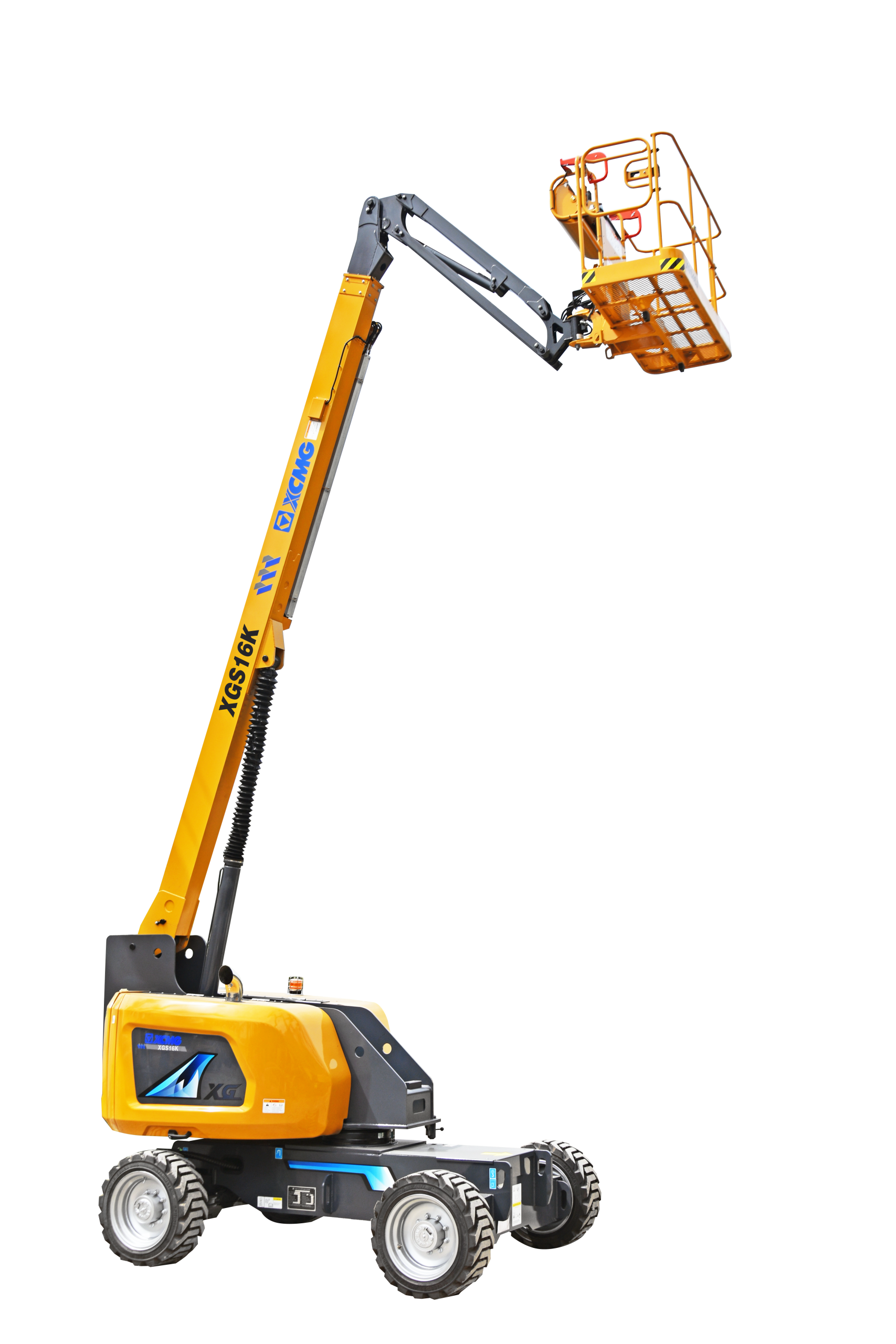

Boom Lift – Model XGS16K
The XCMG Australia XGS16K Boom Lift is designed for efficient material handling in warehouses and industrial settings. With capacities from 220kg to 1.5t, it combines strength and agility for reliable elevation solutions. Whether for Maintenance Platforms, Personnel Lifts, or facility needs, XCMG Australia offers practical and innovative options. Explore our Electric Boom Lifts to enhance operational efficiency. Trust XCMG Australia for reliable material handling solutions.
Product Overview
| Maximum Working Height | 16 m |
| Maximum Platform Height | 14 m |
| Working Radius | 12.7 m |
| Load Capacity | 272/350 kg |
| Minimum Ground Clearance | 0.3 m |
| Minimum Turning Radius | 1.9 m Inside 4.7 m Outside |
| Boom Lufffing Range | -14～+73 Degrees |
| Fly Jib Luffing Range | -65～+70 Degrees |
| Rotation Angle of Turntable | 360o |
| Maximum Tail Swing Stowed | 1120 mm |
| Platform Size | 1830 mm x 760 mm x 1150 mm |
| Rotation Angle of Platform | 160o |
| Total Machine Weight | 8050 kg |
| Maximum Travel Speed | 6 km/h Contracted 0.6 km/h Extended |
| Maximum Gradeability | 45% 24o Counterweight End Up 40% 21o Counterweight End Down |
| Overall Length | 9.4 m Stowed in Operation 9.1 m Transport Short Arm Folded Down |
| Overall Width | 2.3 m |
| Overall Height | 2.48 m |
| Tyre Specifications | 835×295-20/7.5 |
| Wheelbase | 2.36 m |
| Batteries | 12V DC Proportional Control |
| Engine Type | Kubota V2403BM-DI-CTO4e (stage Ⅲ) |
| Engine Power Rating | 36.0kW/2600rpm |
| Fuel Tank | 90 L |
| Hydraulic Tank | 120 L |
