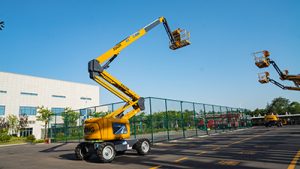

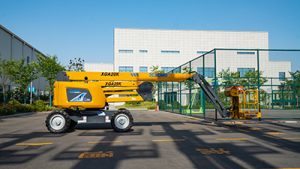

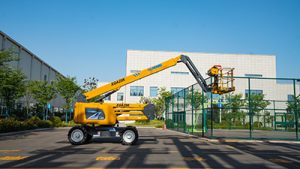

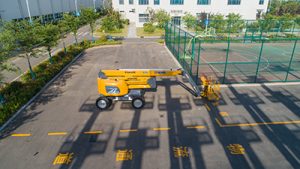

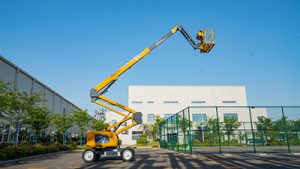

BOOM LIFT – MODEL XGA20K

The XCMG Australia XGS20K Boom Lift is designed for efficient material handling in warehouses and industrial settings. With a load capacity of 256/350 kg, this boom lift combines strength and agility for precise elevation tasks. Whether you need Maintenance Platforms, Personnel Lifts, or facility solutions, XCMG Australia offers reliable and innovative options. Explore our lineup, including Electric Boom Lifts, to enhance your operational efficiency. Trust XCMG Australia for practical material handling solutions.

Key Specs

Max. Working Height

20.63 m

Max. Platform Height

18.63 m

Load Capacity

256/350 kg

Total Weight

9900 kg

Product Overview

SPECIFICATIONS

Maximum Working Height	20.63 m
Maximum Platform Height	18.63 m
Load Capacity	256/350 (Limited) kg
Minimum Ground Clearance	330 mm
Minimum Turning Radius	2.3 m Inside 5.0 m Outside
1st Boom Lufffing Range	0～+72 Degrees
2nd Boom Lufffing Range	0～+73 Degrees
Fly Jib Luffing Range	-65～+70 Degrees
Rotation Angle of Turntable	360^o Discontinuous Rotation
Maximum Tail Swing Stowed	540 mm
Platform Size	1.83 m x 0.76 m x 1.15 m
Rotation Angle of Platform	160^o
Total Machine Weight	9900 kg
Maximum Travel Speed	5.5 km/h Contracted 0.6 km/h Extended
Maximum Gradeability	30% Counterweight End Up 45% Counterweight End Down
Overall Length	8.52 m Stowed in Operation 6.26 m Transport Short Arm Folded Down
Overall Width	2.3 m
Overall Height	2.4 m Stowed in Operation 3m Transport Short Arm Folded Down
Tyre Specifications	36 X 14-20 355/55D625
Wheelbase	2.5 m
Batteries	12V DC Proportional Control
Engine Type	Kubota V2403BM-DI-CTO4e (stage Ⅲ)
Engine Power Rating	36.0kW/2600rpm
