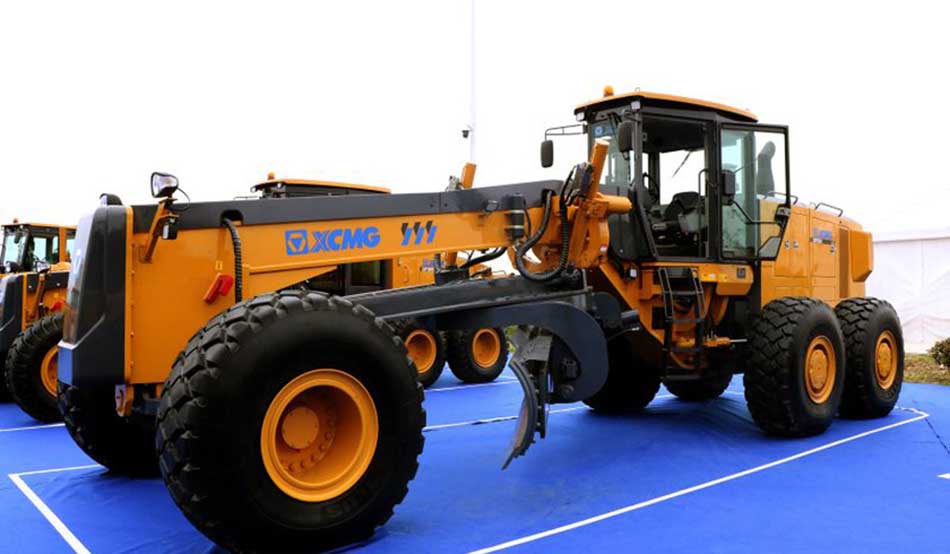

XCMG Motor Grader – Model: GR3505
The XCMG GR3505 Motor Grader delivers precise grading, exceptional control, and robust reliability for roadwork, infrastructure, and maintenance applications.
Equipped with a powerful engine and responsive hydraulic system, the GR3505 offers smooth blade movement and accurate surface preparation. Designed for comfort and efficiency, its ergonomic cabin ensures optimal visibility and operator ease during extended use. Built for durability with low maintenance needs and consistent performance, this grader is an excellent choice for vital site operations requiring dependable grading solutions.
Product Overview – XCMG Motor Grader – Model: GR3505
| Engine Model | Cummins QSM 11 |
| Rated Power/Speed | 261/2200 hp/rpm |
| Overall Length | 11320 mm |
| Overall Width | 3400 mm |
| Overall Height | 4100 mm |
| Machine Weight | 32000 kg |
| Tire Specifications | 23.5 R25 |
| Axle Distance Between Front and Rear | 7300 mm |
| Wheel Base Between Middle and Rear | 1996 mm |
| Ground Clearance | 625 mm Front Axle |
| Drive Speed Forward | 1st 5 km/h 2nd 8.5 km/h 3rd 13 km/h 4th 20 km/h 5th 30 km/h 6th 45 km/h |
| Drive Speed Reverse | 1st 5 km/h 2nd 13 km/h 3rd 30 km/h |
| Traction Force f=0.75 | > 160 kN |
| Maximum Gradeability | 30 % |
| Work System Pressure | 25 mPa |
| Maximum Steering Angle Front Wheel | – 48o |
| Allowable Tilt Angle Front Wheel | -17o |
| Maximum Steering Angle Frame | -23o |
| Maximum Turning Radius | 9.6 m |
| Maximum Swinging Angle of Balance Box | 15o Front 15o Rear |
| Maximum Lifting Height | 470 mm |
| Blade Length | 4877 mm |
| Blade Height | 686 mm |
| Maximum Scraping Depth | 660 mm |
| Maximum Tilt Angle | 65o |
| Cutting Angle | 45o |
| Coolant | 50 L |
| Fuel Tank | 550 L |
| Engine | 37 L |
| Transmission Box | 38 L |
| Drive Axle | 106 L |
| Hydraulic Oil | 210 L |
| Balance Box | 186 L |
