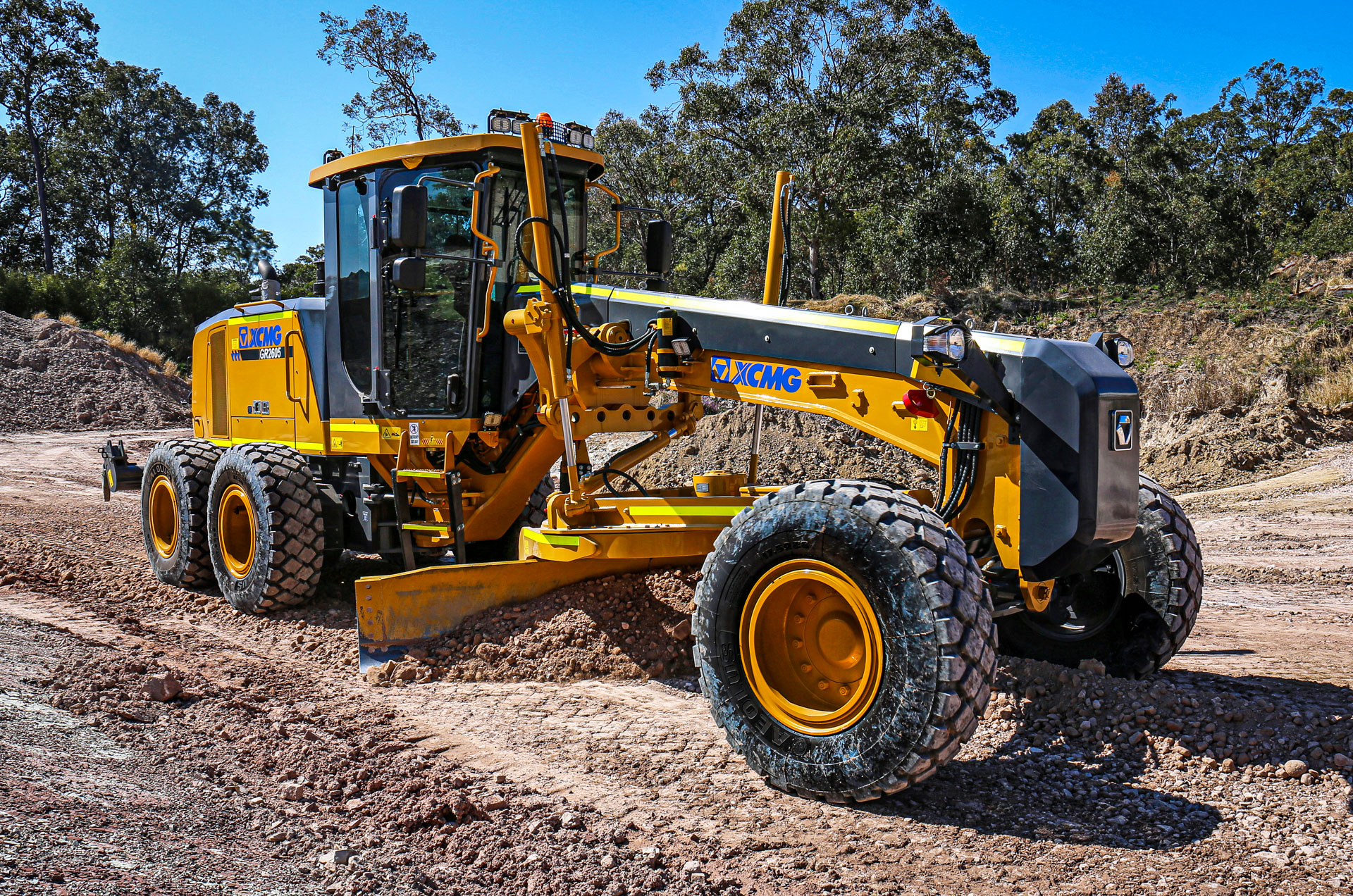

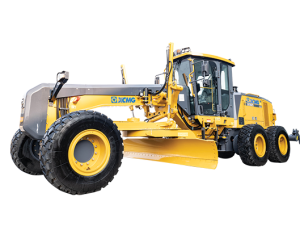

Motor Grader – Model: GR2605
Introducing the XCMG Motor Grader – Model: GR2605, your ultimate grading solution. If you’re in search of a dependable road grader, look no further. The GR2605 is your answer for all grading requirements. Its robust motor grader blade pitch and exceptional grading precision make it an excellent choice for road grading, surface leveling, and various other applications. XCMG’s GR2605 guarantees unmatched performance, making it the perfect pick for motor grading projects of any scale..
Product Overview
| Engine Model | Cummins QSL8.9 |
| Rated Power/Speed | 260/2200 hp/rpm |
| Overall Length | 9448 mm |
| Overall Width | 2625 mm |
| Overall Height | 3472 mm |
| Machine Weight | 19000 kg |
| Tire Specifications | 17.5 R25 |
| Variable Power by Gear | 1st 220 hp 2nd 220 hp 3rd 240 hp 4th 240 hp 5th 240 hp 6th 260 hp |
| Axle Distance Between Front and Rear | 6545 mm |
| Wheel Base Between Middle and Rear | 1622 mm |
| Ground Clearance | 310 mm Front Axle 592 mm Rear Axle |
| Tread | 2156 mm |
| Drive Speed Forward | 1st 4.9 km/h 2nd 8.0 km/h 3rd 11.0 km/h 4th 17.9 km/h 5th 24.7 km/h 6th 40.2 km/h |
| Drive Speed Reverse | 1st 4.9 km/h 2nd 11.0km/h 3rd 24.7 km/h |
| Traction Force f=0.75 | 99 kN |
| Maximum Gradeability | 25 % |
| Work System Pressure | 24.5 mPa |
| Transmission Box Pressure | 1.85 – 2.2 mPa |
| Maximum Steering Angle Front Wheel | – 49o |
| Allowable Tilt Angle Front Wheel | -18o |
| Maximum Steering Angle Frame | -25o |
| Maximum Turning Radius | 7.6 m |
| Maximum Lift Above the Ground | 452 mm |
| Blade Width | 12 ft Blade 3660 mm 14 ft Blade 4270 mm |
| Blade Height | 610 mm |
| Blade Thickness | 22 mm |
| Cutting Edge Width | 210 mm |
| Cutting Edge Thickness | 18 mm |
| End Edge Width | 150 mm |
| End Edge Thickness | 20 mm |
| Maximum Shoveling Depth | 755 mm |
| Maximum Tilt Angle | 90o |
| Cutting Angle | Front 40o Rear 5o |
| Slewing Angle | 360o |
| Coolant | 50 L |
| Fuel Tank | 418 L |
| Engine | 24 L |
| Transmission Box | 38 L |
| Tandem | 85 L / Side |
| Drive Axle | 44 L |
| Hydraulic Oil | 193 L |
| Maximum Ripping Depth | 410 mm |
| Rippers Weight | 1630 kg |
| Ripper Shanks | 5 |
| Penetration Force | 10478 kg |
| Pryout Force | 13549 kg |
