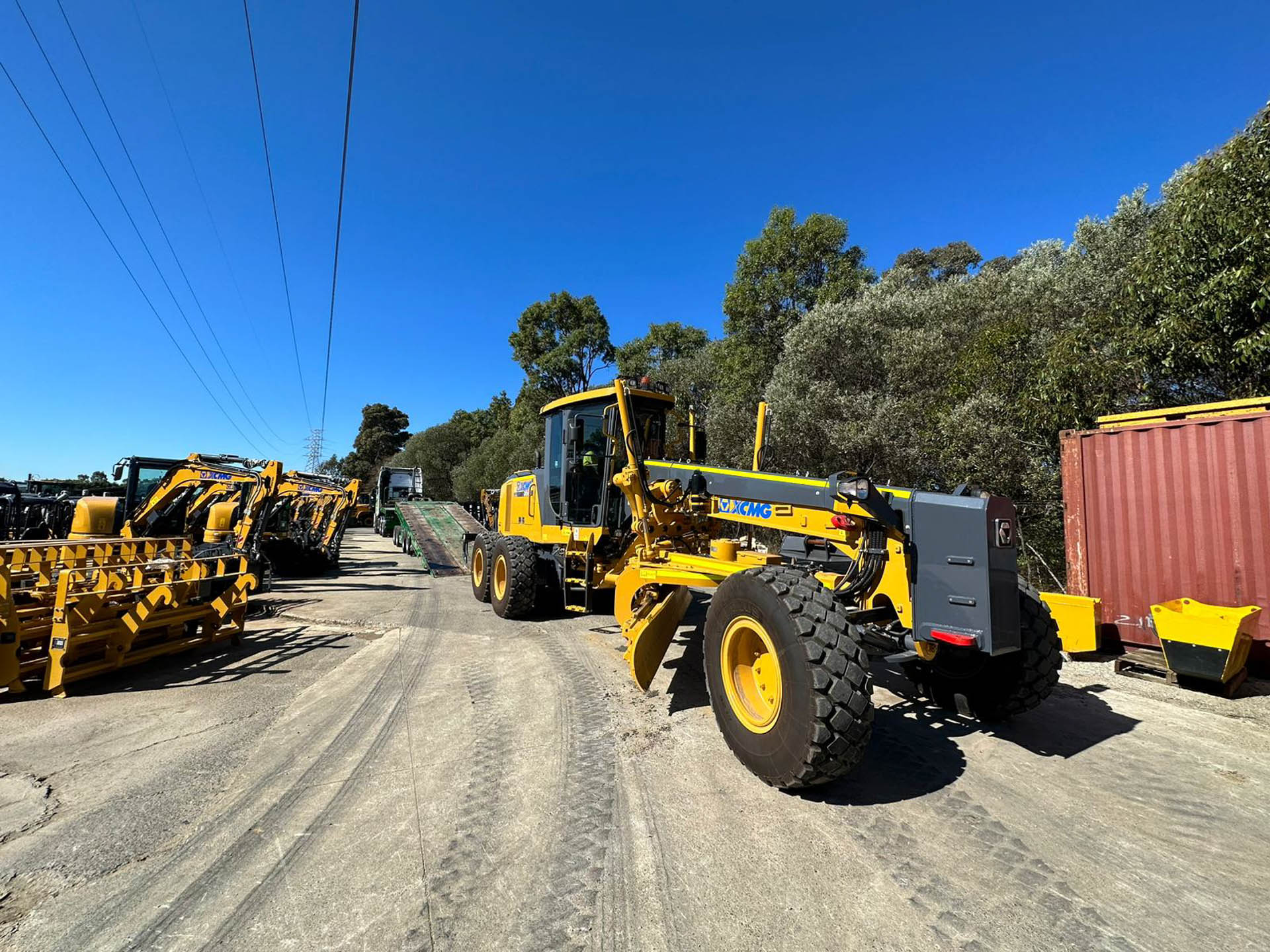

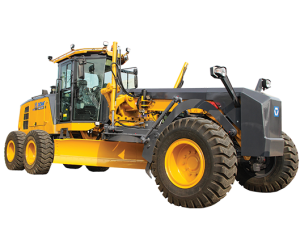

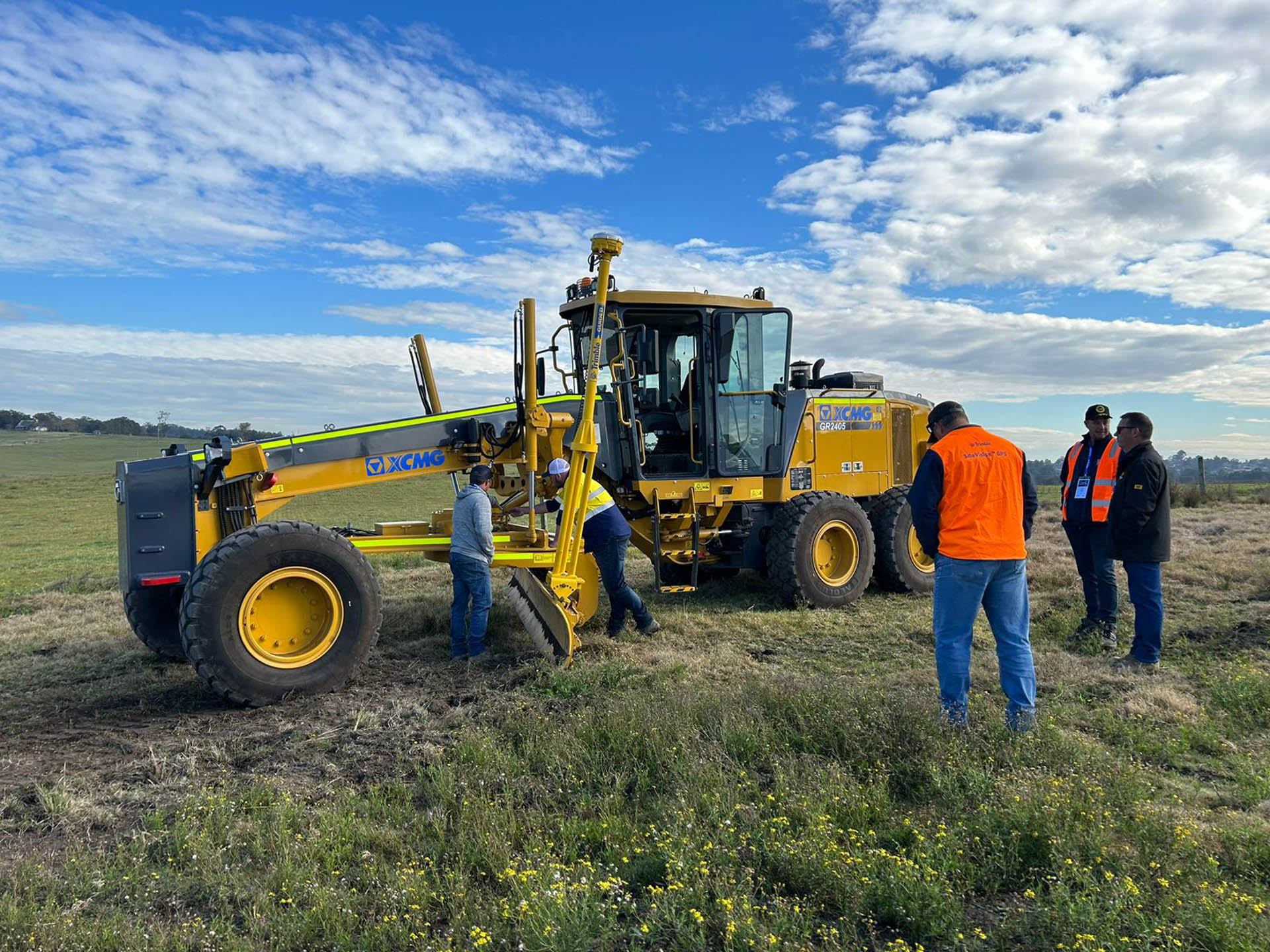

Motor Grader – Model: GR2405

Discover the XCMG Motor Grader – Model: GR2405, the ultimate solution for all your grading needs. If you’re in the market for a reliable road grader, this machine is your go-to grading equipment. With its powerful motor grader blade pitch and precision grading capabilities, the GR2405 is perfect for grading roads, leveling surfaces, and more. XCMG’s GR2405 ensures top-notch performance, making it the ideal choice for motor grading tasks of all sizes.

Key Specs

Engine

Cummins QSB6.7

Length

9333 mm

Rated Power/Speed

178/2200 kW/rpm

Machine Weight

17500 kg

Product Overview

SPECIFICATIONS

Engine Model	Cummins QSB6.7
Rated Power/Speed	178/2200 kW/hp
Overall Length	9333 mm
Overall Width	2625 mm
Overall Height	3472 mm
Machine Weight	17500 kg
Tire Specifications	17.5 R25
Wheel Track	2156 mm
Axle Distance Between Front and Rear	6471 mm
Wheel Base Between Middle and Rear	1538 mm
Drive Speed Forward	5.8/9.4/12.9/20.9/28.3/44.7
Drive Speed Reverse	5.8/12.9/28.3
Traction Force f=0.75	>91 kM
Maximum Gradeability	>25%
Tire Inflation Pressure	425 kPa
Work System Pressure	24.5 mpa
Transmission Box Pressure	1.85 – 2.2 mpa
Maximum Steering Angle Front Wheel	49^o
Allowable Tilt Angle Front Wheel	18^o
Maximum Oscillation Front Axle	16^o
Maximum Oscillation Balance Box	15^o Front and Rear
Maximum Steering Angle Frame	25^o
Maximum Turning Radius	7.6 m
Maximum Lift Above the Ground	480 mm
Maximum Cutting Depth	755 mm
Maximum Tilt Angle	90^o
Cutting Angle	Front 40^o Rear 5^o
Swivel Angle	360^o
Length x Height	3660 x 610 mm
Coolant	50 L
Fuel Tank	418 L
Engine	24 L
Transmission Box	38 L
Balance Box	75 L Each
Drive Axle	25 L
Hydraulic Oil	65 L
