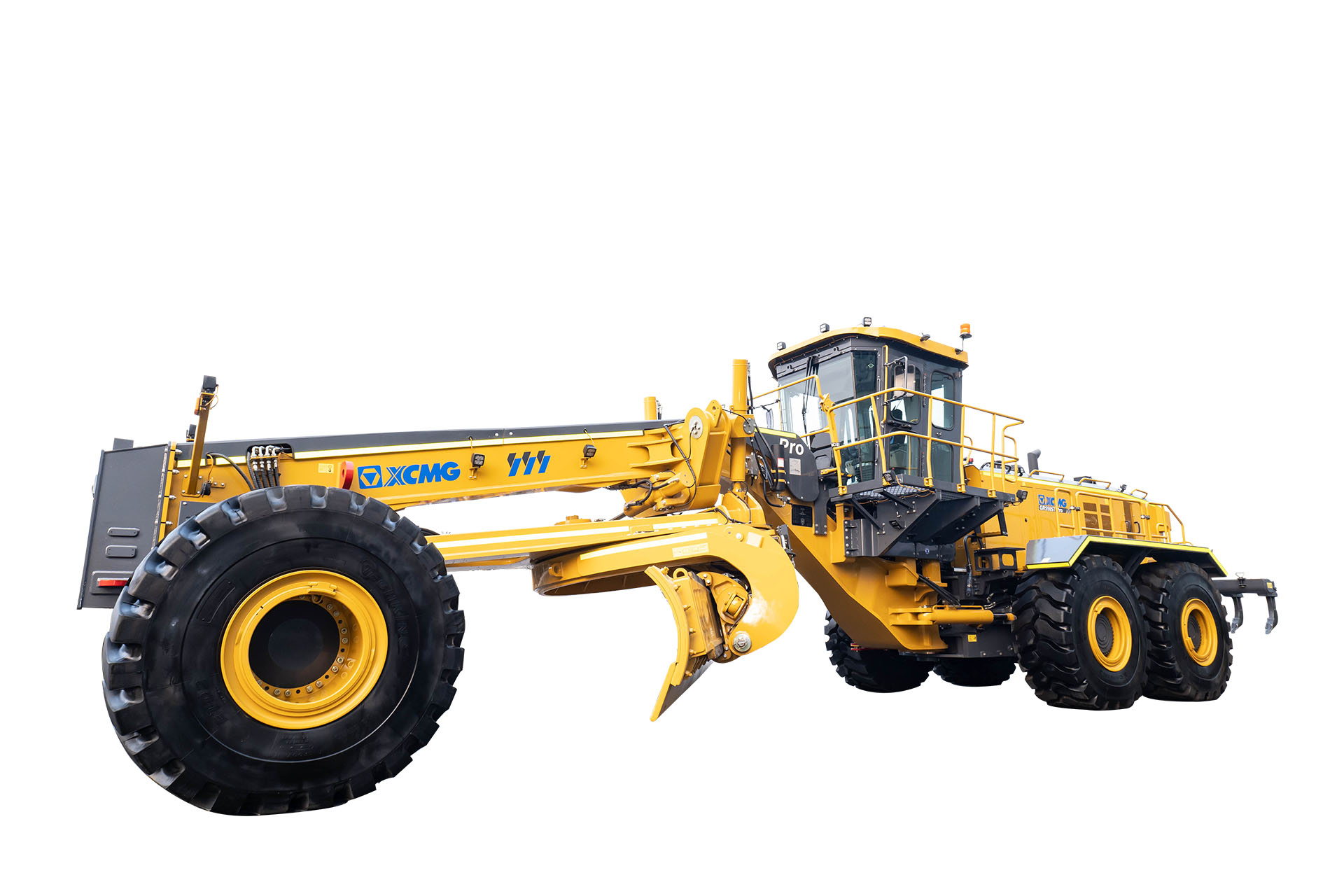

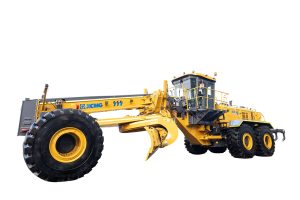

Motor Grader – Model: GR5505

Introducing the XCMG Motor Grader – Model: GR5505, your ultimate grading solution. When it comes to finding a reliable road grader, your search ends here. The GR5505 stands as the ideal solution for all your grading needs. With its sturdy motor grader blade pitch and exceptional precision in grading, it proves itself to be an outstanding choice for tasks such as road grading, surface leveling, and a wide range of other applications. Count on XCMG’s GR5505 to deliver unparalleled performance, making it the top choice for motor grading projects of any size.

Key Specs

Engine

2806D-E18TA

Length

16430 mm

Rated Power/Speed

447/2100 kW/rpm

Machine Weight

74000 kg

Product Overview

SPECIFICATIONS

Engine Model	2806D-E18TA
Rated Power/Speed	447/2100 hp/rpm
Overall Length	16430 mm
Overall Width	4460 mm
Overall Height	4810 mm
Machine Weight	74000 kg
Tire Specifications	29.5 R25
Axle Distance Between Front and Rear	10460 mm
Wheel Base Between Middle and Rear	2240 mm
Ground Clearance	890 mm Front Axle
Drive Speed Forward	1st 4.6 km/h 2nd 5.9 km/h 3rd 8.7 km/h 4th 11.7 km/h 5th 17.7 km/h 6th 25.1 km/h 7th 32.2 km/h 8th 42.7 km/h
Drive Speed Reverse	1st 4.5 km/h 2nd 8.7 km/h 3rd 17.2 km/h 4th 32.6 km/h
Traction Force f=0.75	> 390 kN
Maximum Gradeability	30 %
Work System Pressure	25 mPa
Maximum Steering Angle Front Wheel	48^o
Allowable Tilt Angle Front Wheel	18^o
Maximum Swinging Angle	20^o Front Axle 20^o Back Axle
Maximum Turning Radius	12.5 m
Maximum Lift Above the Ground	460 mm
Maximum Scraping Depth	553 mm
Maximum Tilt Angle	55^o
Cutting Angle	40^o
Angle of Revolution	340^o
