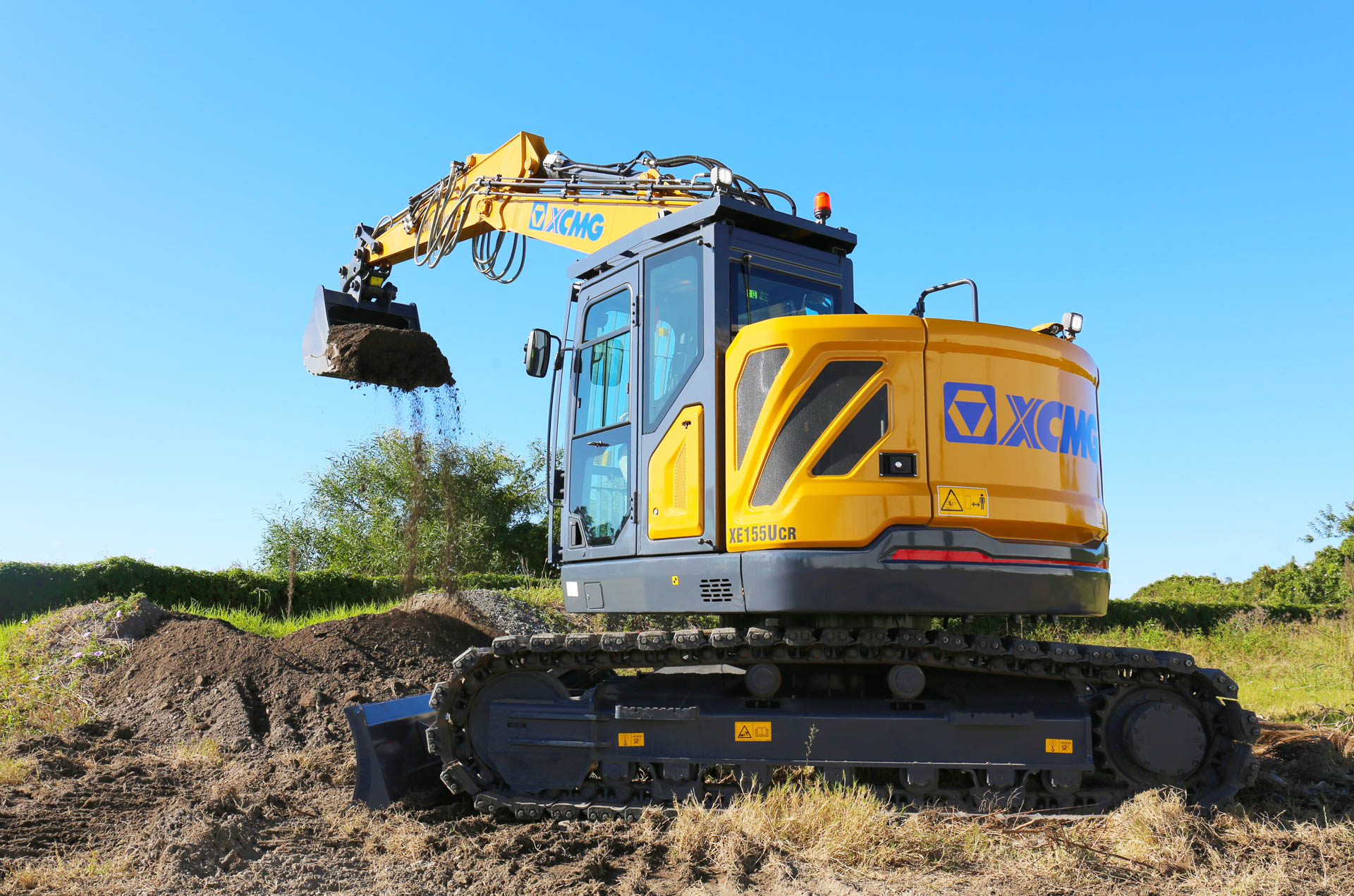

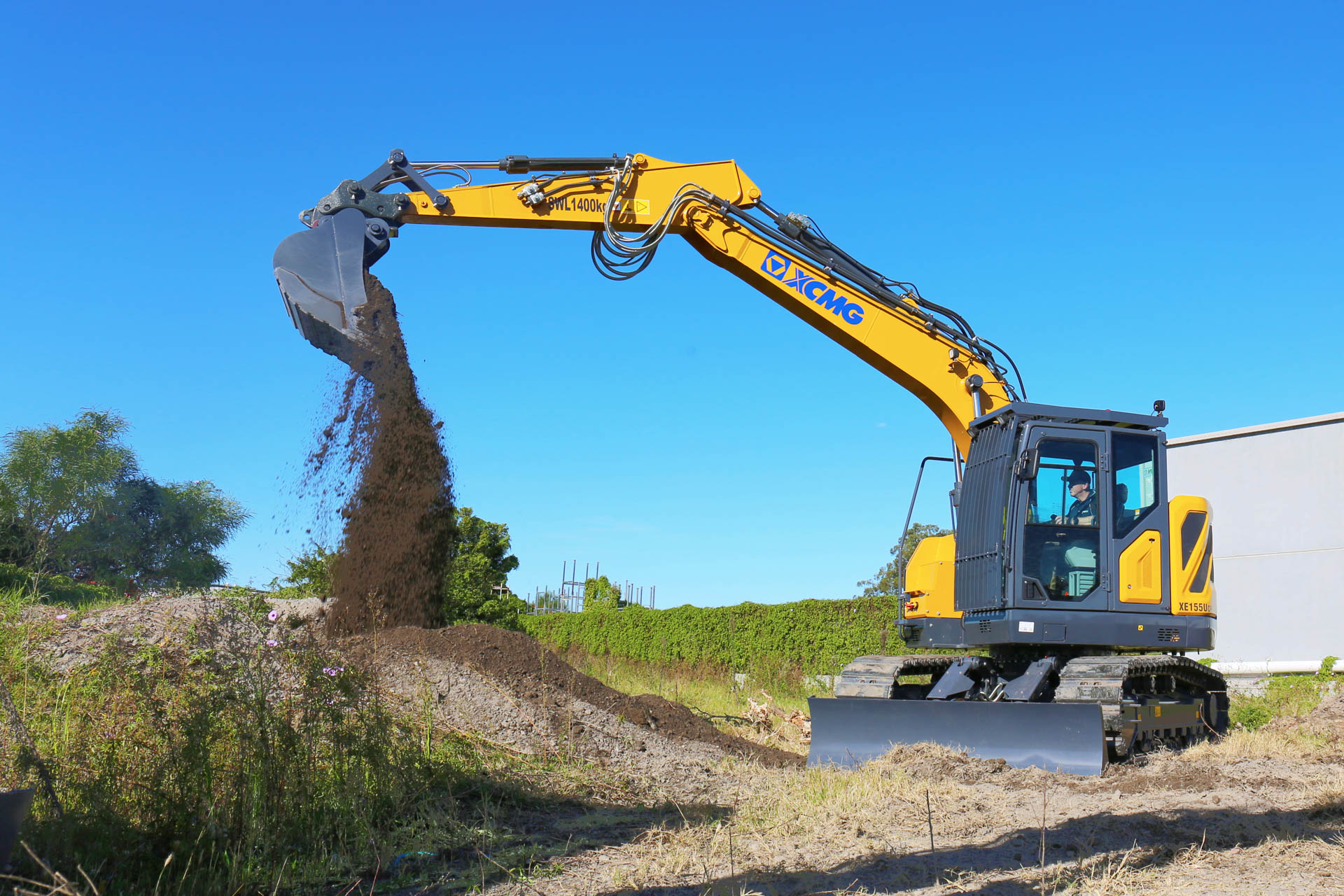

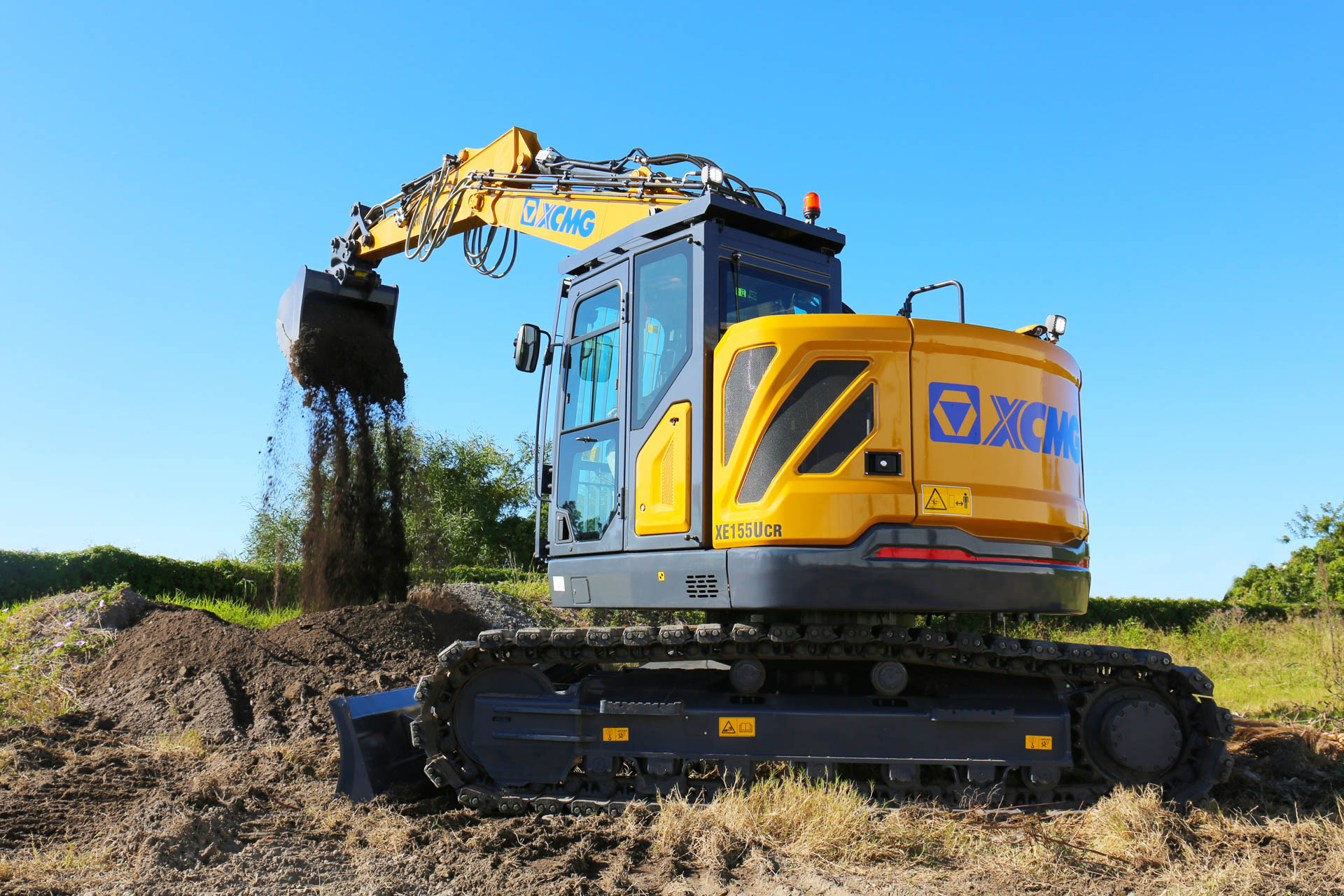

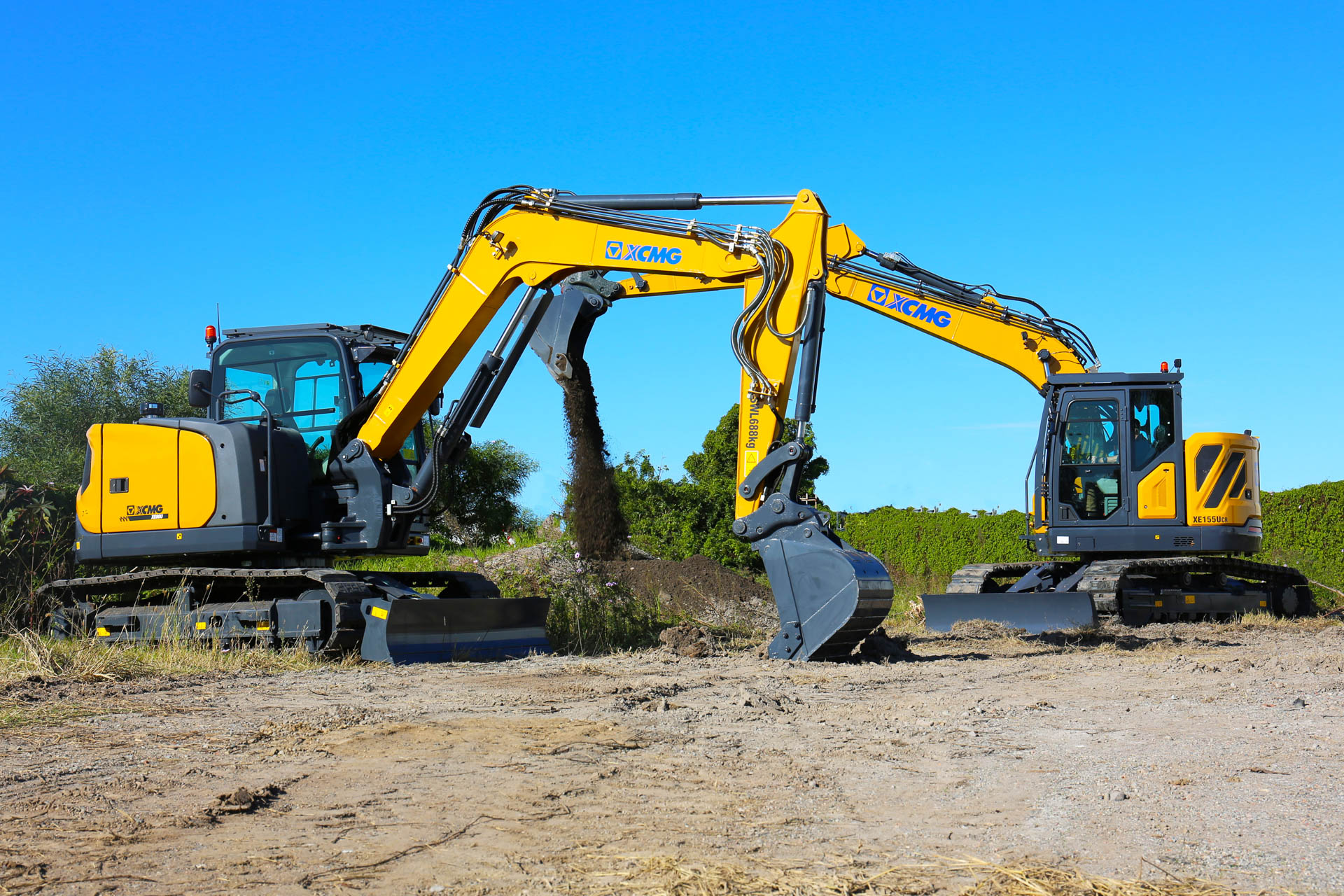

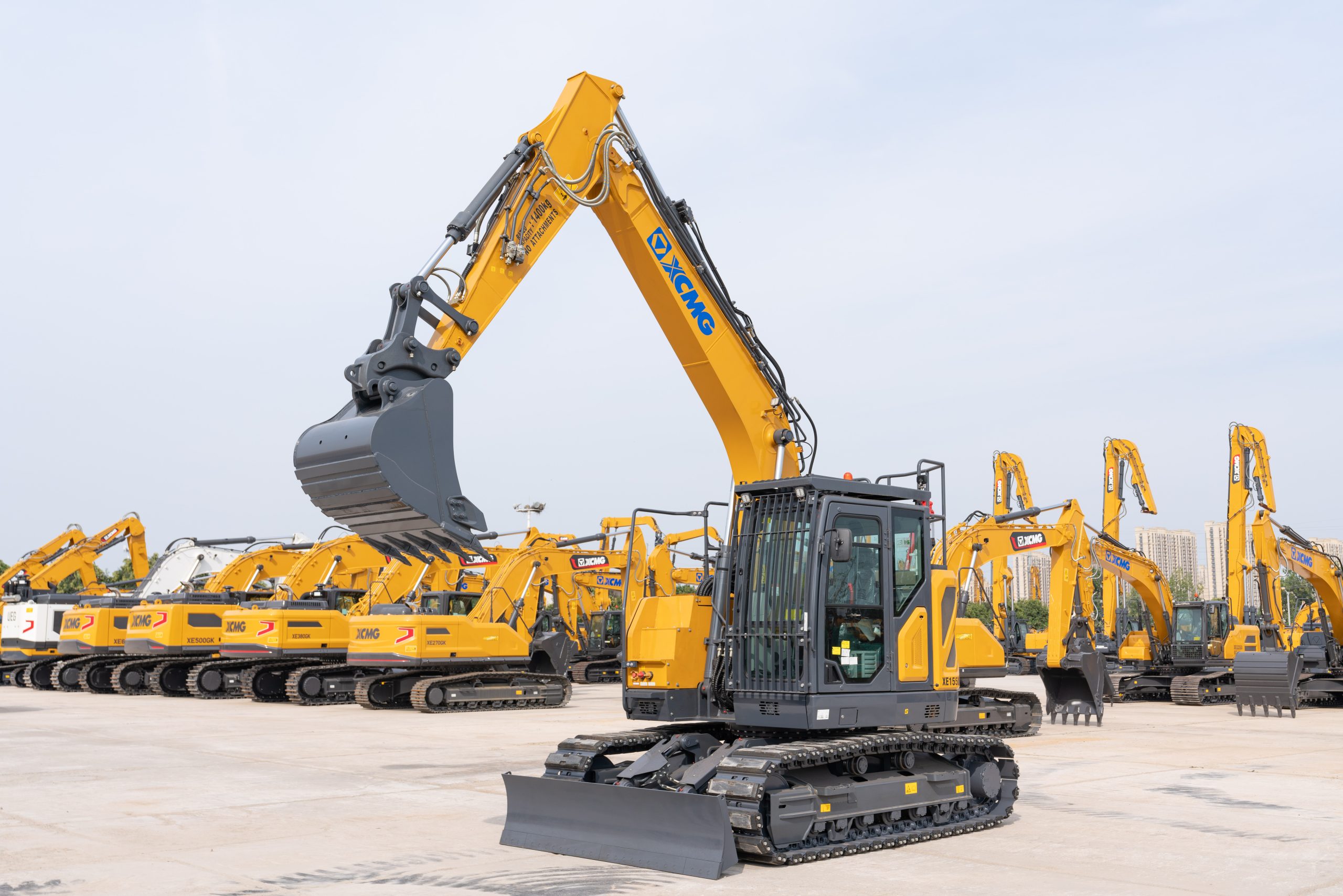

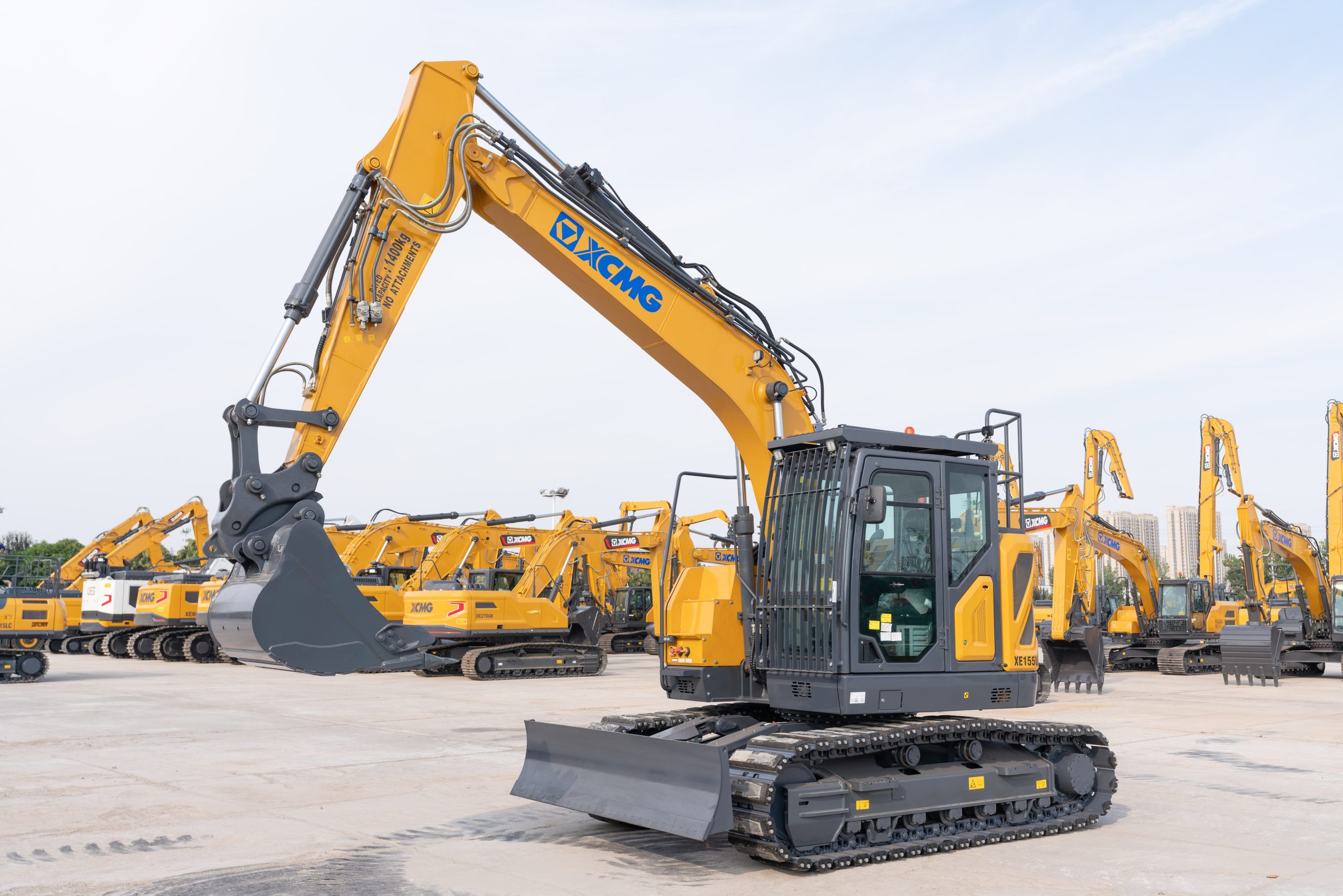

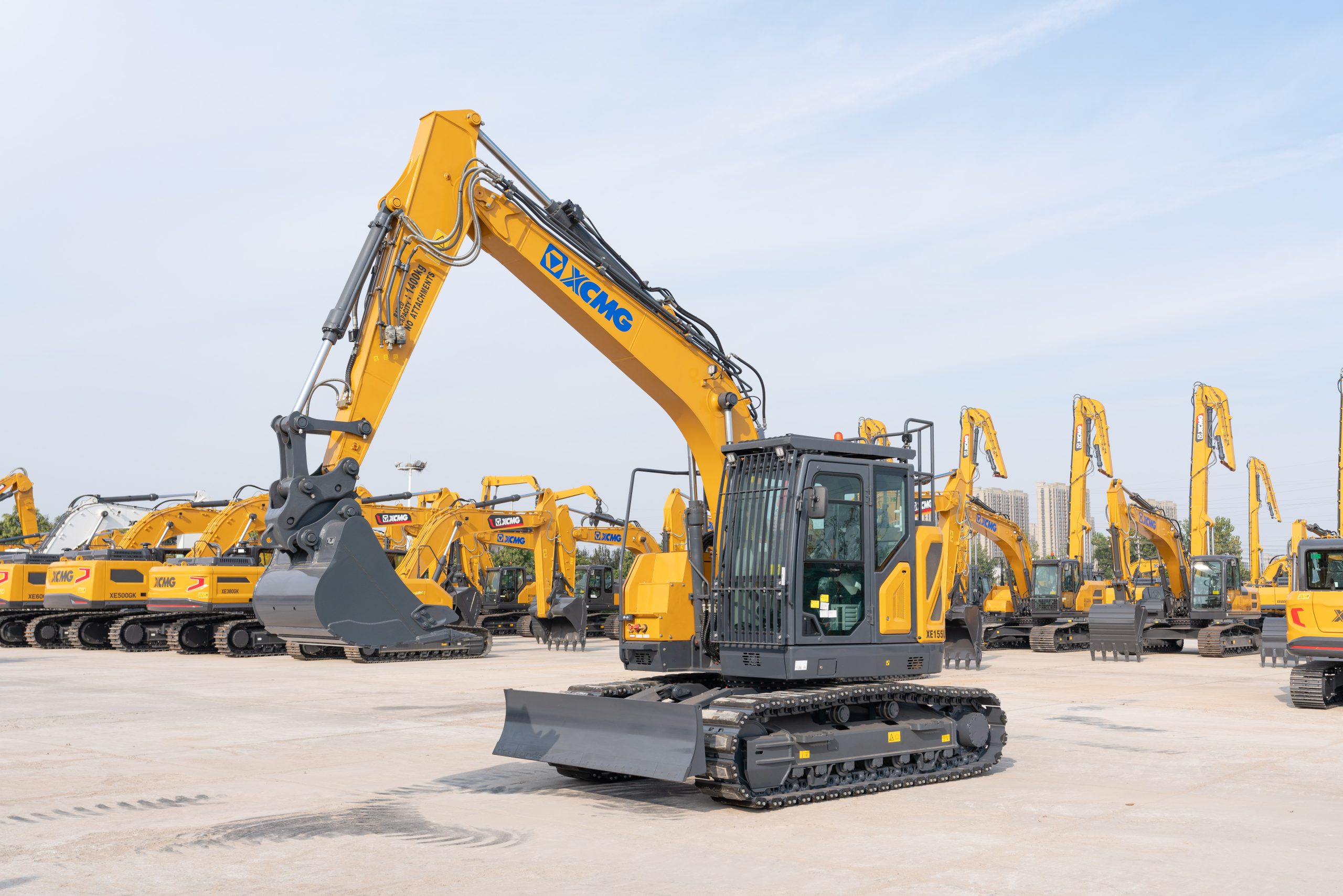

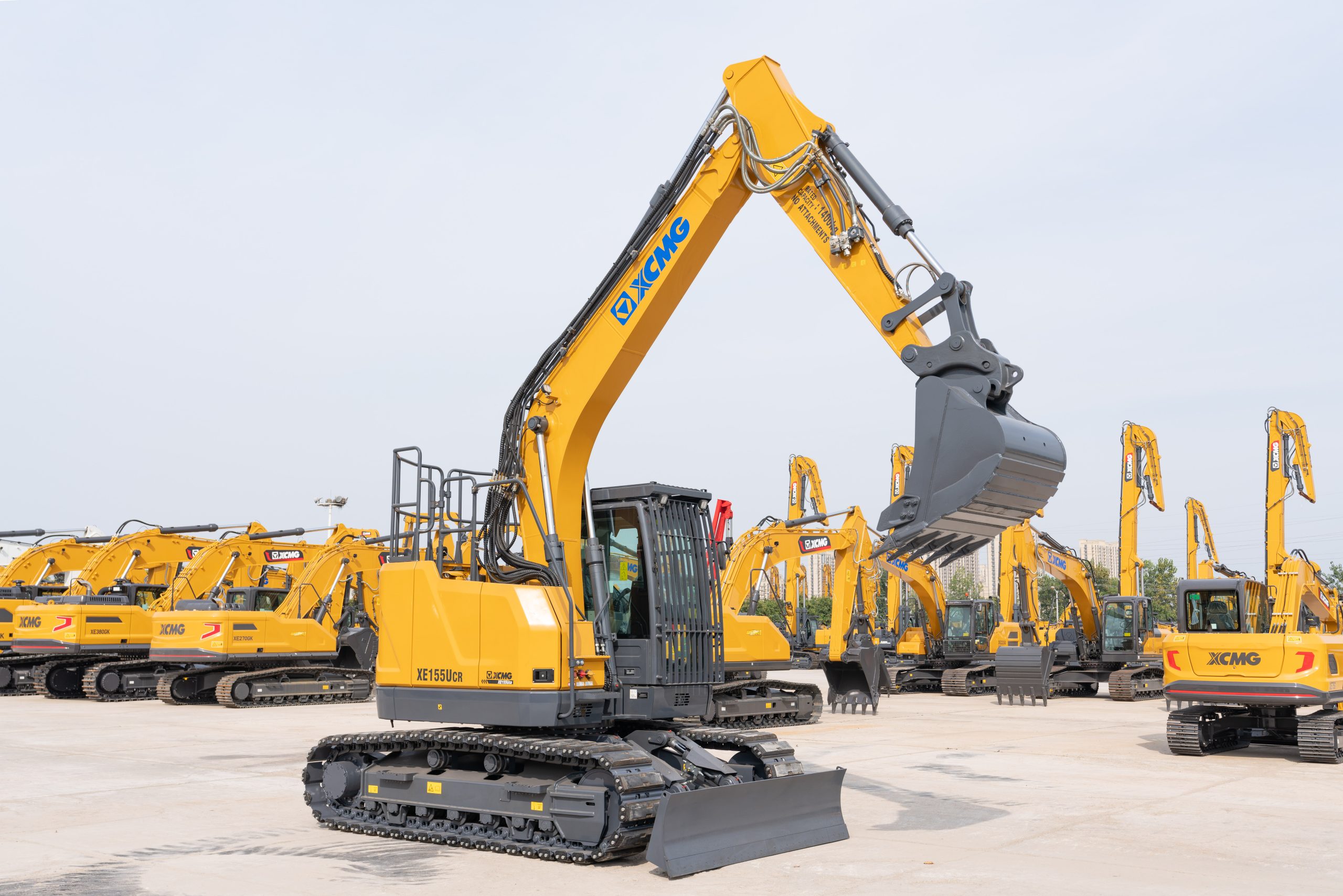

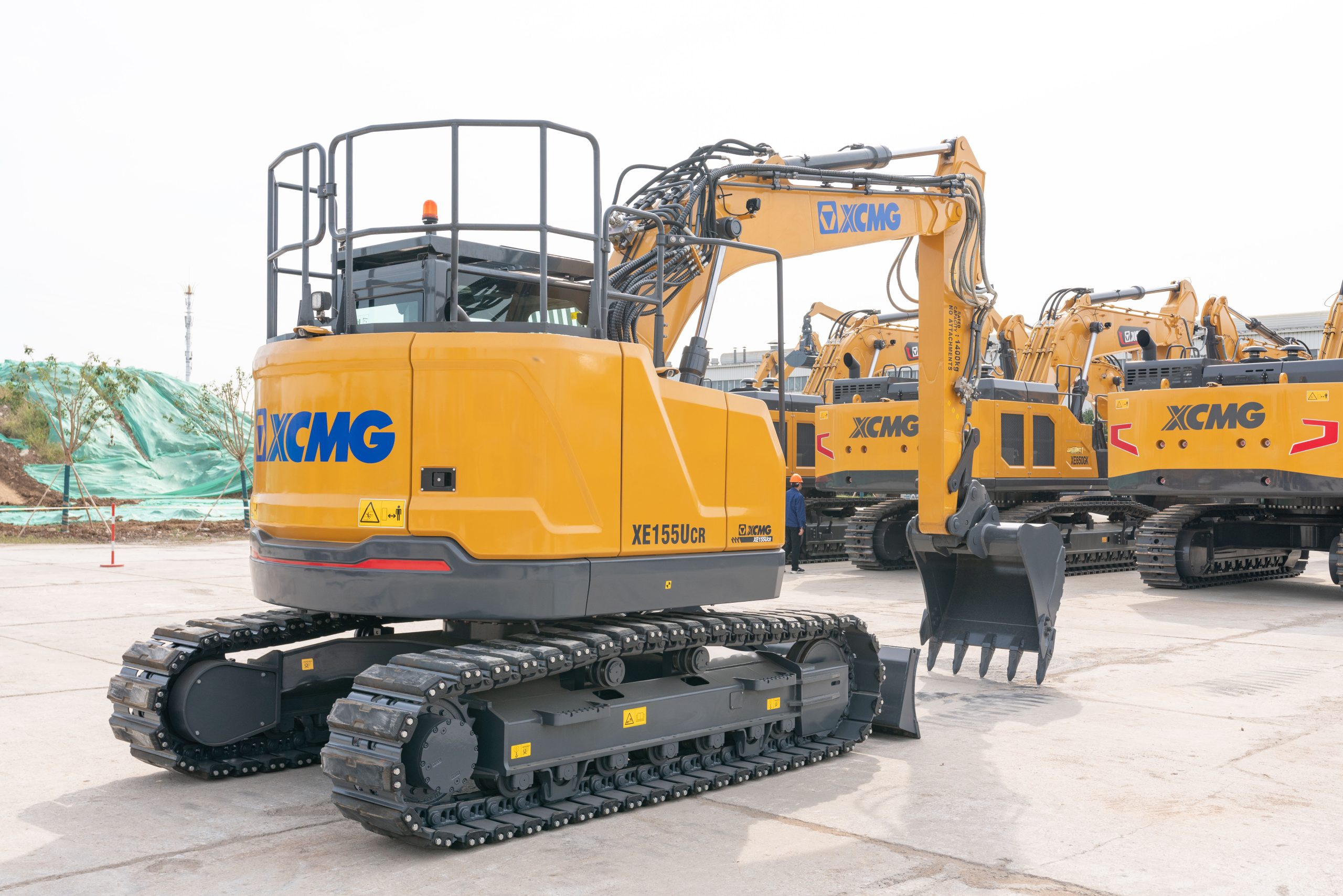

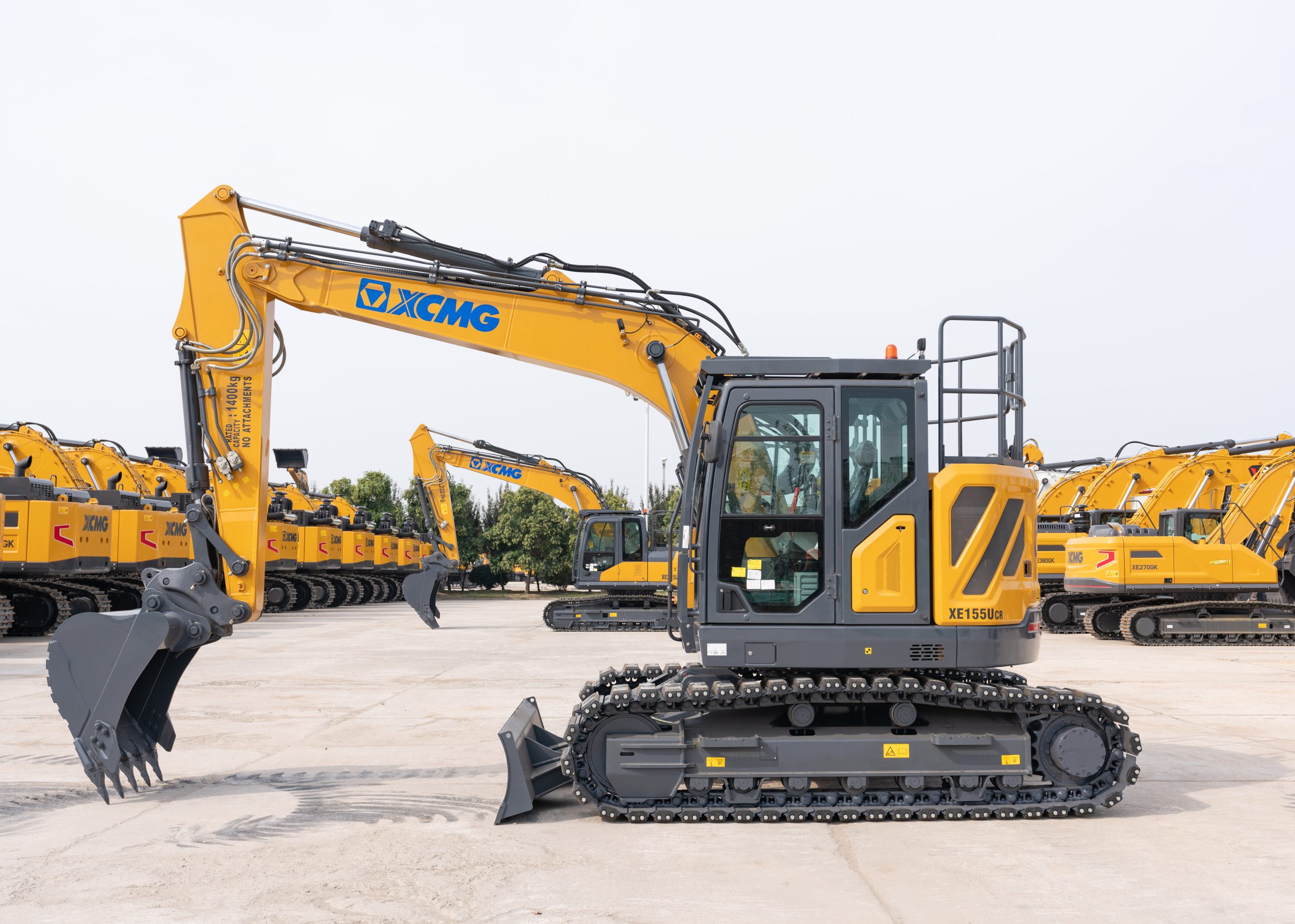

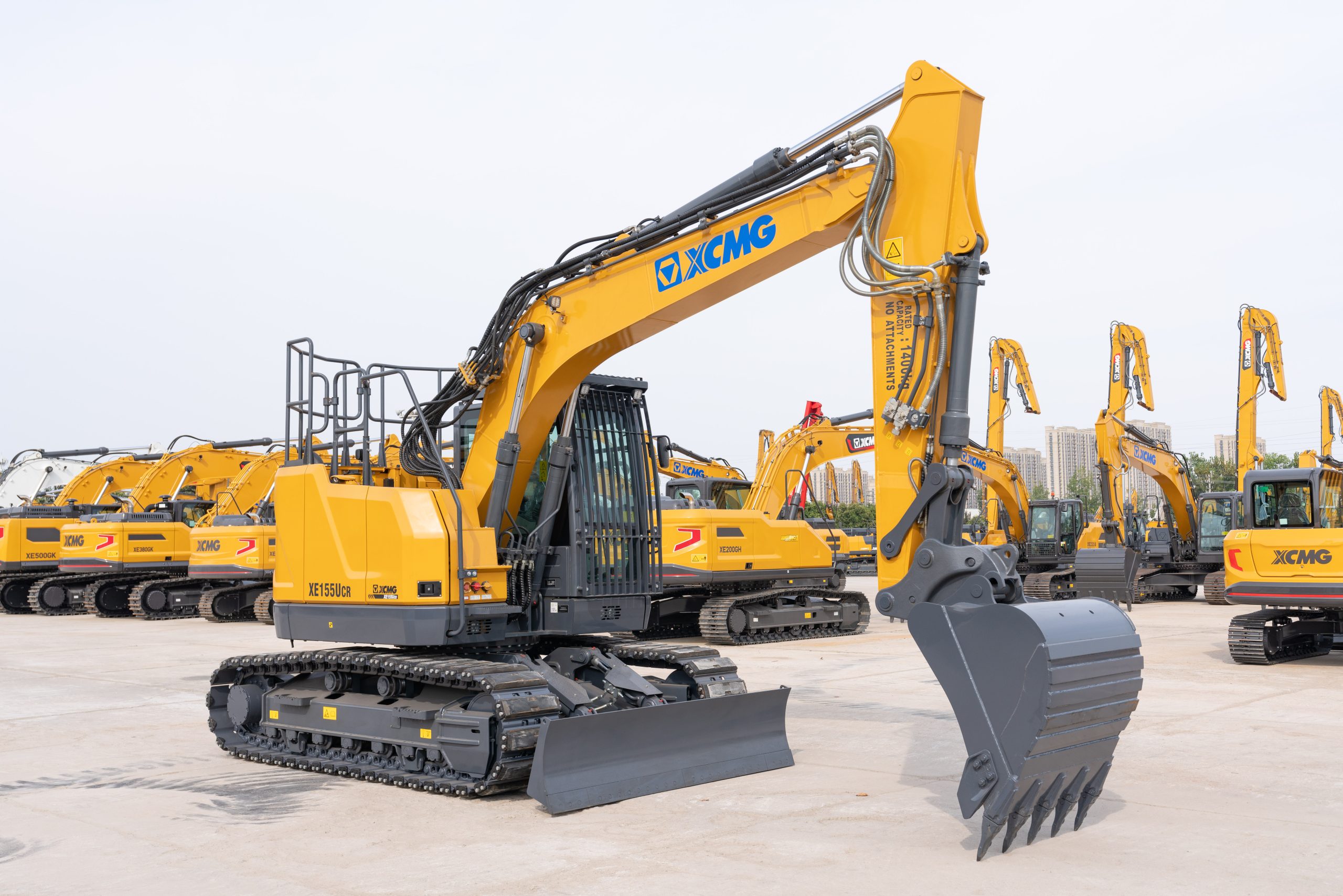

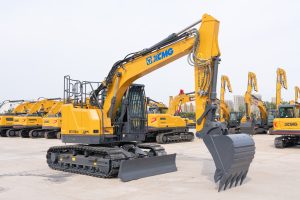

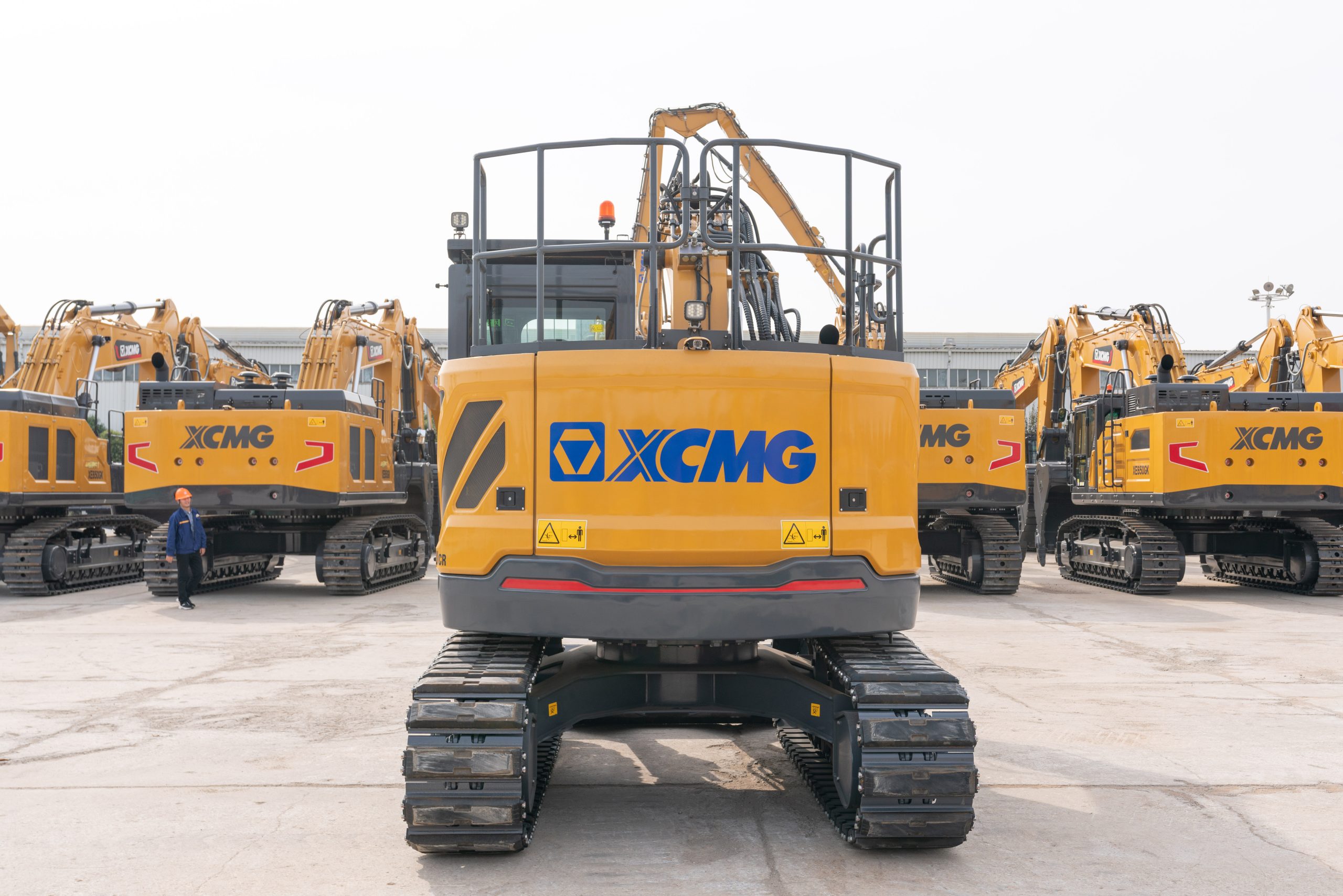

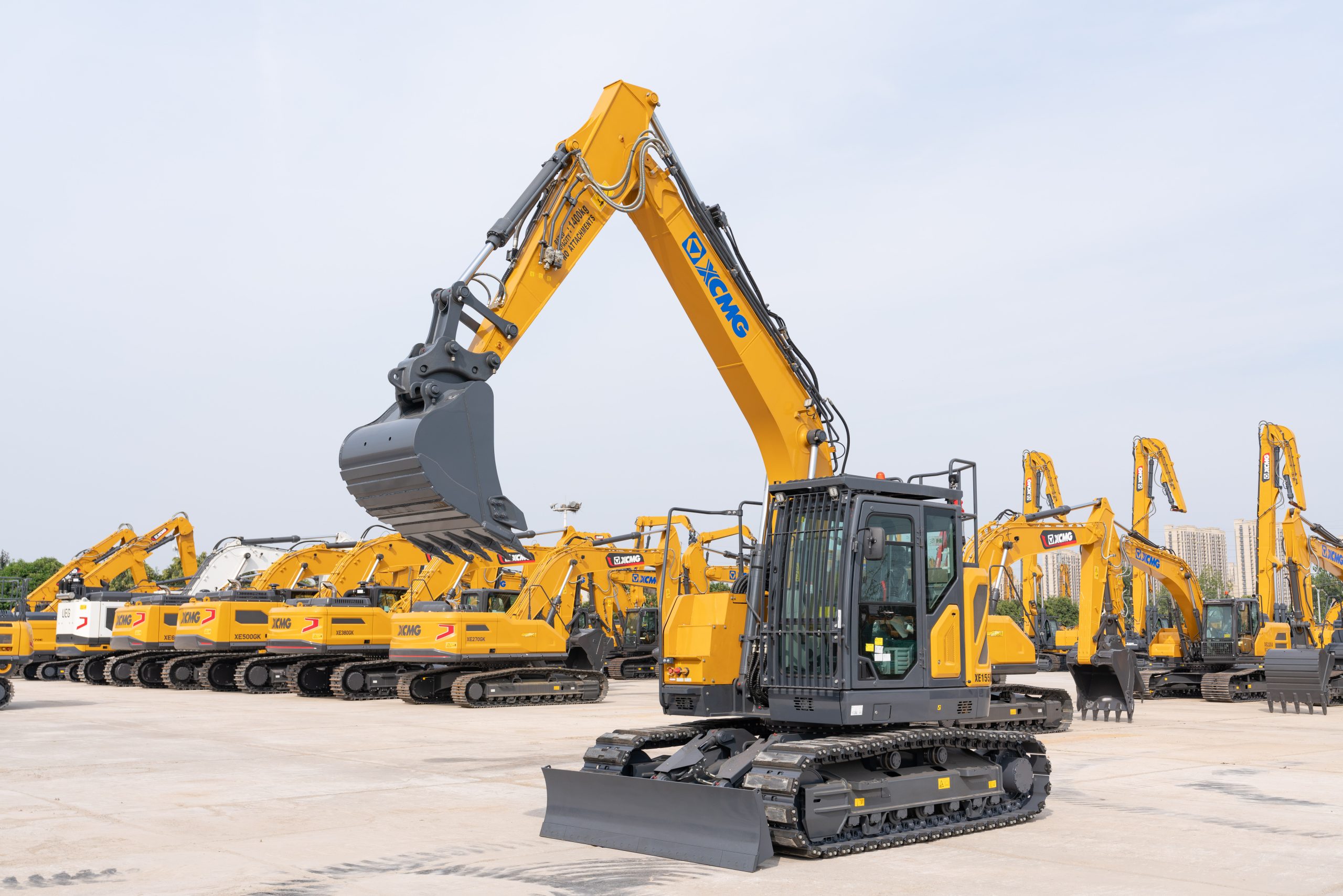

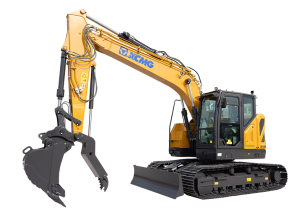

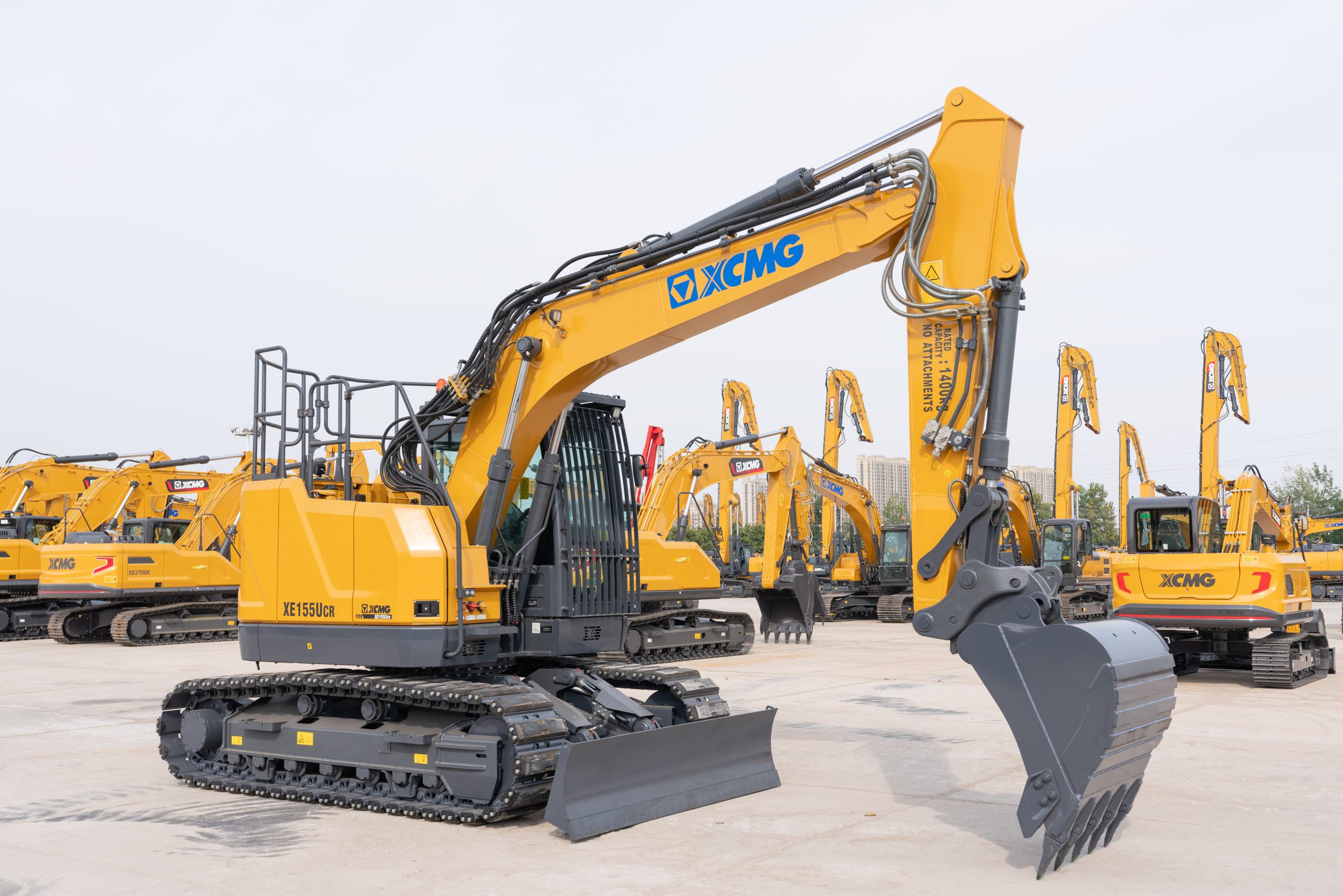

Hydraulic Excavator – Model: XE155UCR
Experience Unrivaled Power with XCMG’s Hydraulic Excavator Model XE155UCR. Engineered to tackle the most demanding tasks, this hydraulic excavator sets new standards for precision and productivity
Product Overview
| Operating Weight | 16600 kg |
| Engine | QSF 3.8 Direct Injection Four Stroke Turbro Charged |
| Piston Displacement | 3.8 L |
| Power | 93 kW/2,200 rpm |
| Max Torque | 500 N·m/1,500 rpm |
| Flow Range | 2×120 L/min+54 L/min |
| Bucket Digging Force | 107 kN |
| Arm Digging Force | 80 kN |
| Ground Pressure | 49.98 kPa |
| Main Pump Type | 2 Variable Pumps+1 Gear Pump |
| Hydraulic Tank Capacity | 90 L |
| Maximum Tractive Force | 134 kN |
| Emergency Stops | Included |
| Buckets | Enquire |
| Dozer Blade | Included |
| Fuel / Cooling | Diesel / Water Cooled, Air to Air Intercooler |
| No of Cylinders | 4 |
| Alternator | 70A |
| Fuel Tank Size | 200 L |
| Travel Speed (Low – High) | 4.7/2.9 km/h |
| Traction Force | 15.6 kN |
| Gradeability | < 35o |
| Swing Speed | 11.3 r/min |
| Overall Length | 7945 mm |
| Overall Width | 2490 mm |
| Overall Width of Upperstructure | 2490 mm |
| Overall Height to Top of Boom | 2825 mm |
| Overall Height to Top of Handrail | 3330 mm |
| Overall Height to Top of Cab | 2910 mm |
| Overall Track length | 1590 mm |
| Overall Height of Engine Hood | 1135 mm |
| Minimum Ground Clearance | 477 mm |
| Tail Slew Radius | 1530 mm |
| Tumbler Length | 2997 mm |
| Blade Height | 566 mm |
| Blade Lifting Height | 669 mm |
| Blade Cutting Depth | 368 mm |
| Track Gauge | 1990 mm |
| Track Height | 837 mm |
| Counterweight Ground Clearance | 943 mm |
| Track Shoe Width | 500 mm |
| Boom Length | 4600 mm |
| Arm Length | 2520 mm |
| Dig Depth & Reach | 5535/ 8295 mm |
| Maximum Digging Height | 8630mm |
| Maximum Digging Depth | 5535 mm |
| Maximum Dumping Height | 6185 mm |
| Maximum Vertical Wall Digging Depth | 4580 mm |
| Minimum Swing Radius | 2475 mm |
| Maximum Digging Reach at Ground Level | 8155 mm |
| Maximum Digging Reach | 8295 mm |

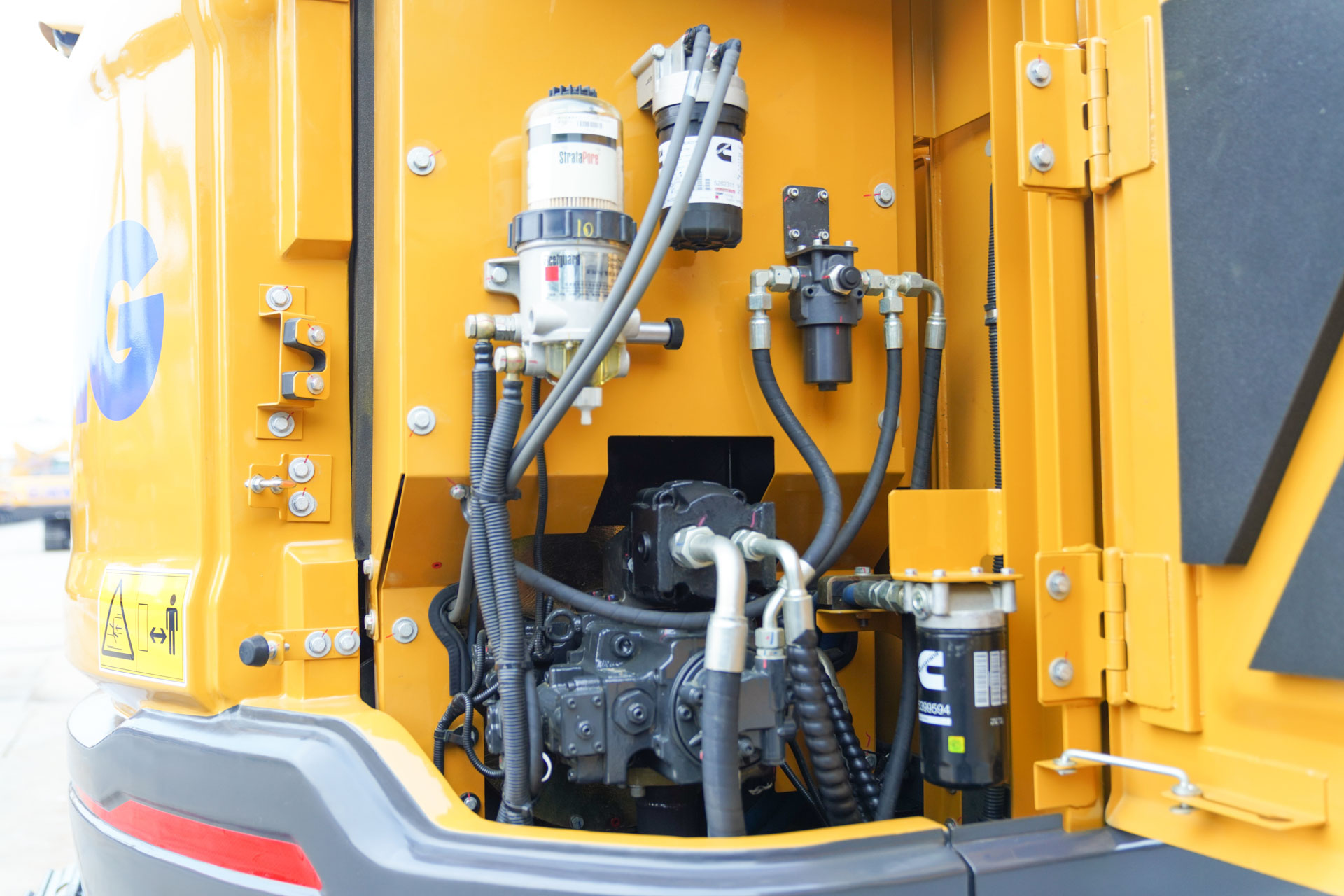

| Engine |
| QSF 3.8 |
| Auto-Preheating |
| Fuel-water Separator with Water Level Instruction Sensor |
| Straight-Flow Air Filter |
| Air Prefilter |
| The Cooling Assembly in 50 ℃ Ambient Temperature |
| Dust Screen for Radiator |
| Fuel Marker |
| Fuel-water Quick Release Device |
| Air Pressure Difference Indicator |
| Auto Idle |

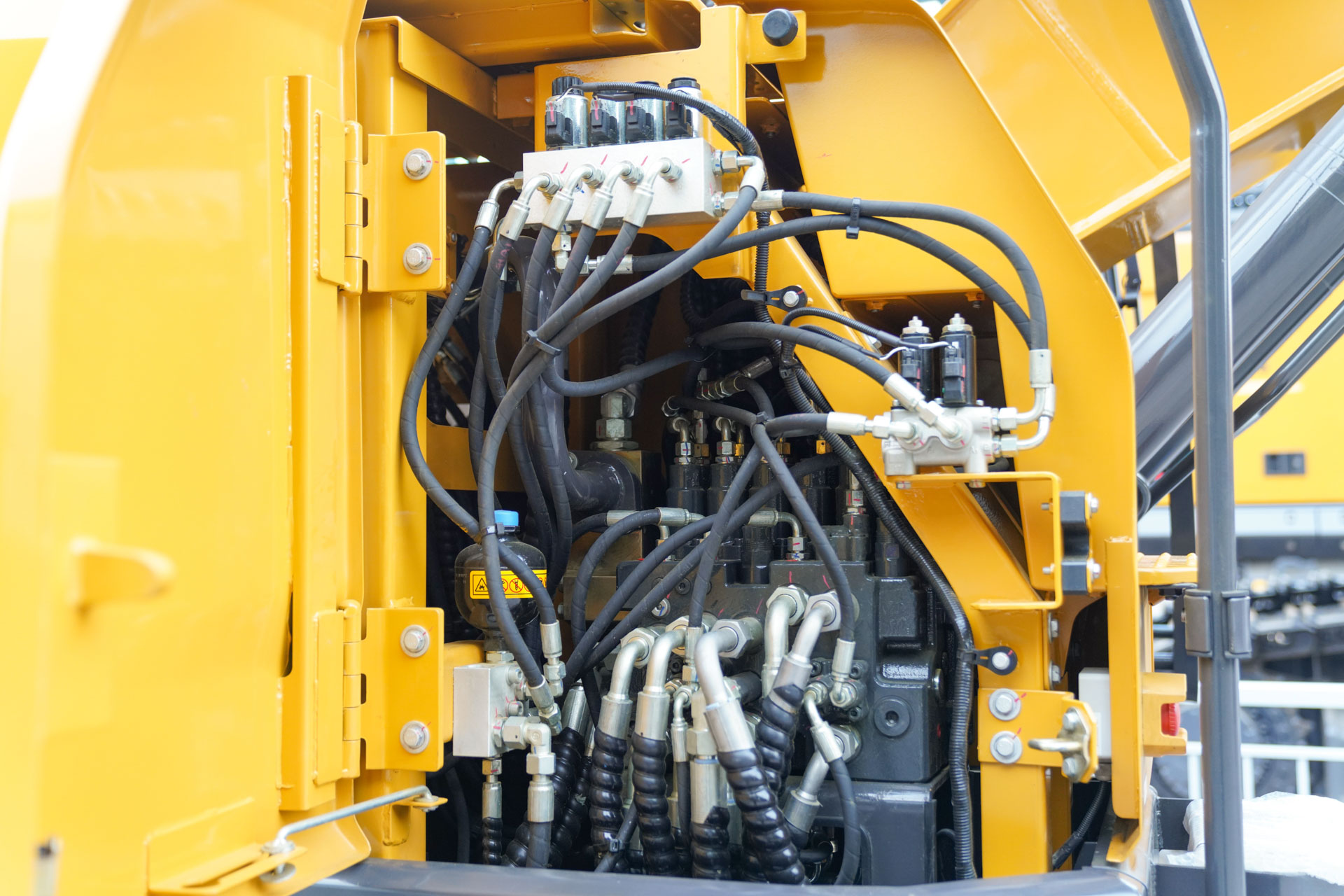

| Hydraulic system |
| Single or Dual Way Pipeline (AUX1) |
| Auxiliary Hydraulic Valve |
| Quick Coupler Pipeline |
| Rotary Attachment Pipeline |
| Hydraulic Oil ISO VG 46 |

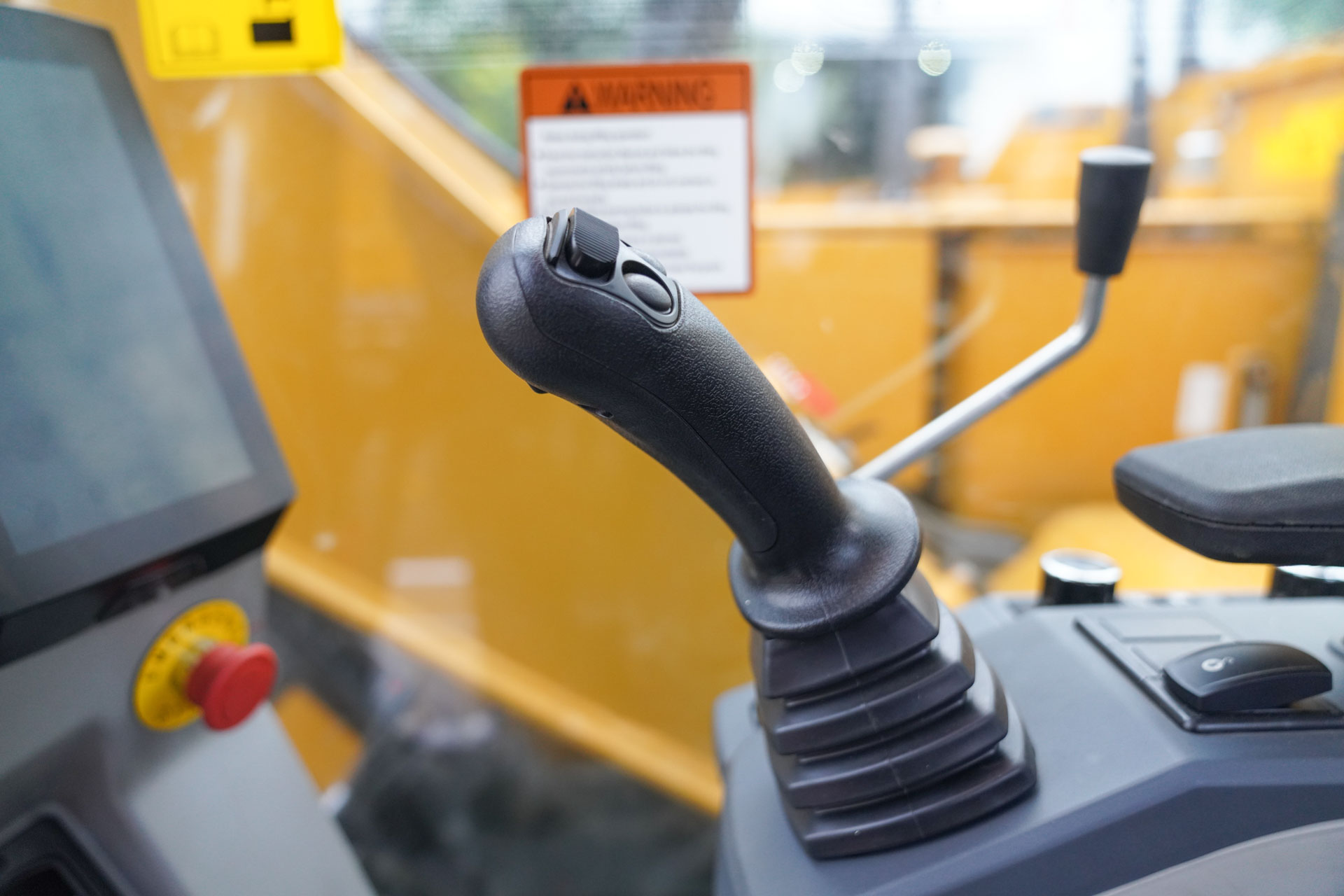

| Electric Proportional Joysticks on Right and Left |
| Spare Valve Plate |
| Pressure Monitor Gauge |
| Cab & Interior |
| Pressurized Cab |
| Air Suspension Seat with Heater |
| Control Box on Left and Right |
| Rain Visor (Not Mounted When Front Upper Guard Exists) |
| Front Windshield Divided by 70/30 Ratio |
| Tempered Glass |
| Sliding Window on Upper Door |

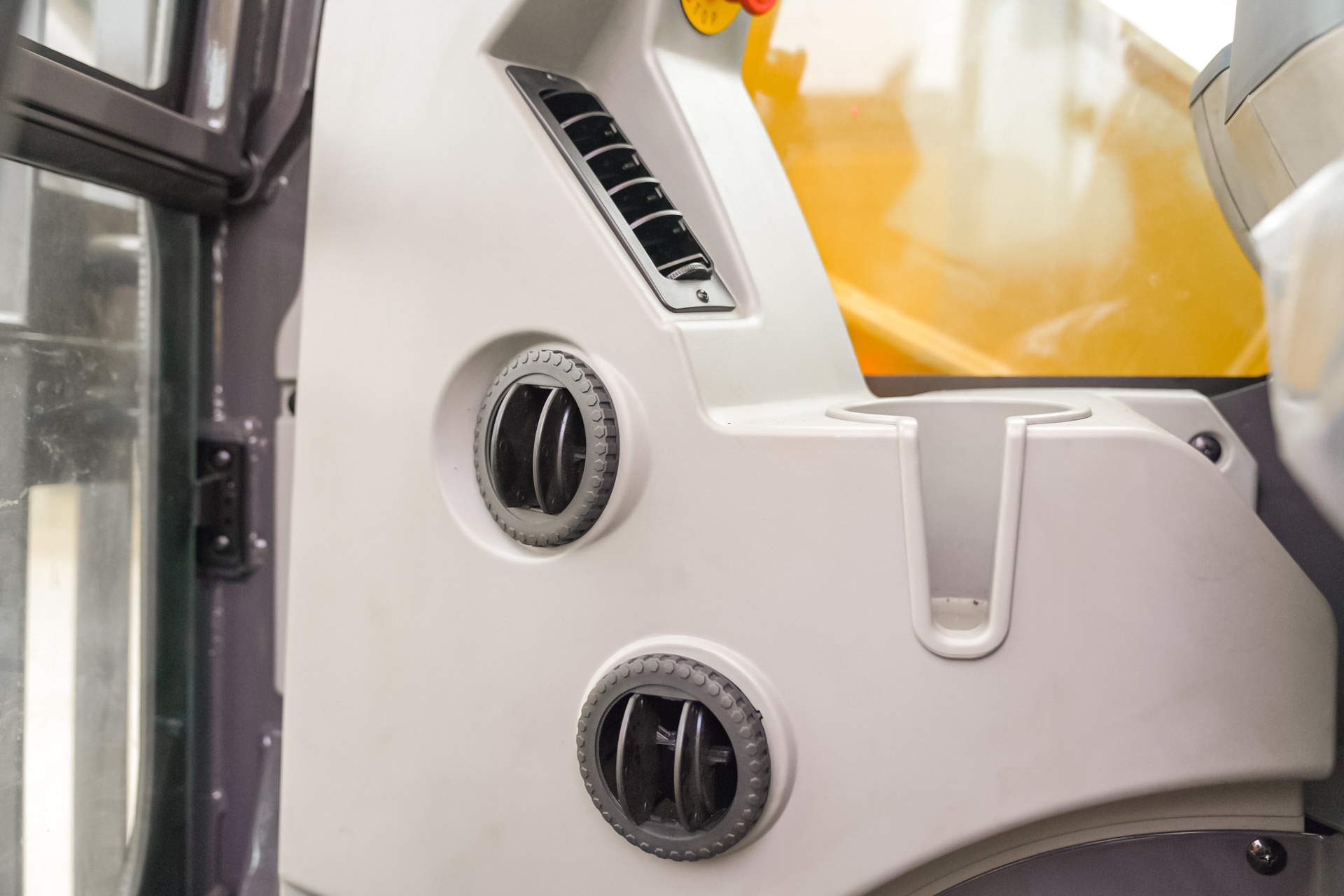

| Air Conditioner With Defroster and Adjustable Direction of Air-out (Automatic Pressurized) |
| Color LCD Display With Warning, Filter / Liquid Refill and Working Hours Information |
| Travel Control Pedal With Detachable Manual Control Lever |
| Double Stereo Speaker |
| Cup Holder |
| Coat Hook |
| Washable Floor Mat |
| Retractable Safety Belt |
| High and Low Travel Speed Switch |
| One-key Boost |
| Reserved Attachment Switch |
| Sun Visor |
| Skylight |
| Triple-gear Windshield Wiper With Intermittent Feature |
| Emergency Exit on Rear Window |
| Hammer for Emergency Escape |
| Lubrication system |
| Manual Centralized Lubrication |
| Undercarriage |
| Track Guards for Both Sides |
| 2×7 Bottom Rollers |
| 2×2 Carrier Rollers |
| Tow Ring on the Bottom Frame |
| 2×46 Joints, 171 mm (7″) Pitch, Track with Triple Grouser Shoes, 500 mm (20″) |
| Guard Kits: Bottom Sealing Plate of Undercarriage, Sealing Plate of Travel Motor |

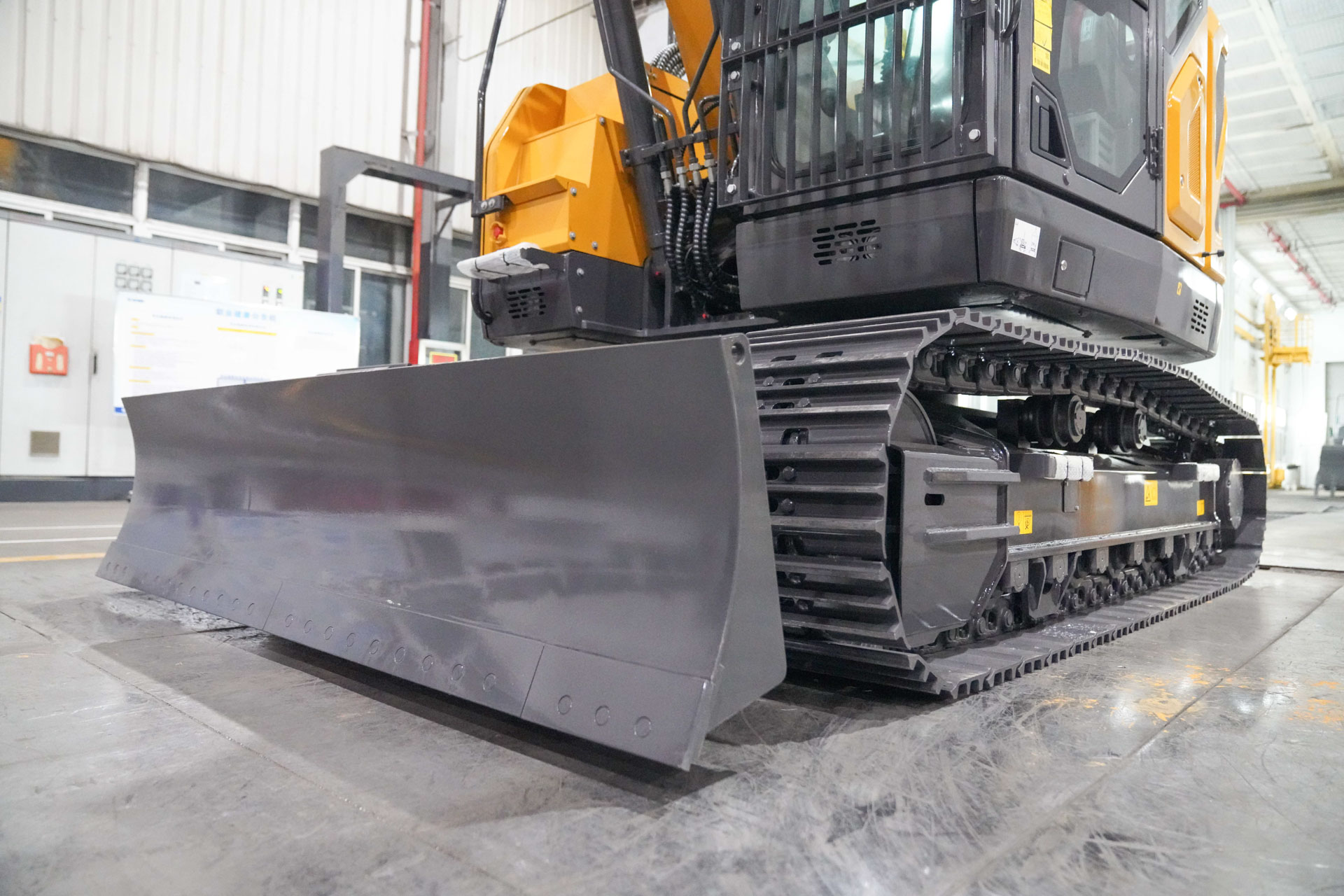

| Dozer Blade |
| Electrical system |
| Battery (2×750 CCA) |
| 70 Amp Alternator |
| 24 V/2.9 kW Starter Motor |
| USB Interface (5v) |
| Emergency Stop Switch |
| Right and Rear Camera |
| AM-FM Radio With Digital Display |
| Rotating Beacon |
| Two Front Working Light on the Cab (LED) |
| One Rear Working Light on the Cab (LED) |
| Two Working Lights on the Boom (LED) |
| 12 V Electric Power Interface |
| Interior Light |
| Safety |
| Lock for the Cab Door and Each Cabin |
| Warning Horn |
| Quick Coupler Button With Warning |
| Isolation Plate Between Engine and Pump Chamber |

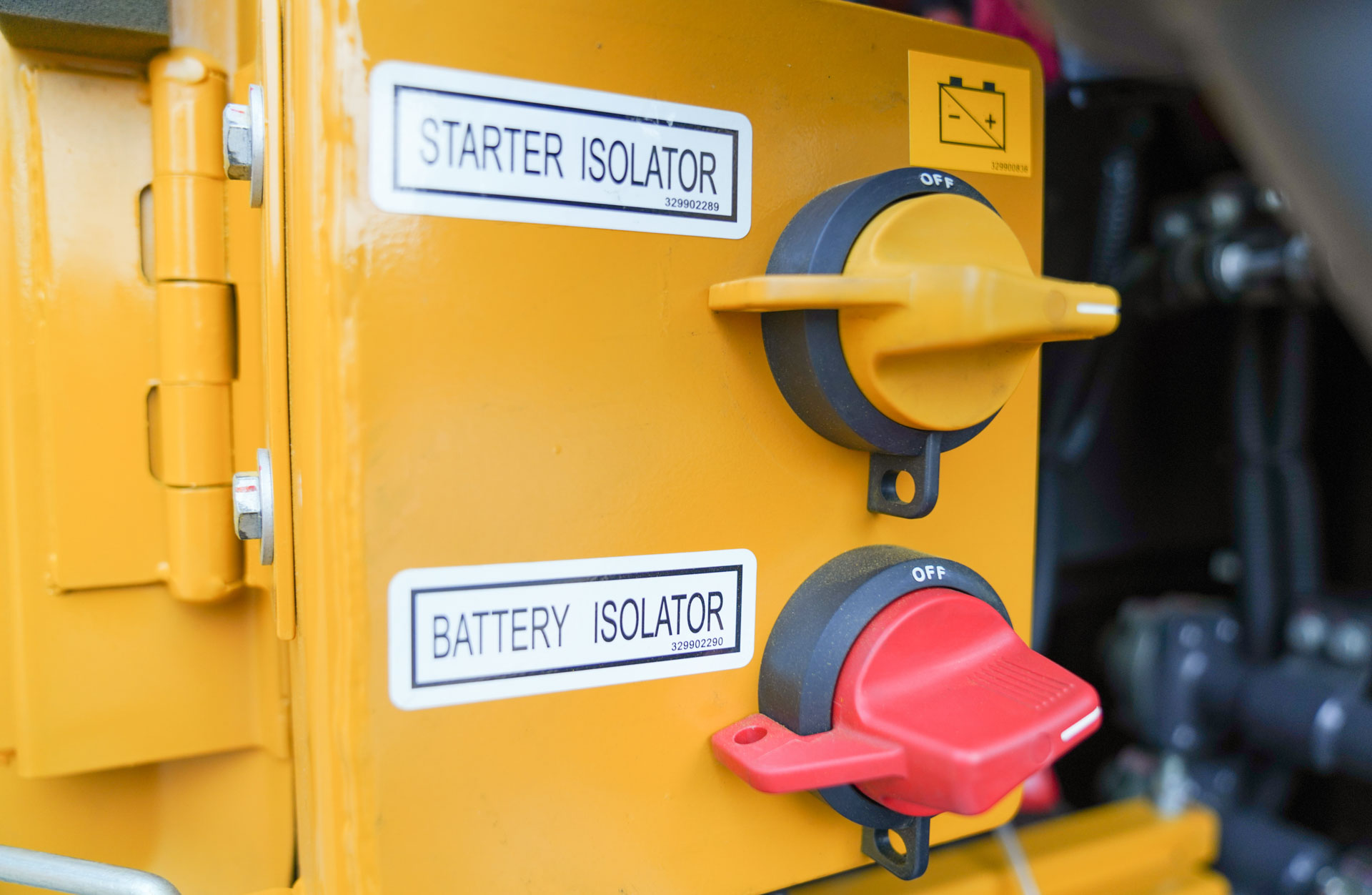

| Battery Disconnect Switch |
| Overheating Warning |
| Safety Handrail and Pedals |
| Anti-skid Plate/ Anti-skid Paste |
| Hydraulic Safety Locking Lever |
| Rear view Mirrors on Left |
| Anti-burst Valve on the Boom |
| Anti-burst Valve on the Arm |
| Roll Over Protective Structure |
| Other |
| Counterweight 3.0 t |
| Engine |
| Fuel-water Separator with Heater (24 V) |
| Hydraulic system |
| Hydraulic Oil ISO VG 32 |
| Hydraulic Oil ISO VG 68 |
| Undercarriage |
| Track With Triple Grouser Shoes, 700 mm (28″) |
| Track With Triple Grouser Shoes, 600 mm (24″) |
| Rubber Track |
| Electrical system |
| Cigarette Lighter(12 V) |
| DAB Bluetooth Digital Radio |
| Safety |
| Operator Protective Guard |
| Top Protective Net |
| Protective Net on Upper Front Windshield |
| Protective Net on Lower Front Windshield |
| Other |
| Hydraulic Quick Hitch |
| Bucket Capacity 0.32/0.4/0.6/0.7 m³ Earthwork Bucket 0.52/0.6 m³ Strengthened Bucket 0.52 m³ Rock Bucket |
