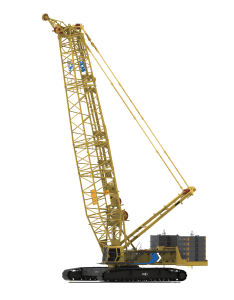

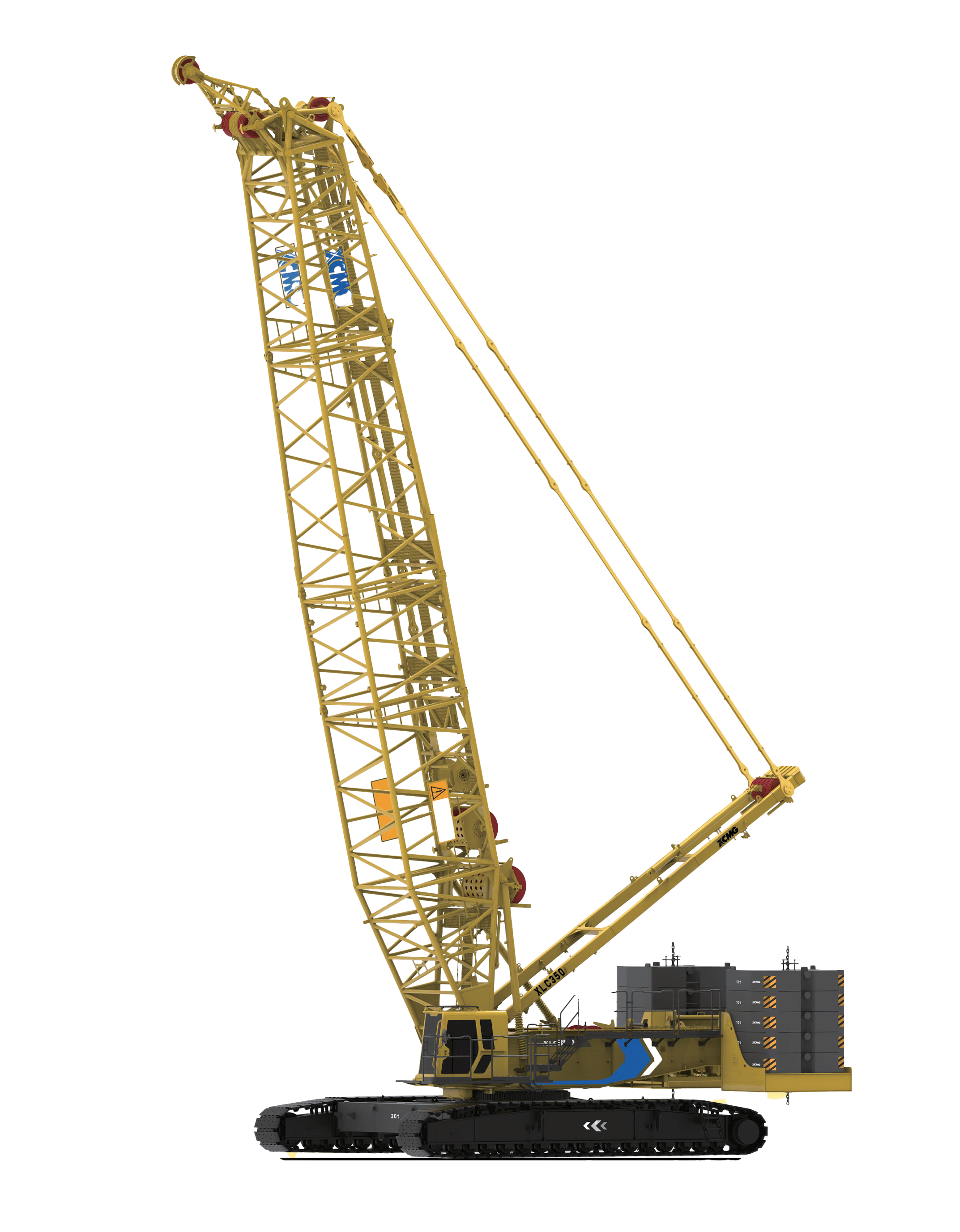

XCMG XLC350 Crawler Crane – Redefining Heavy Lifting Excellence
Embrace the future of precision lifting with the XCMG XLC350, a 350-ton crawler crane designed for high-rise construction, energy projects, and industrial lifting. With its robust structure, advanced safety features, and modular adaptability, the XLC350 delivers unmatched performance, stability, and efficiency in the most demanding environments.
XCMG XLC350 Crawler Crane – Elevating Heavy Lifting Performance
Designed for versatility and power, the XCMG XLC350 redefines precision lifting with a 350-ton capacity, advanced boom configurations, and state-of-the-art safety systems. Engineered for construction, energy, and industrial applications, this crawler crane delivers exceptional stability, control, and adaptability to handle the toughest lifting challenges.
With its maximum boom + jib combination of 100.5 meters, intelligent load monitoring, and high-performance hydraulic systems, the XLC350 ensures efficiency, reliability, and superior mobility on any job site.
Built for Precision and Performance
- 350-ton max lifting capacity – Heavy-duty strength for demanding lifts
- 100.5m maximum boom + jib height – Extended reach for complex operations
- Optimized for energy, infrastructure, and industrial projects – Adaptable for various lifting applications
- Smart load monitoring & advanced safety systems – Maximum protection and operational precision
- Modular transport-ready design – Efficient assembly, transport, and site adaptability
Trust XCMG to power your next project with world-class engineering, innovative design, and cutting-edge technology.
Contact us today to learn how the XLC350 can enhance your lifting capabilities!
Product Overview
| Overall Length | 13300 mm – Basic Crane Transport Plan A 10800 mm – Basic Crane Transport Plan B |
| Overall Width | 3000 mm |
| Overall Height | 3400 mm |
| Maximum Lifting Capacity | 350t – Standard Boom |
| Maximum Lifting Moment | 2,039 t·m |
| Main Boom Length | 24m – 87m |
| Light-Duty Boom Length | 58.5m – 100.5m |
| Tower Jib Length | 19m – 64m |
| Fixed Jib Length | 13m – 31m |
| Maximum Tip Height | Up to 100.5m with extensions |
| Track Width (each side) | 1510 mm |
| Track Length | 9550 mm |
| Car-body Counterweight | 40t |
| Turntable Counterweight | 120t / 130t / 140t (depending on configuration) |
| Maximum Hook Block Capacity | 350t 140t 135t |
| Engine Manufacture | Weichai Power |
| Engine Model | WP10G336E344 |
| Rated Power | 247 kW |
| Rated Speed | 1900 r/min |
| Maximum Torque | 1550 Nm |
| Emission Standard | Euro III |
| Fuel Tank Capacity | 600L |
| Maximum Travel Speed | 1.0 km/h |
| Maximum Slewing Speed | 0.9 rpm |
| Mean Ground Pressure | 0.14 MPa |
| Gradeability | 30% |
| Maximum Transport Weight (Per Component) | 47200 kg – Basic Machine Plan A 39800 kg – Basic Machine Plan B 24600 kg – Left and Right Crawler Frame 15000 kg Turntable Counterweight x 2 |
| Cab Features | Air-conditioned, adjustable seat, sliding door Can tilt upward 20° for better visibility 1.25m wide high-visibility cab |
| Safety Features | |
| Load Moment Limiter | Ensures safe operation and load control |
| Over-winding & Over-releasing Prevention | Protects against excessive rope tension |
| Boom Angle Limiter | Prevents unsafe boom angles |
| Anti-Mis operation Function | Avoids accidental control inputs |
| Emergency Stop Function | Quickly halts operations in case of emergencies |
| Slewing Locking Mechanism | Ensures stable rotation during transport or lifting |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Need more information about the XCMG XLC350 Crawler Crane?
Download the brochure below for detailed load capacity charts, specifications, and more!
