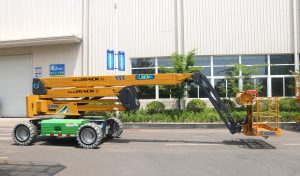

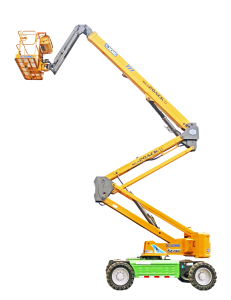

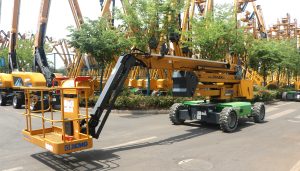

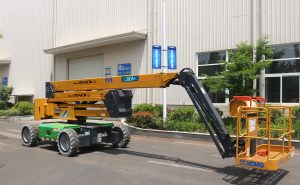

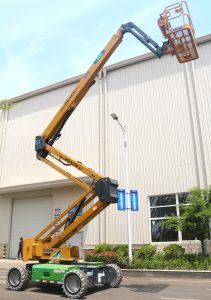

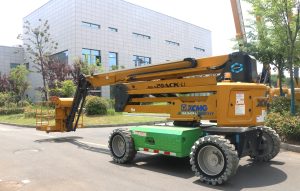

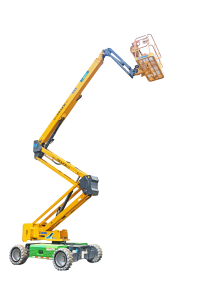

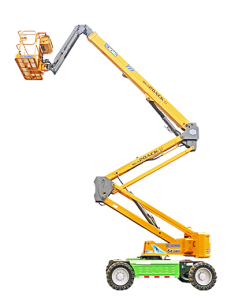

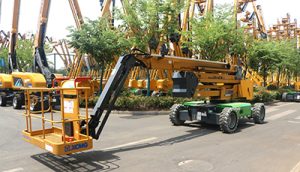

XCMG Boom Lift – Model XGA20ACK
The XCMG Australia XGA20ACK Boom Lift is designed for efficient material handling in warehouses and industrial settings. With a load capacity of 220kg to 1.5t, it combines strength and agility for precise elevation tasks. Whether you need Maintenance Platforms, Personnel Lifts, or Facility Platforms, XCMG Australia has you covered. Explore our Electric Boom Lifts and Outdoor Access Equipment to enhance operational efficiency. Trust XCMG Australia’s commitment to innovative material handling solutions.
Product Overview – XCMG XGA20ACK Boom Lift
| Maximum Working Height | 18.1 m |
| Maximum Platform Height | 16.1 m |
| Minimum Platform Height | 2 m |
| Overall Length | 4860 mm |
| Overall Width | 2286 mm |
| Overall Height | 3170 mm 2510 mm Platform Folded |
| Working Platform Dimensions | 3980 mm Length 1830 mm Width |
| Wheelbase | 2850 mm |
| Load Capacity | 680 kg |
| Total Weight | 8000 kg |
| Maximum Number of Occupants | 4 Indoors 4 Outdoors |
| Maximum Driving Height | 3.6 m Standard 9.1 m Optional |
| Extended Platform Load | 230 kg |
| Sub Platform Extension Length | 1450 mm / 1140 mm |
| Guardrail Height | 1100 mm |
| Toe Board Height | 150 mm |
| Outrigger Span | 1995 mm Side to Side 4280 mm Front to Rear |
| Minimum Ground Clearance | 253 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 2.5 m Inside 5.6 m Outside |
| Maximum Travel Speed | 6.1 km/h Stowed 0 km/h Working Stowed 1.1 km/h Working Optional |
| Maximum Slope Grade | 40% |
| Maximum Working Slope | 2° Side to Side 3° Front to Rear |
| Work Platform Raising Time | 55 s |
| Work Platform Lowering Time | 55 s |
| Tyre Size | 835 mm x 290 mm |
| Driving Wheels | 4 |
| Braking Wheels | 4 |
| Steering Wheels | 2 |
| Engine Model | Kubota V2403 |
| Engine Power | 36.8 kW / (2700 r/min) |
| Maximum Engine Torque | 158 N*m |
| Hydraulic Tank Capacity | 115 L |
| Fuel Tank Capacity | 115 L |
