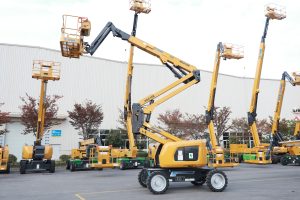

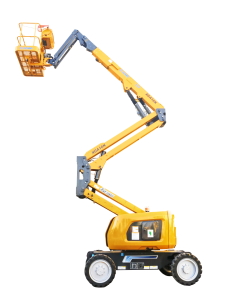

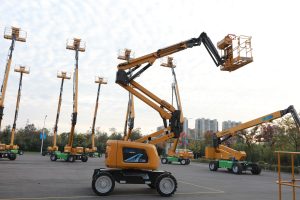

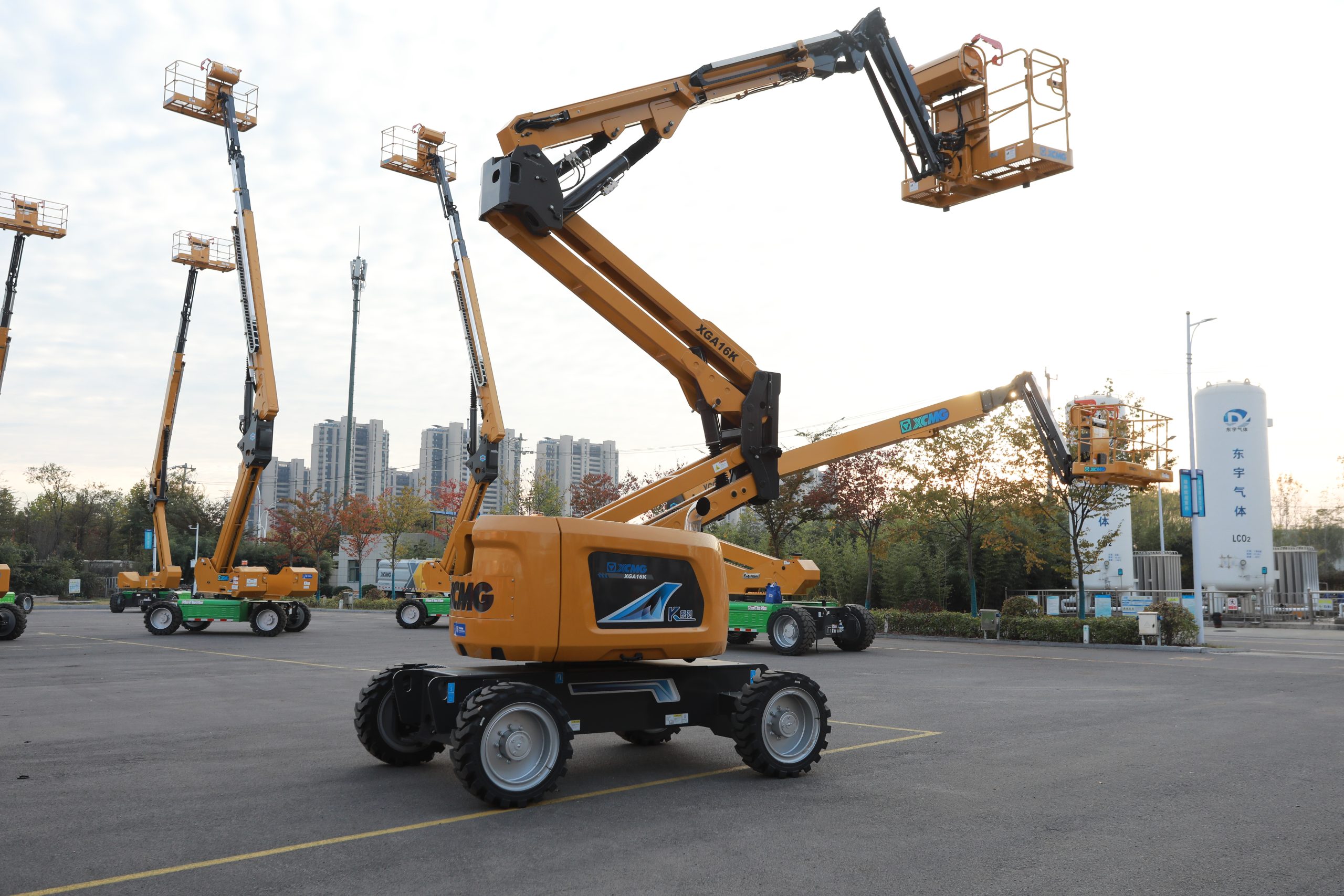

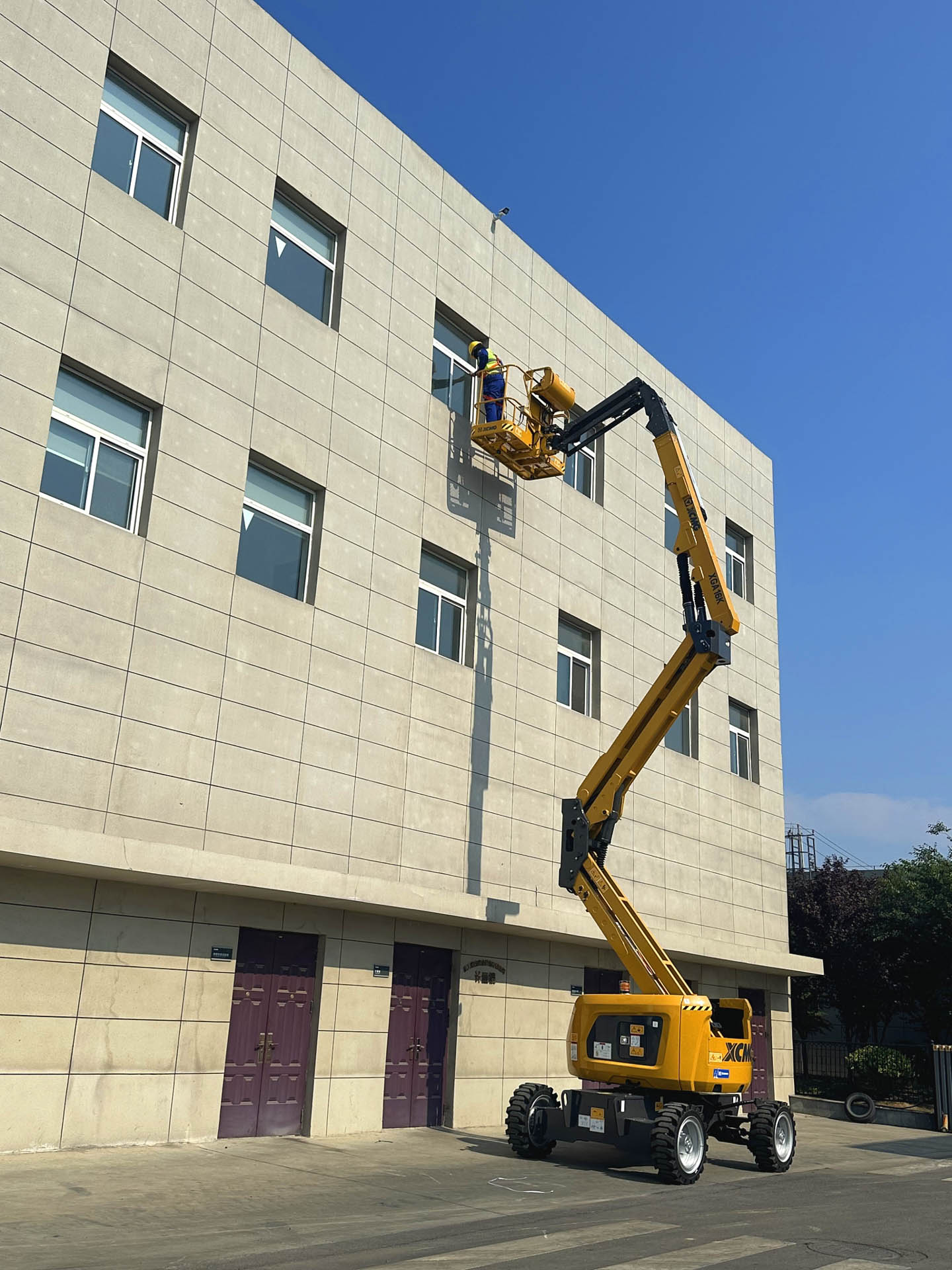

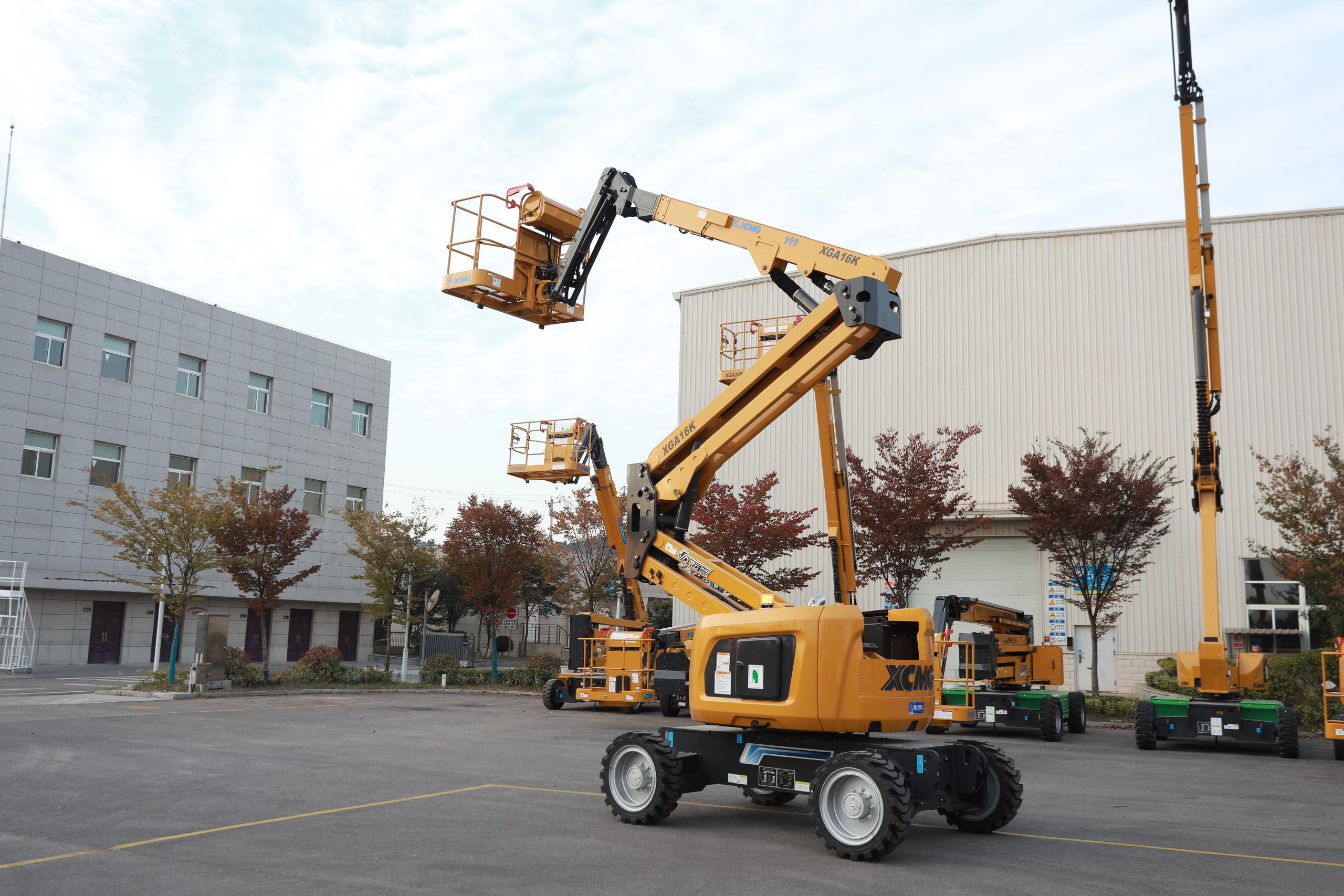

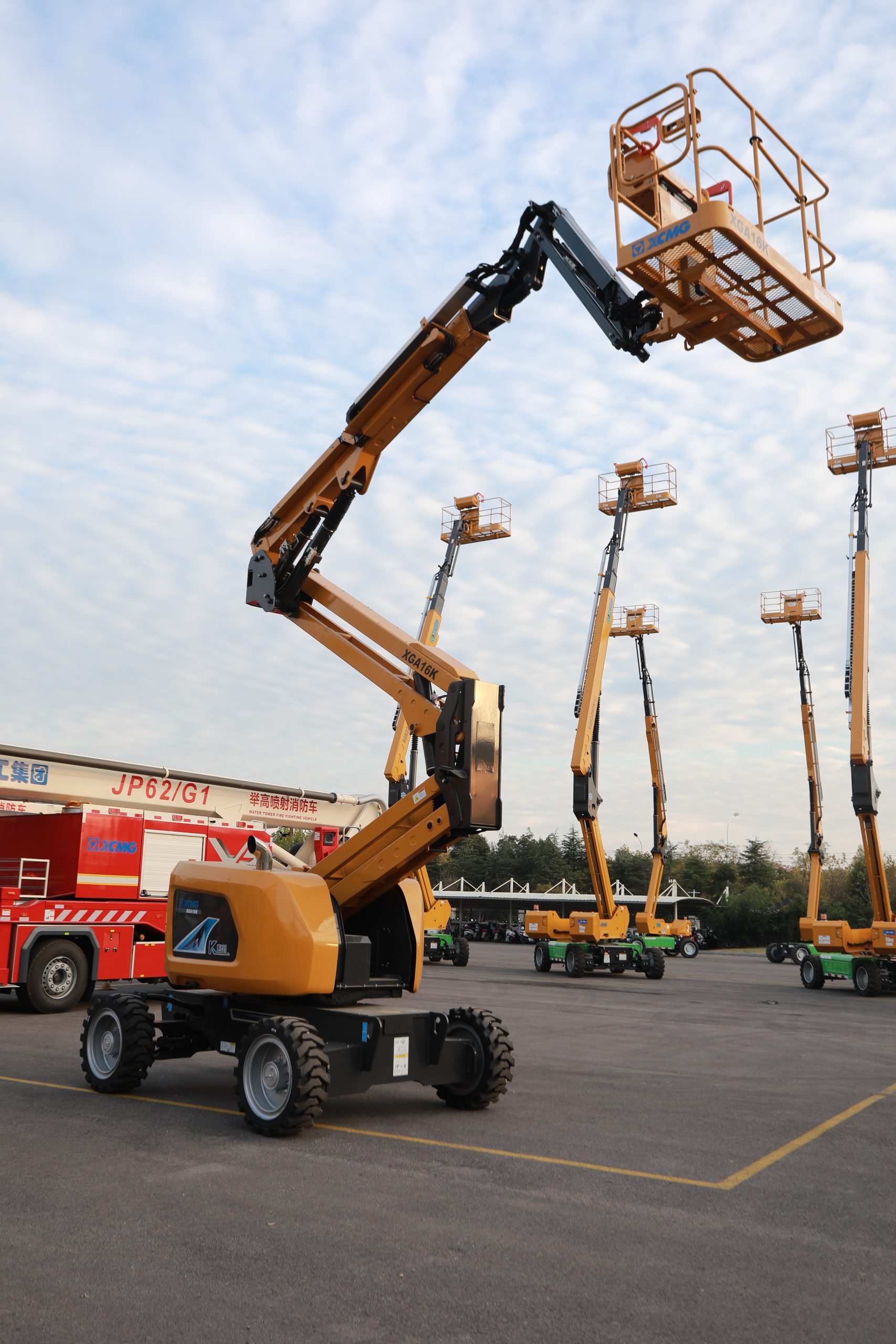

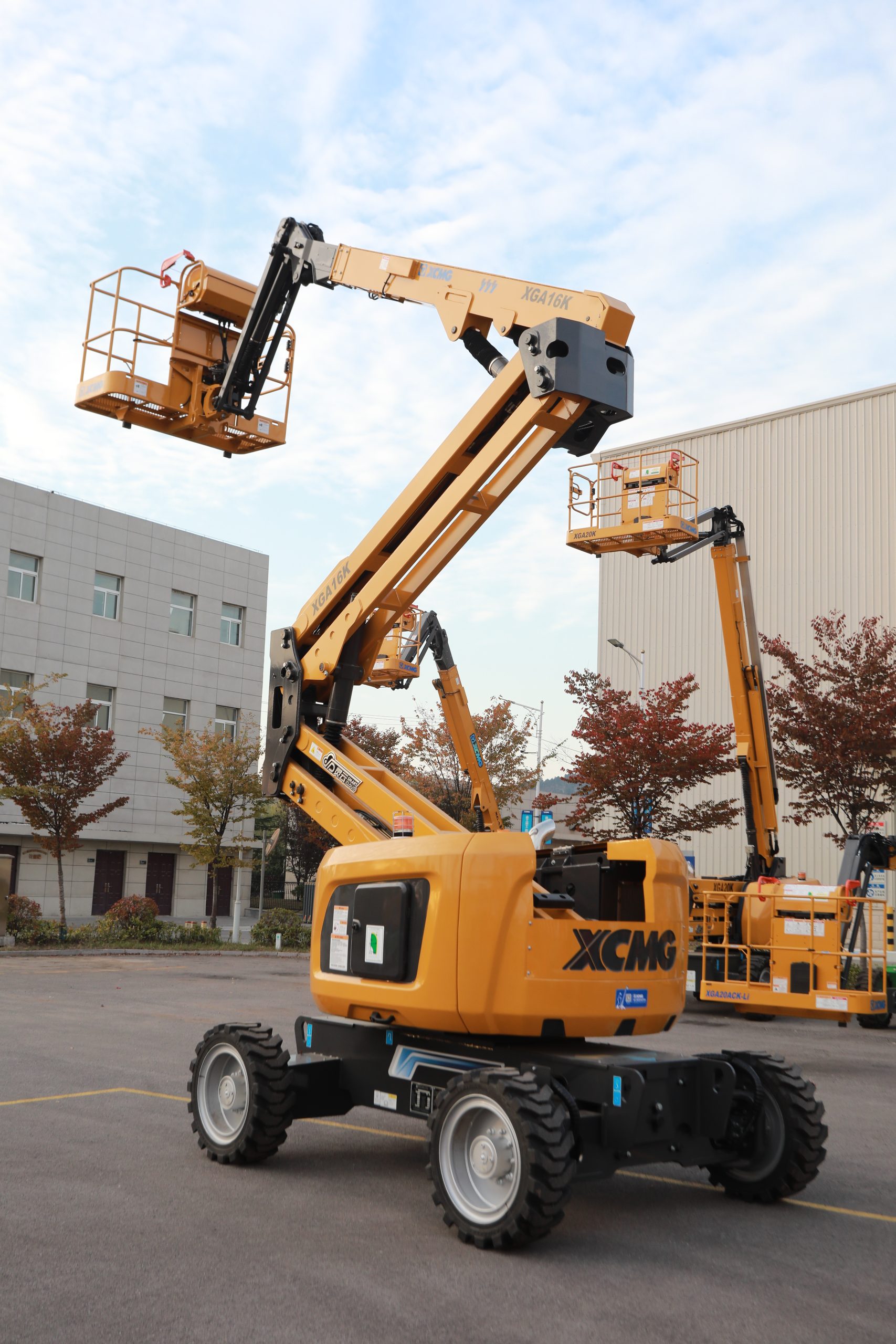

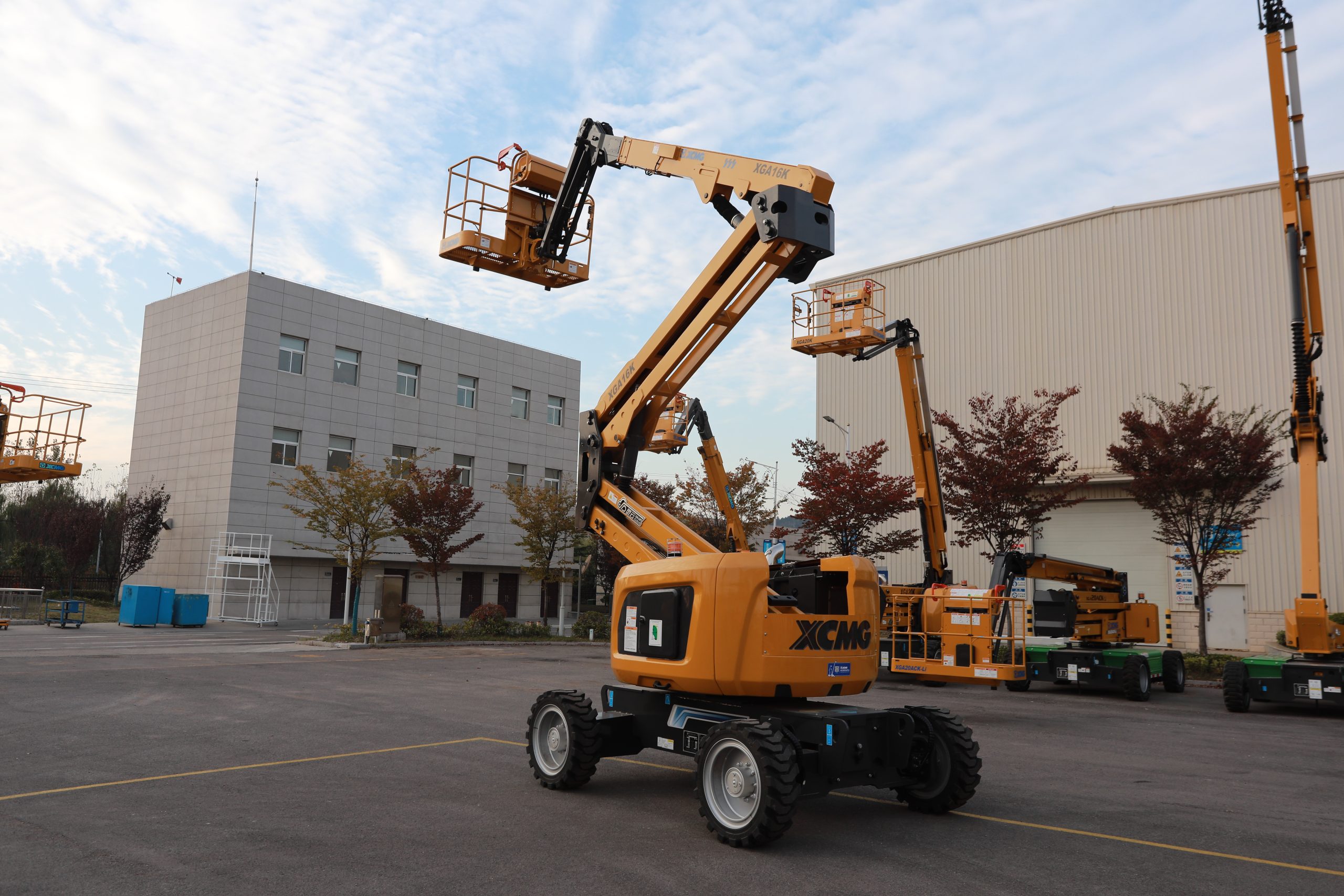

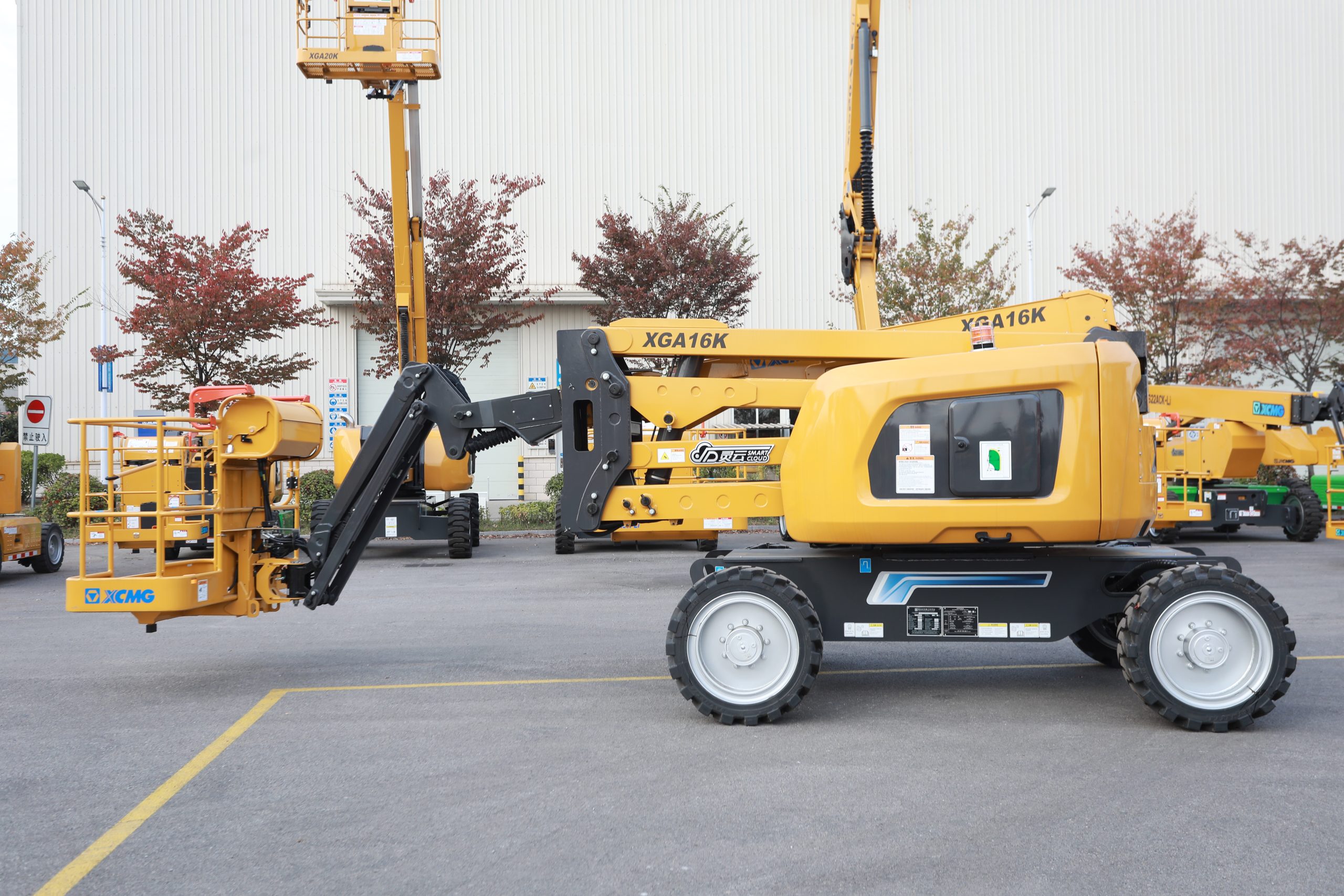

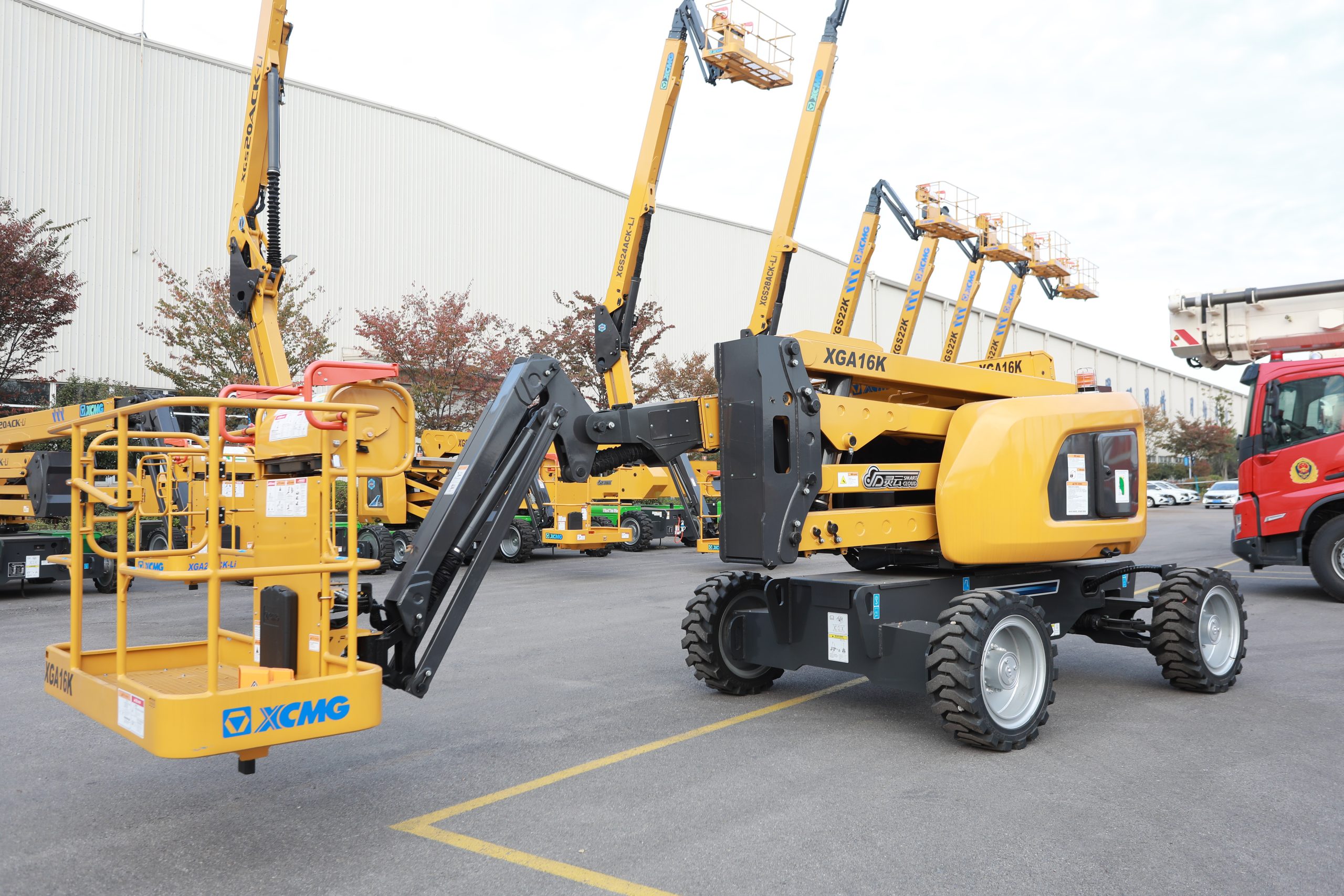

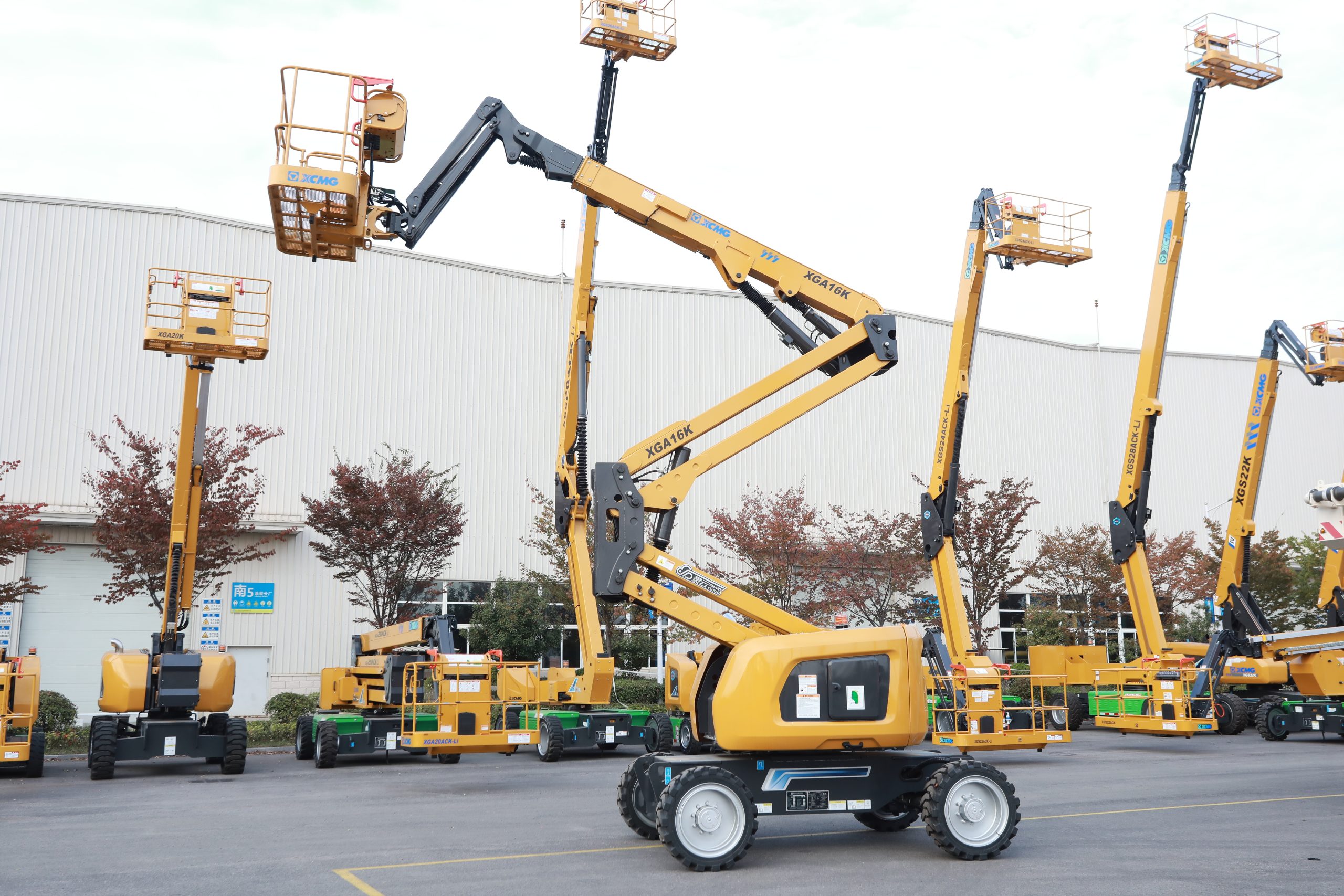

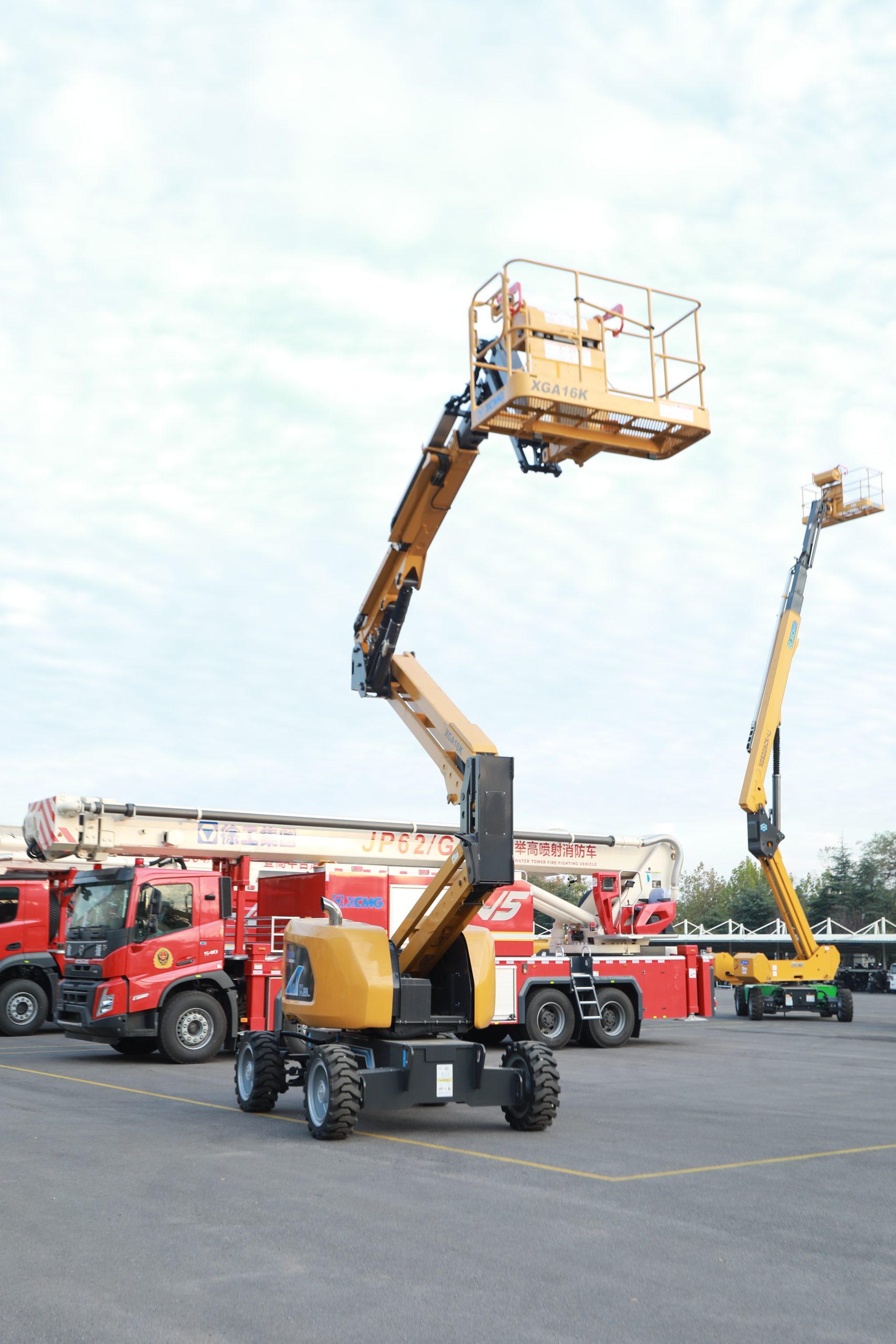

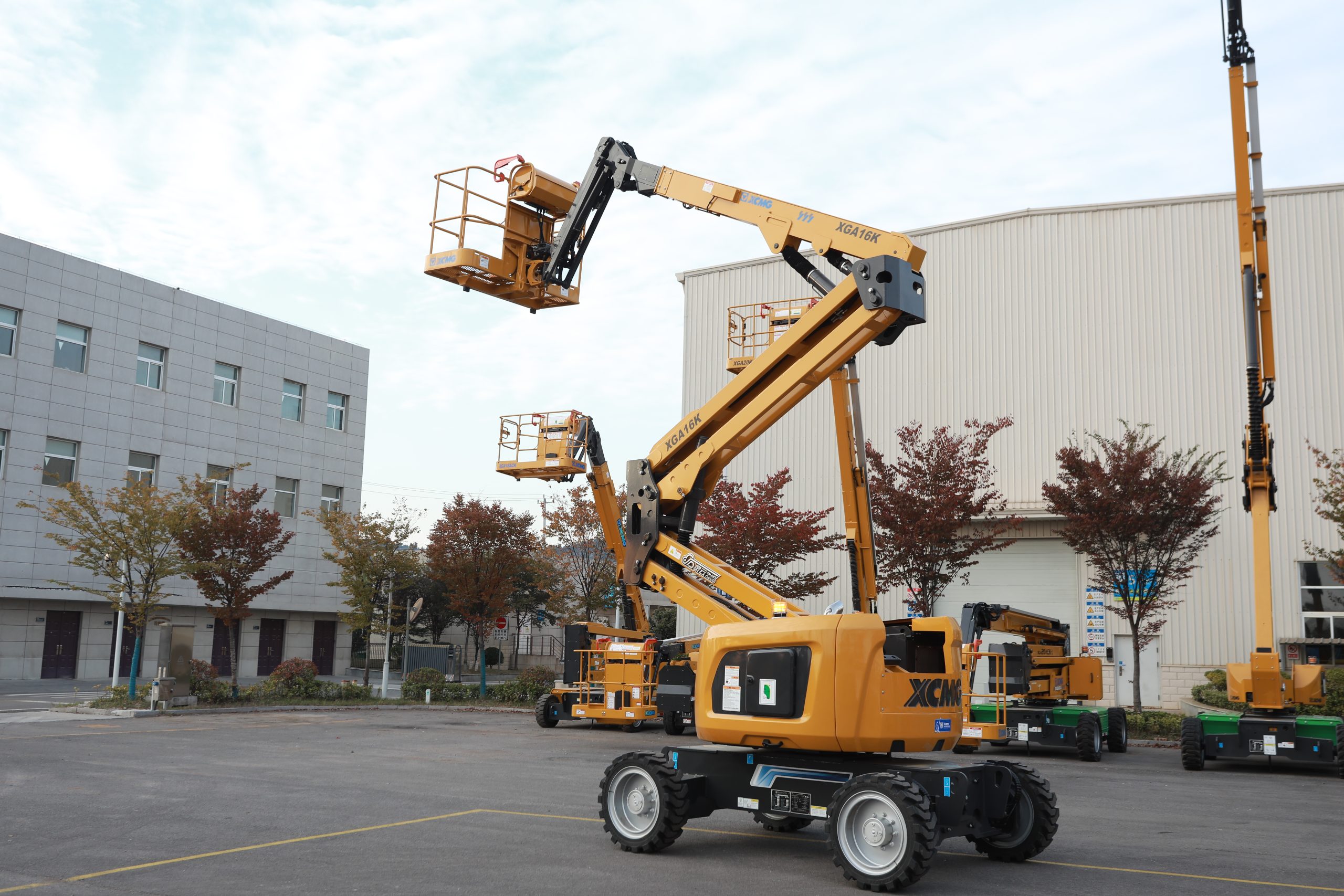

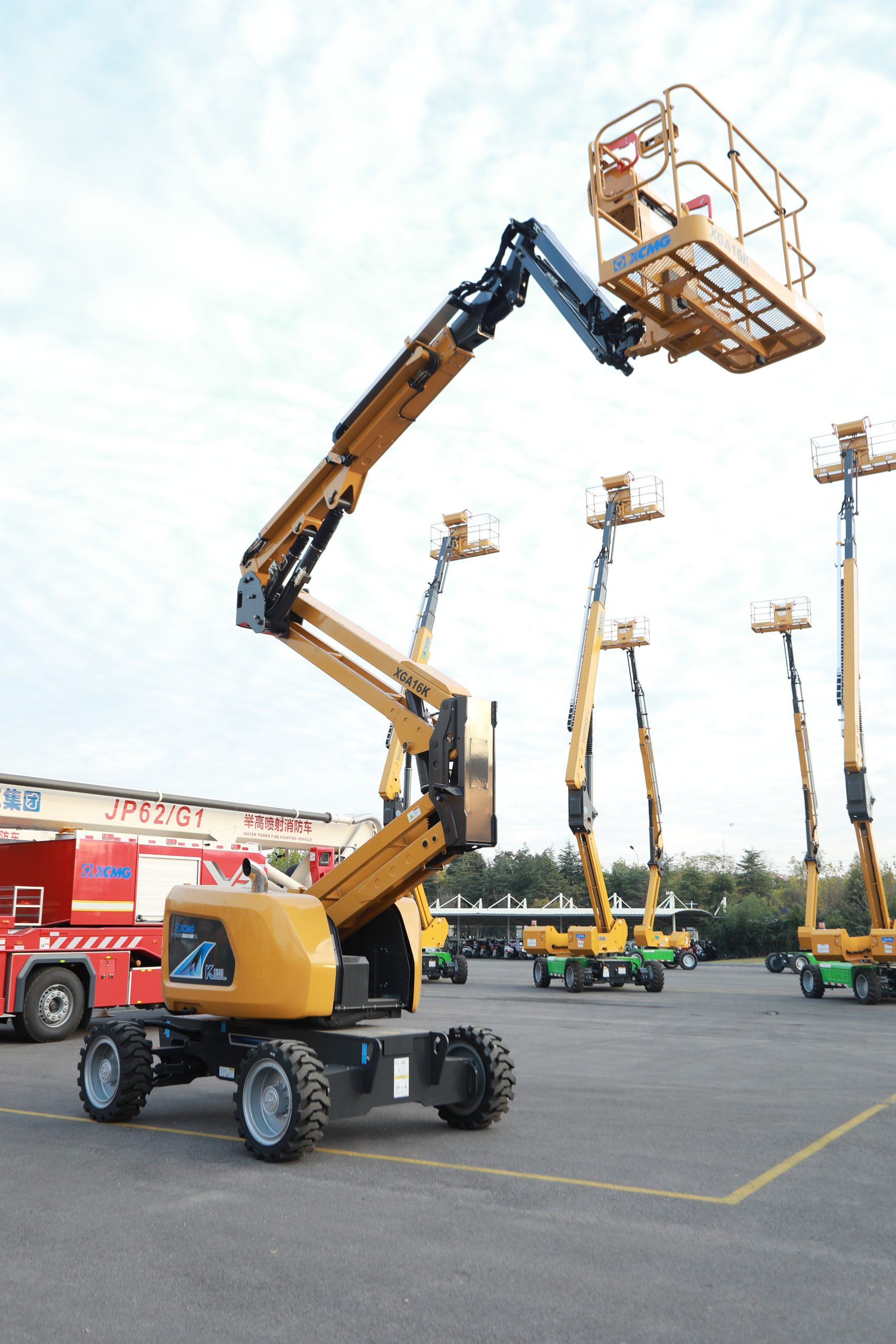

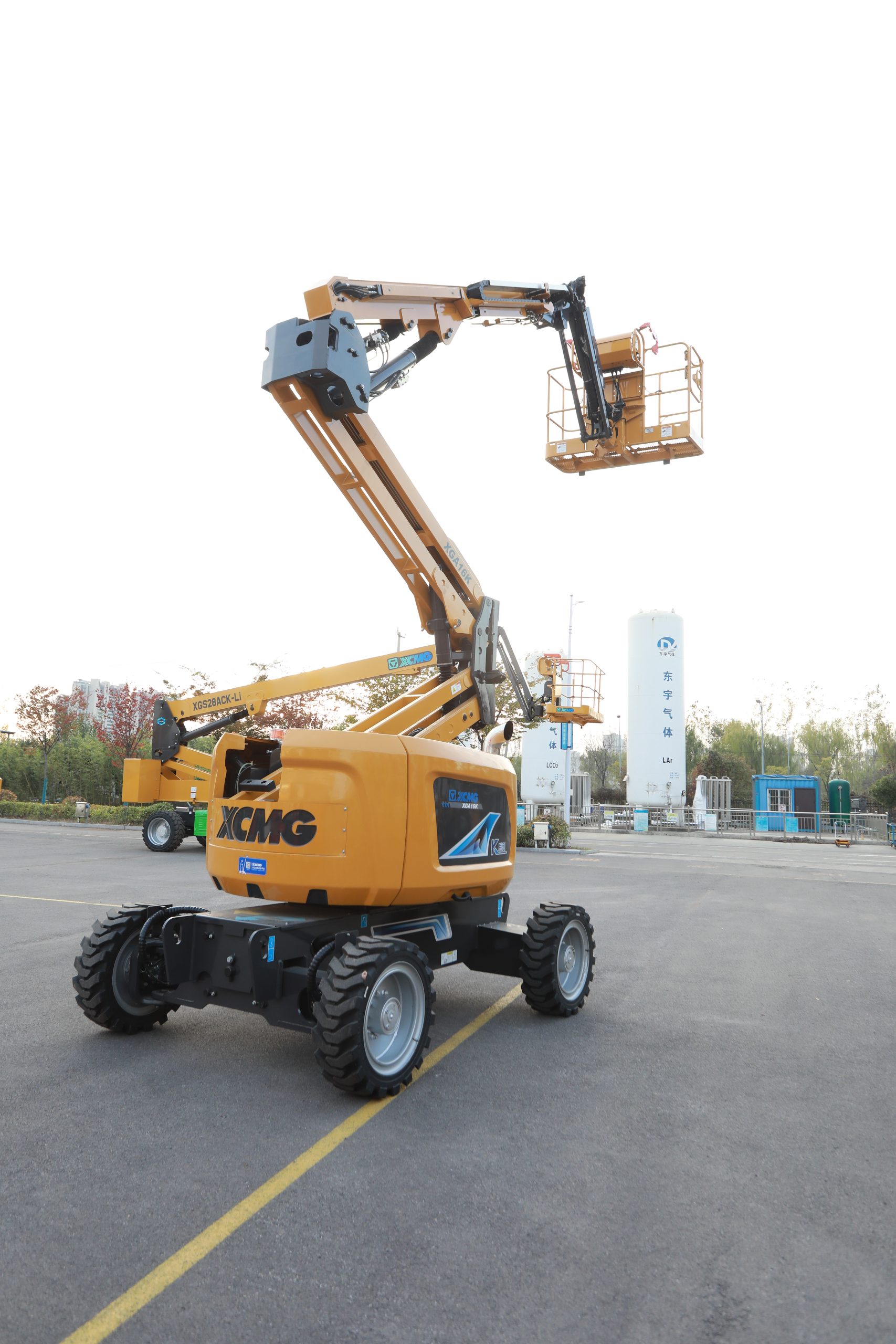

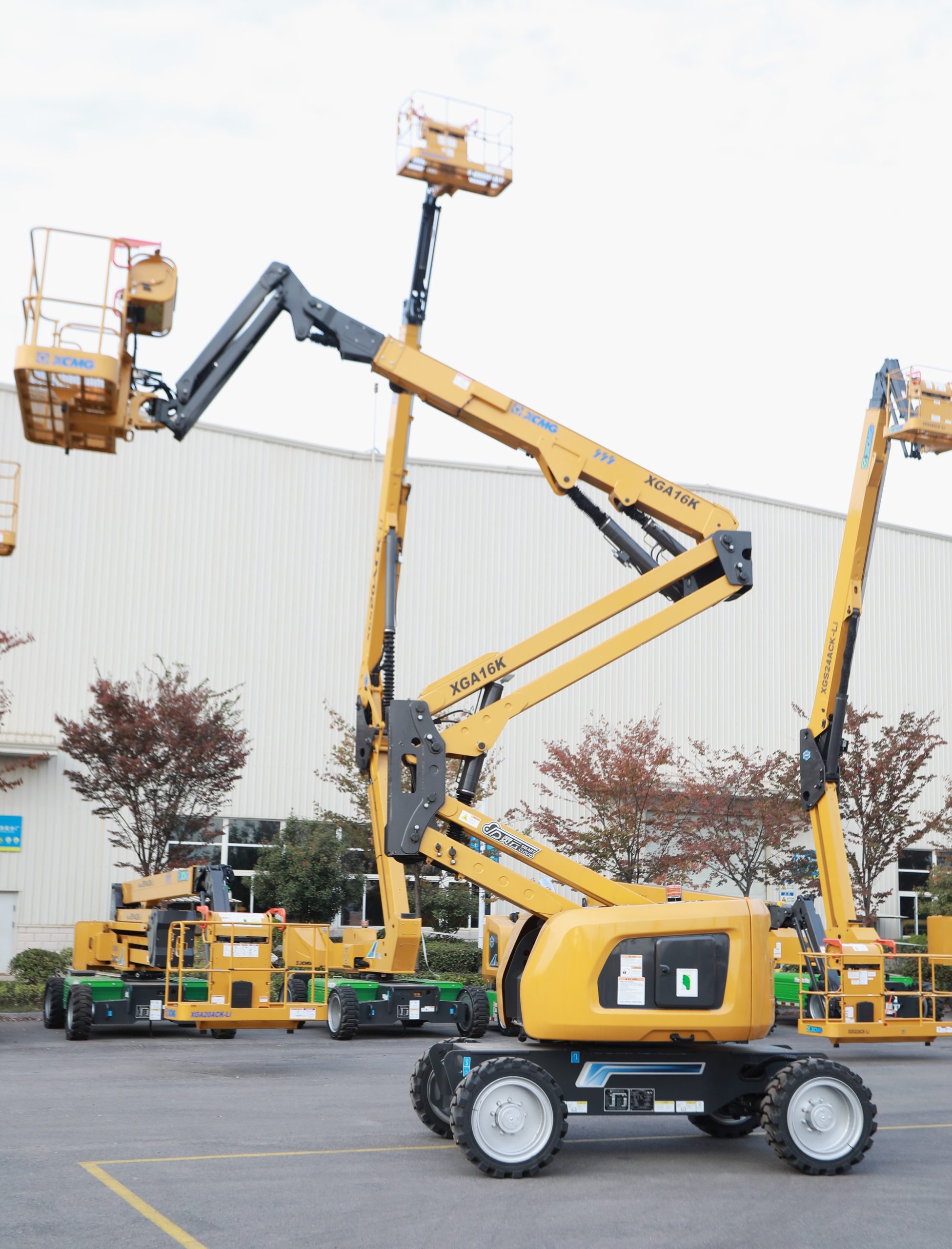

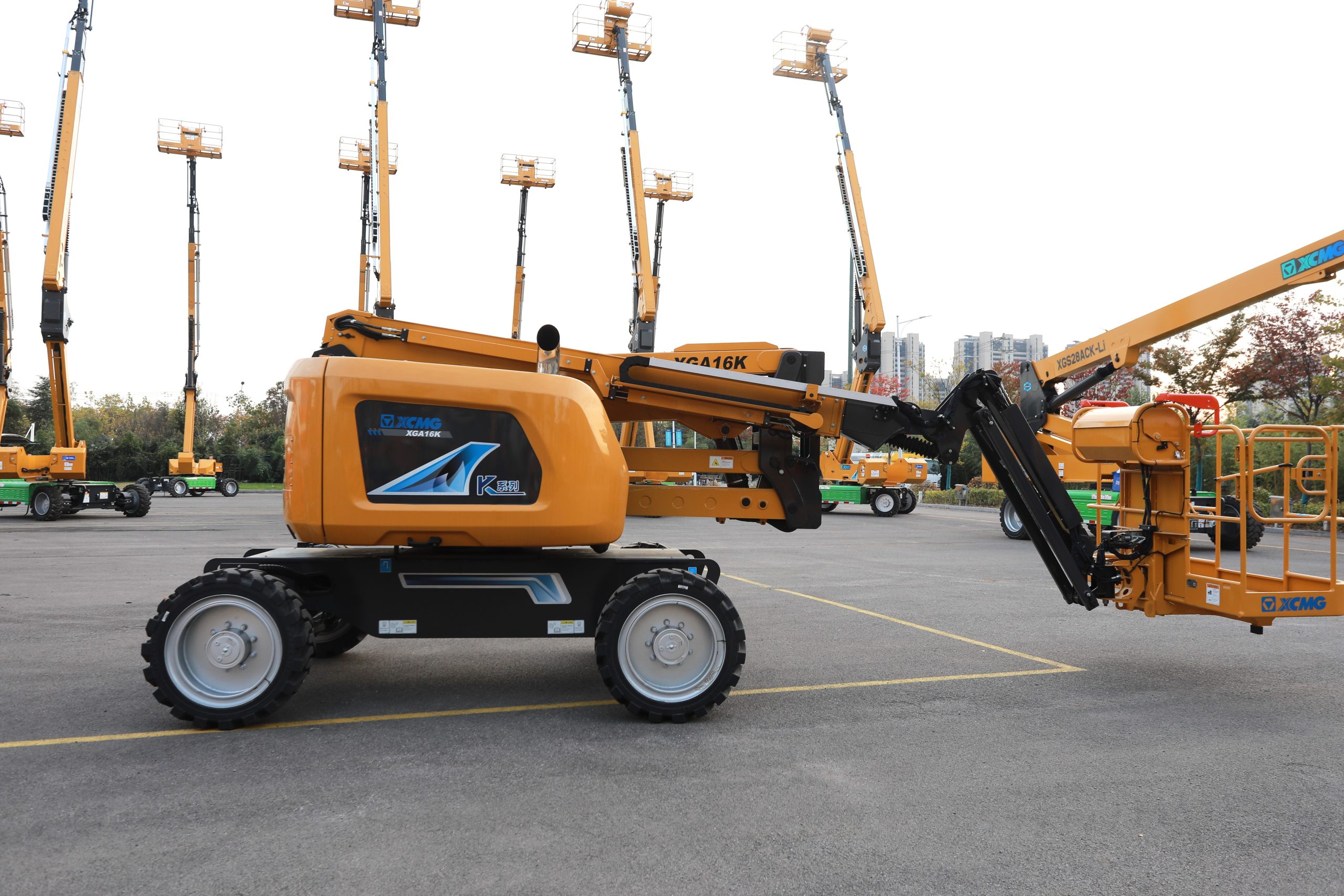

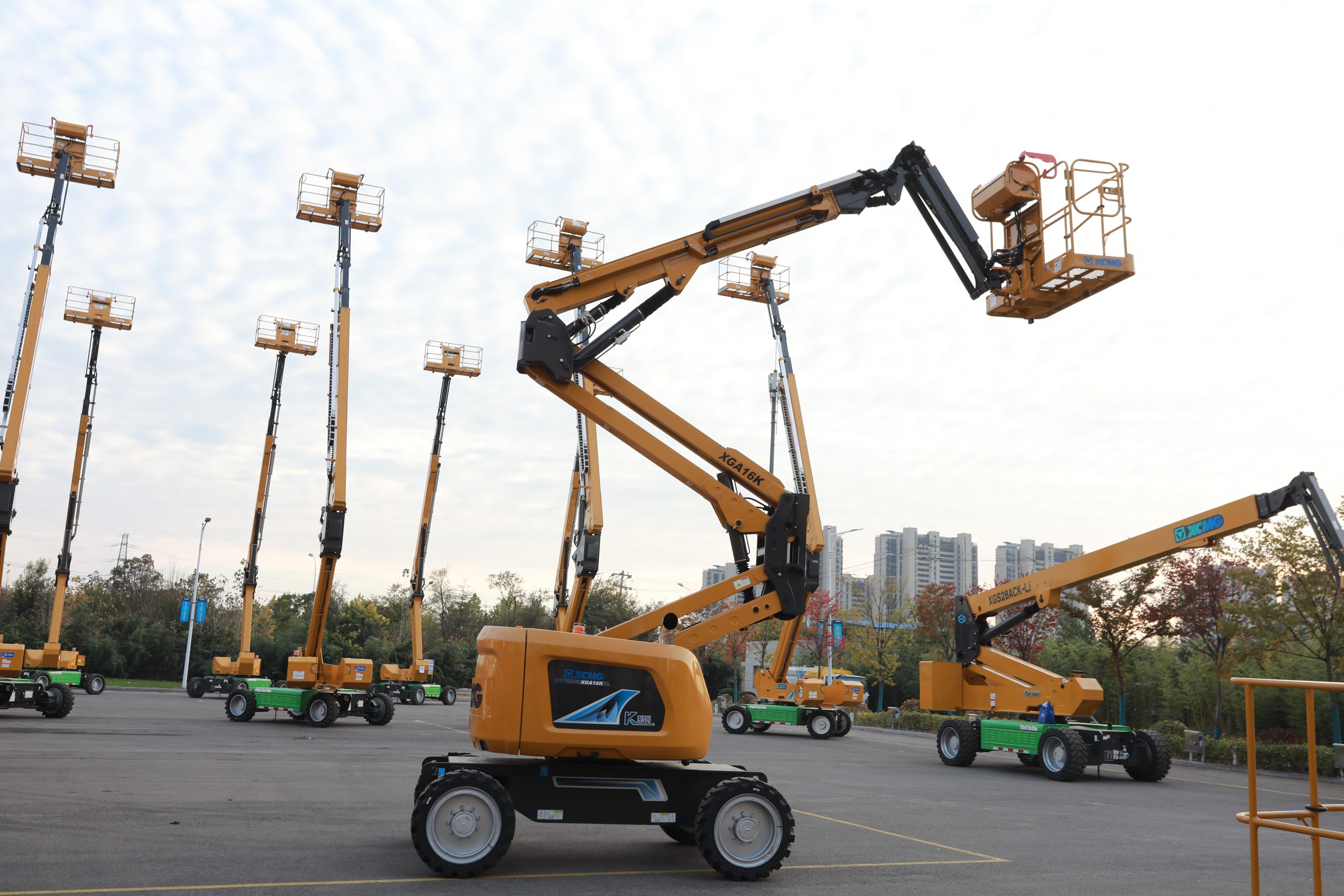

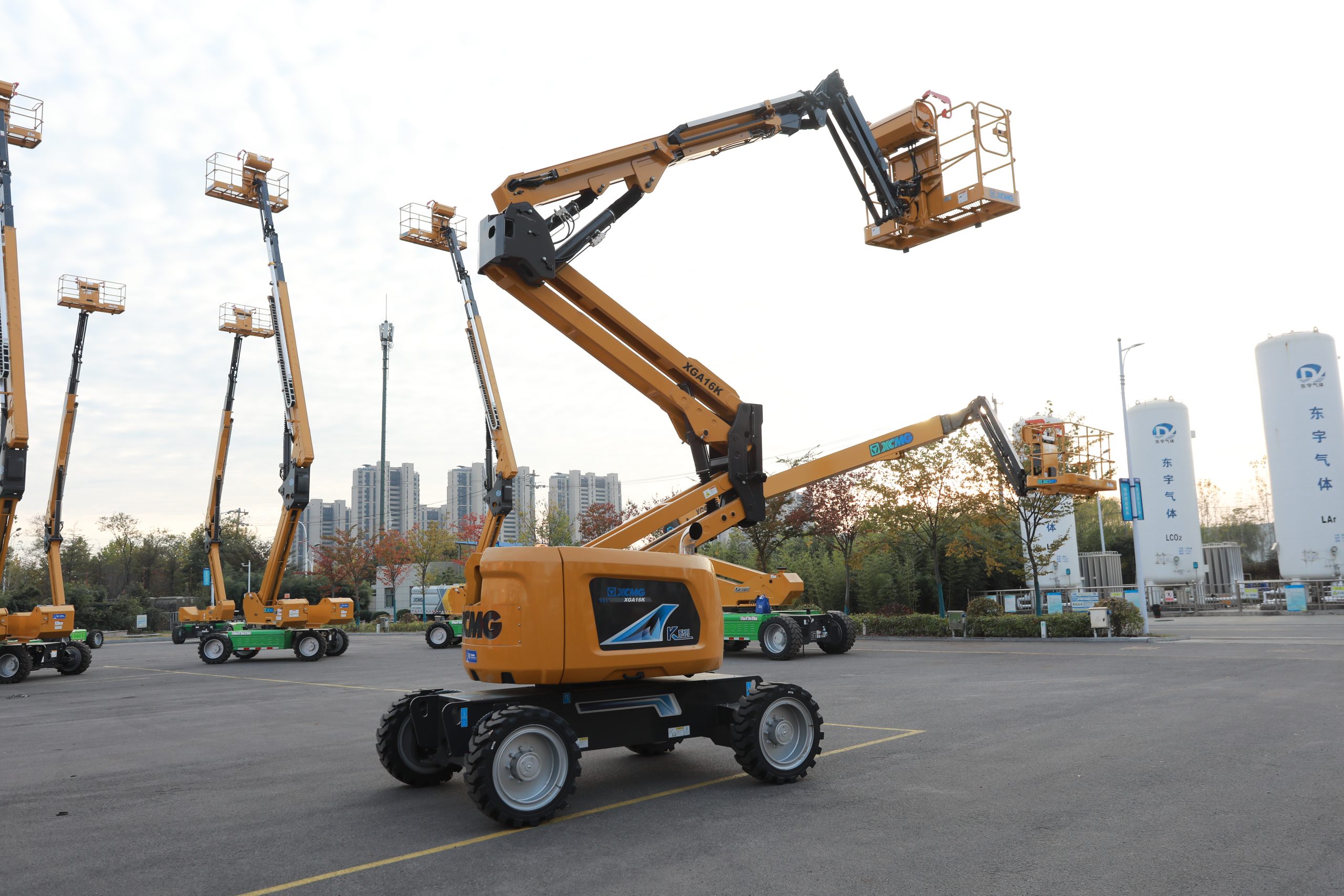

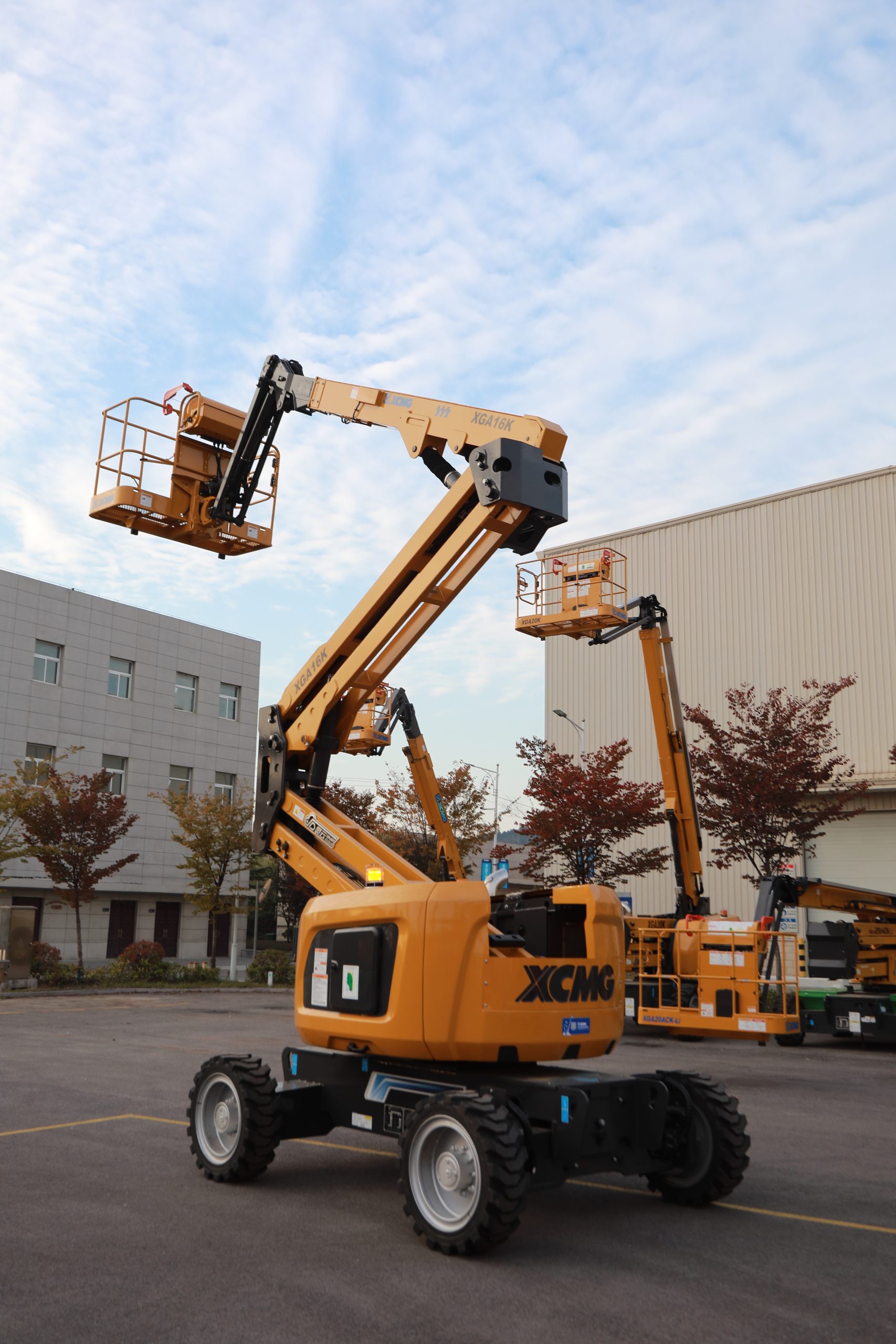

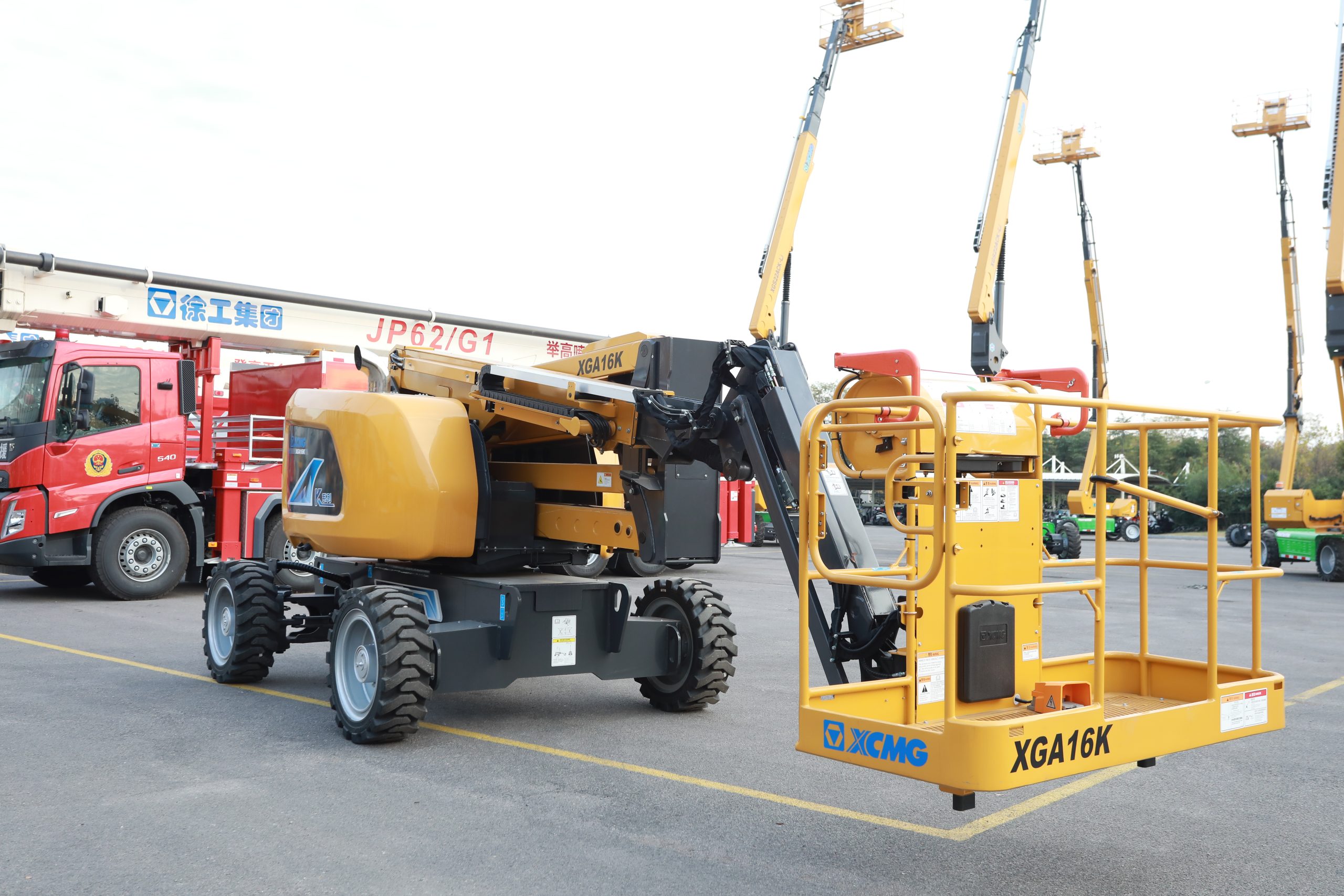

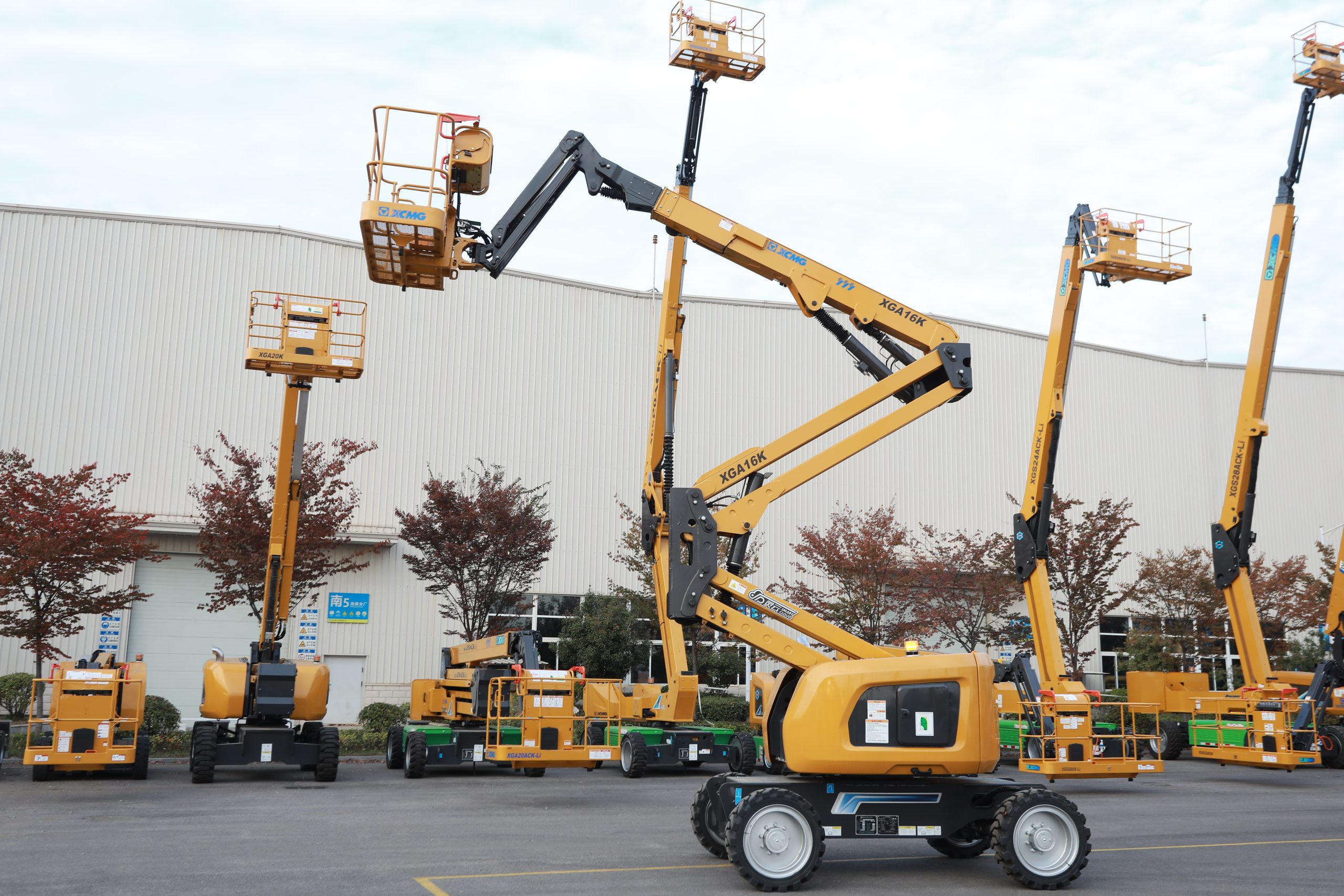

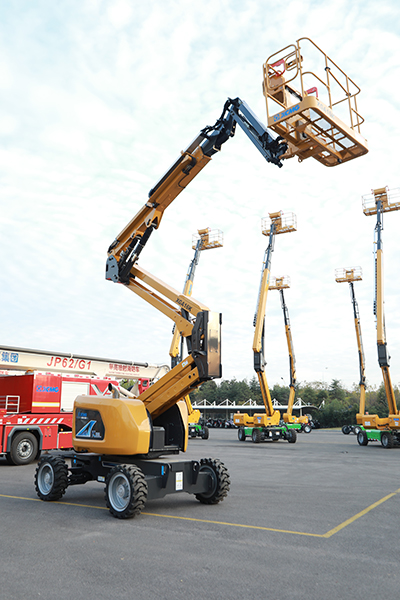

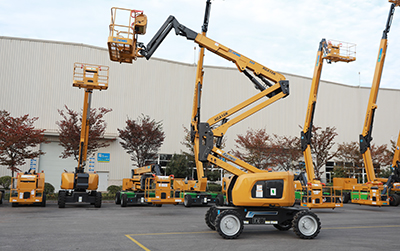

Boom Lift – Model XGA16K

The XCMG Australia XGA16K Boom Lift is designed for efficient material handling in warehouses and industrial settings. With capacities from 240kg to 1.5t, it blends strength and agility for reliable elevation tasks. Whether you need Maintenance Platforms, Personnel Lifts, or Facility Platforms, XCMG Australia has you covered. Explore our range, including Electric Boom Lifts and Outdoor Access Equipment, to boost operational efficiency. Trust XCMG Australia for innovative material handling solutions.

Key Specs

Max. Working Height

16.63 m

Max. Platform Height

14.63 m

Load Capacity

256/350 kg

Total Weight

7600 kg

Product Overview

SPECIFICATIONS

Maximum Working Height	16.63 m
Maximum Platform Height	14.63 m
Horizontal Reach	8.82 m
Load Capacity	256/350 (Limited) kg
Minimum Ground Clearance	300 mm
1st Boom Lufffing Range	0～+65 Degrees
2nd Boom Lufffing Range	-11～+75 Degrees
Fly Jib Luffing Range	-65～+70 Degrees
Rotation Angle of Turntable	355^o Discontinuous Rotation
Maximum Tail Swing Stowed	0 mm
Platform Size	1.83 x 0.76 x 1.15 m
Rotation Angle of Platform	160^o
Total Machine Weight	7600 kg
Maximum Travel Speed	5.5 km/h Contracted 0.6 lm/h Extended
Minimum Turning Radius	3.2 m Inside 4.7 m Outside
Maximum Gradeability	30% / 45% (17 / 24^o )
Overall Length	6.85 m Stowed in Operation 5.6 m Trasport, Short Arm Folded Down
Overall Width	2.32 m
Overall Height	2.38 m
Tyre Specifications	33×12-20/7.5 Solid tyres – Standard Option 315/55D20-18 Filled solid tyres – Optional
Wheelbase	2.38 m
Batteries	12 V DC
Engine Type	Kubota V2403BM-DI-CTO4e(stage Ⅲ)
Engine Power Rating	36.0 kW 2600 rpm
