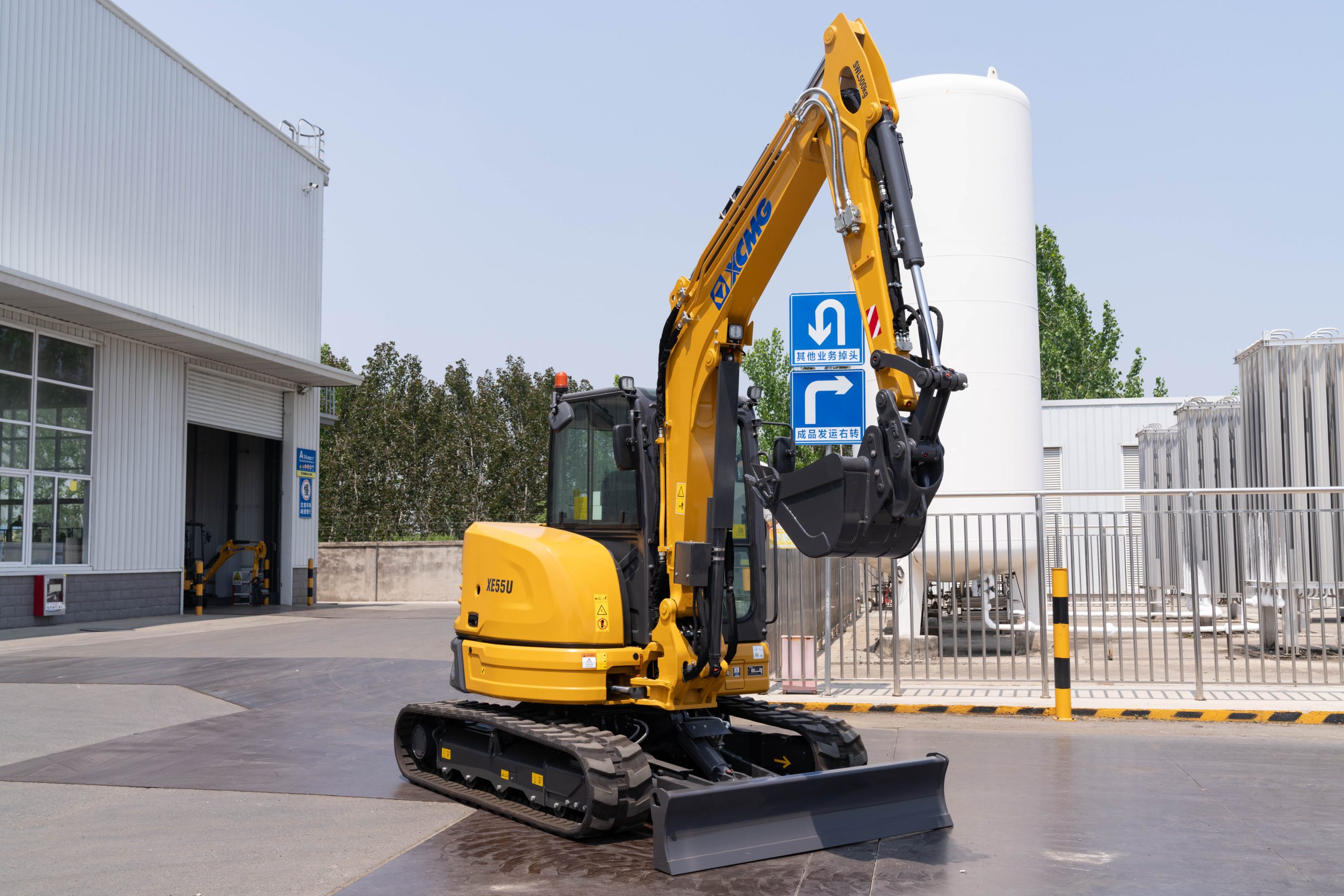

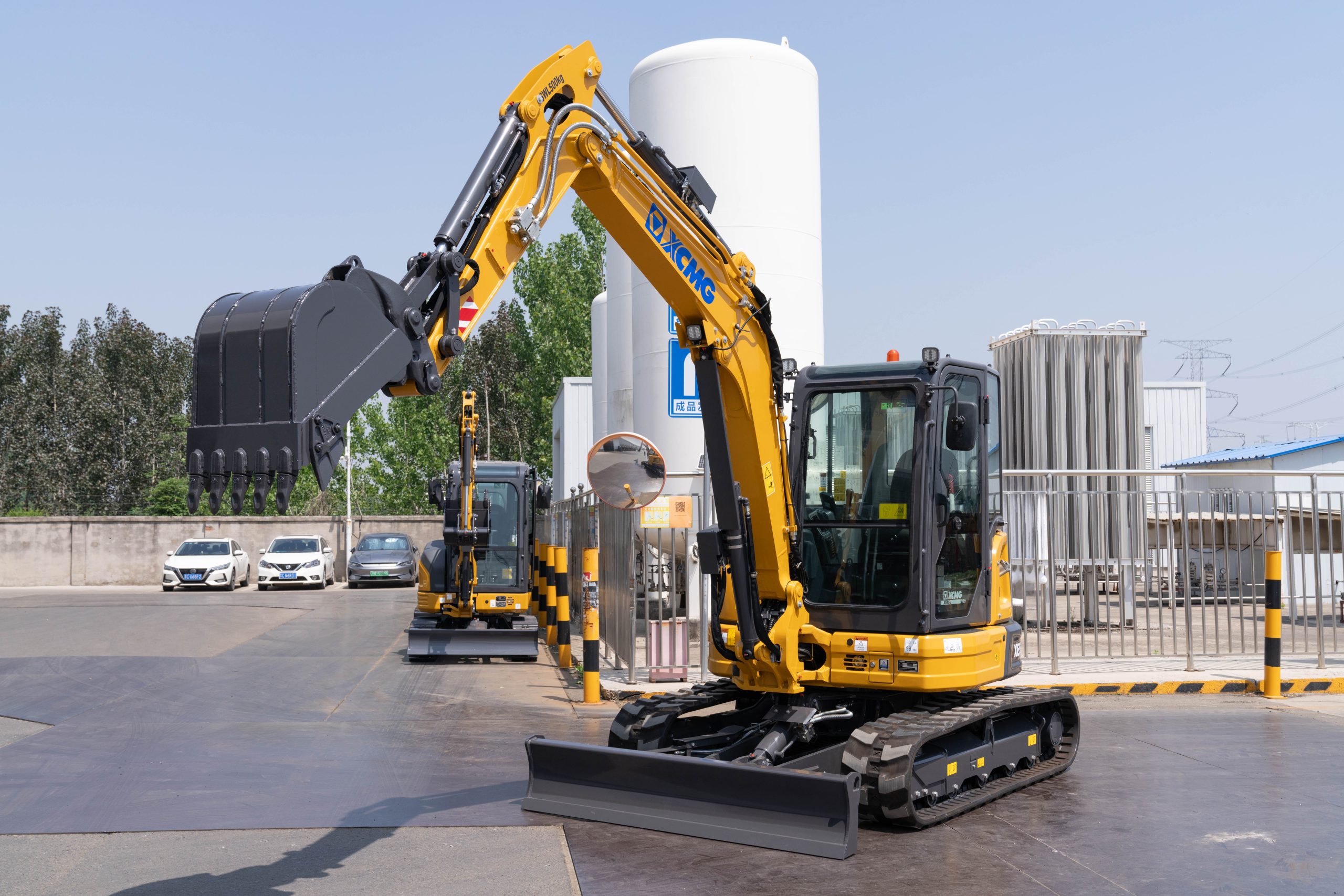

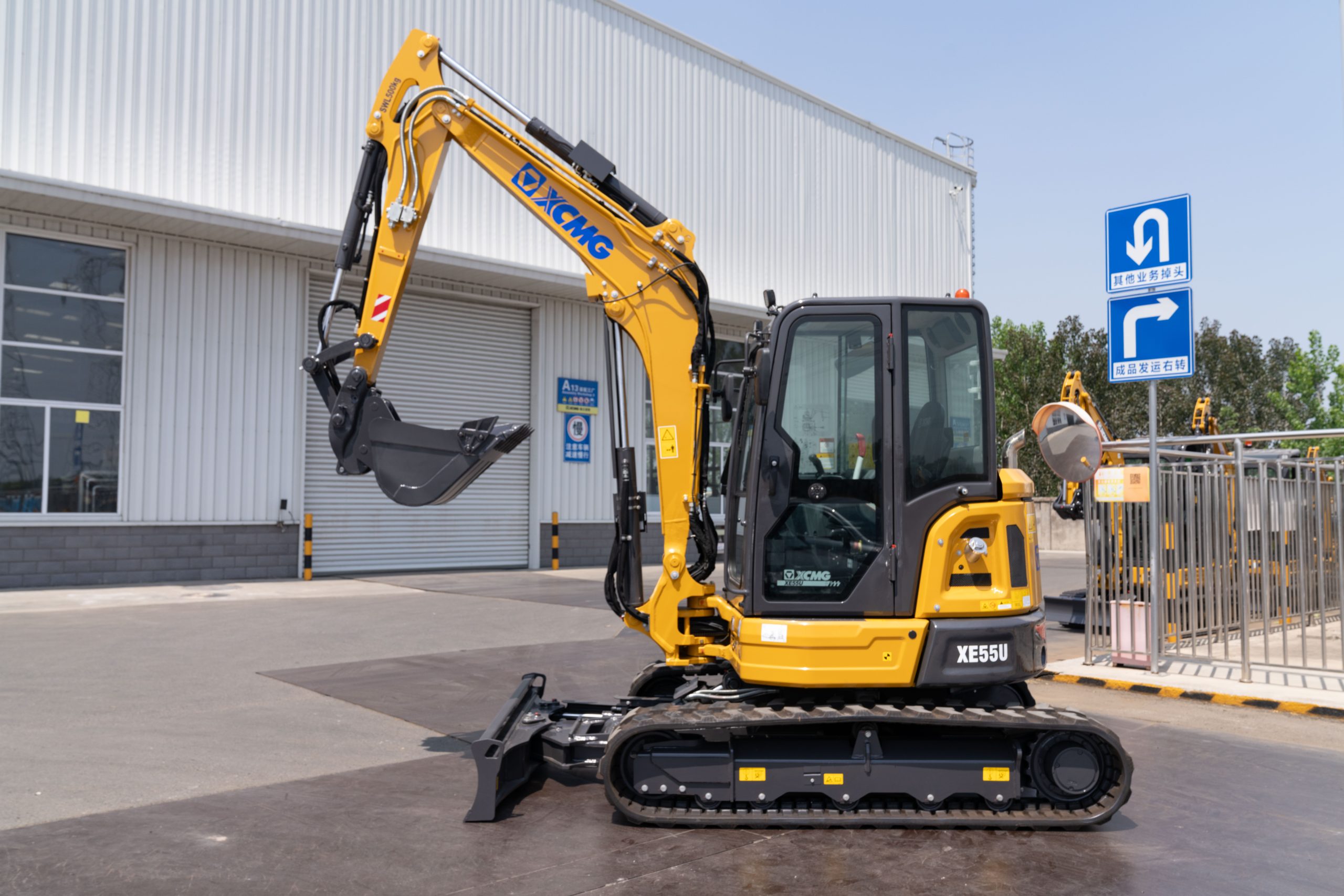

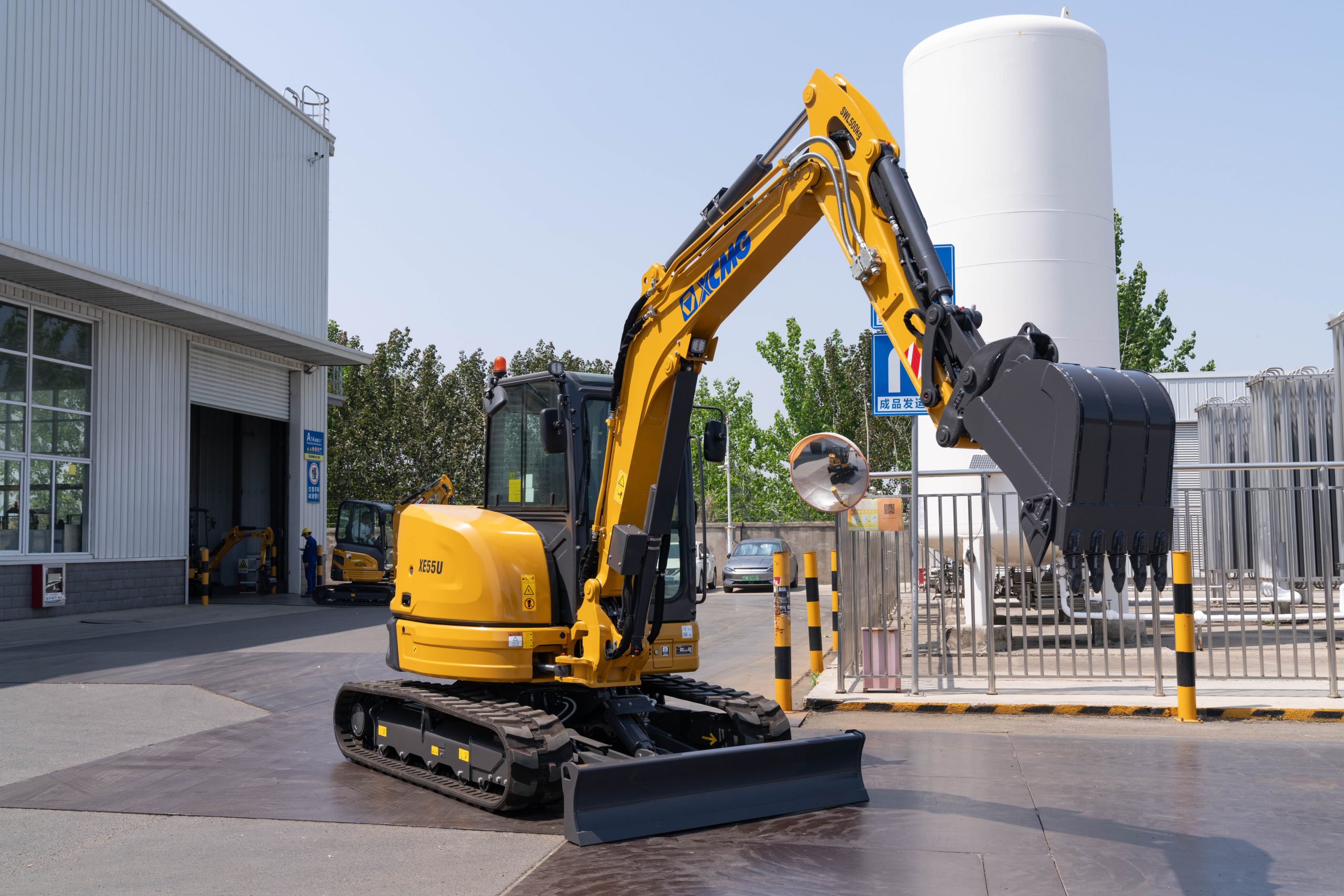

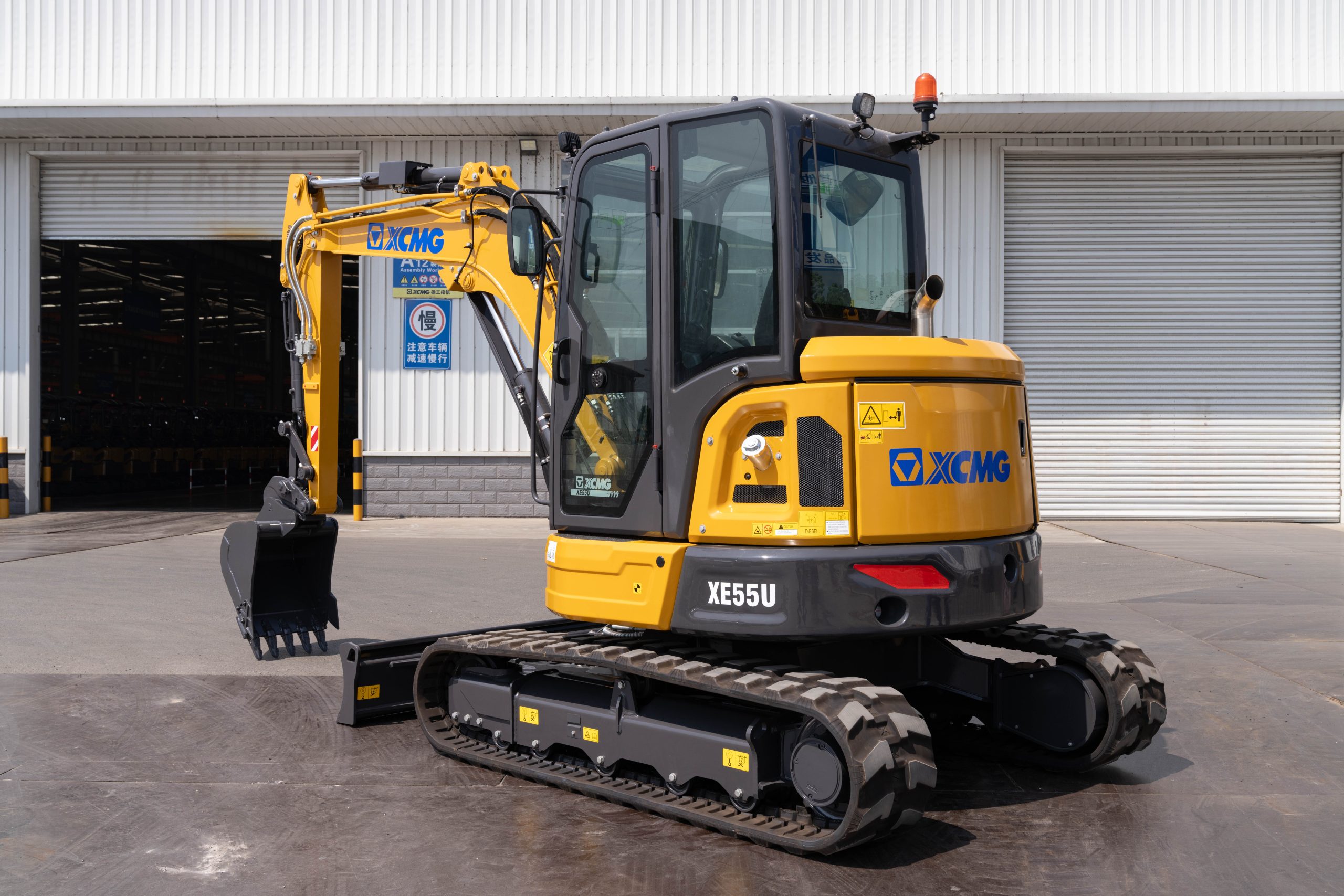

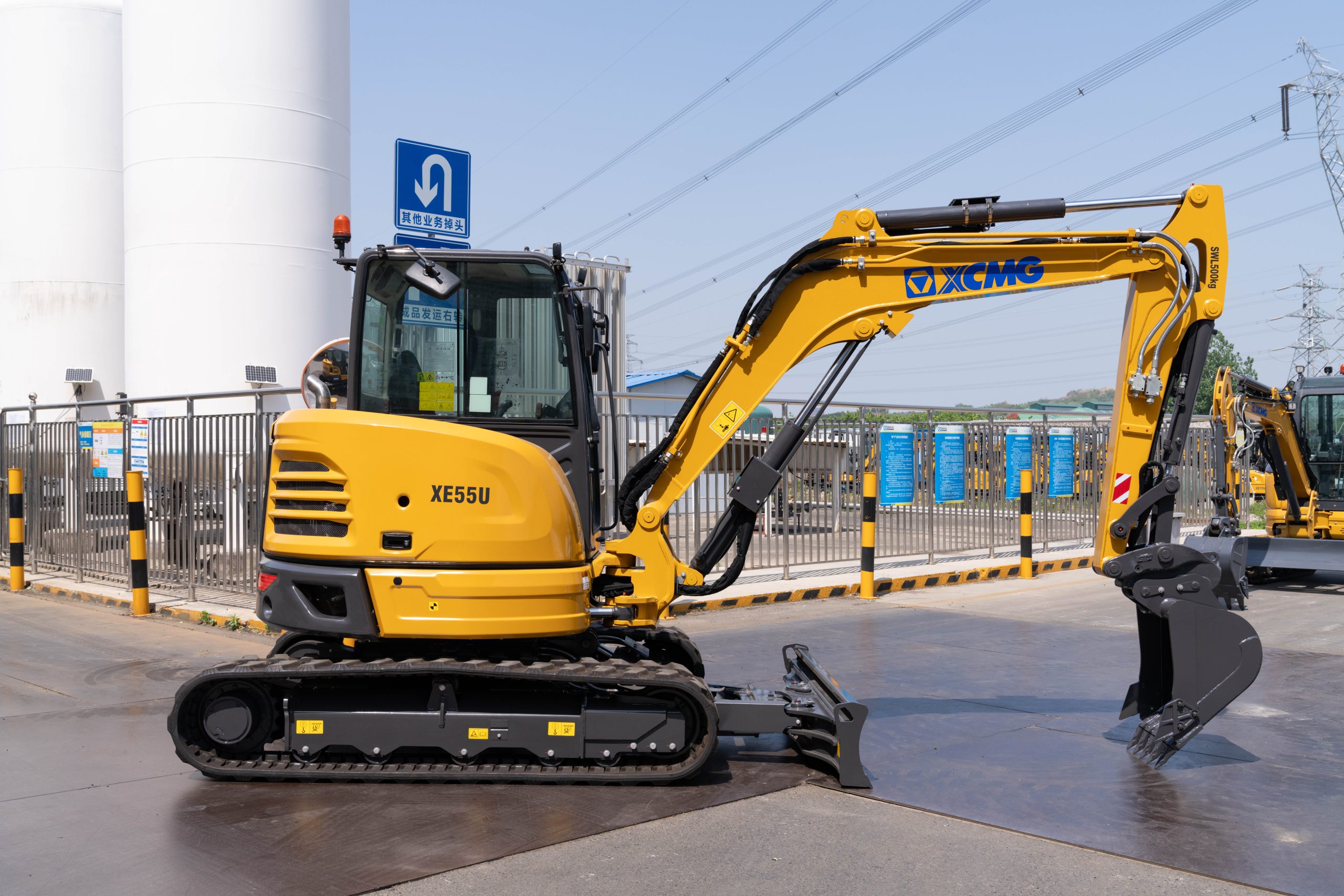

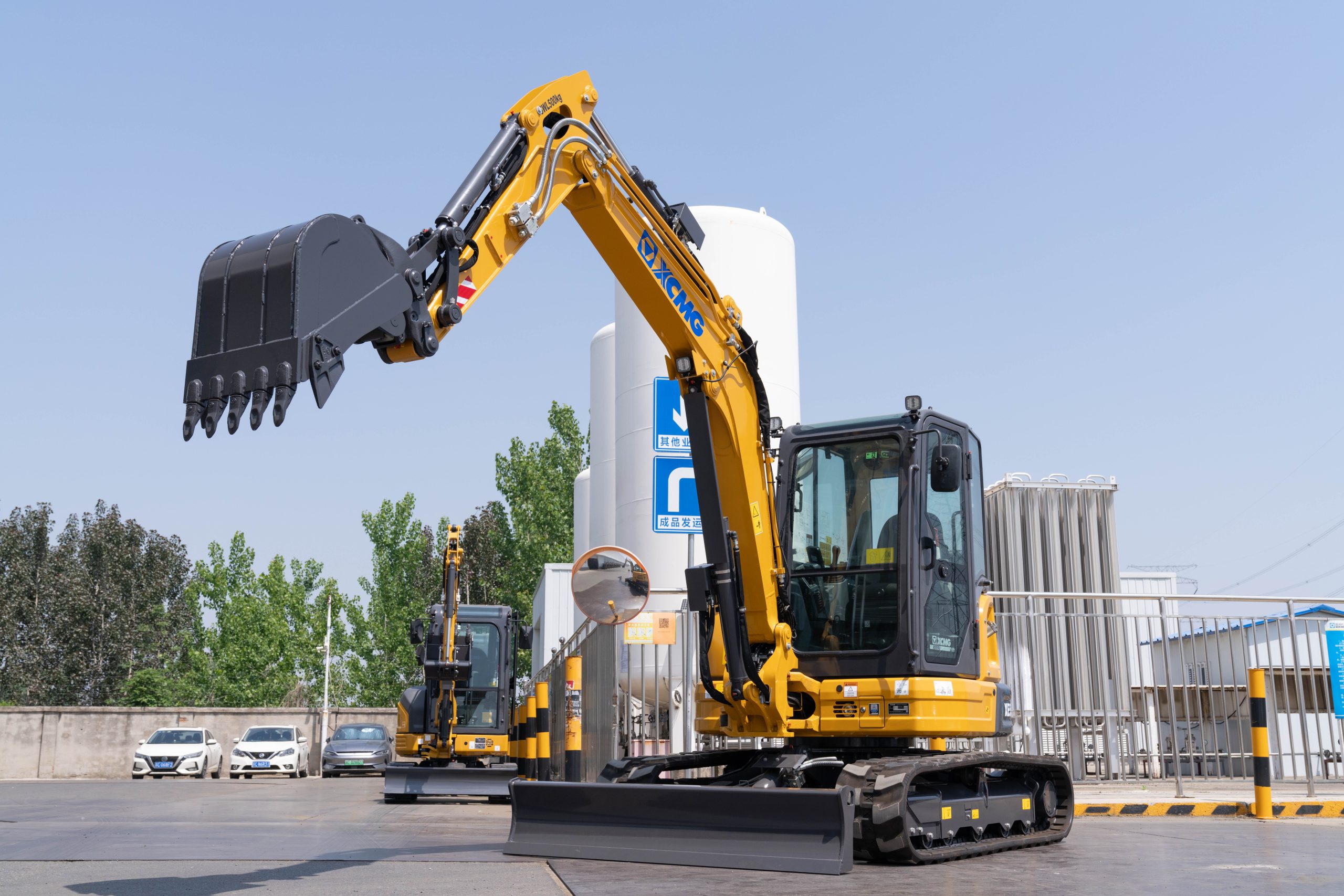

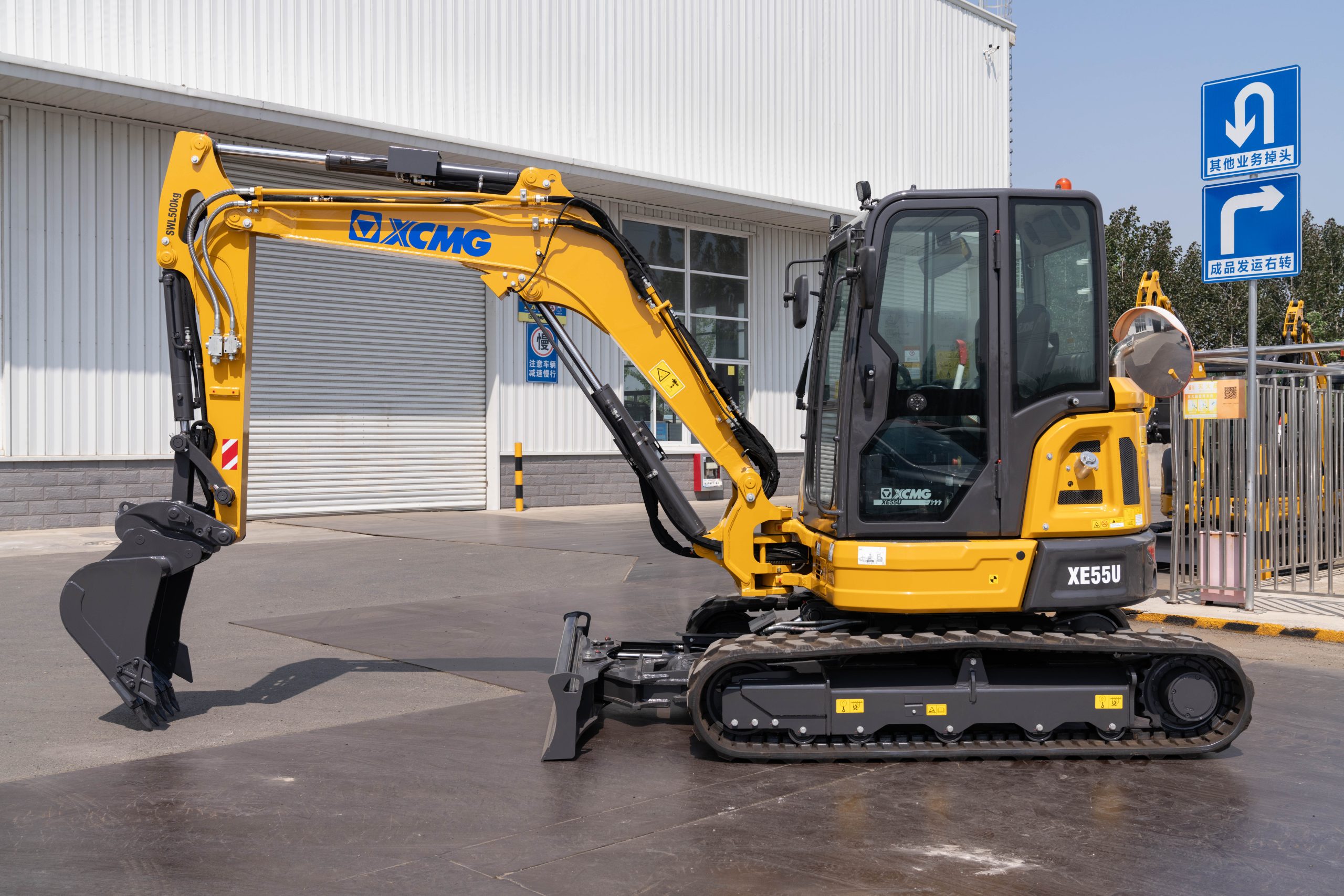

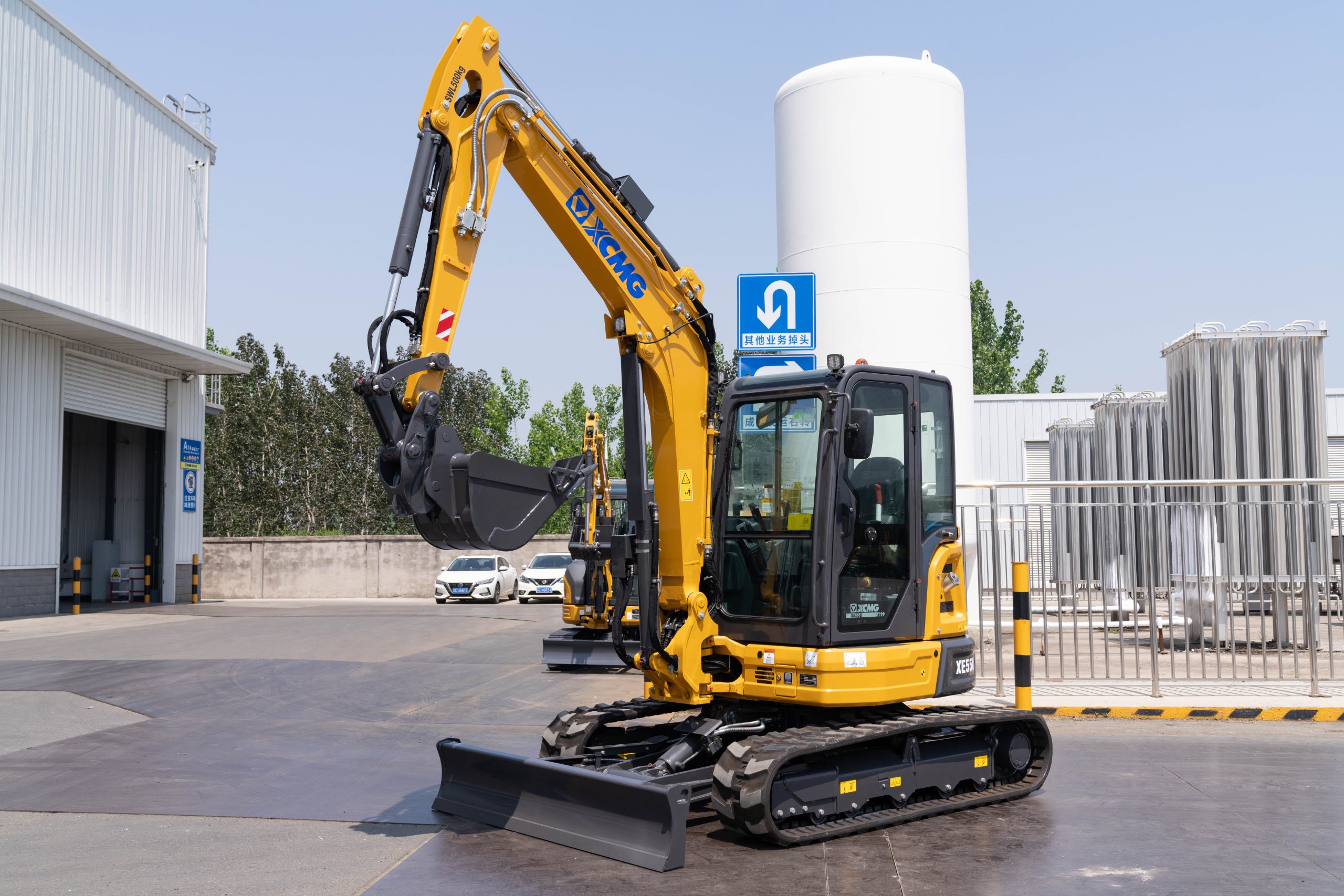

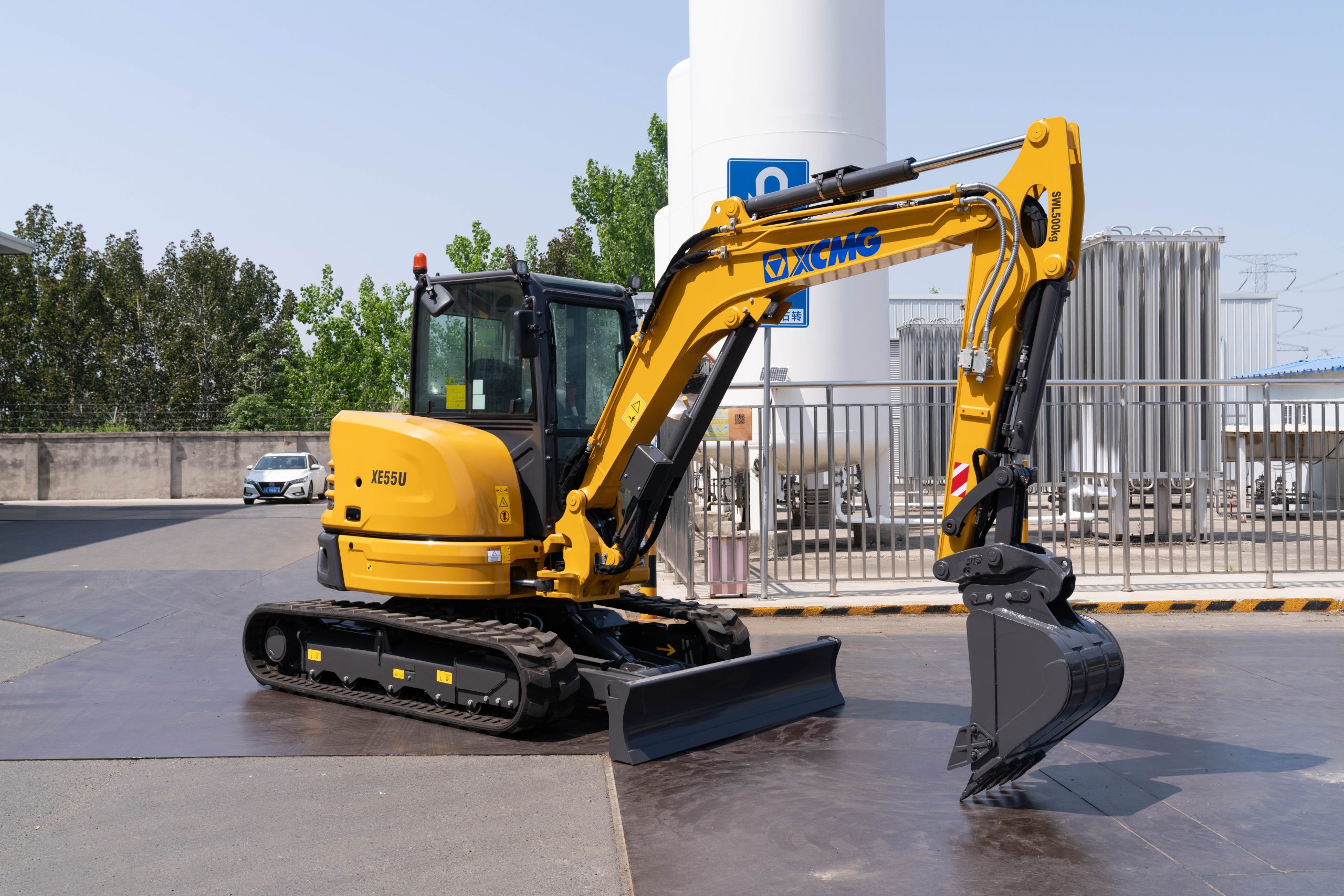

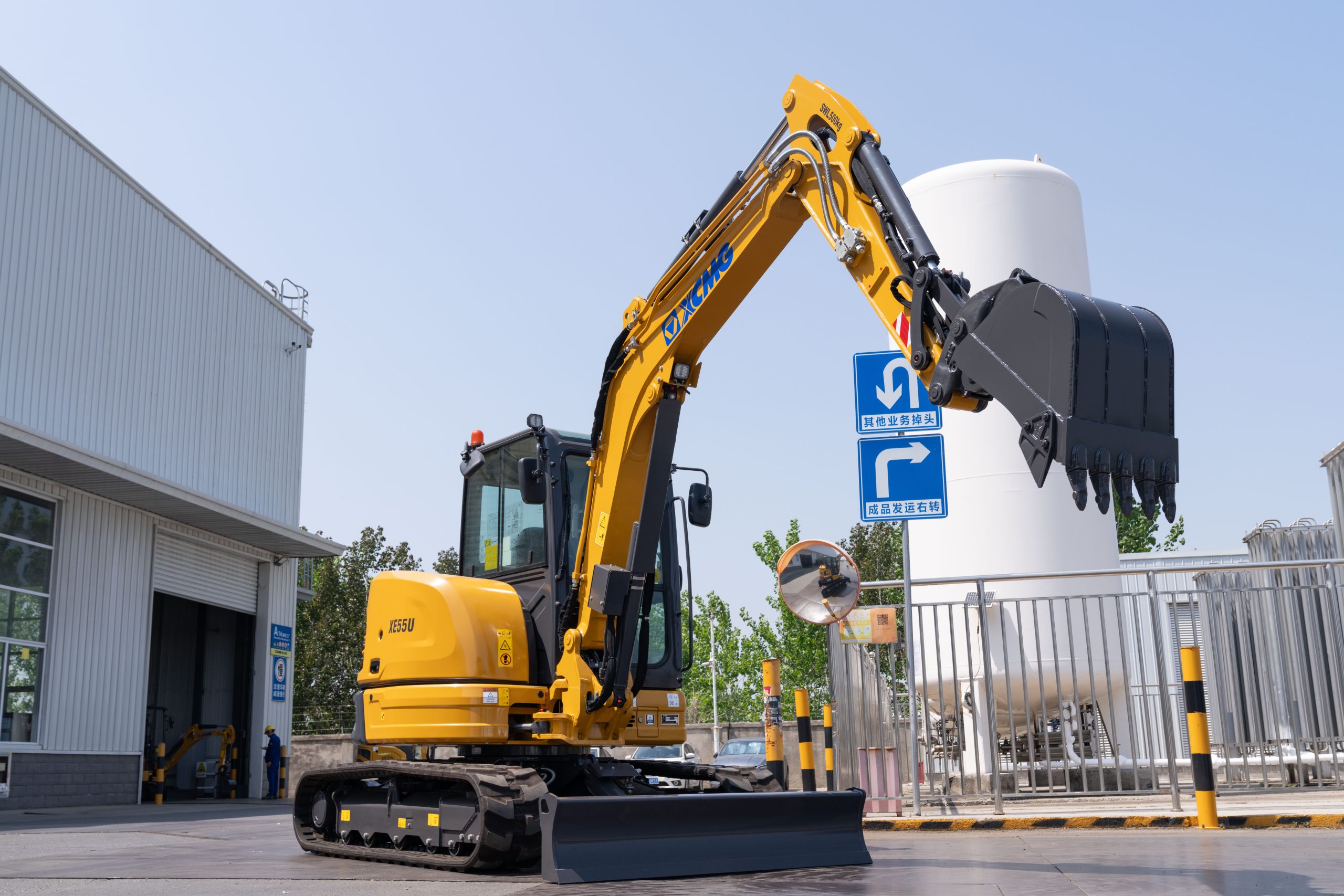

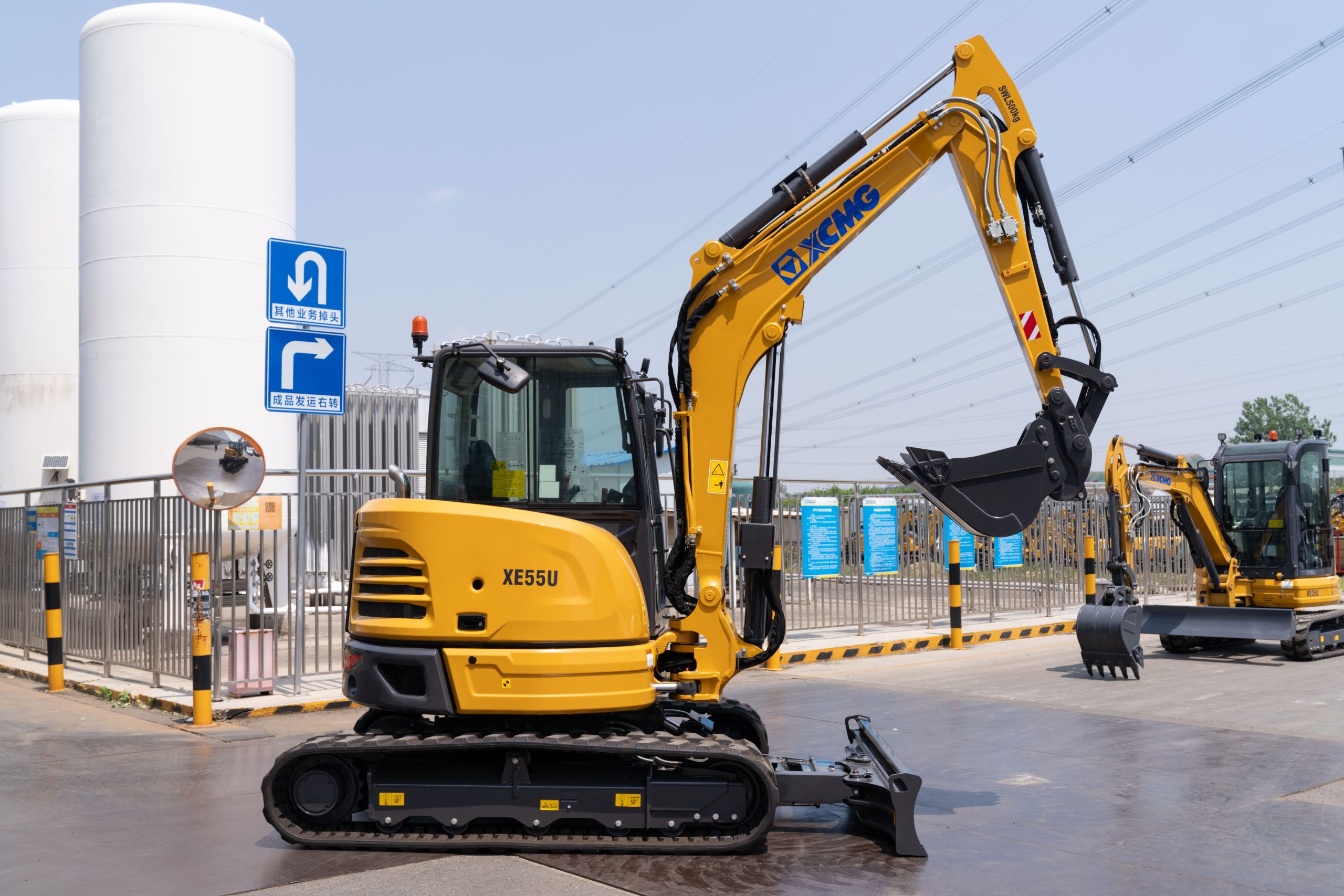

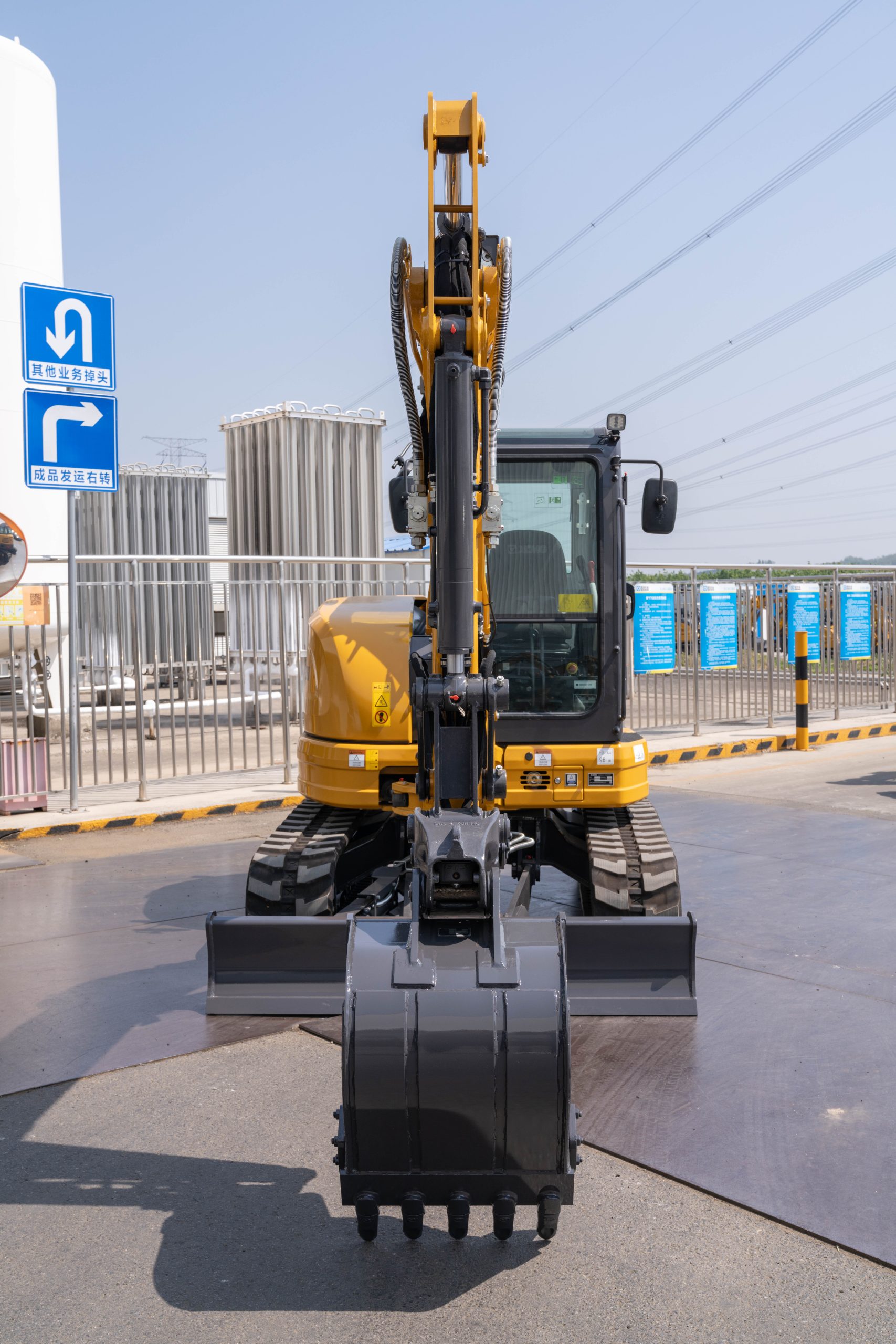

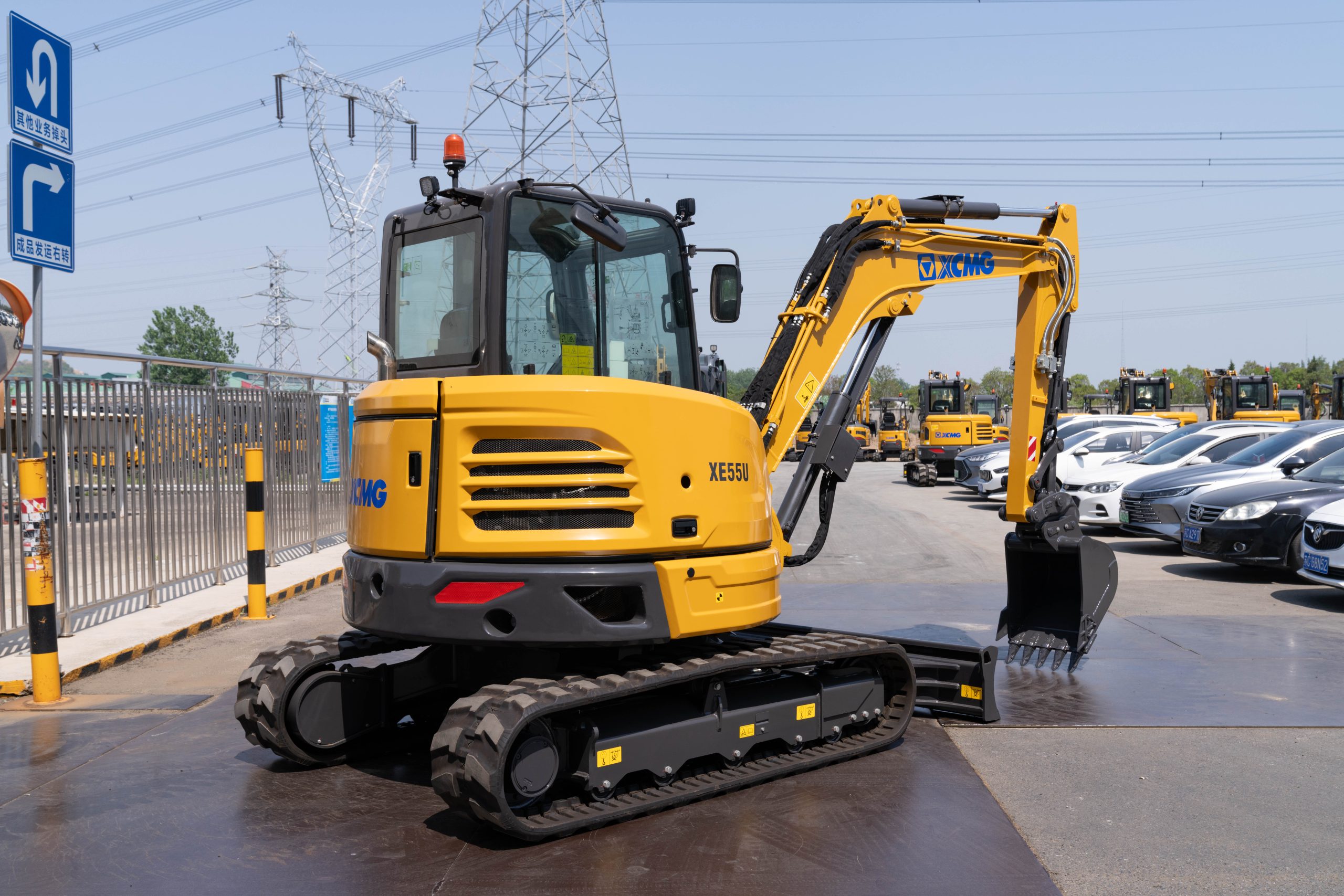

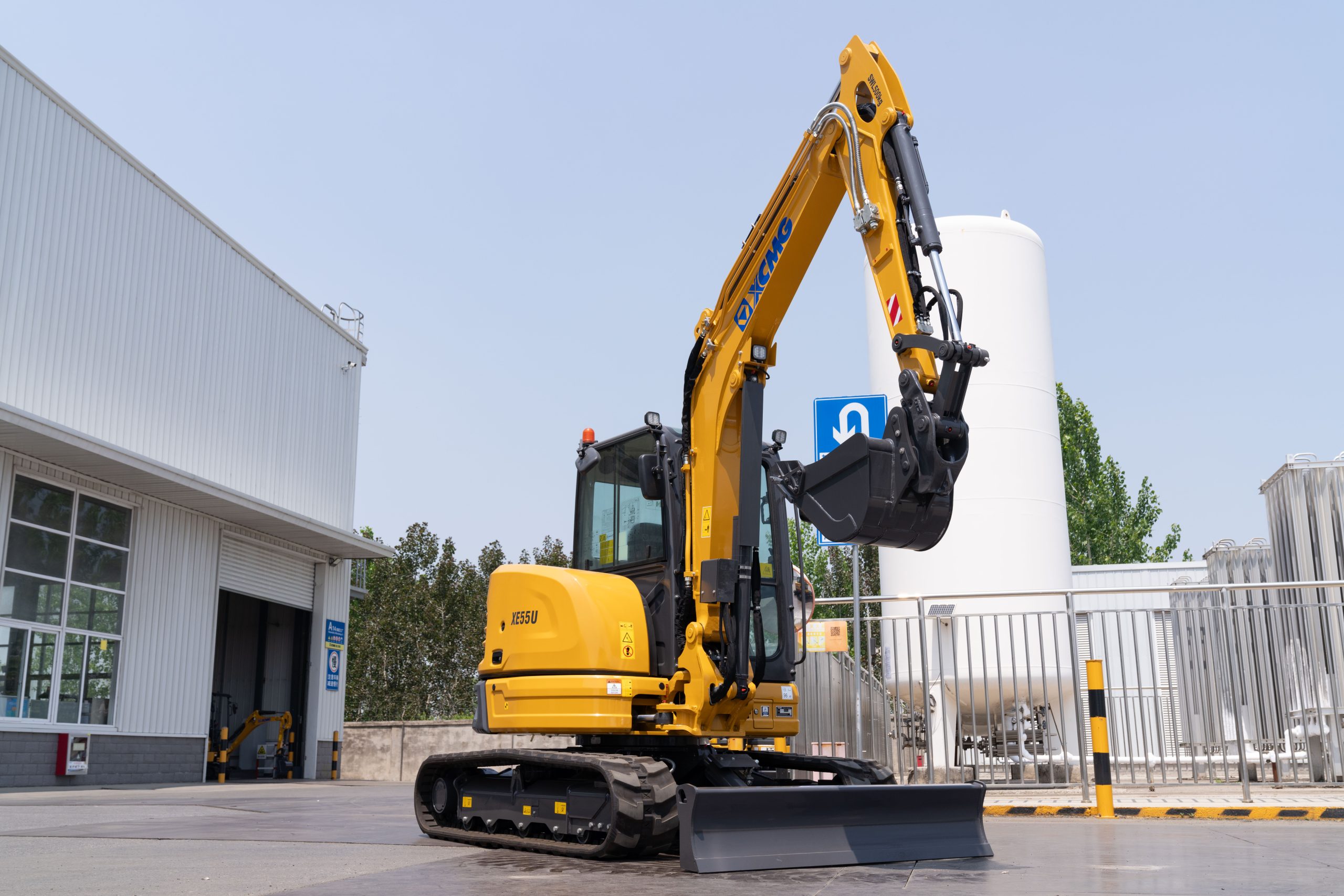

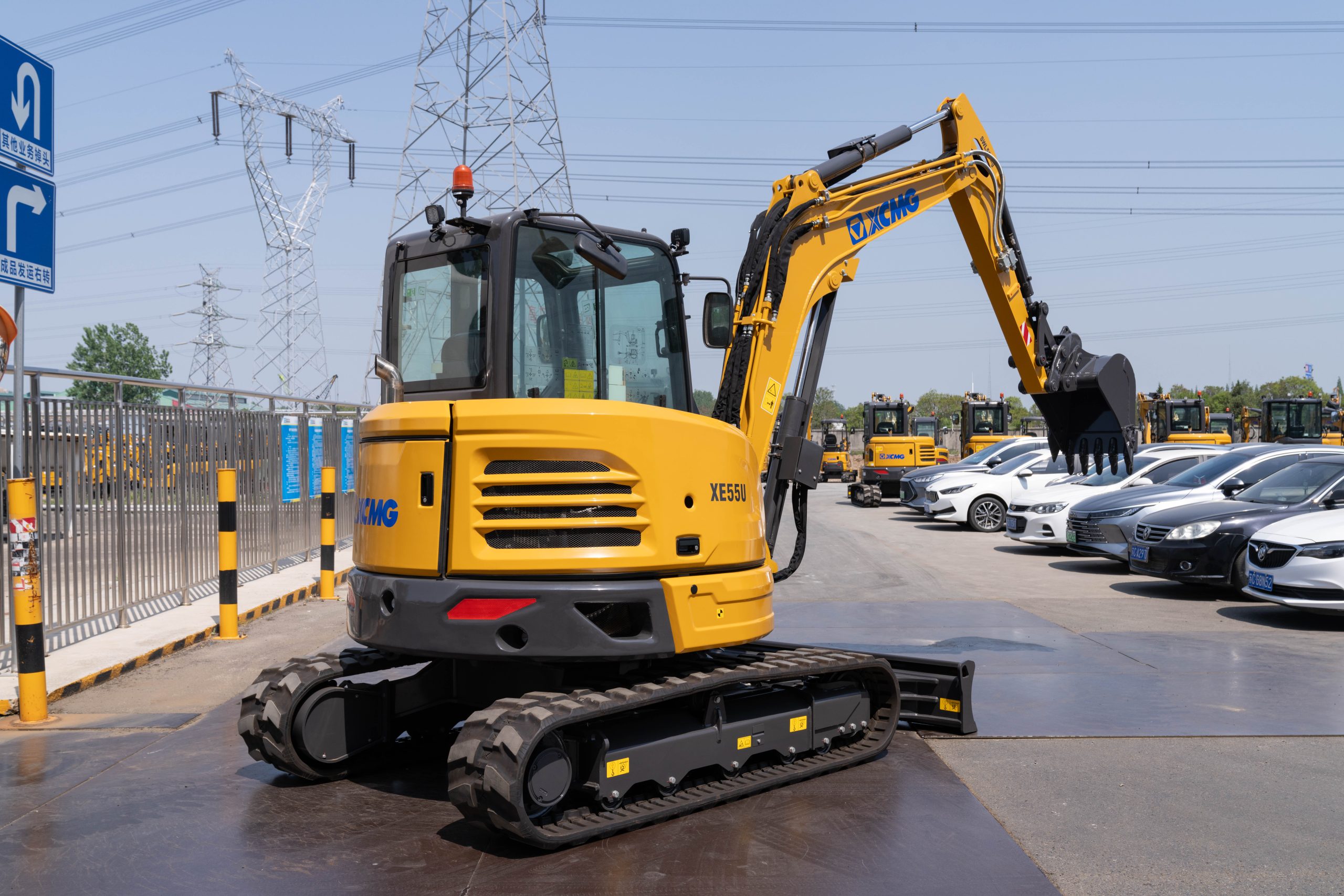

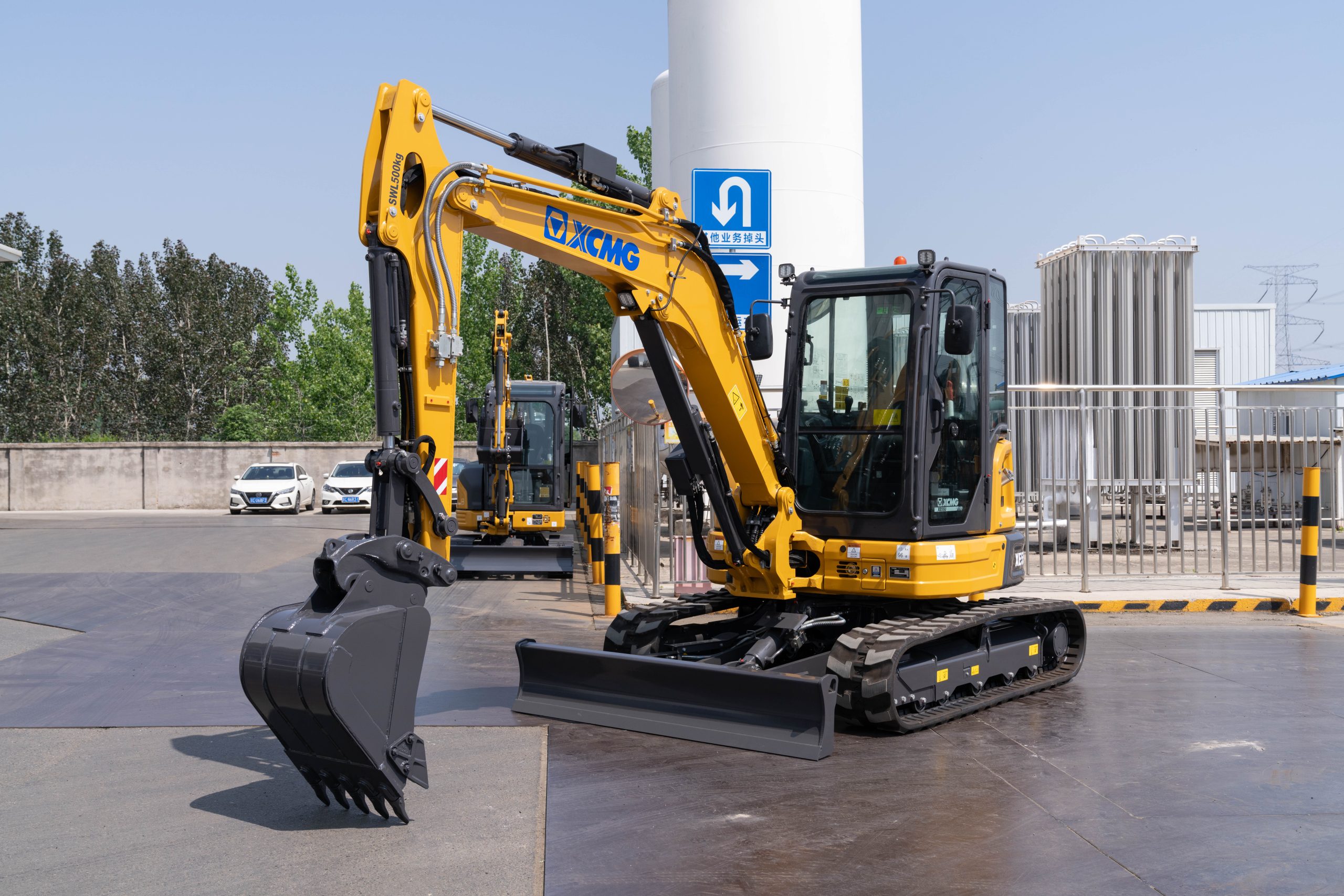

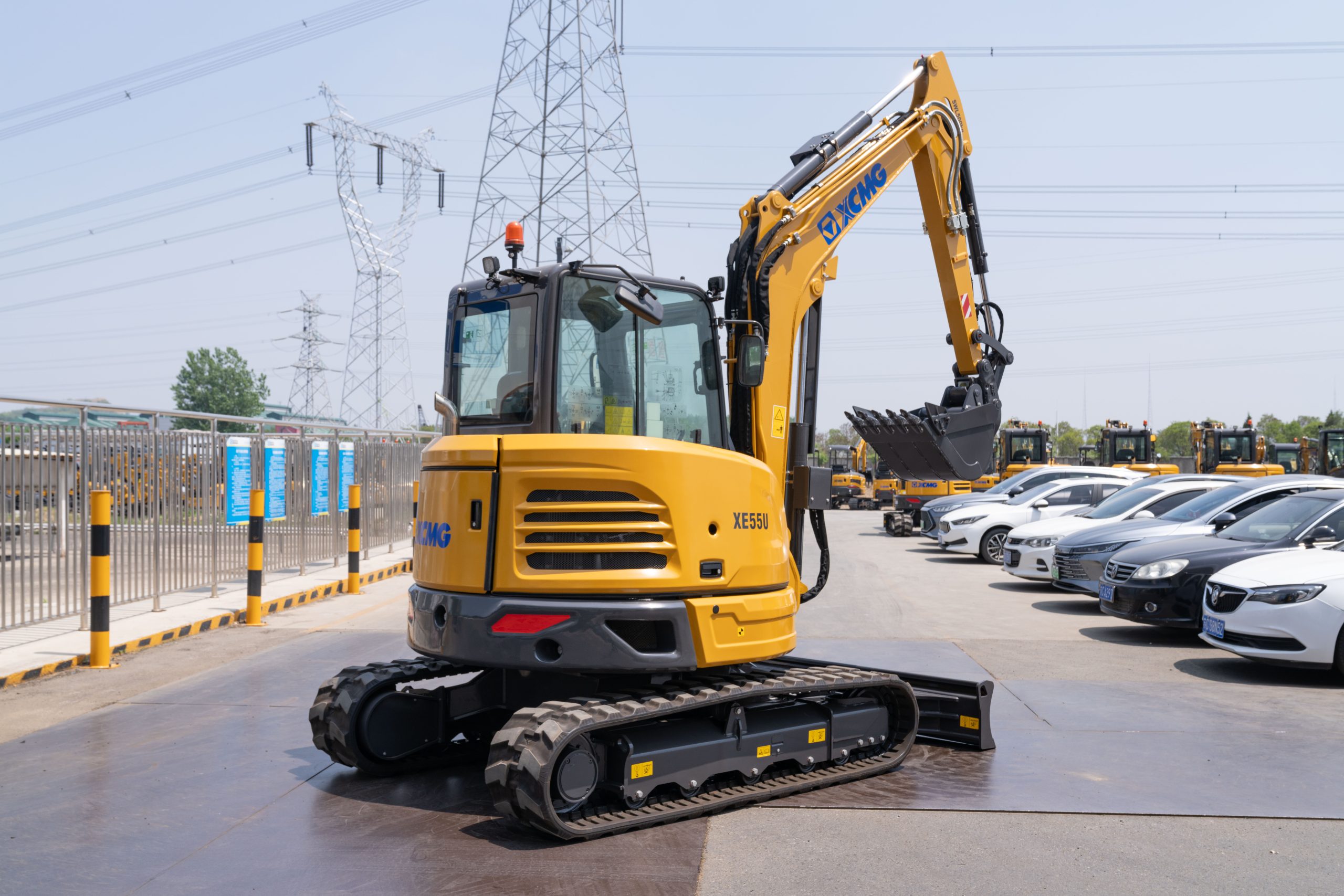

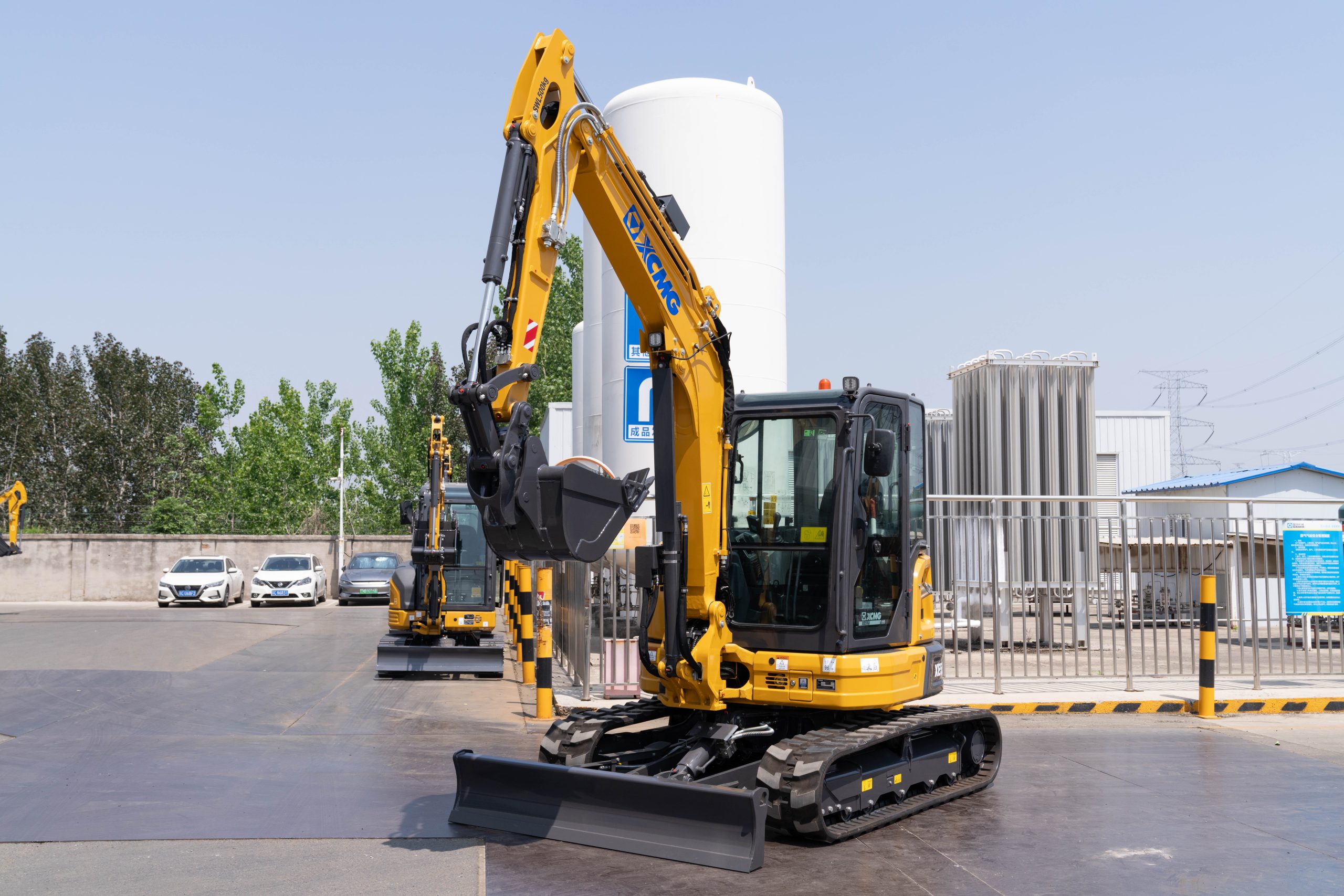

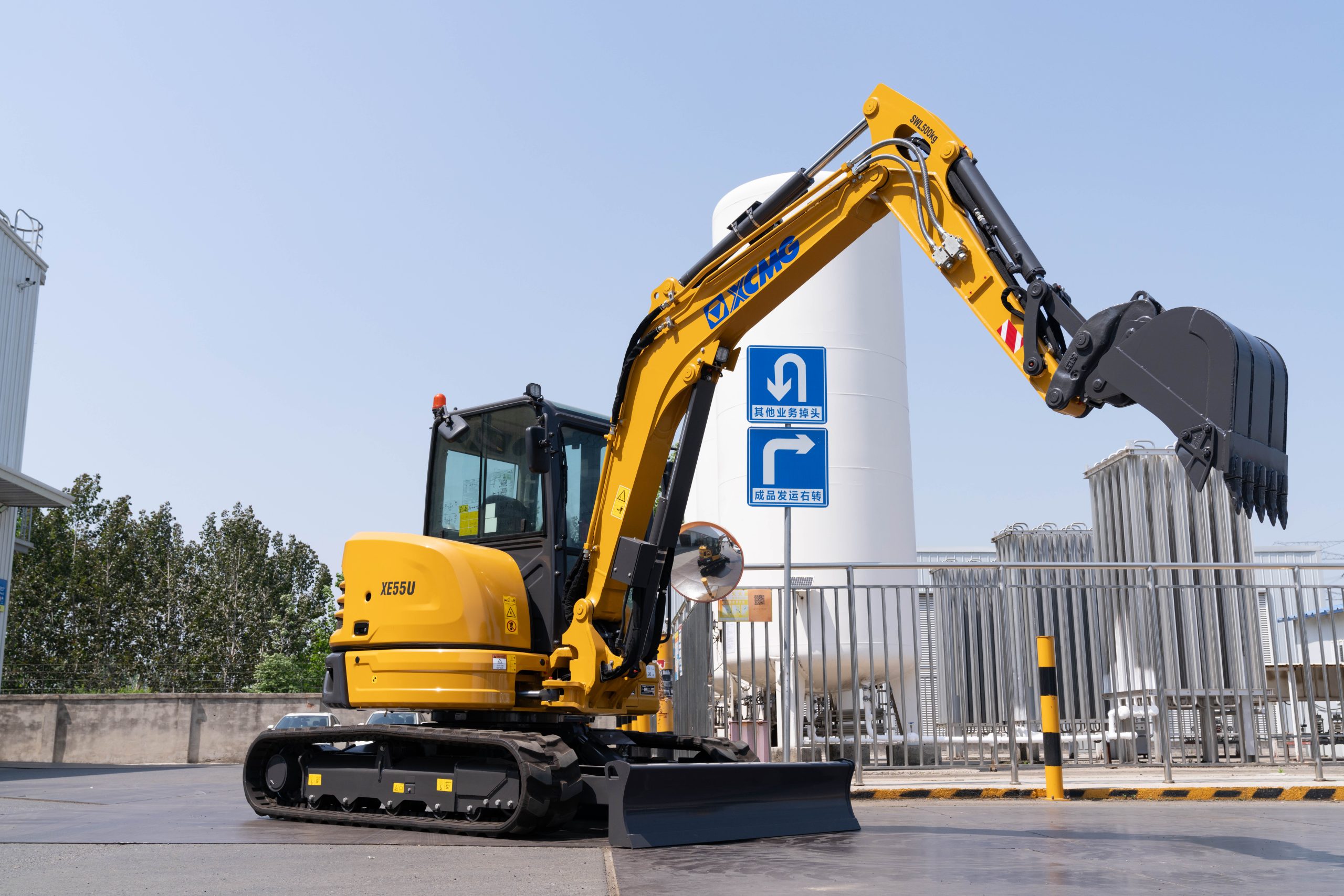

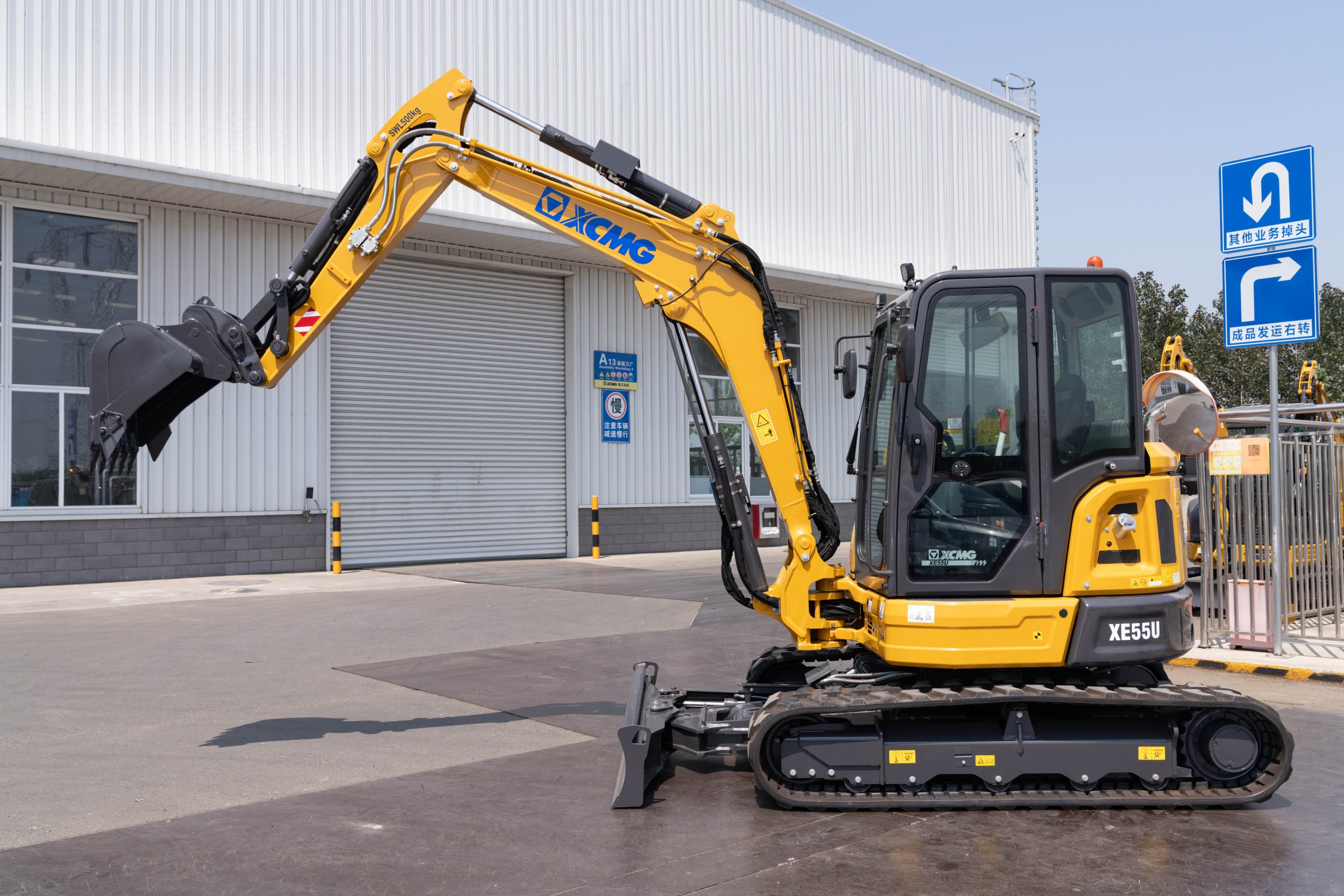

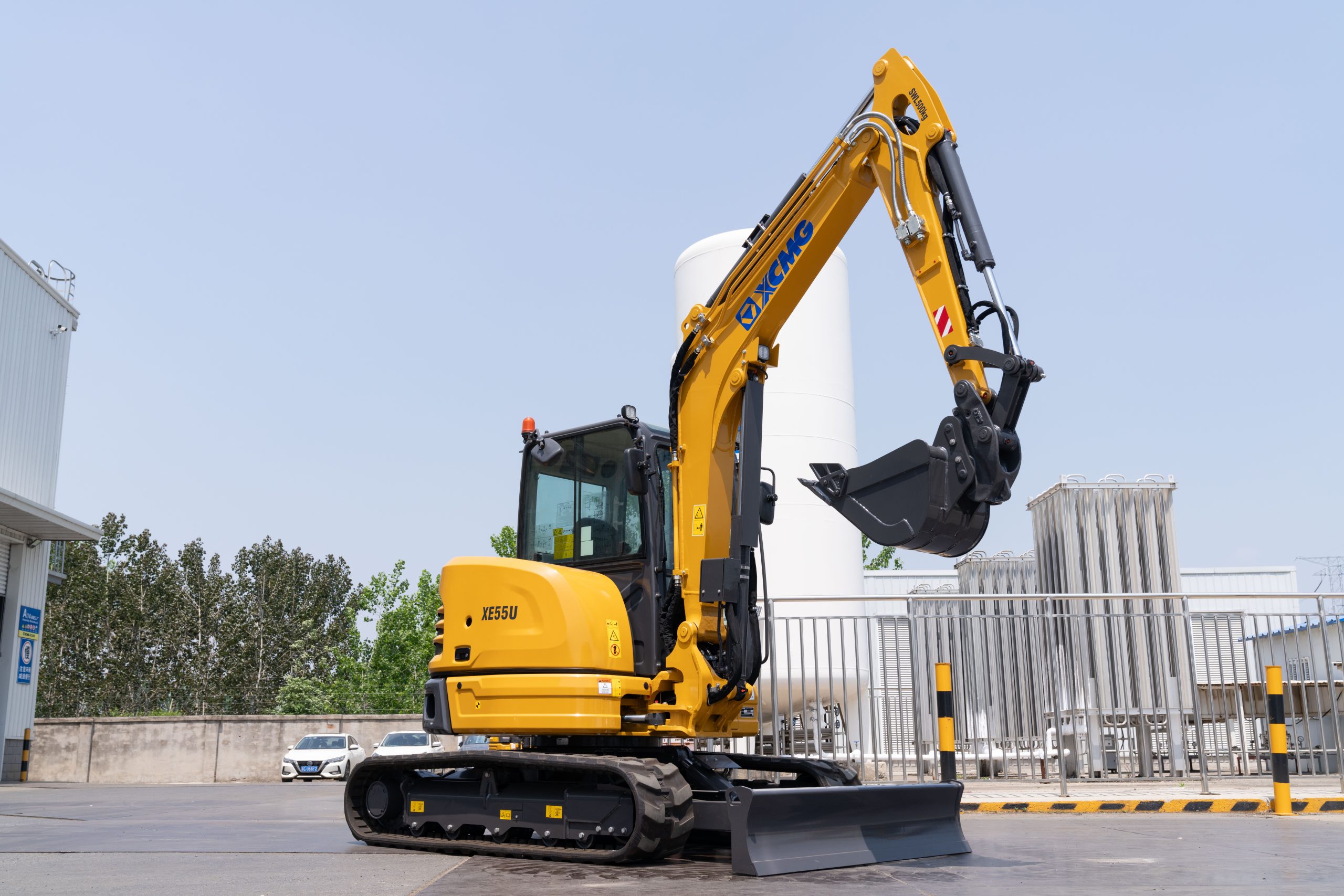

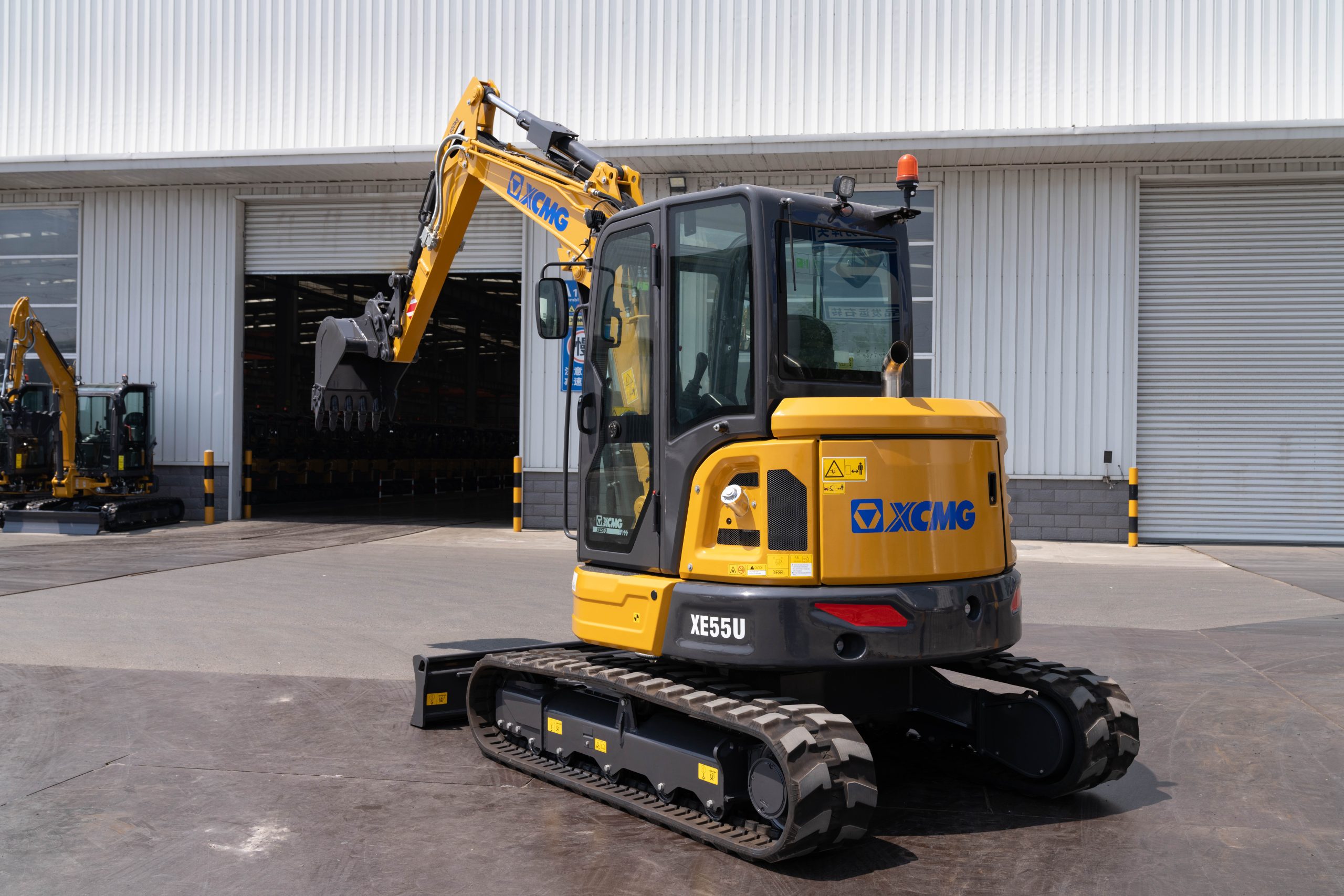

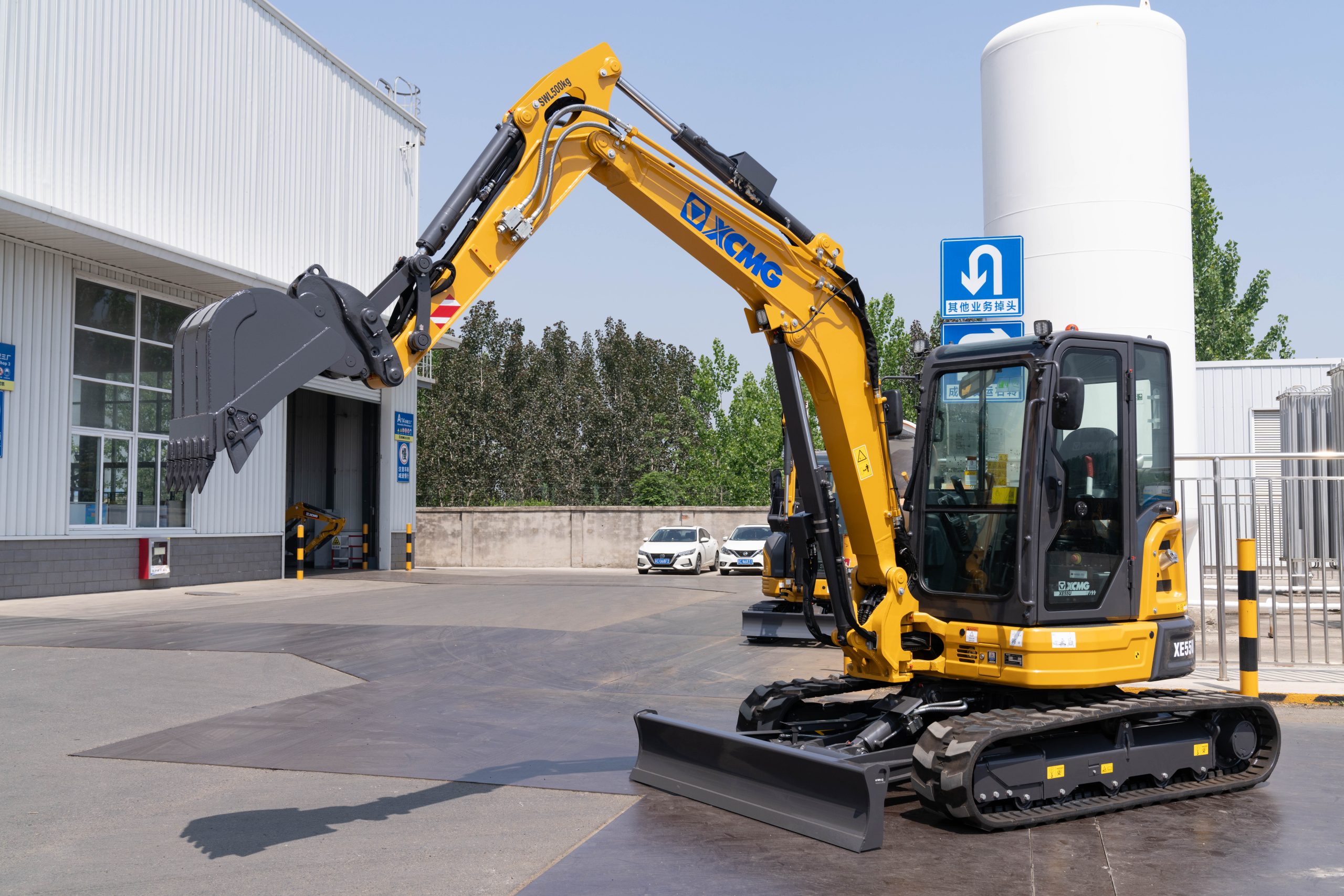

Mini Excavator – Model: XE55U

Explore XCMG’s Mini Excavator Model XE55U, a standout from the E-series, precision-engineered for unmatched strength and reliability. Our Mini Excavator excels even in the harshest conditions, solidifying XCMG’s position as the preferred choice for Mini Excavators in Australia.

Key Specs

Engine

Kubota V2403

Max Speed

4.6 km/h

Dig Depth & Reach

3640 / 6110 mm

Bucket Digging Force

44.5 kN

Product Overview

Operating Weight	5700 kg
Transport Mass (No Attachments)	5626 kg
Engine	Kubota V2403/EU Stage V
Power	30.7 kw (41.1 hp) / 2200 rpm (ISO 14396)
Max Torque	159.8Nm/1500 rpm
Flow Range	90 LPM
Bucket Digging Force	44.5 kN
Arm Digging Force	24.3 kN
Swing Speed	9.5 RPM
Main Pump Type	Load-sensing Axial-piston Pump with Variable Displacement
Emergency Stops	Included
Buckets	Enquire
Dozer Blade	Included
Quick Hitch	Mechanical
Fuel / Cooling	Diesel / Liquid, Forced Circulation
No of Cylinders	43
Alternator	12V / 60A
Fuel Tank Size	68 L
Noise Level LwA (ISO 6395)	96 dB(A)
Noise Level LpA (ISO 6396)	79 dB(A)

Travel Speed (Low – High)	2.8-4.6 km/h
Traction Force	52.8 kN
Gradeability	70%/35^o

Overall Length	5340 mm
Overall Width	1831 mm
Overall Height	2555 mm
Overall Track length	2490 mm
Overall Height of Engine Hood	1695 mm
Minimum Ground Clearance	315 mm
Tail Slew Radius	1040 mm
Tumbler Length	1990 mm
Dozer Blade (Maximum reach at ground level)	1995 mm
Undercarriage Length	3185 mm
Dozer Blade Height	400 mm
Track Gauge	1560 mm
Track Height	550 mm
Counterweight Ground Clearance	637 mm
Working Width at Maximum Right-Hand Rotation	2130 mm
Working Width at Maximum Left-Hand Rotation	1960 mm
Track Shoe Width	400 mm
Dig Depth & Reach	3640 / 6110 mm
Maximum Boom Offset to the Right	815 mm
Maximum Boom Offset to the Left	605 mm
Maximum Boom Swing Angle to the Right	70
Maximum Boom Swing Angle to the Left	53

Maximum Digging Height – Std Arm	5650 mm
Maximum Digging Height – Long Arm	5770 mm
Maximum Digging Depth – Std Arm	3640 mm
Maximum Digging Depth – Long Arm	3880 mm
Maximum Dumping Height – Std Arm	4010 mm
Maximum Dumping Height – Long Arm	4310 mm
Maximum Vertical Wall Digging Depth – Std Arm	2690 mm
Maximum Vertical Wall Digging Depth – Long Arm	2900 mm
Minimum Swing Radius – Std Arm	2430 mm
Minimum Swing Radius – Long Arm	2490 mm
Maximum Digging Reach at Ground Level – Std Arm	5960 mm
Maximum Digging Reach at Ground Level – Long Arm	7740 mm
Maximum Digging Reach – Std Arm	6110 mm
Maximum Digging Reach – Long Arm	6320 mm
Maximum Dozer Lifting Height	450 mm
Maximum Dozer Cutting Depth	400 mm
