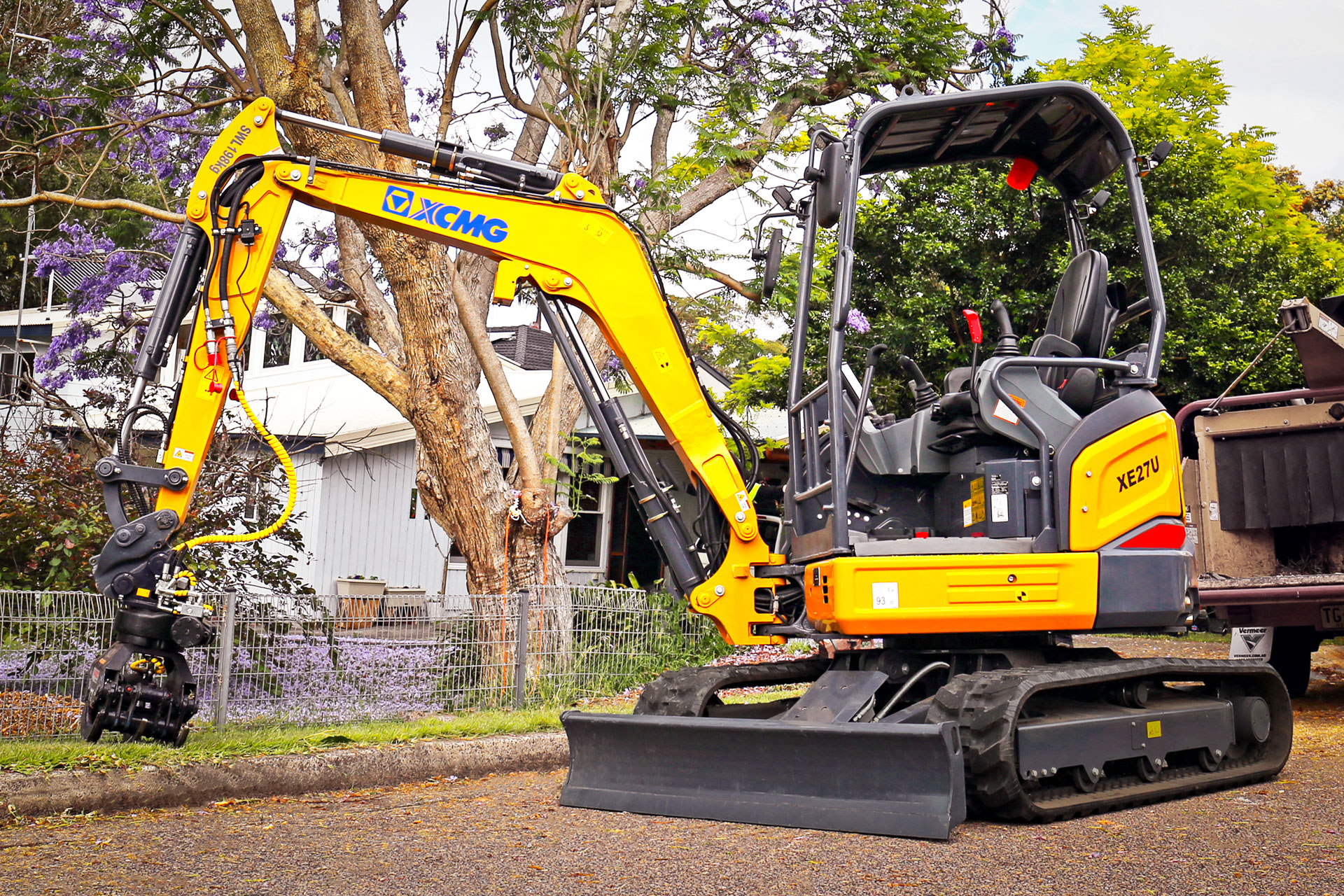

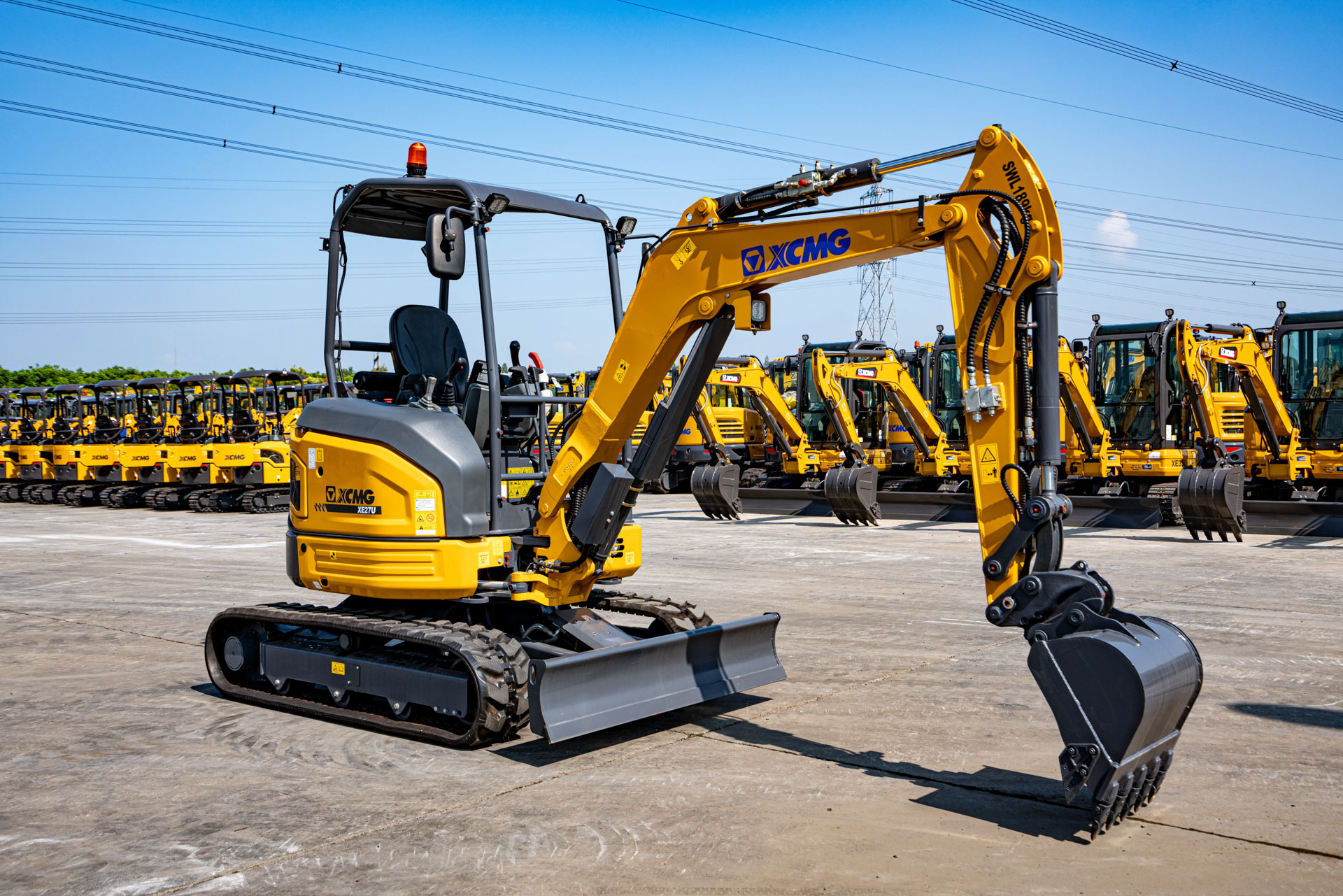

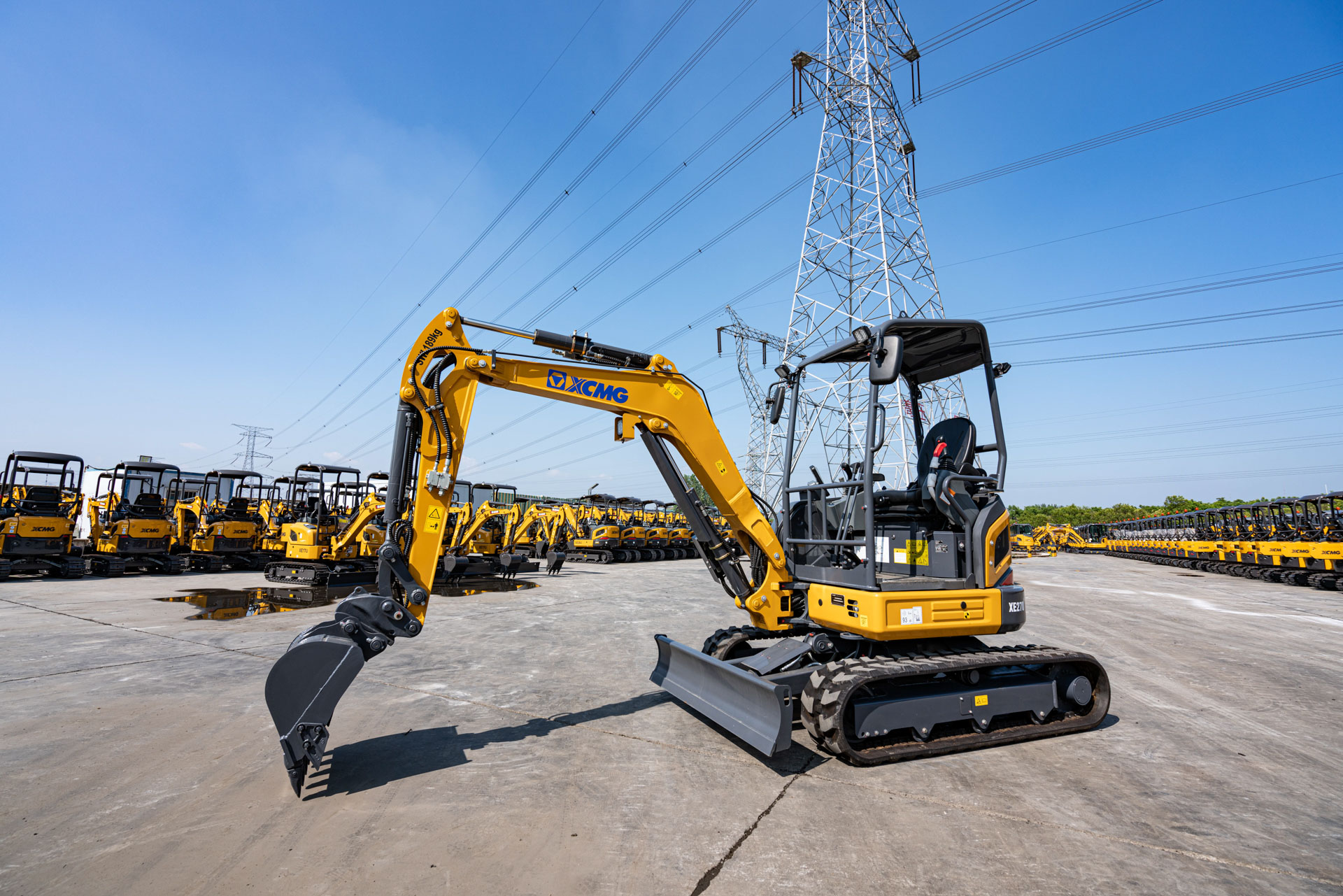

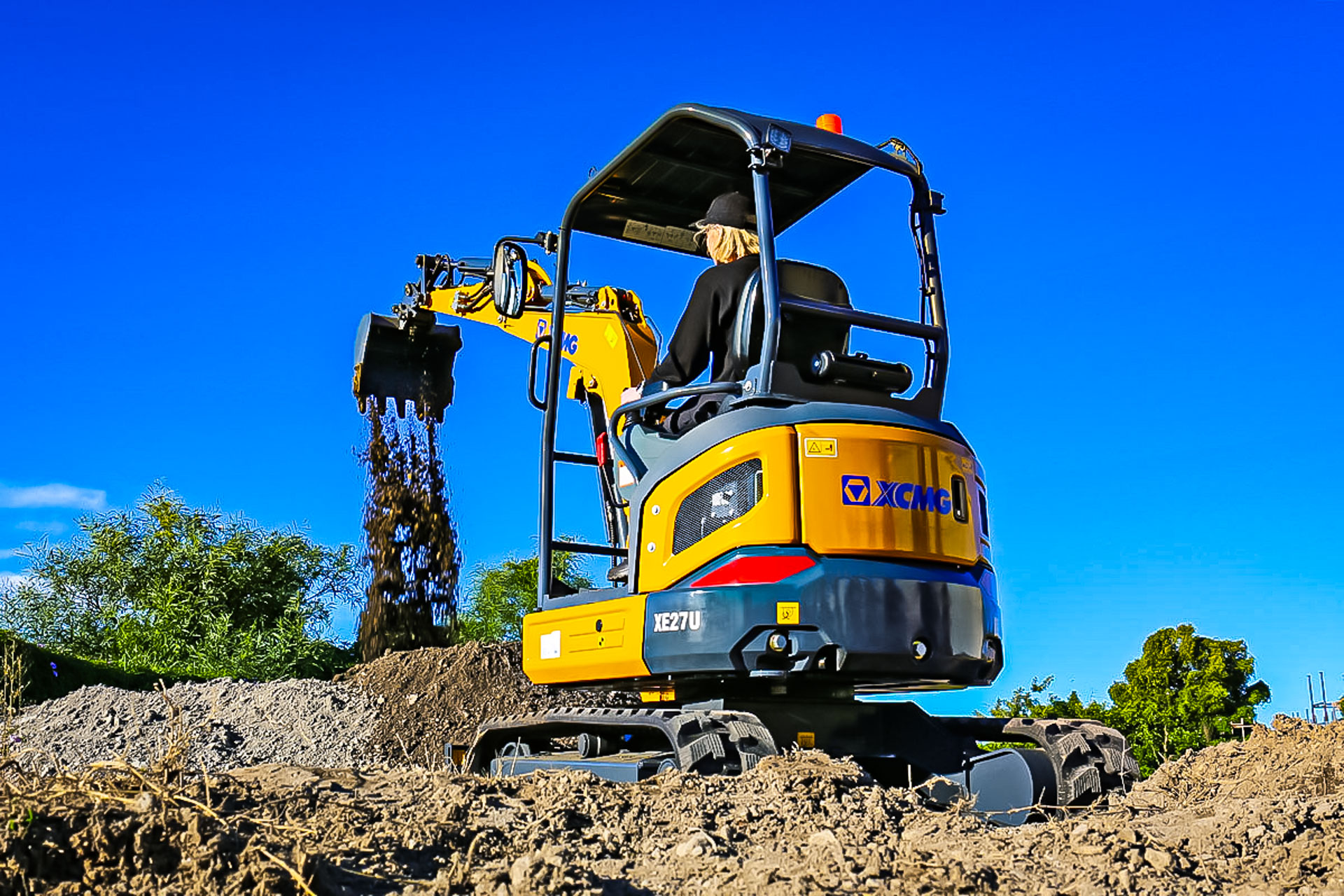

Mini Excavator – Model: XE27U
Experience peace of mind with XCMG’s Mini Excavator Model XE27U from the E-series, designed for exceptional strength and reliability. Our Mini Excavator excels even in the harshest conditions, establishing XCMG as the preferred choice for Mini Excavators in Australia.
Product Overview
| Operating Weight with Canopy/Cab and Bucket (ISO 6016) | 2680/2780 kg |
| Transport Mass (No Attachments) | 2650 kg |
| Engine | Kubota D1105 / EU Stage V |
| Power | 15.4 kW (20.9 hp) / 2400 rpm (ISO 14396) |
| Max Torque | 70.3 N.m/1600 rpm |
| Flow Range | 82.8 L/min |
| Bucket Digging Force | 23 kN |
| Arm Digging Force | 14 kN |
| Swing Speed | 10 rpm |
| Main Pump Type | Load-sensing Axial-piston Pump with Variable Displacement |
| Emergency Stops | Included |
| Buckets | Enquire |
| Dozer Blade | Included |
| Quick Hitch | Mechanical |
| Fuel / Cooling | Diesel / Liquid, Forced Circulation |
| No of Cylinders | 3 |
| Alternator | 12V / 40A |
| Fuel Tank Size | 33 L |
| Noise Level LwA (ISO 6395) | 93 dB(A) |
| Noise Level LpA (ISO 6396) | 79 dB(A) |
| Travel Speed (Low – High) | 2 – 3.1 km/h |
| Traction Force | 29.7 kN |
| Gradeability | 30o |
| Overall Length | 4190 mm |
| Overall Width | 1500 mm |
| Overall Height | 2580 mm |
| Overall Track length | 1980 mm |
| Minimum Ground Clearance | 290 mm |
| Tail Slew Radius | 790 mm |
| Tumbler Length | 1560 mm |
| Dozer Blade Height | 258 mm |
| Track Height | 457 mm |
| Counterweight Ground Clearance | 535 mm |
| Track Shoe Width | 230 mm |
| Maximum Boom Swing Angle to the Right | 55 |
| Maximum Boom Swing Angle to the Left | 75 |
| Maximum Digging Height | 4390 mm |
| Maximum Digging Depth | 2800 mm |
| Maximum Dumping Height | 3120 mm |
| Maximum Vertical Wall Digging Depth | 2310 mm |
| Minimum Swing Radius | 1980 mm |
| Maximum Digging Radius | 4750 mm |
| Maximum Dozer Lifting Height | 300 mm |
| Maximum Dozer Cutting Depth | 330 mm |
| Boom Deflection Distance (Left/Right) | 610/585 mm |

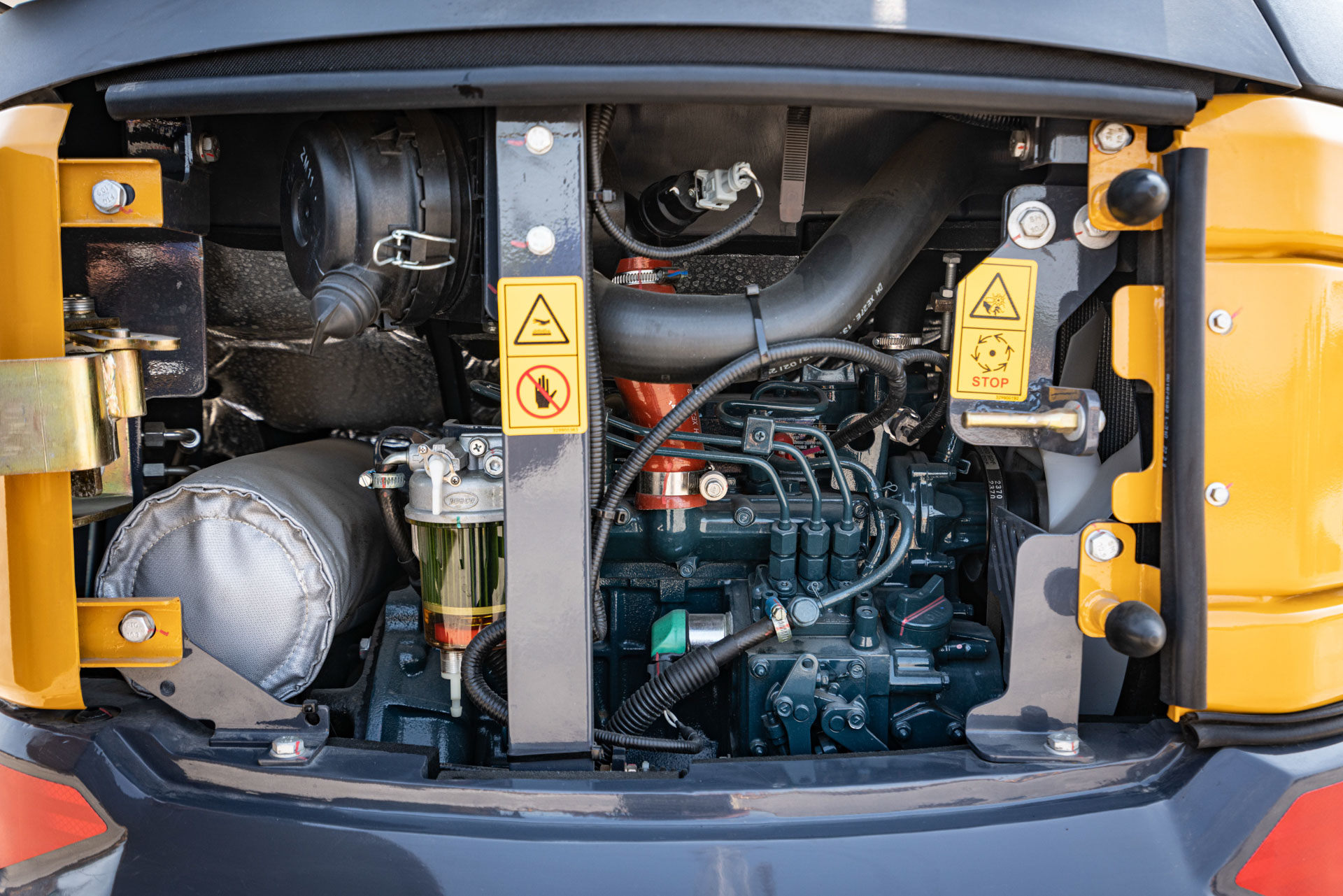

| Engine |
| Kubota Engine D1105, EU Stage V |
| Hydraulic system |

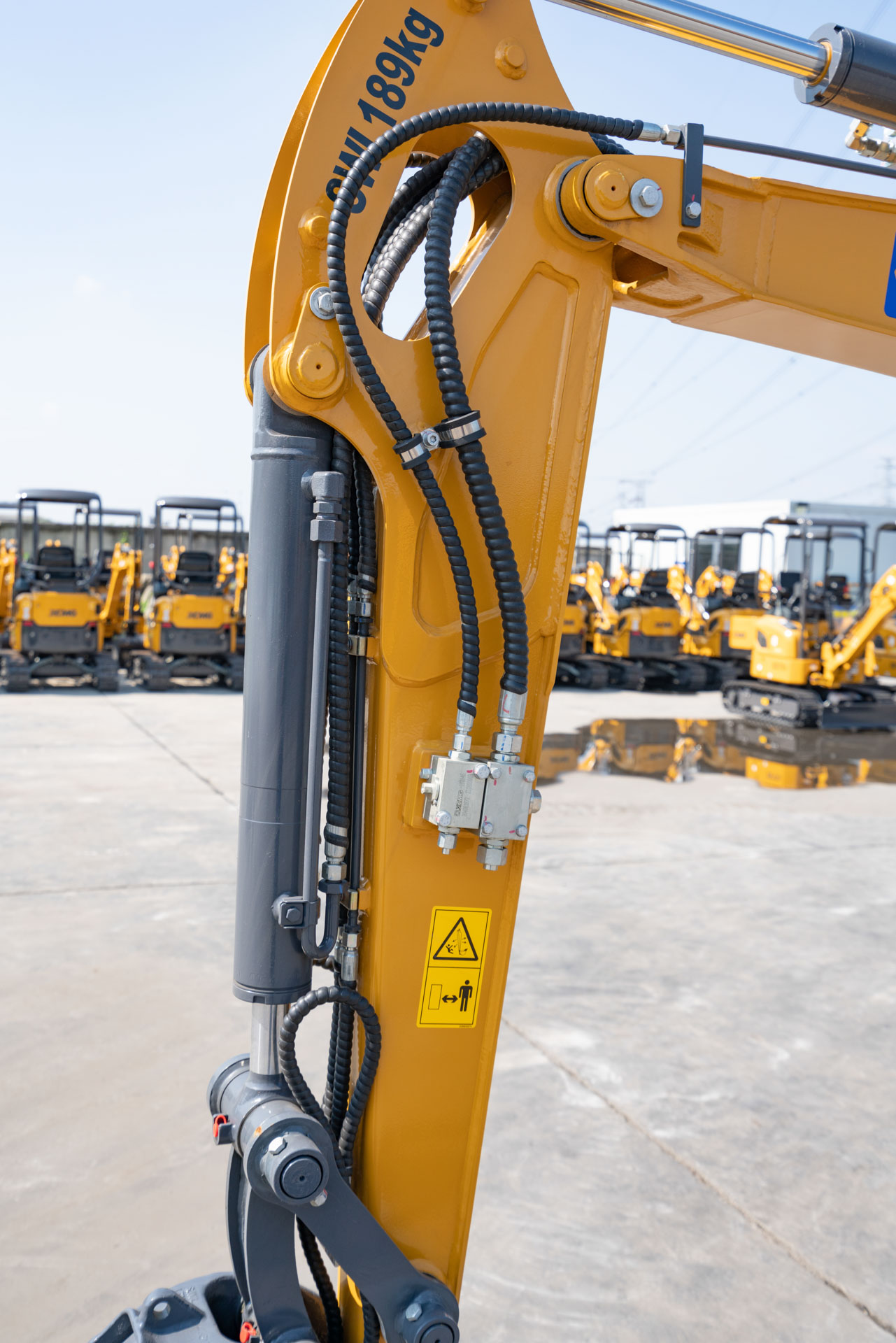

| Single or Dual Way Pipeline (AUX1) |
| Dual Way Pipeline (AUX2) |
| Hydraulic Quick Coupler Pipeline |

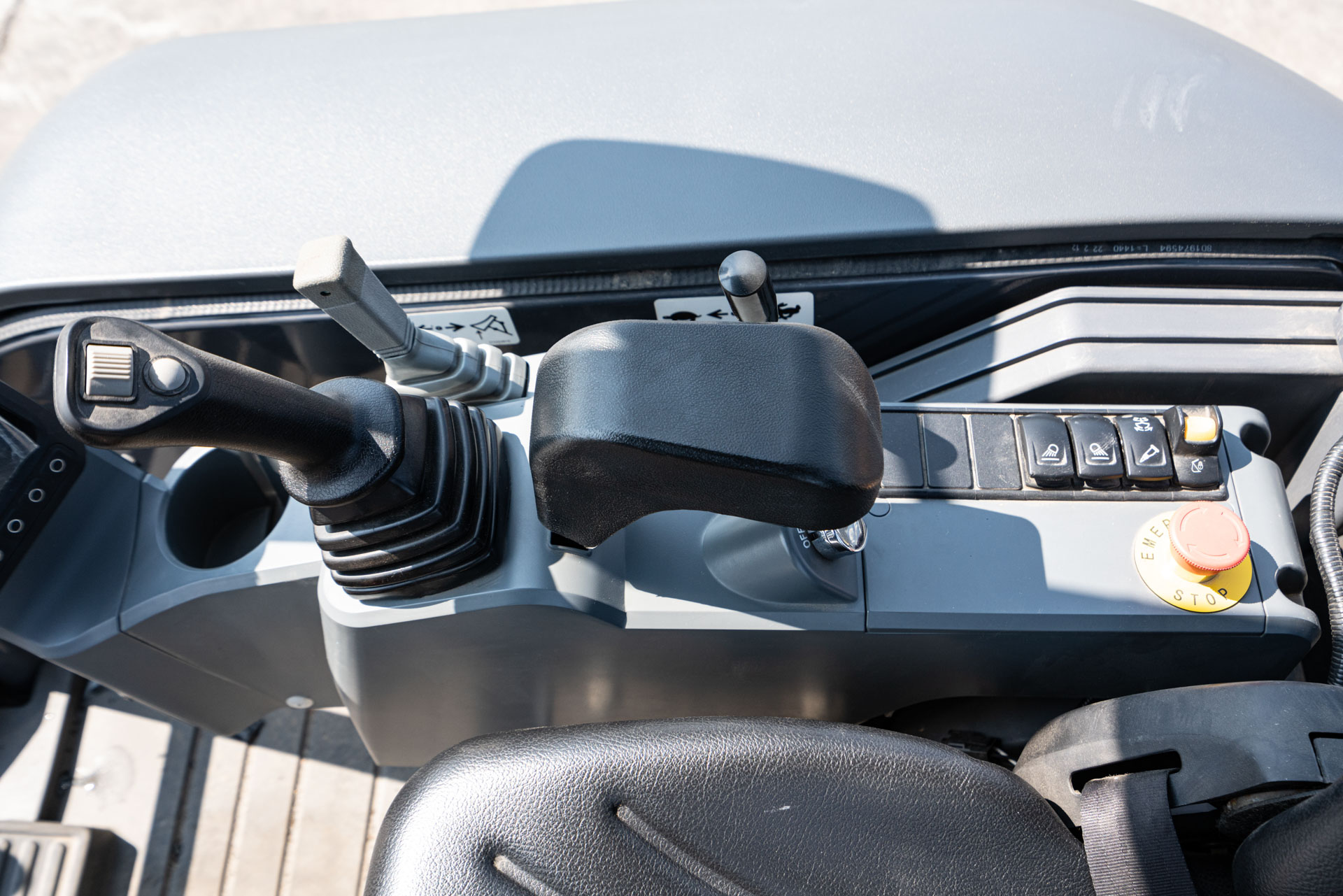

| Fingertip proportional Control |

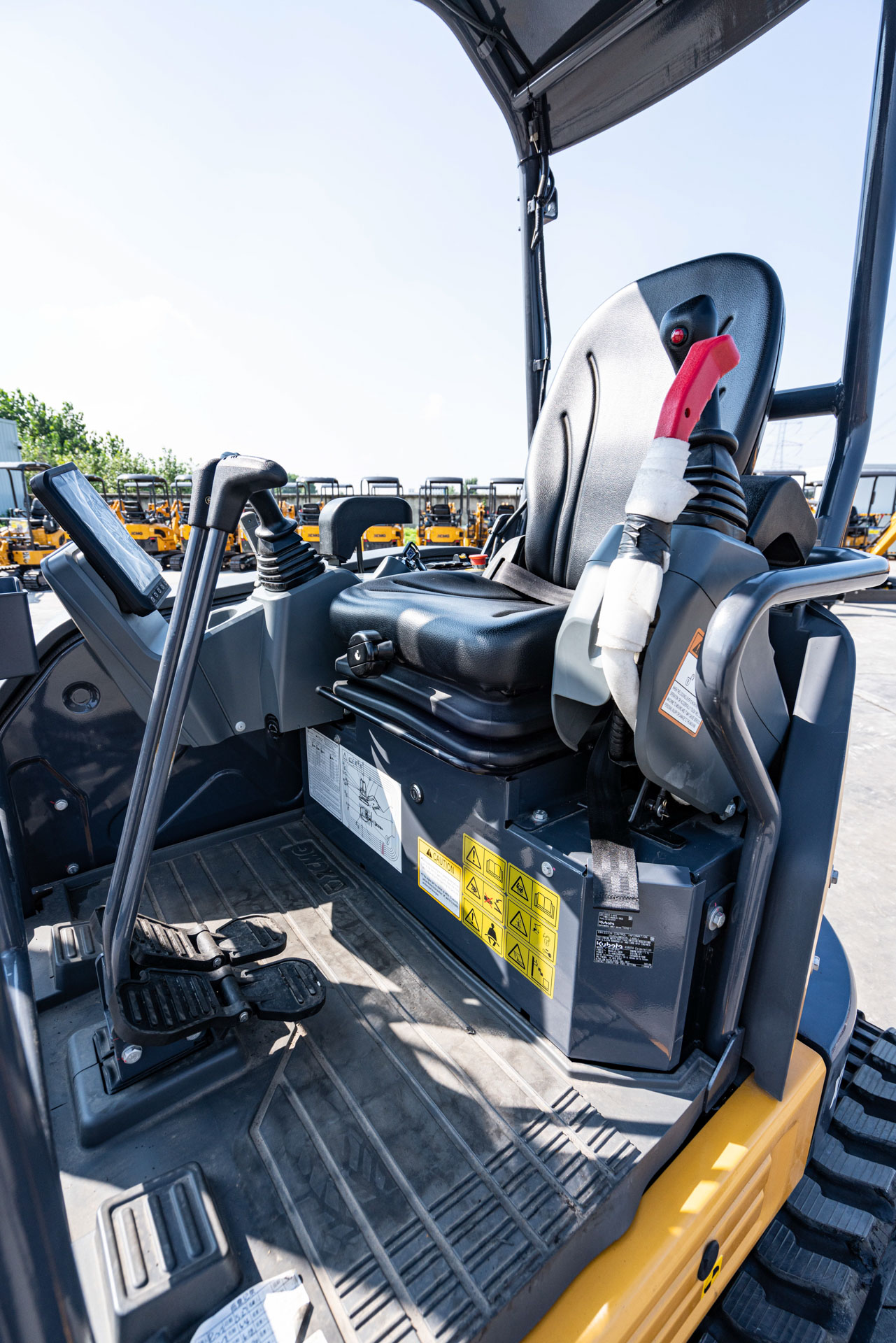

| Cab & Interior |
| TOPS/ ROPS(ISO 3471) |
| OPG |
| AM/FM Radio with Bluetooth |

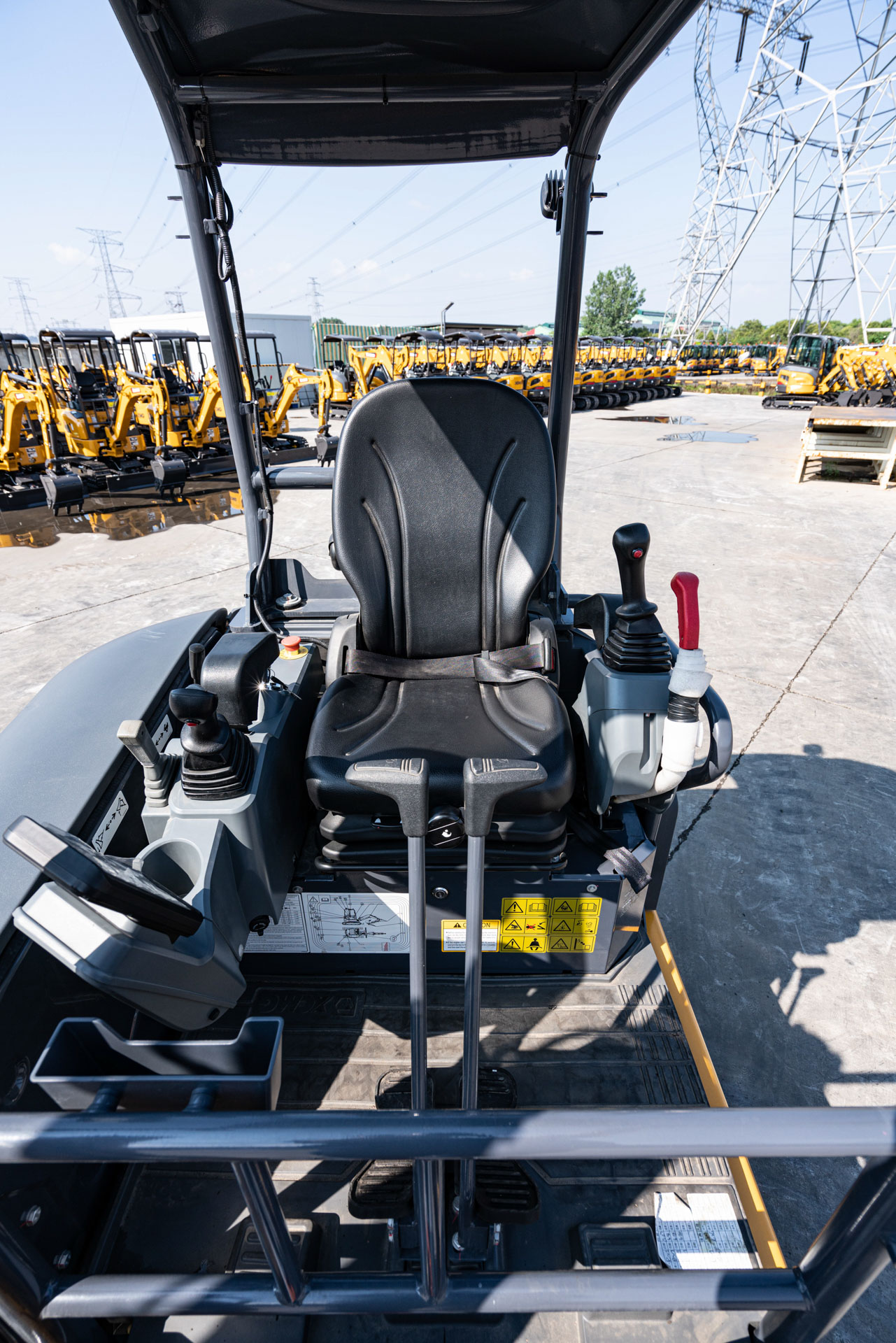

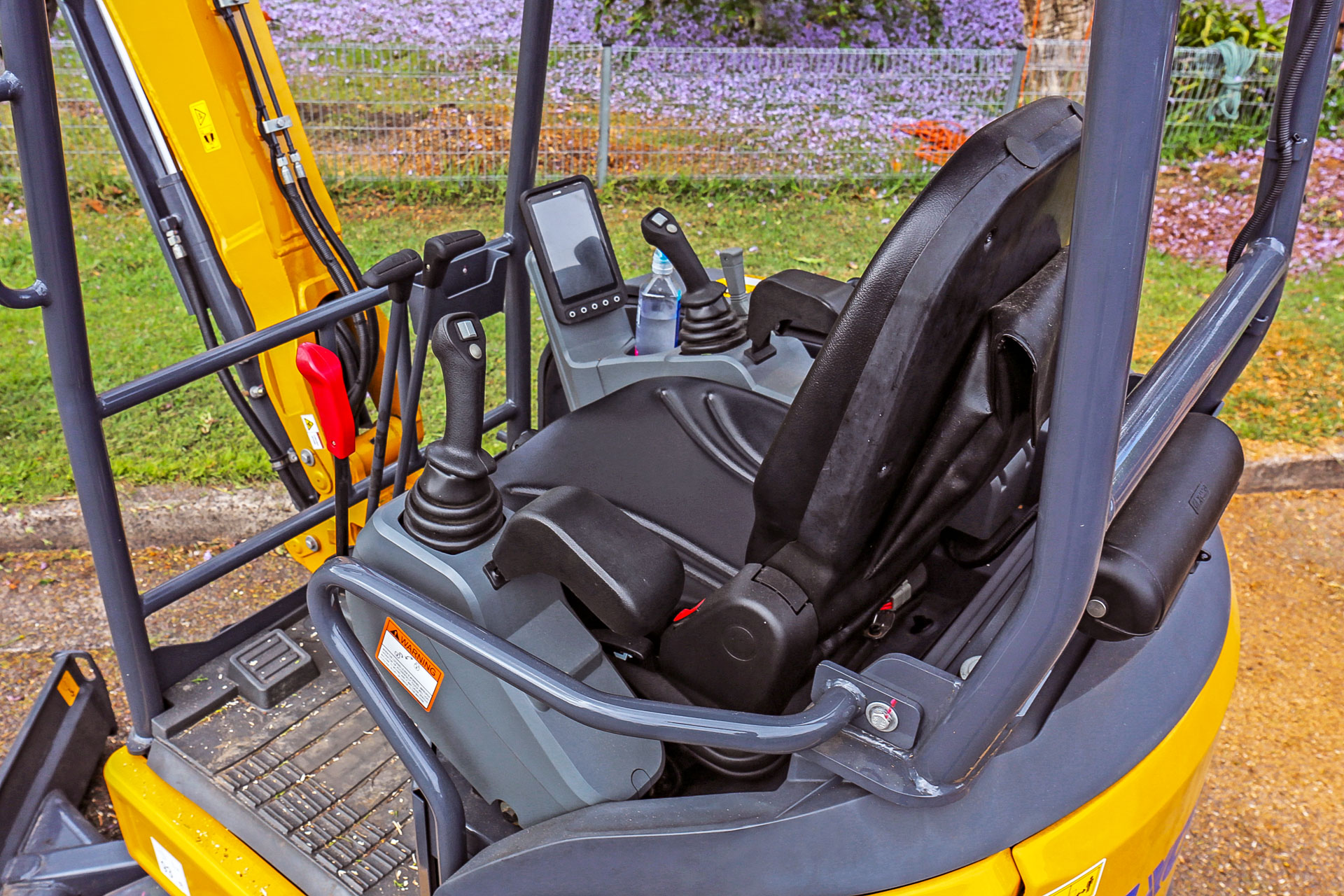

| Suspension Seat |

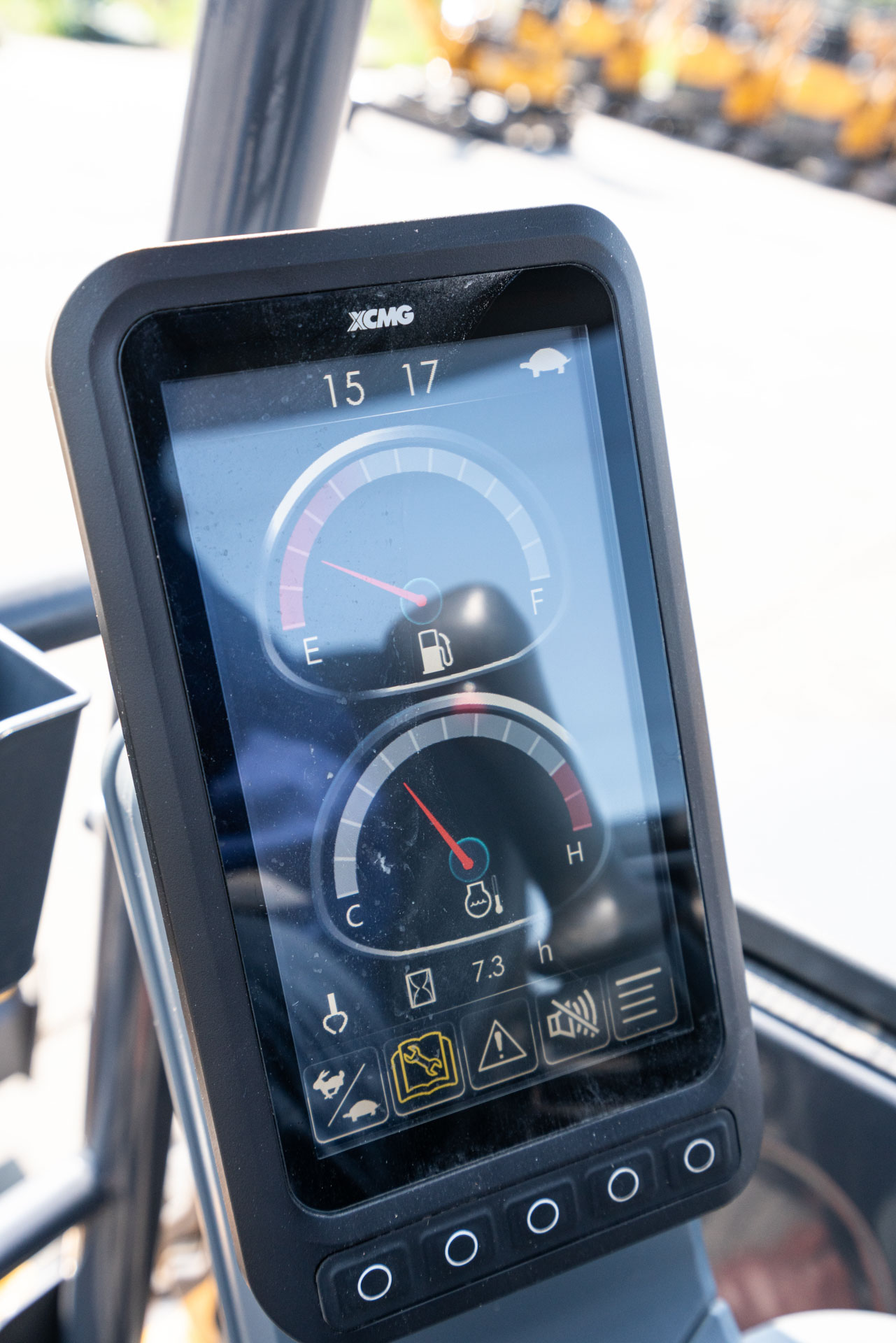

| Colour LCD Monitor |
| Undercarriage |
| Fixed Undercarriage |
| Dozer Blade |
| Rubber Tracks 300 mm |
| Safety |
| Boom, Arm, Dozer Cylinder Safety Valves |
| Rotating Beacon |
| Engine Overheat Warning and Restart Prevention System |
| Quick Coupler Switch with Alarm |
| Emergency Stop Switch |
| LED Work Lights（2 on Cab-Front, 1 on Boom） |
| Tie Down Bracket for Easy Transport |
| Other |
| Long Arm 1300 mm |
| General Purpose Bucket 450 mm |
| Cab & Interior |
| DAB Radio with Bluetooth（Cab） |
| Heater |
| Undercarriage |
| Steel Tracks 300 mm |
| Track Guards |
| Safety |
| Front Cab Protection |
| Other |
| Trench Bucket 300/600 mm |
| Mud Bukcet 1200mm |
