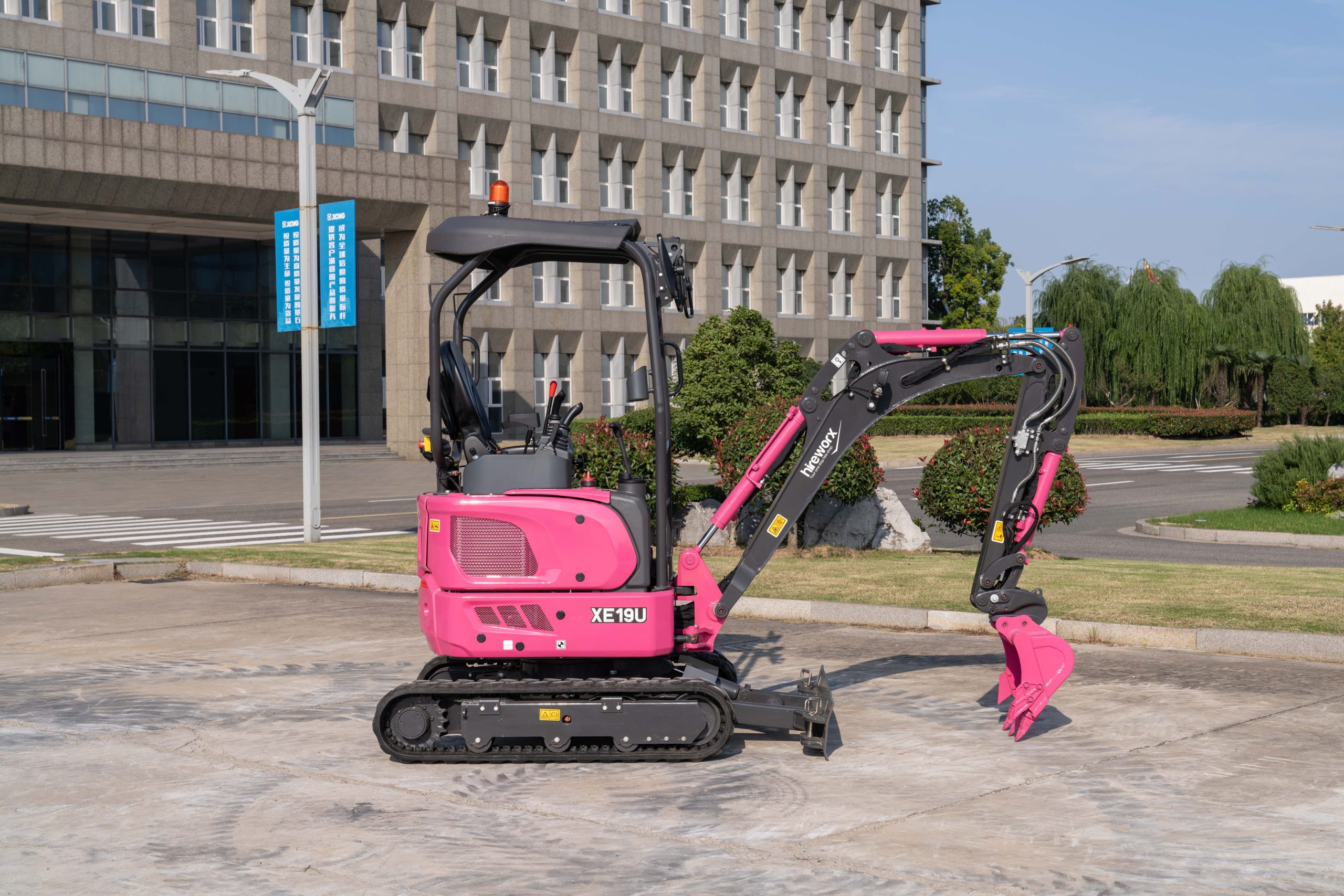

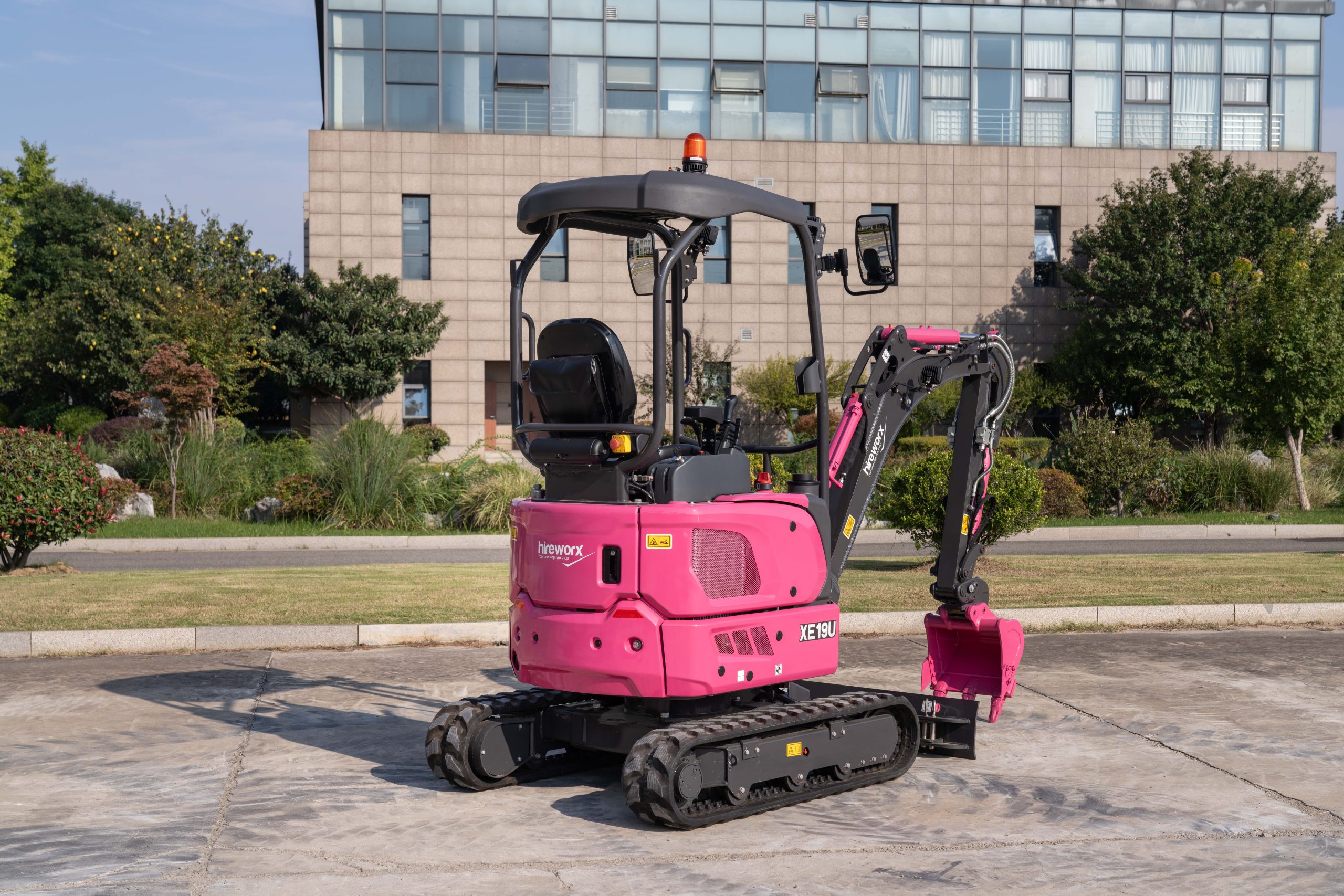

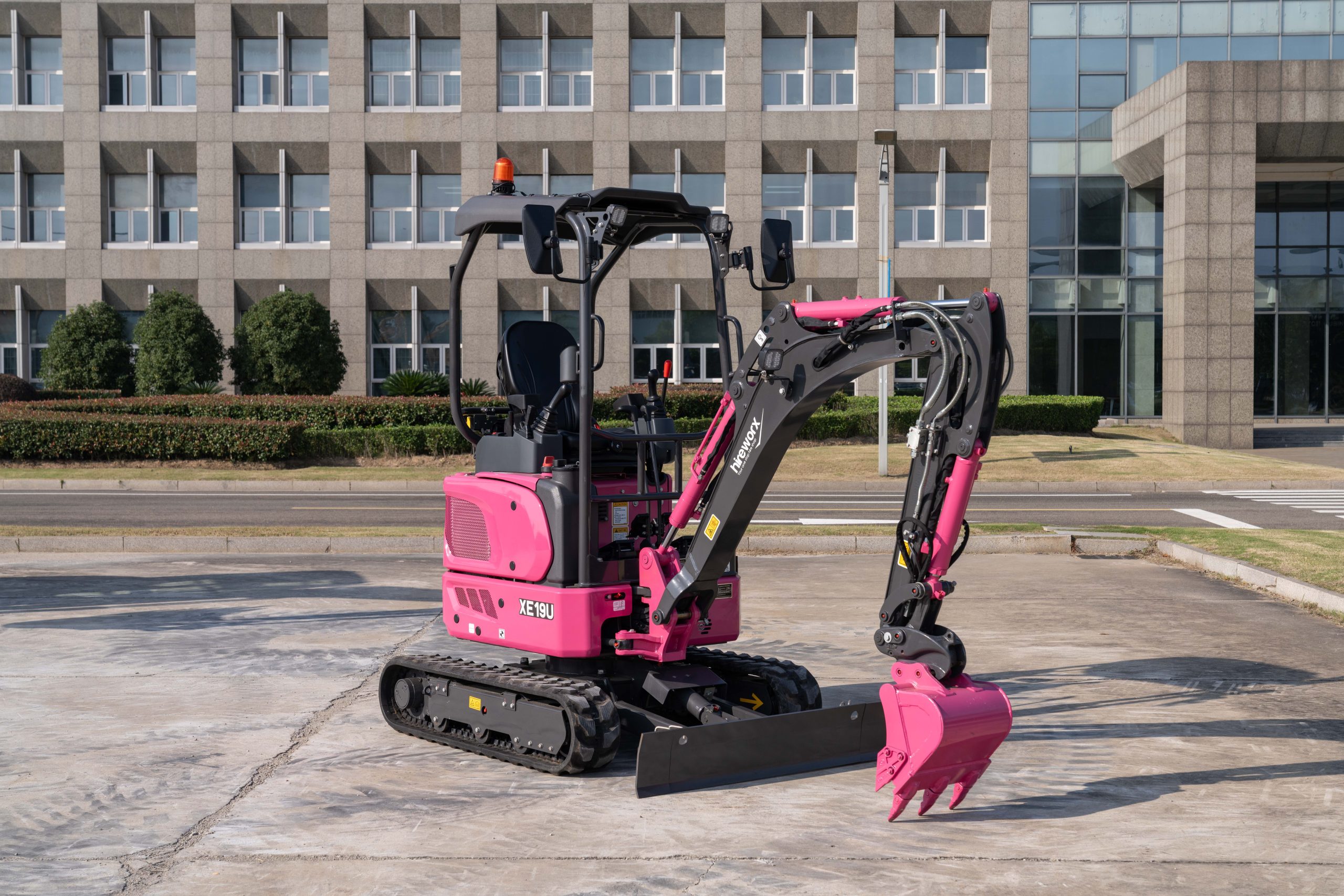

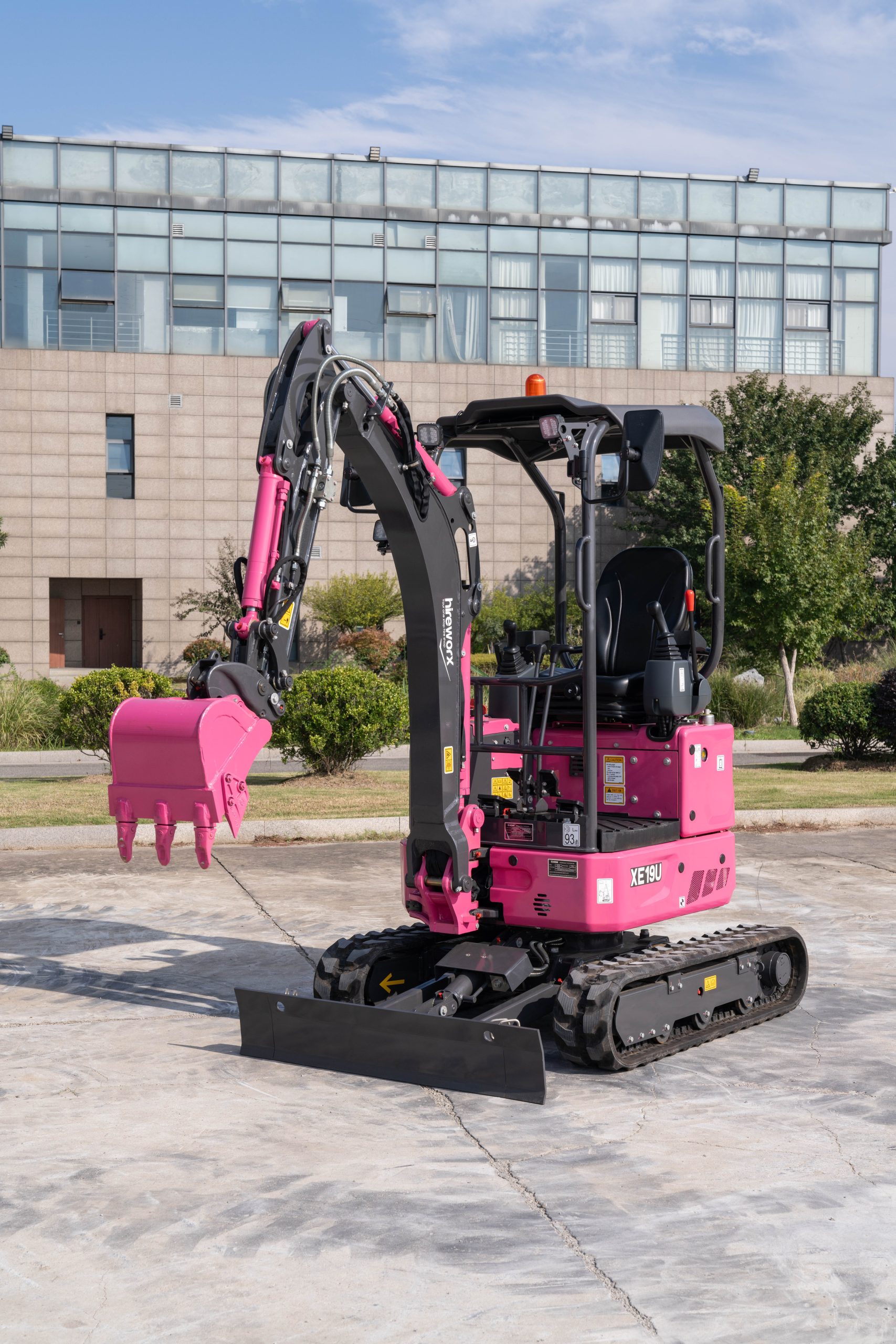

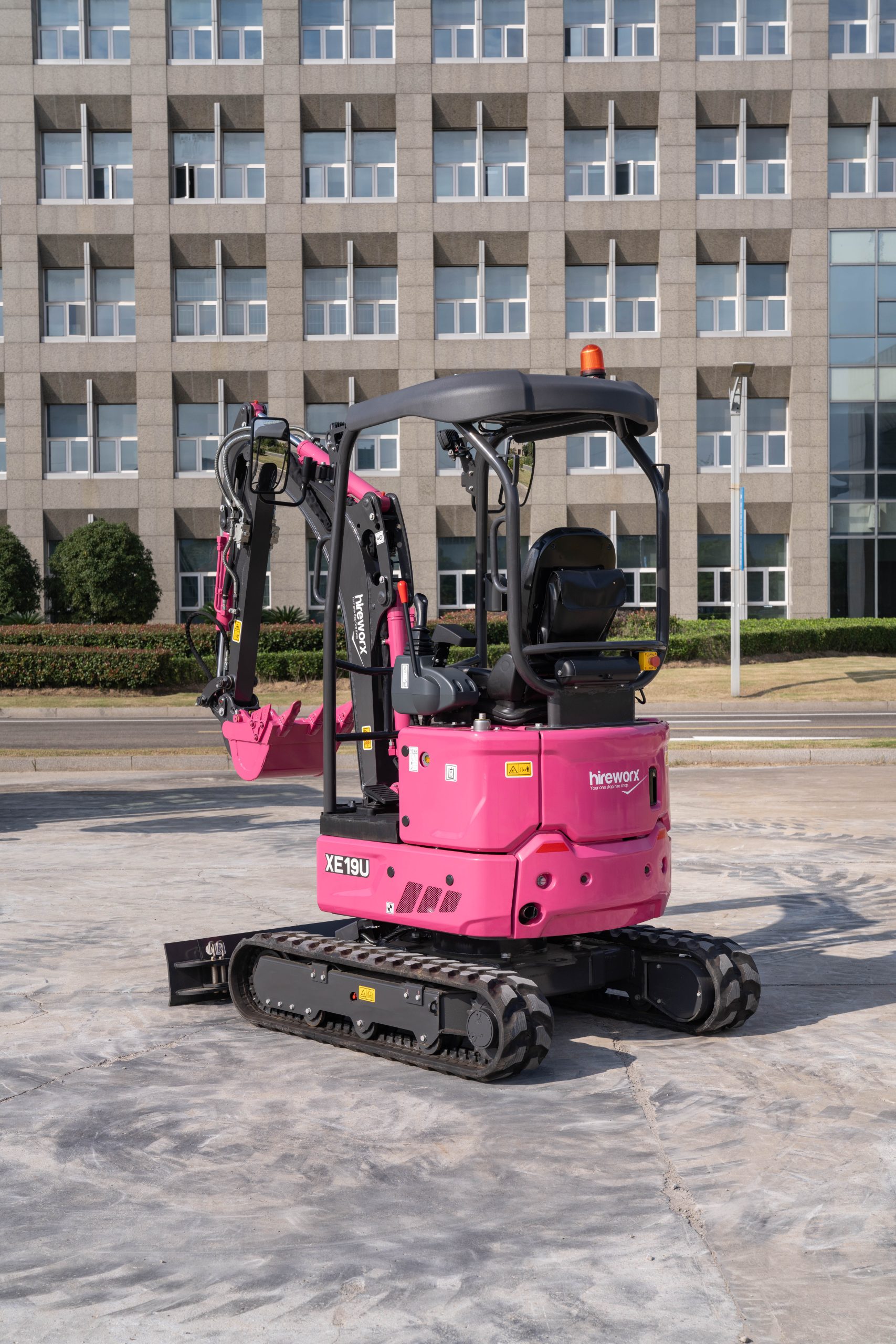

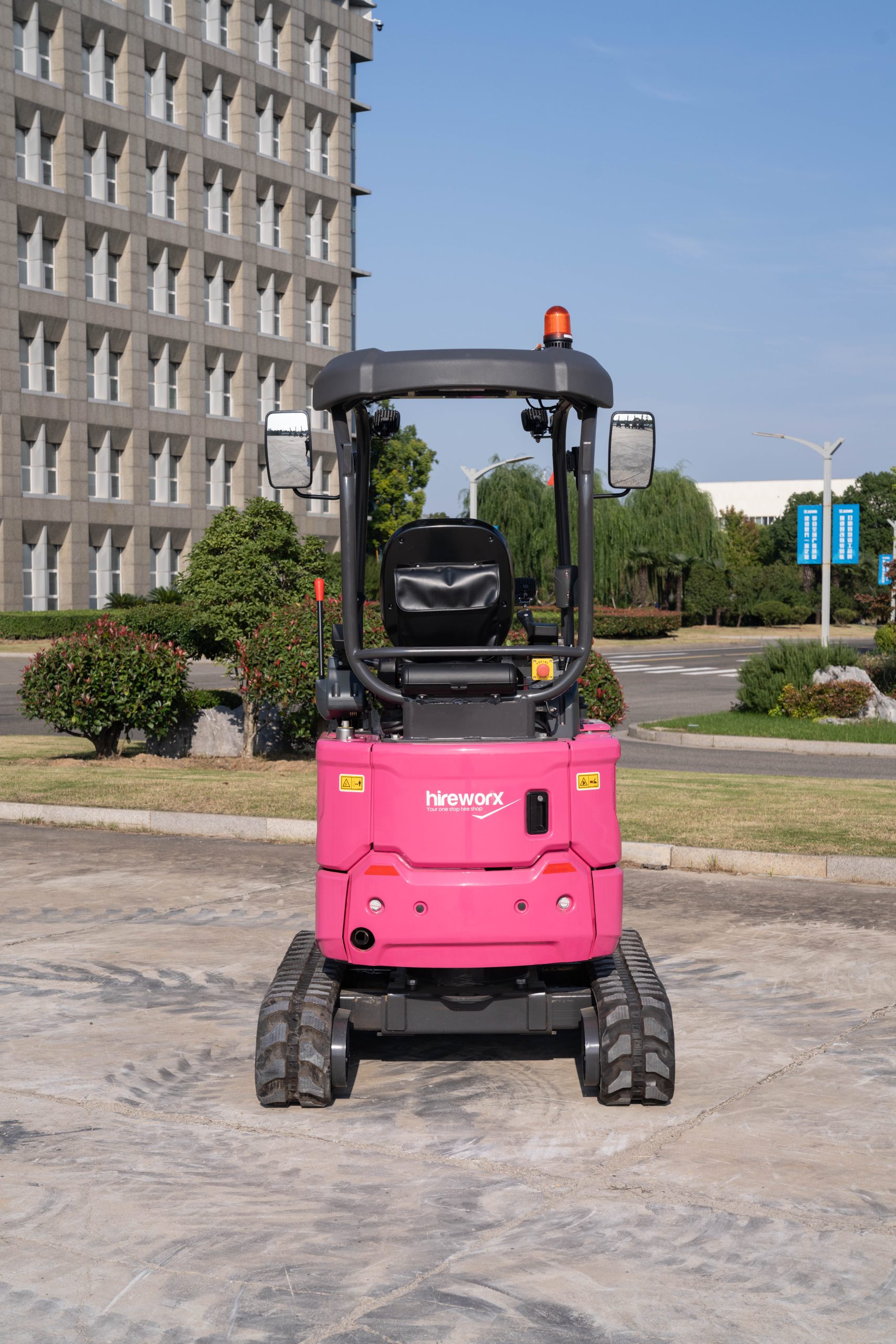

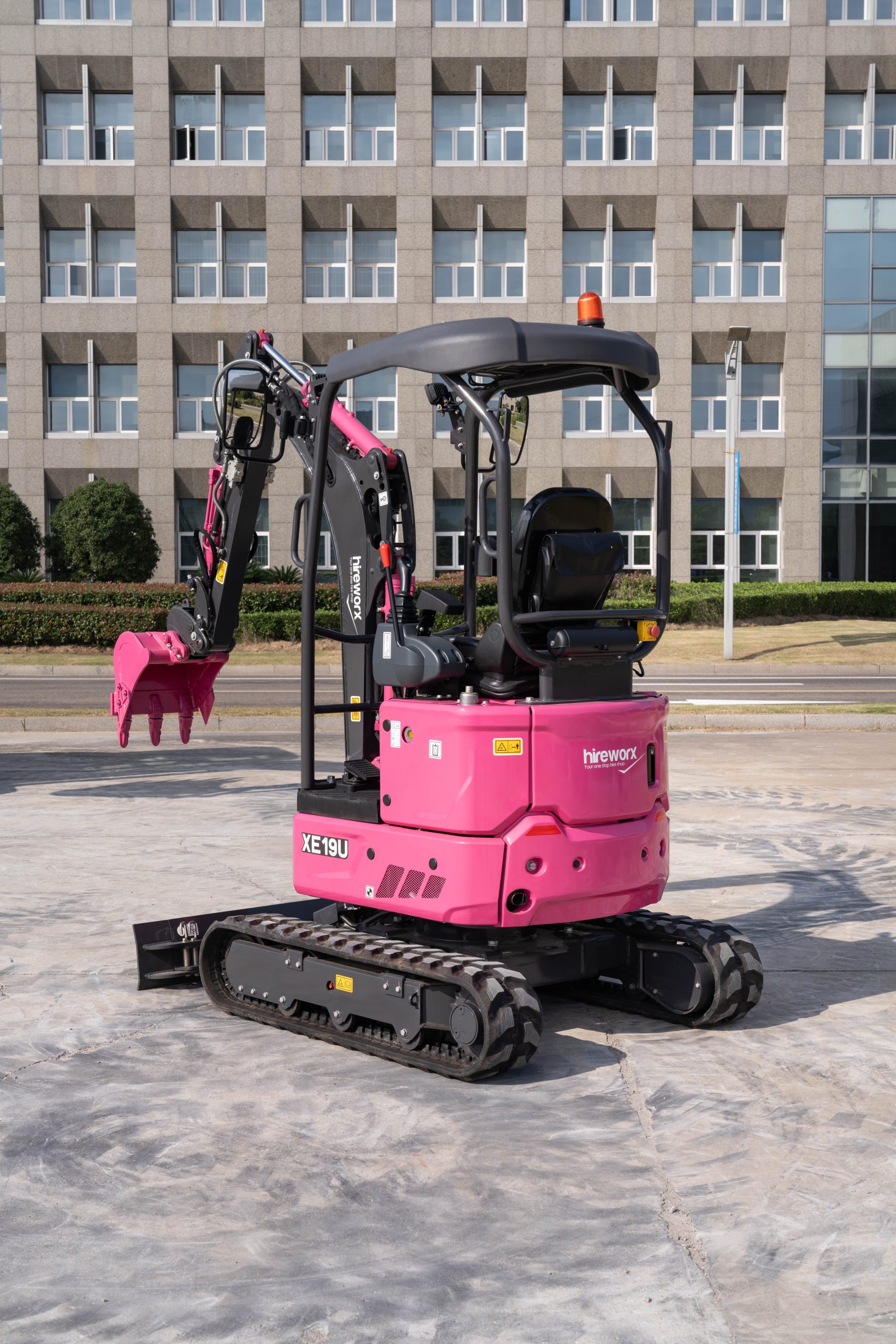

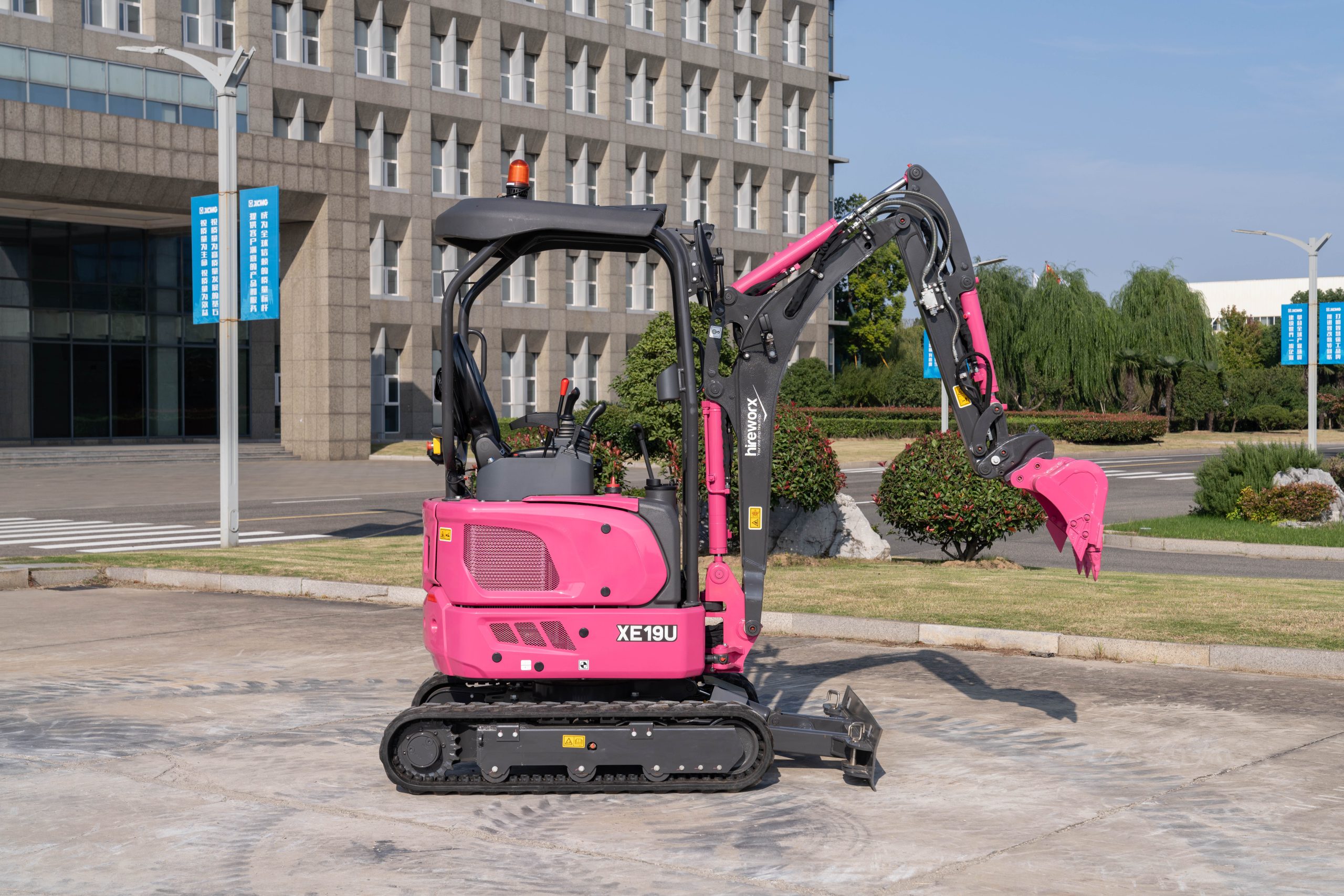

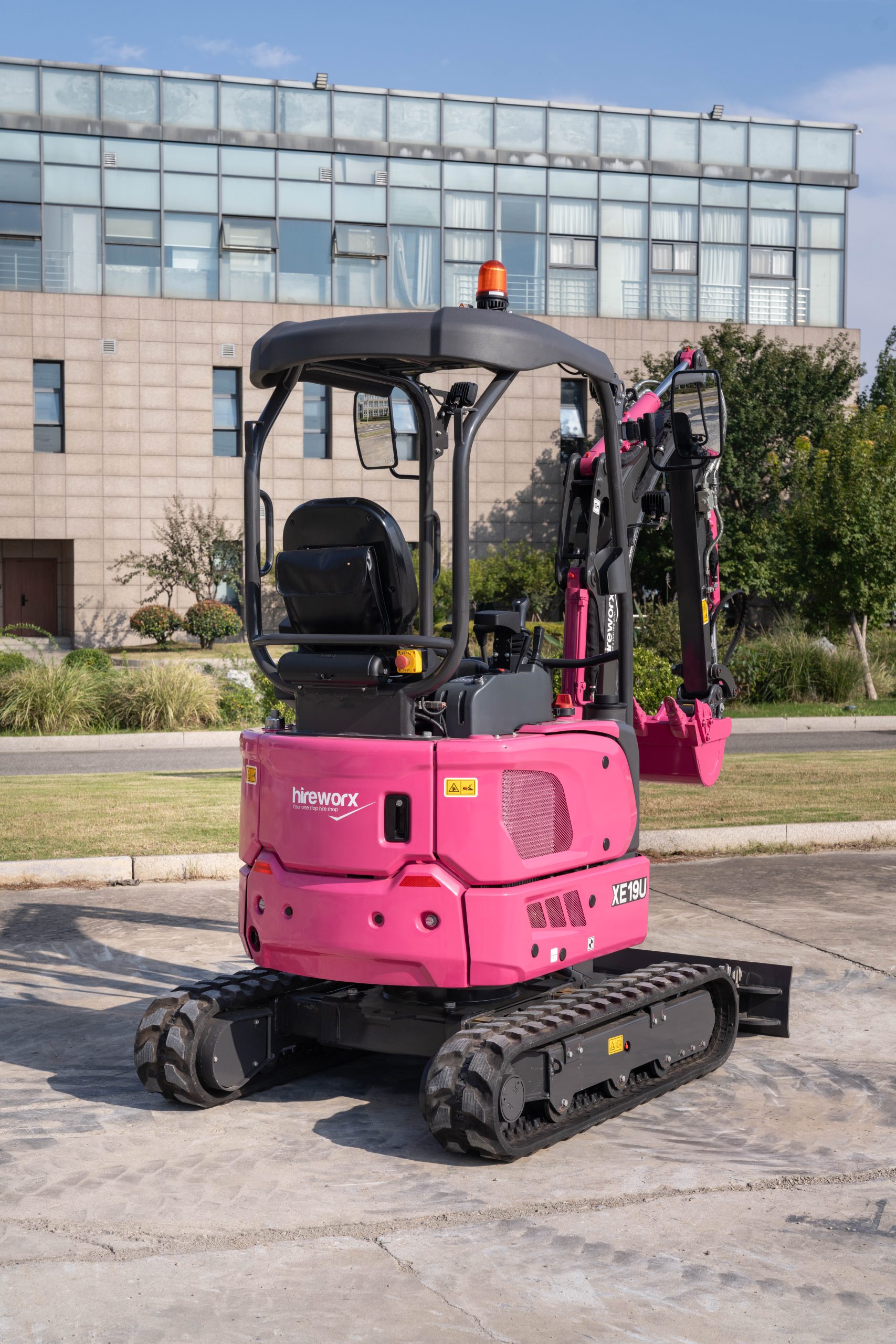

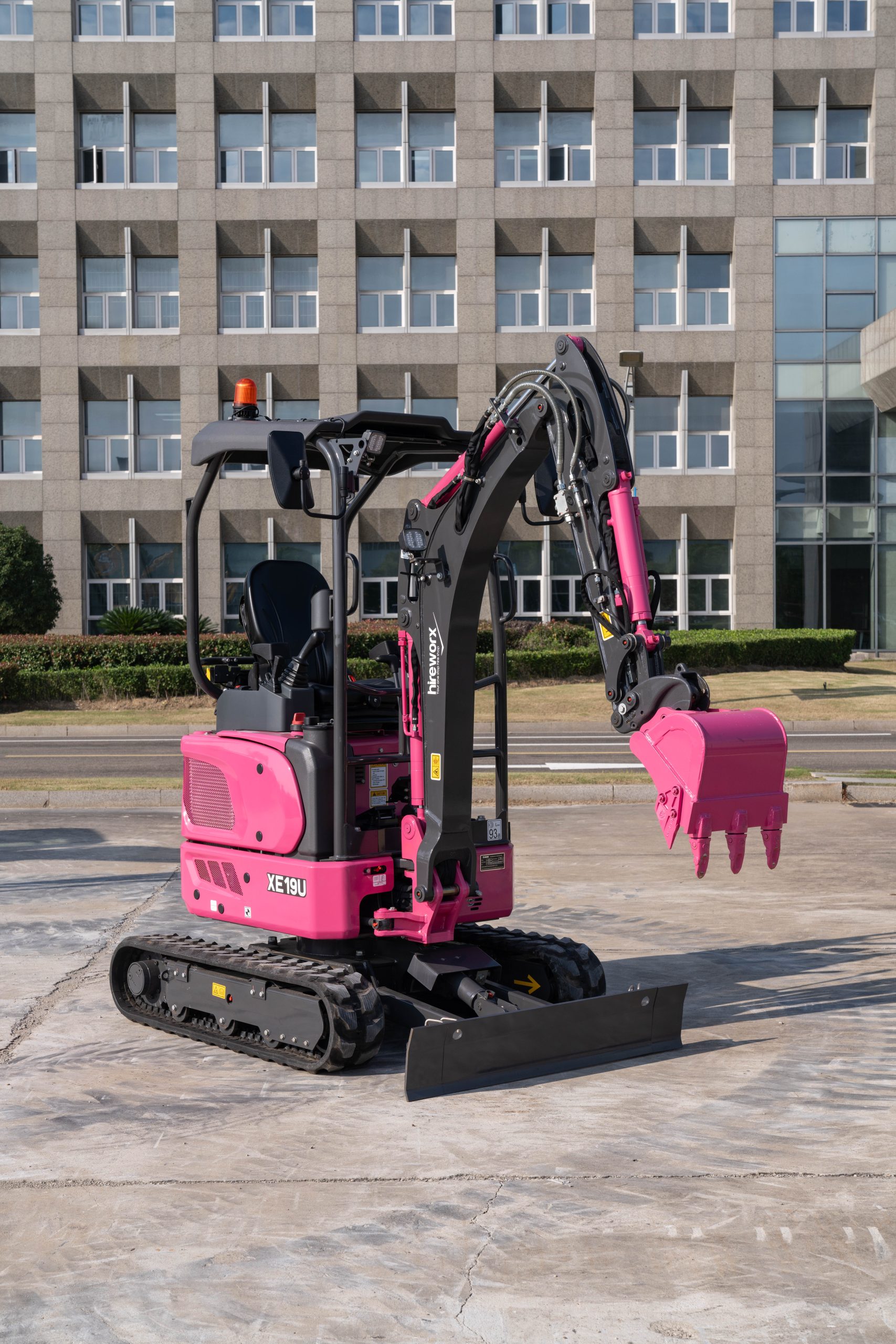

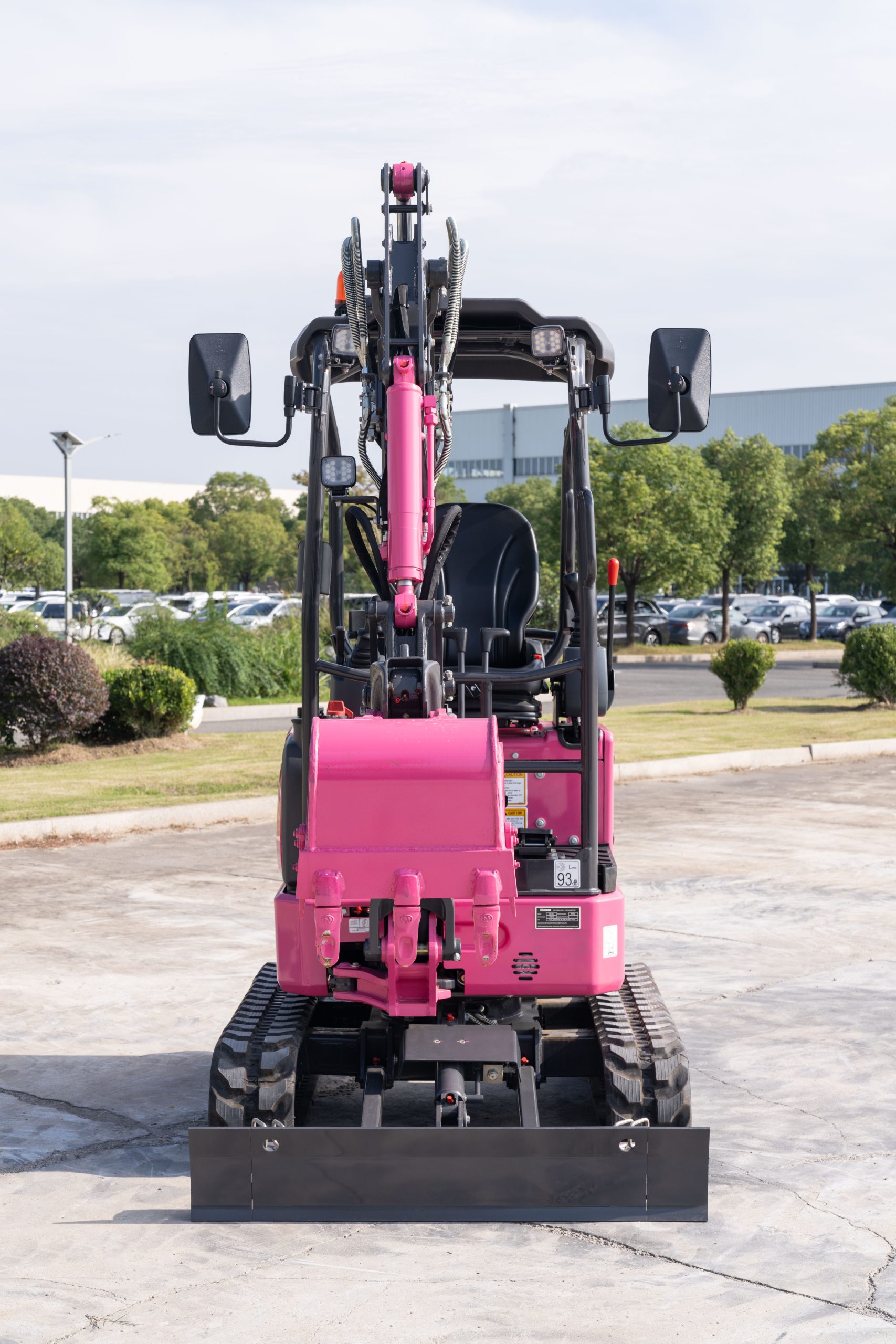

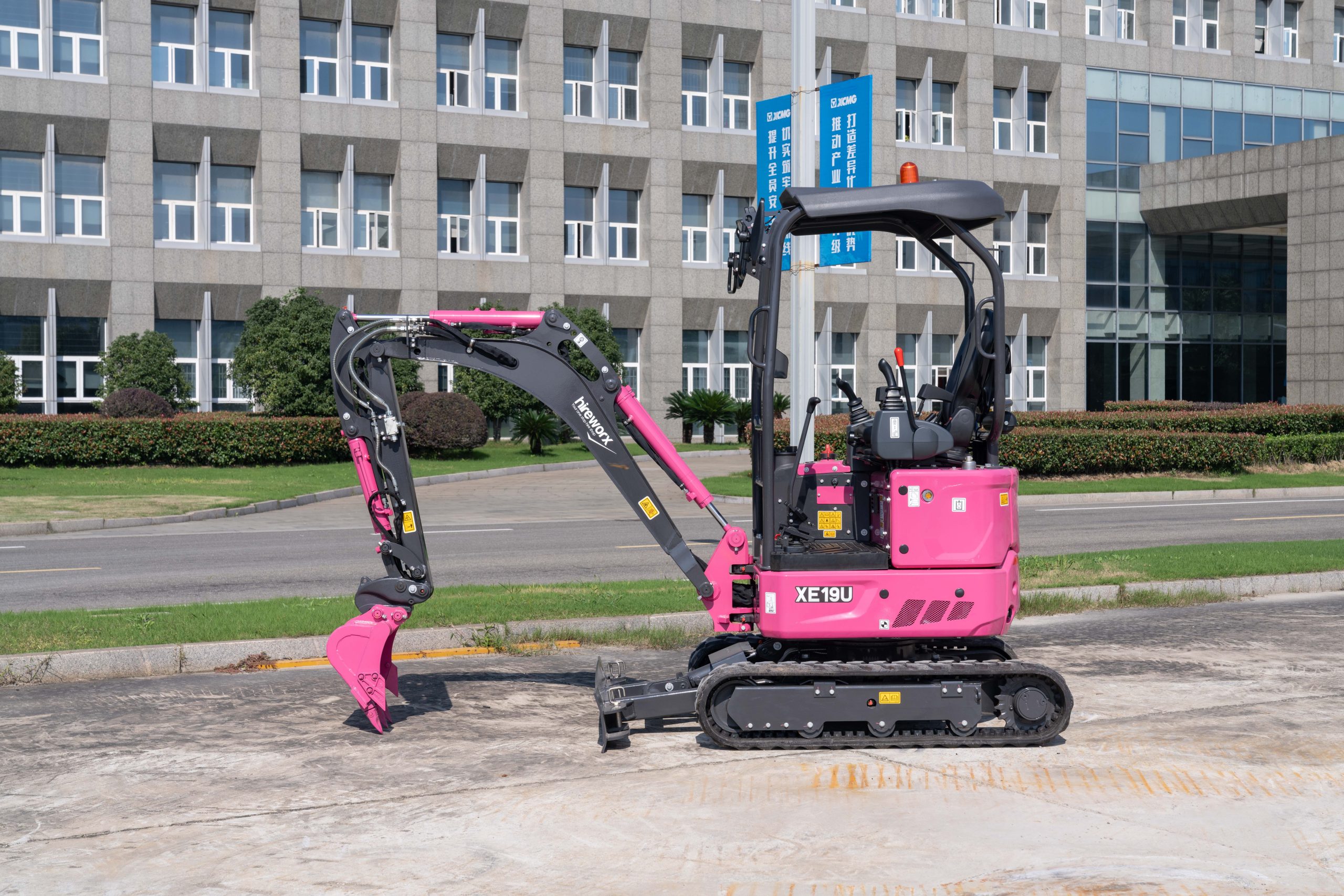

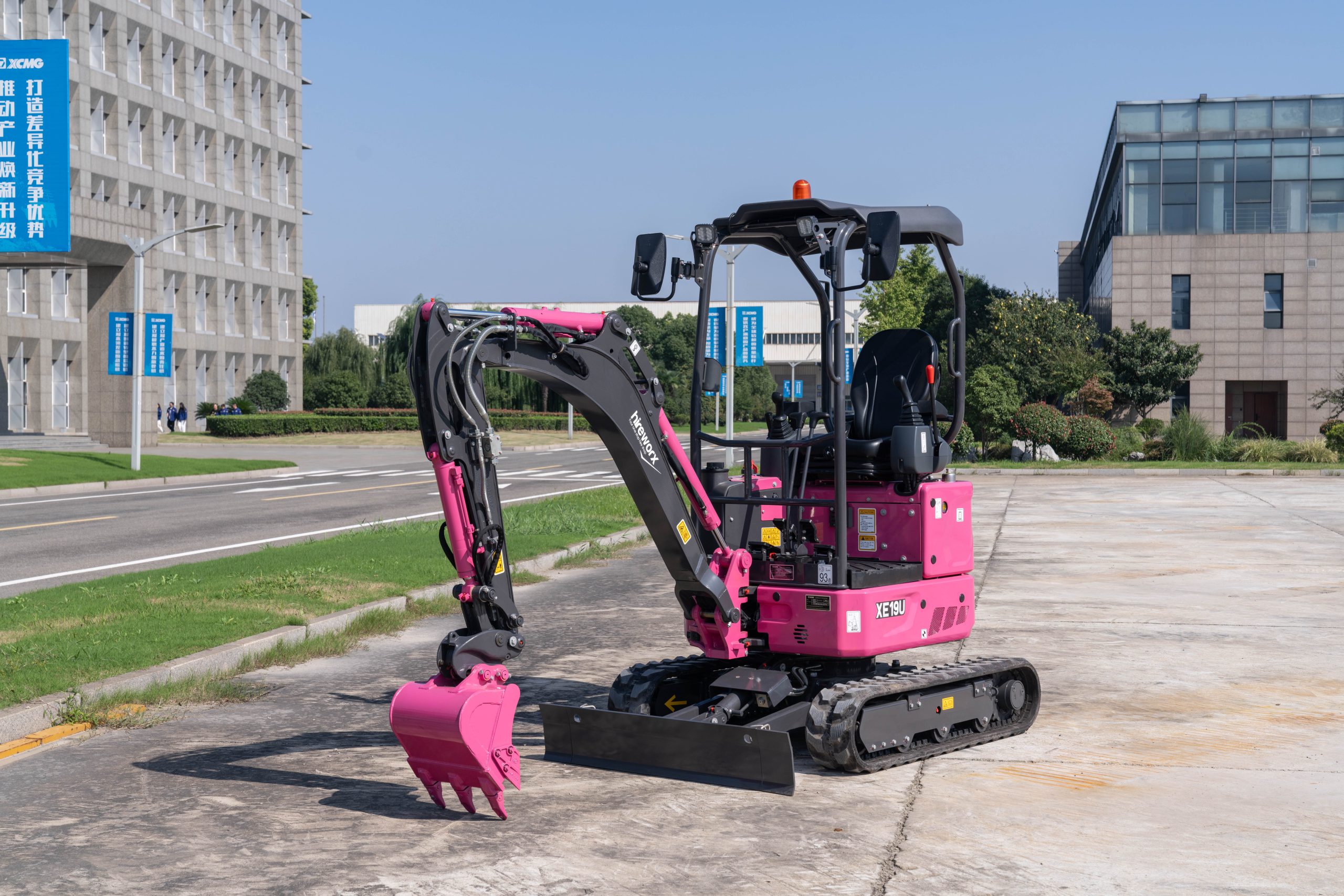

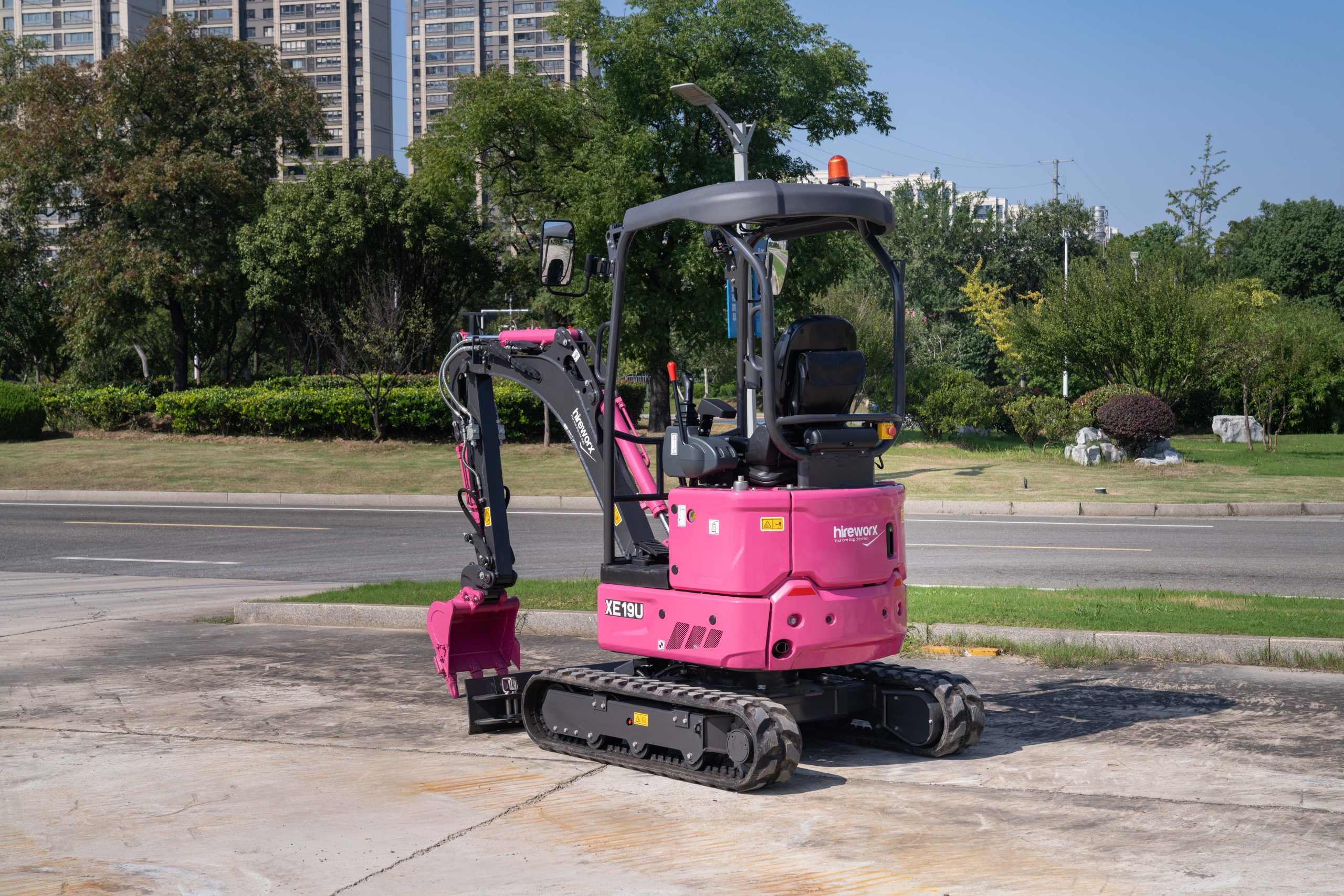

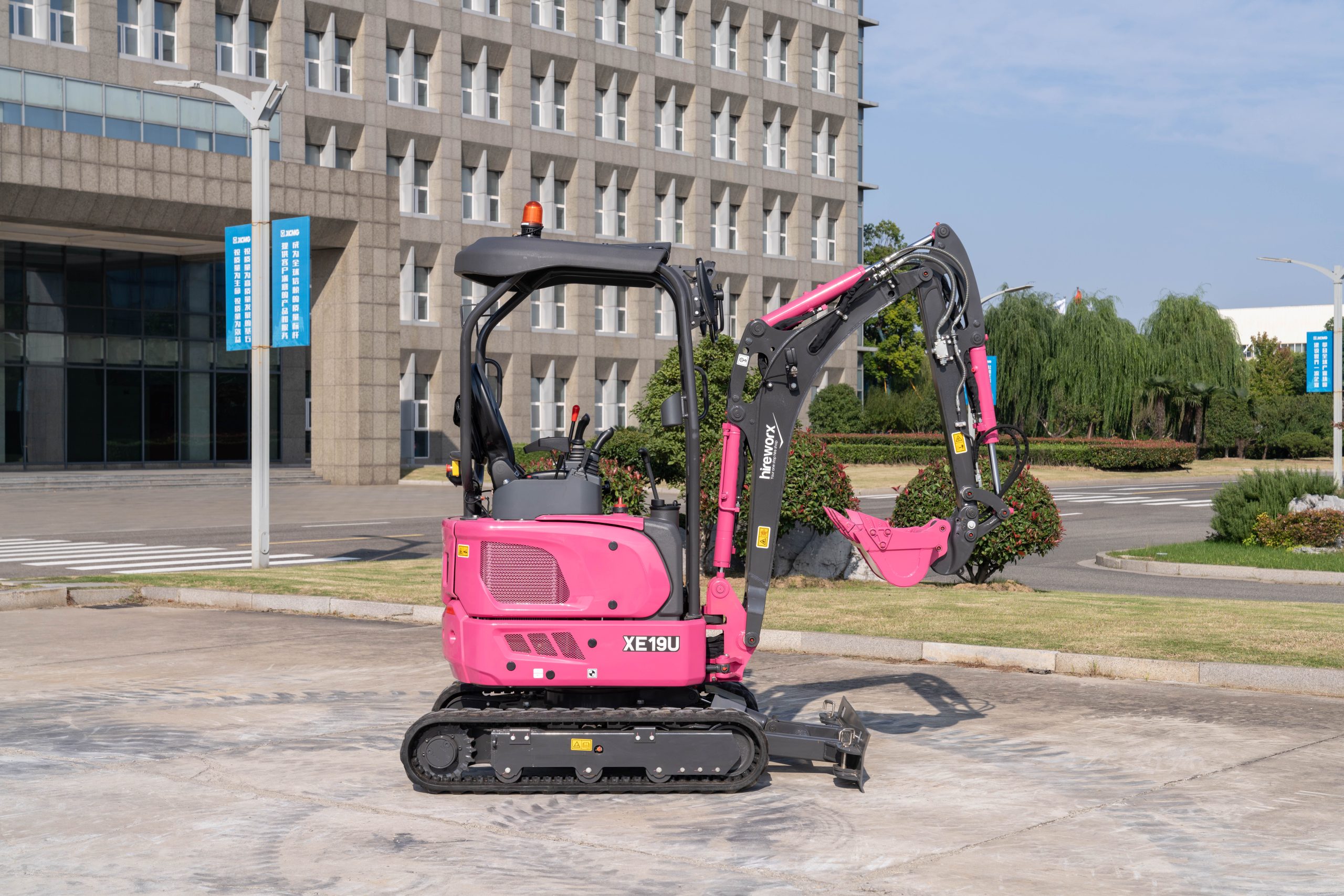

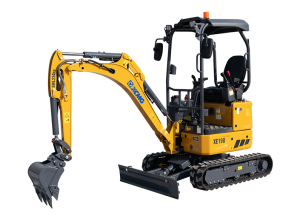

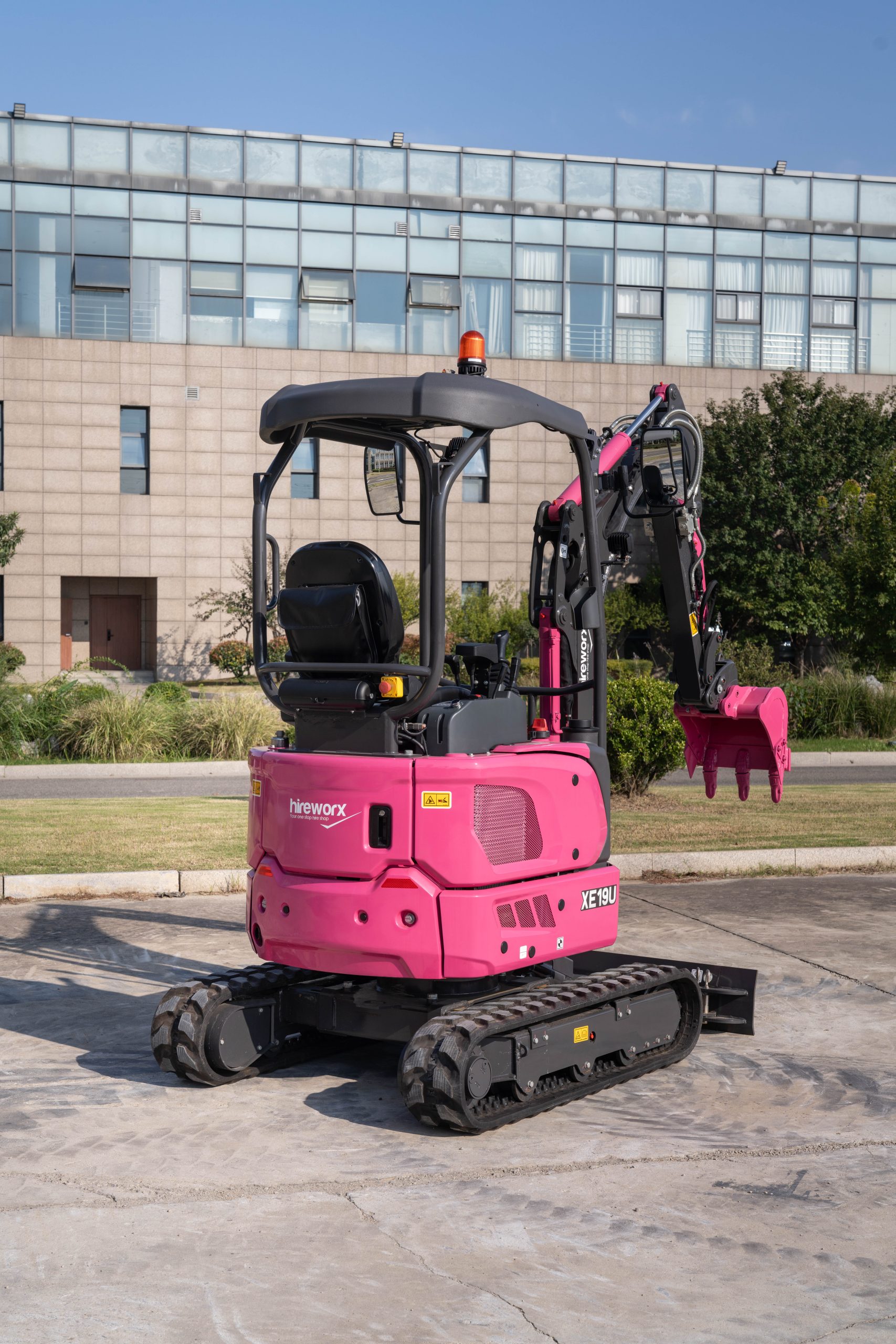

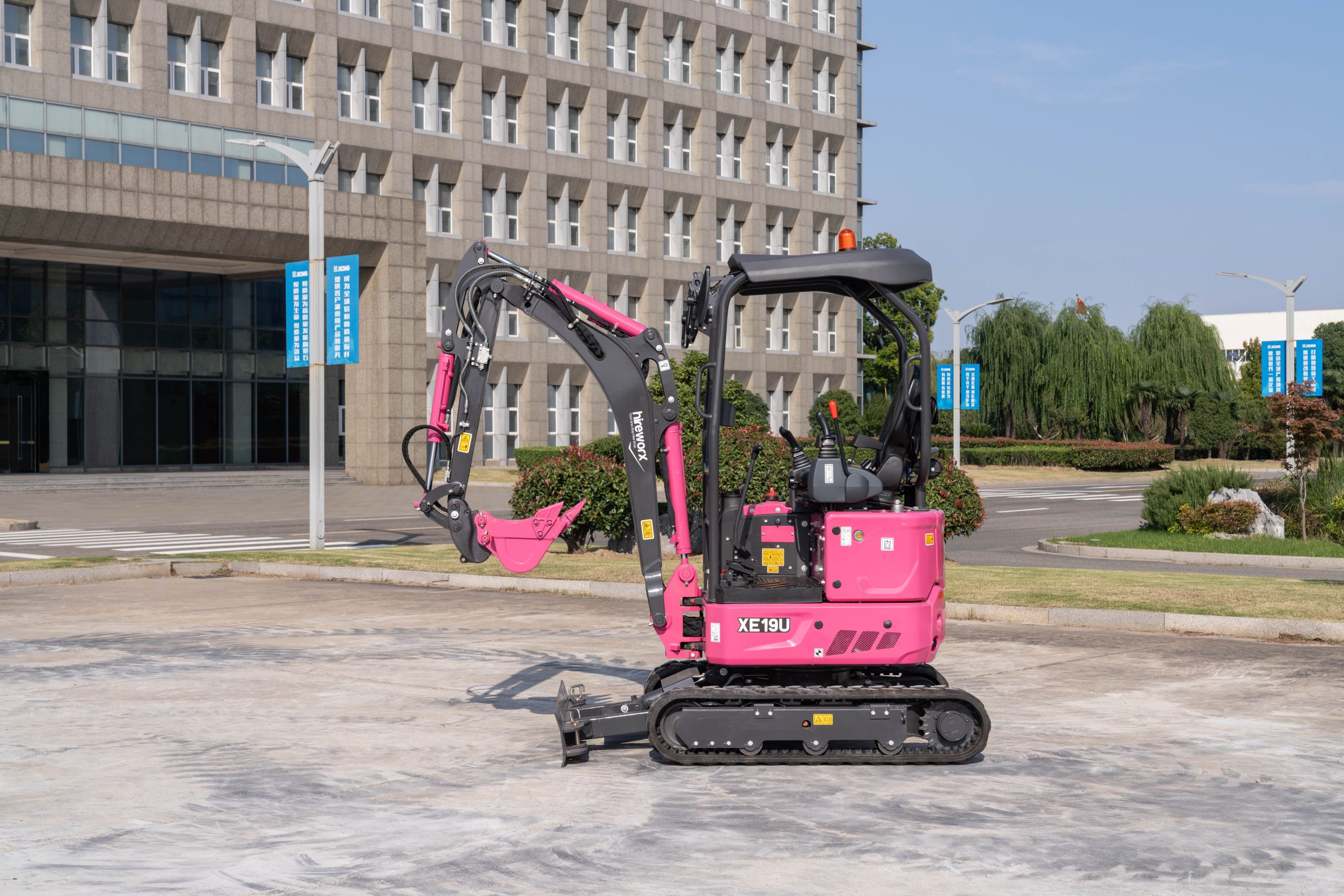

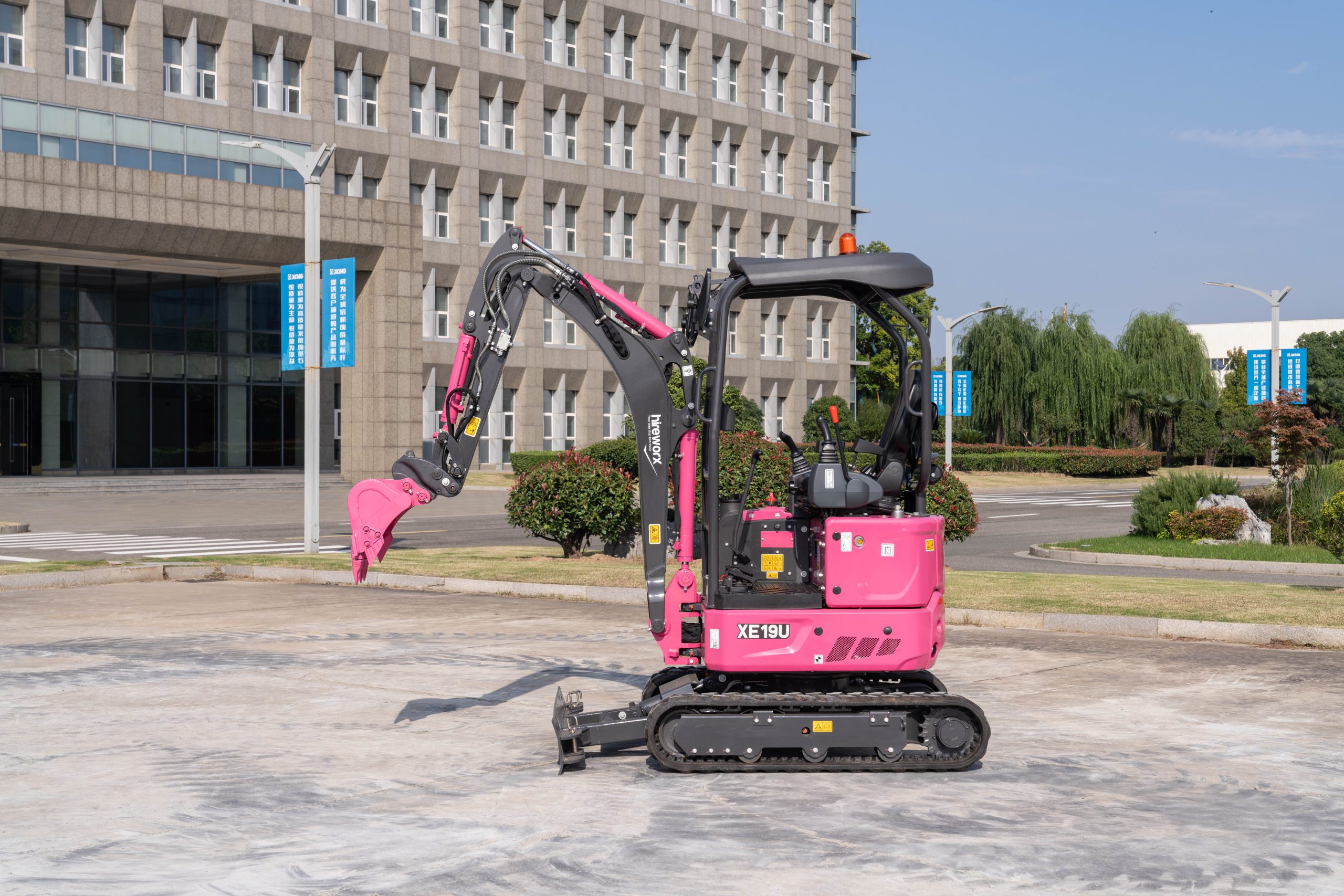

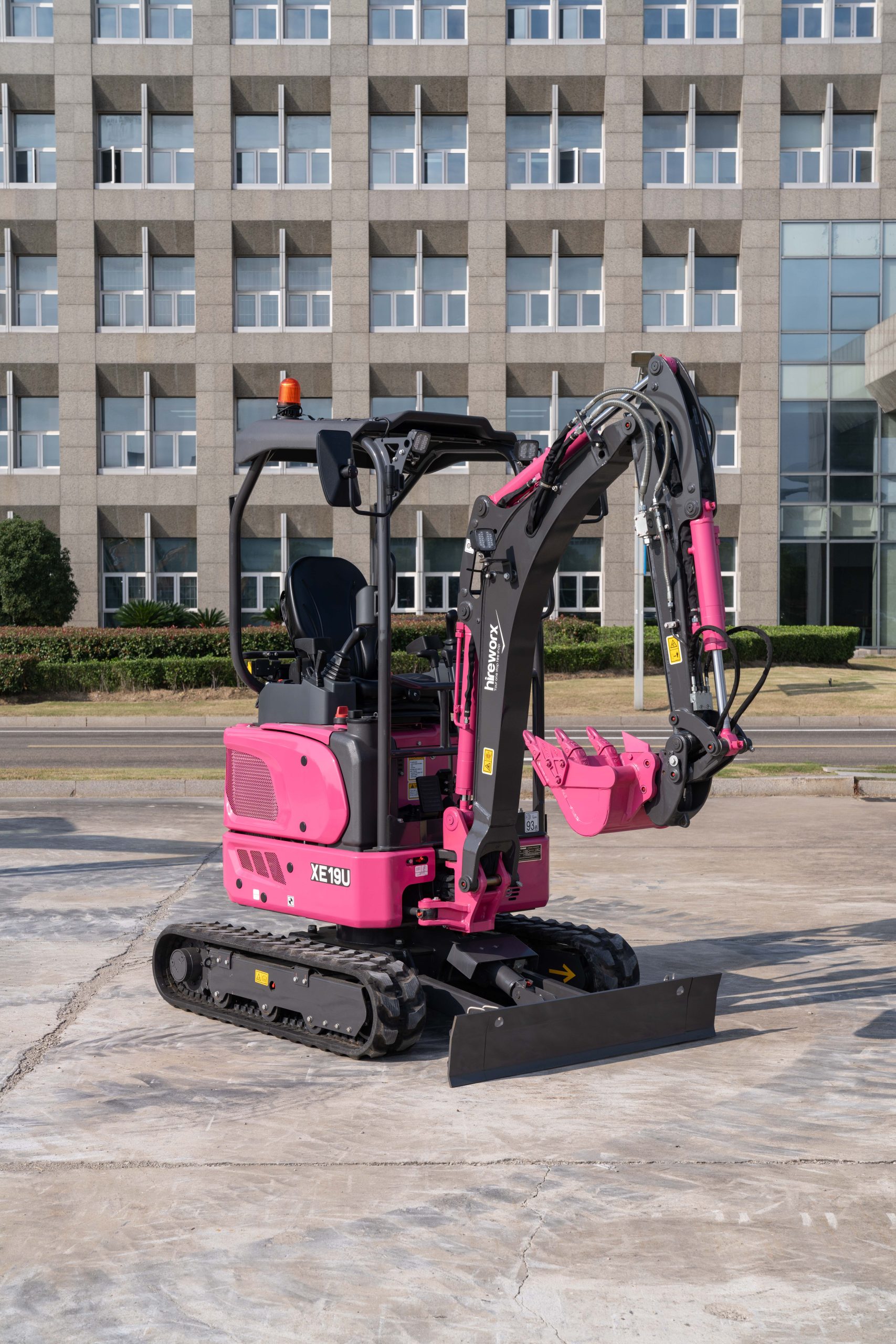

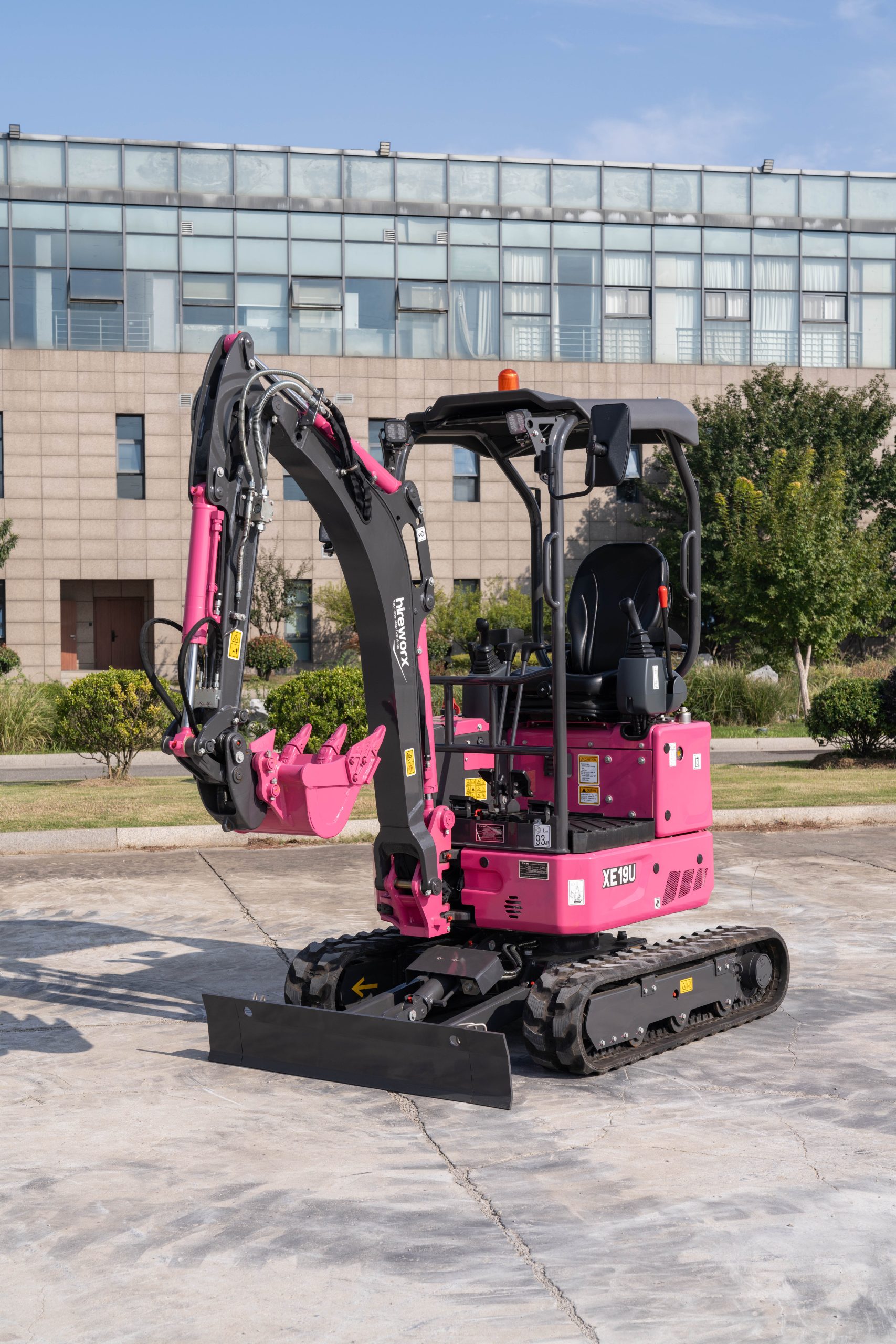

Mini Excavator – Model: XE19U
Experience peace of mind with XCMG’s Mini Excavator Model XE19U from the E-series, crafted through rigorous strength and reliability tests. Our Mini Excavator thrives under extreme conditions, making XCMG the trusted choice for Mini Excavators in Australia
Product Overview – Mini Excavator – Model: XE19U
| Operating Weight | 1900 kg |
| Transport Mass (No Attachments) | 1825 kg |
| Engine | Kubota/D1105/EU Stage V |
| Power | 15.4kW (20.9hp) /2400 rpm (ISO 14396) |
| Max Torque | 70.3 Nm/1600 rpm |
| Piston Displacement | 1123 cm3 |
| Bucket Digging Force | 16 kN |
| Arm Digging Force | 10 kN |
| Swing Speed | 10 RPM |
| Main Pump Type | Load-sensing Axial-piston Pump with Variable Displacement |
| Emergency Stops | Included |
| Buckets | Enquire |
| Dozer Blade | Included |
| Quick Hitch | Mechanical |
| Fuel / Cooling | Diesel / Liquid, Forced Circulation |
| No of Cylinders | 3 |
| Alternator | 12V / 40A |
| Fuel Tank Size | 25 L |
| Noise Level LwA (ISO 6395) | 93 dB(A) |
| Travel Speed (Low – High) | 2.2-4.2 km/h |
| Traction Force | 21.4 kN |
| Gradeability | 30o |
| Overall Length | 3550 mm |
| Overall Width | 990 – 1300 mm |
| Overall Height | 2395 mm |
| Overall Track length | 1563.5 mm |
| Overall Height of Engine Hood | 1152 mm |
| Minimum Ground Clearance | 147.5 mm |
| Tail Slew Radius | 675 mm |
| Tumbler Length | 1230 mm |
| Dozer Blade (Maximum reach at ground level) | 1173 mm |
| Undercarriage Length | 1953 mm |
| Dozer Blade Height | 248 mm |
| Track Gauge | 760/1070 mm |
| Track Height | 345.5 mm |
| Counterweight Ground Clearance | 433.5 mm |
| Track Shoe Width | 230 mm |
| Maximum Boom Swing Angle to the Right | 50 |
| Maximum Boom Swing Angle to the Left | 60 |
| Maximum Digging Height | 3420 mm |
| Maximum Digging Depth | 2520 mm |
| Maximum Dumping Height | 2455 mm |
| Maximum Vertical Wall Digging Depth | 1605 mm |
| Minimum Swing Radius | 1575 mm |
| Maximum Digging Reach at Ground Level | 4000 mm |
| Maximum Digging Reach | 4055 mm |
| Maximum Dozer Lifting Height | 230 mm |
| Maximum Dozer Cutting Depth | 280 mm |
| Engine |
| Kubota Engine D1105, EU Stage V |
| Hydraulic system |
| Single or Dual Way Pipeline (AUX1) |
| Auxiliary Hydraulic Valve |
| Canopy |
| OPG/TOPS/ ROPS(ISO 3471) Canopy |
| Adjustable Seat With Retractable Belt |
| Colour LCD Monitor |
| AUX1 Control Foot Pedal |
| Foldable Ergonomic Pedals |
| Undercarriage |
| Extendable Undercarriage (990/1300 mm) |
| Easy Extended Blade |
| Tie Down Bracket |
| Rubber Tracks 230 mm |
| Safety |
| Engine Overheat Warning and Restart Prevention System |
| Hydraulic Safety Locking Lever |
| Work Light (1 on boom) |
| Battery Switch Off |
| Other |
| Standard Arm 1090 mm |
| Other |
| General Purpose Bucket 0.04 m³ |
| Quick Coupler Attachments i.e: Hammer or Clamshell (Contact Us for More Options) |
