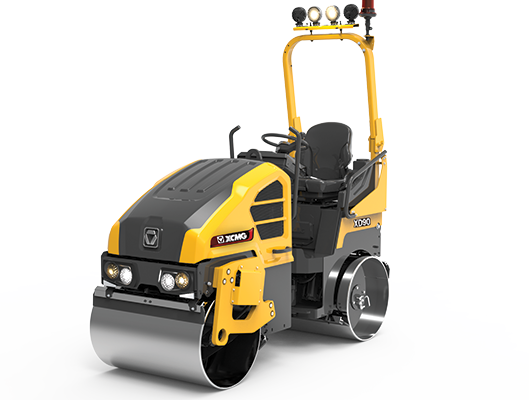

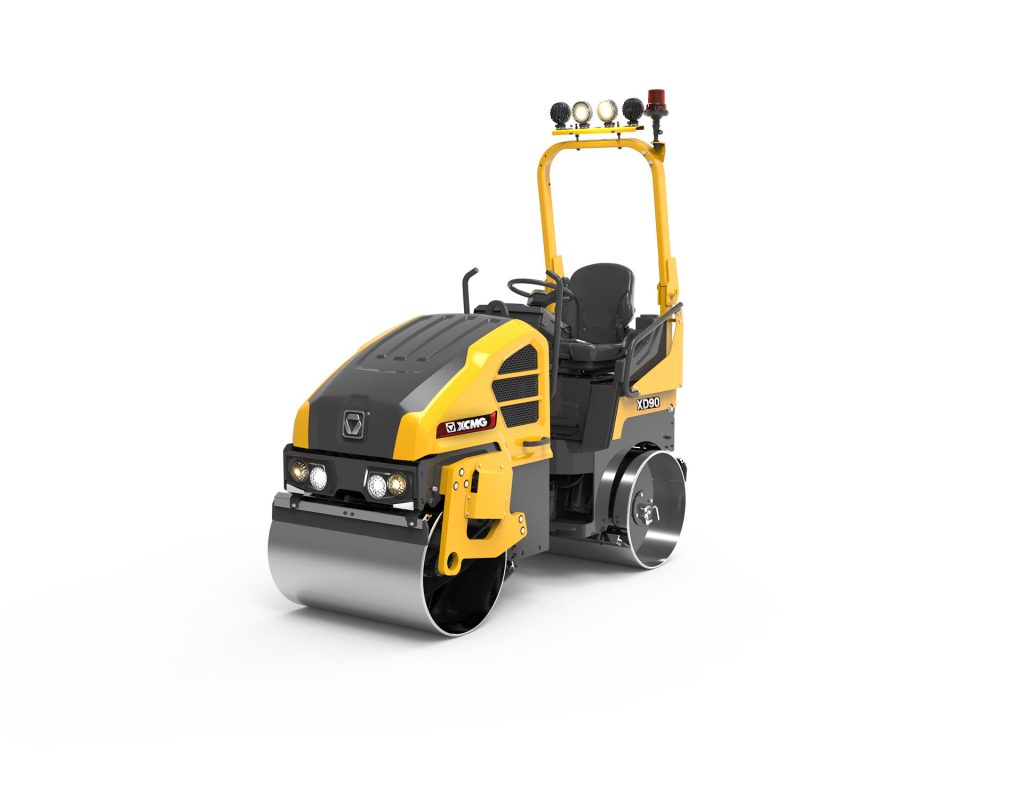

XCMG Vibratory Roller – Model: XD90
Designed for precision and smooth asphalt finishing, the XCMG XD90 delivers high-frequency, small-amplitude vibration and powerful compaction performance. With independent vibration on both the front and rear drums, it ensures consistent density and an even surface across asphalt top layers, thin stabilised soil pavements, and maintenance works.
Compact, highly maneuverable, and engineered for excellent visibility, the XD90 is ideal for municipal road maintenance, highway upkeep, and newly built pavements. Its efficient dual-drive, dual-vibration system and operator-focused design provide outstanding control, comfort, and reliability — making it a perfect choice for everyday road management and precision compaction tasks.
Product Overview – XCMG Vibratory Roller – Model: XD90
| Operating Weight | 1700 kg |
| Front Axle Weight | 800 kg |
| Rear Axle Weight | 900 kg |
| Static Linear Load (Front/Rear) | 87/98 N/cm |
| Operating Speed | 0～11 km/h |
| Theoretical Gradeability | 30% |
| Minimum Turning Radius(Inside/Outside) | Inside: 2240 mm Outside: 3140 mm |
| Minimum Ground Clearance | 250 mm |
| Wheelbase | 1550 mm |
| Steering Angle | ±32° |
| Oscillation Angle | ±8° |
| Braking Distance | 3.40 m |
| Vibrational Frequency | 48/65 Hz |
| Nominal Amplitude | 0.4 mm |
| Drum Diameter | 620 mm |
| Drum Width | 900 mm |
| Engine Model | KUBOTA D1105 |
| Rated Power | 16.3 kW |
| Rated Speed | 2600 r/min |
