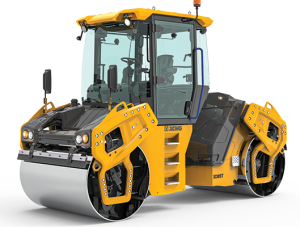

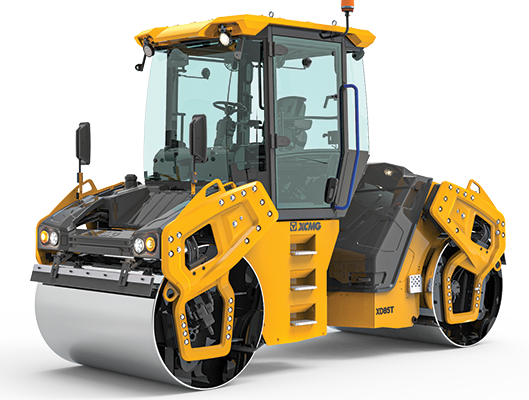

XCMG Vibratory Roller – Model: XD85T
Built for precision and productivity, the XCMG XD85T delivers excellent asphalt compaction with a smooth, uniform finish. Its efficient vibration system provides reliable performance across different pavement materials and layer depths.
With a dependable diesel engine and operator-friendly design, the XD85T is perfectly suited for road construction, highway works, airport surfaces, industrial pavements, and subgrade consolidation — offering long-lasting durability and consistent results on every project.
Product Overview – XCMG Vibratory Roller – Model: XD85T
| Operating Weight | 8000 kg |
| Front Axle Weight | 4000 kg |
| Rear Axle Weight | 4000 kg |
| Static Linear Load (Front/Rear) | 233/233 N/cm |
| Operating Speed | 0～12 km/h |
| Theoretical Gradeability | 40% |
| Minimum Turning Radius(Inside/Outside) | Inside: 4396 mm Outside: 6076 mm |
| Minimum Ground Clearance | 260 mm |
| Wheelbase | 3400 mm |
| Steering Angle | ±35° |
| Oscillation Angle | ±8° |
| Braking Distance | 4.36 m |
| Vibrational Frequency | 48/55 Hz |
| Nominal Amplitude | 0.7/0.27 mm |
| Centrifugal Force (High/Low) | 84/52 kN |
| Drum Diameter | 1150 mm |
| Working Width | 1680 mm |
| Charging Pressure, Drive System | 2.5 MPa |
| Peak Pressure, Drive System | 42 MP |
| Peak Pressure, Vibration System | 35 MP |
| Peak Pressure, Steering System | 17.5 MPa |
| Engine Model | Kubota V3307 |
| Engine Type | Water-cooling |
| Rated Power | 54.6 kW |
| Rated Speed | 2400 r/min |
