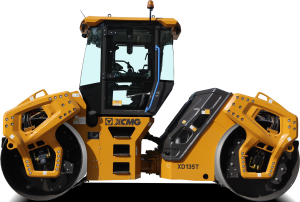

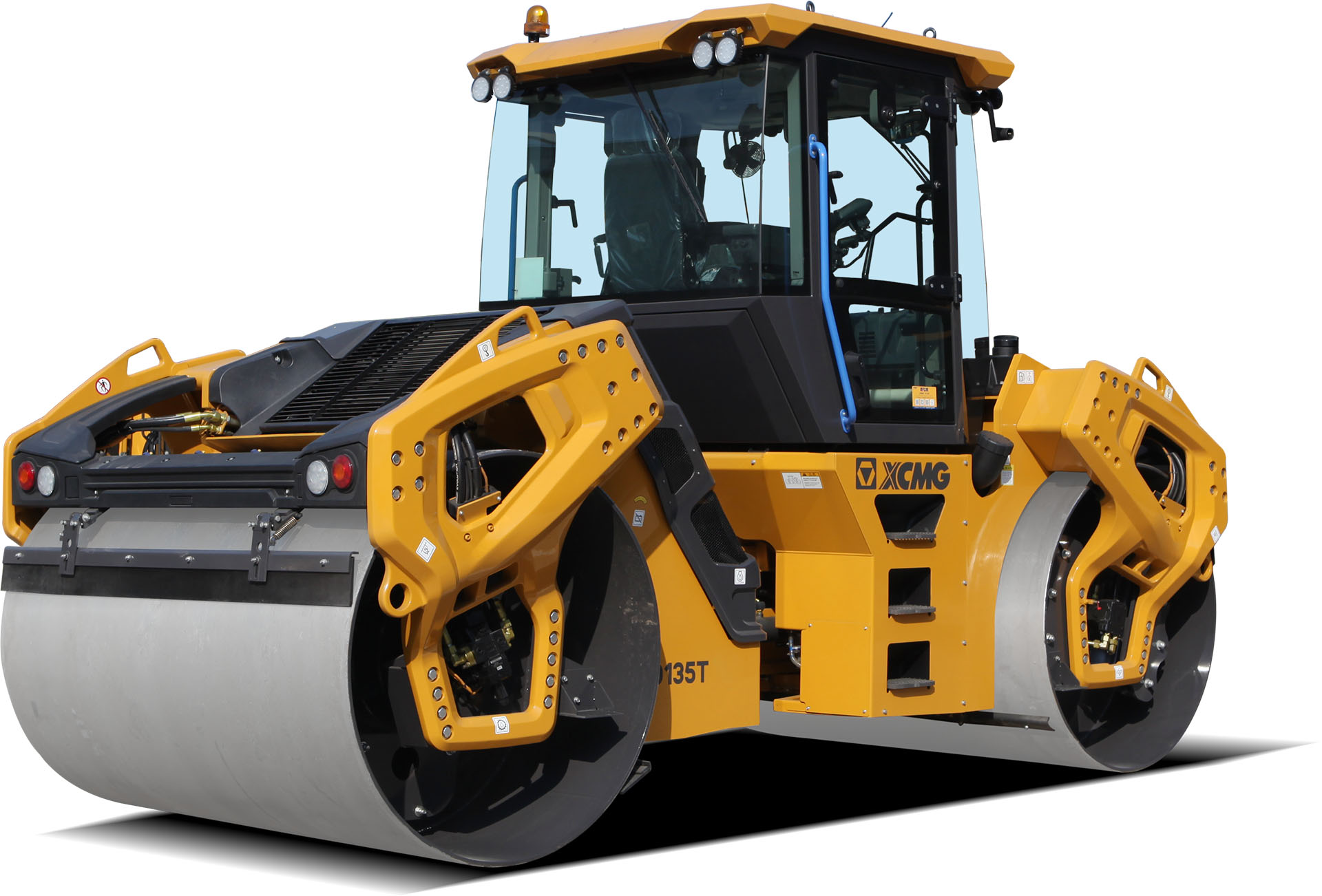

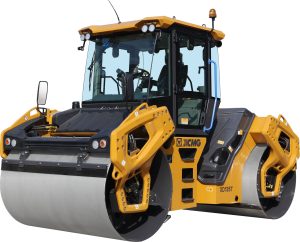

XCMG Vibratory Roller – Model: XD135T
Built for superior performance in demanding conditions, the XCMG XD135T delivers high-quality asphalt compaction with a smooth, uniform finish. Its advanced vibration system ensures consistent results across varying pavement materials, layer types, and thicknesses.
Driven by a powerful diesel engine and designed with operator comfort in mind, the XD135T performs exceptionally on major roadworks, parking lots, airports, and large infrastructure projects. Capable of compacting base and sub-base layers as well as asphalt top layers, it is the ideal machine for highway construction, management, and long-term pavement maintenance — offering reliability, efficiency, and premium compaction results every time.
Product Overview – XCMG Vibratory Roller – Model: XD135T
| Operating Weight | 13000 kg |
| Front Axle Weight | 6500 kg |
| Rear Axle Weight | 6500 kg |
| Static Linear Load (Front/Rear) | 299/299 N/cm |
| Operating Speed | 0～12 km/h |
| Theoretical Gradeability | 35% |
| Minimum Turning Radius(Inside/Outside) | Inside: 4700 mm Outside: 6830 mm |
| Minimum Ground Clearance | 330 mm |
| Wheelbase | 3620 mm |
| Steering Angle | ±35° |
| Oscillation Angle | ±8° |
| Braking Distance | 4.36 m |
| Vibrational Frequency | 50/60 Hz |
| Nominal Amplitude | 0.80/0.30 mm |
| Centrifugal Force (High/Low) | 178/96 kN |
| Drum Diameter | 1360 mm |
| Drum Width | 2130 mm |
| Charging Pressure, Drive System | 2.4 MPa |
| Peak Pressure, Drive System | 38 MP |
| Peak Pressure, Vibration System | 32 MP |
| Peak Pressure, Steering System | 17.5 MPa |
| Engine Model | Cummins QSF3.8 |
| Rated Power | 104 kW |
| Rated Speed | 2200 r/min |
