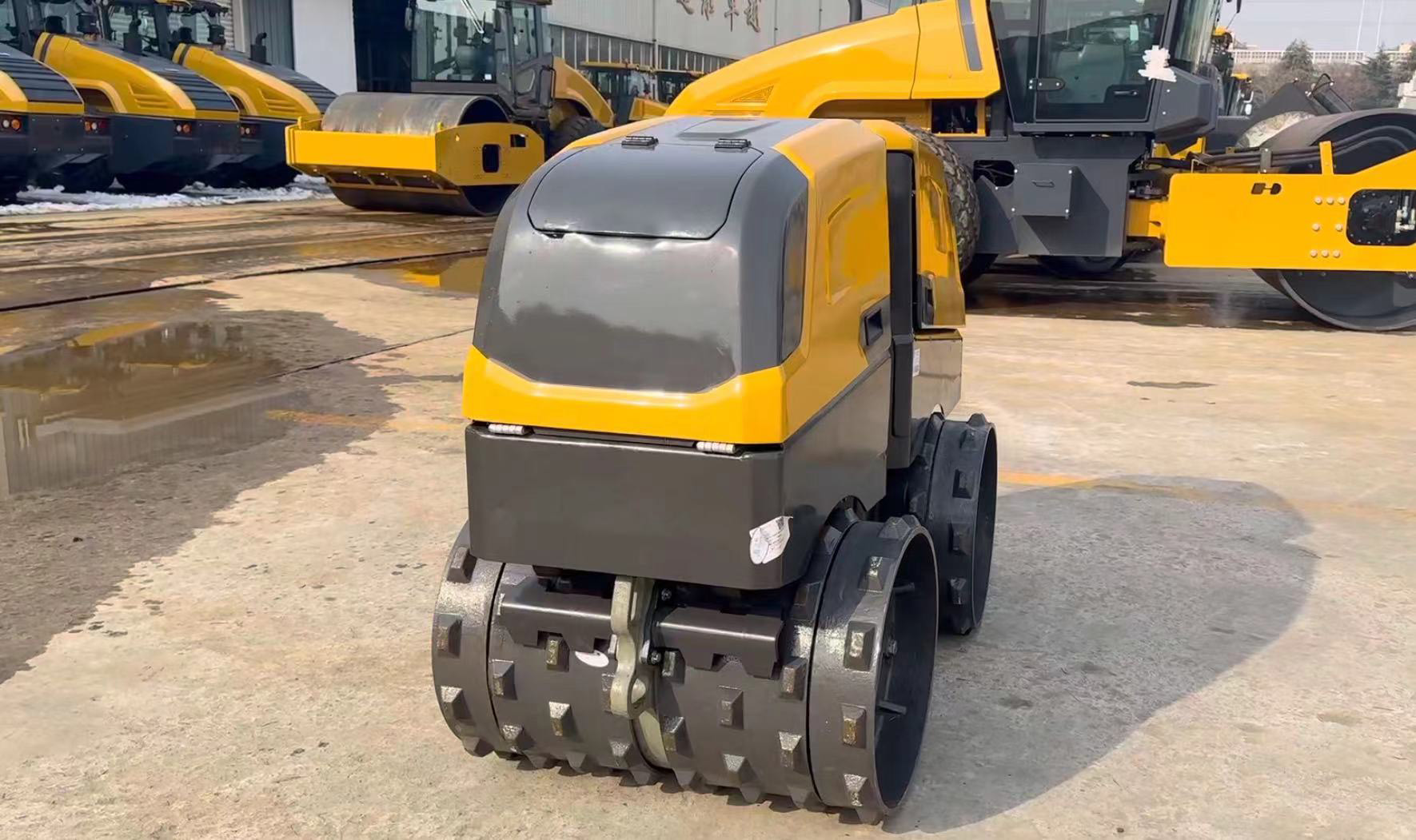

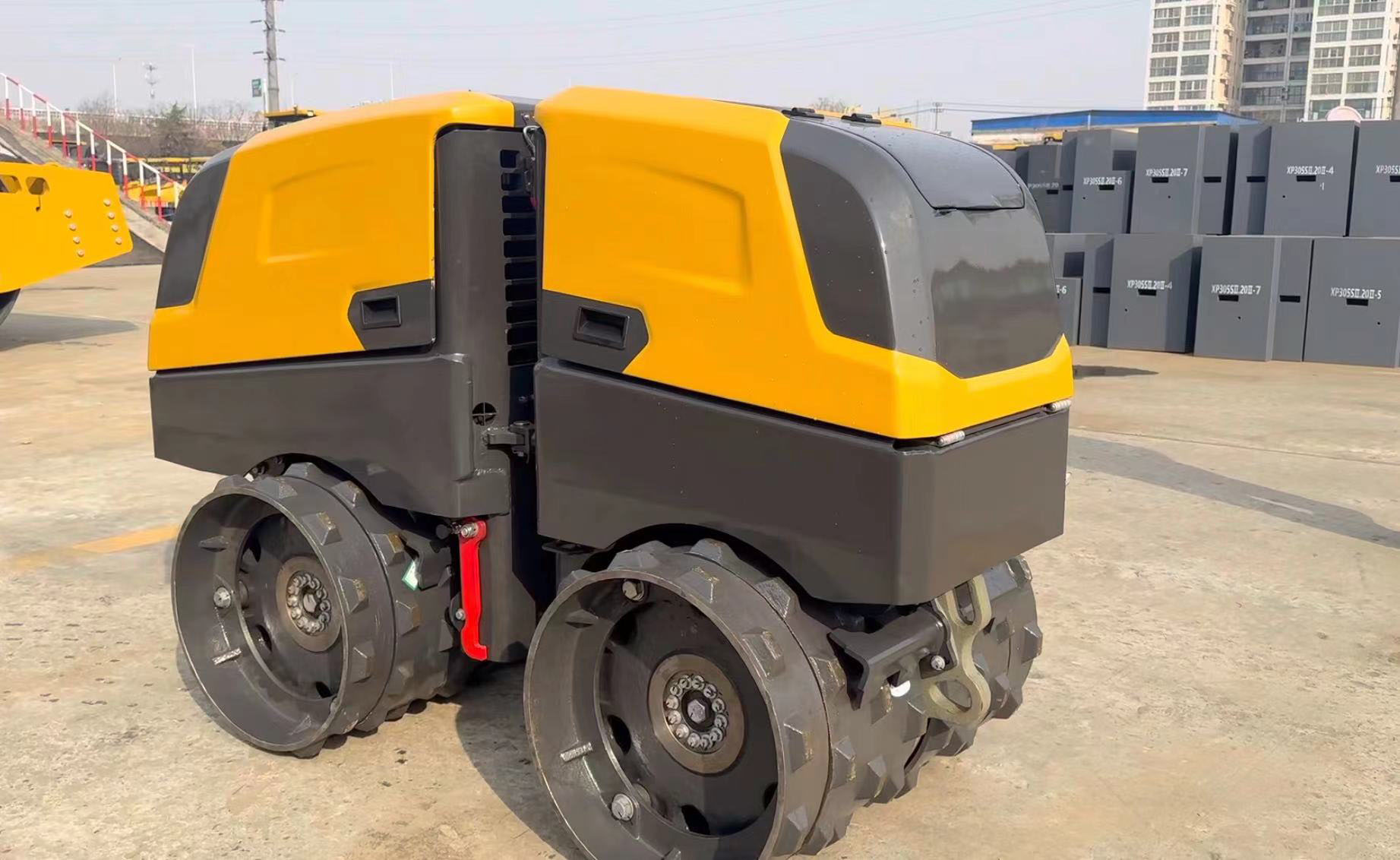

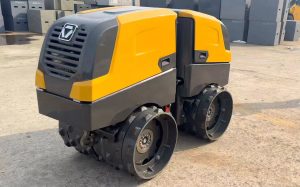

XCMG Trench Compactor – Model: XTG85
Engineered for precision, safety, and powerful compaction in tight working environments, the XCMG XTG85 delivers high-impact performance with a compact, highly maneuverable design. Its strong centrifugal force, vertical vibration, and two-stage amplitude ensure reliable density and stability across trench backfills, sewer works, and foundation compaction.
Powered by a durable Kubota three-cylinder water-cooled engine, the XTG85 performs consistently in harsh conditions, from high altitudes to low temperatures, while meeting strict Euro 5 and North American Tier 4 emissions standards. With remote-control operation for improved safety and efficiency, the XTG85 is the ideal solution for trenching, utilities, and confined-area soil compaction — providing dependable power, flexibility, and long-term reliability on every job.
Product Overview – XCMG Trench Compactor – Model: XTG85
| Operating Weight | 1600 kg |
| Front Axle Weight | 800 kg |
| Rear Axle Weight | 800 kg |
| Static Linear Load (Front/Rear) | 92/92 N/cm |
| Operating Speed | 1.2/2.8 km/h |
| Theoretical Gradeability | 55/45% |
| Minimum Turning Radius(Inside/Outside) | Inside: 1440 mm Outside: 2290 mm |
| Minimum Ground Clearance | 225 mm |
| Wheelbase | 1000 mm |
| Braking Distance(Smooth Cement Pavement) | 1.6 m |
| Vibrational Frequency | 42 Hz |
| Nominal Amplitude | 1.2/0.6 mm |
| Centrifugal Force (High/Low) | 80/40 kN |
| Drum Diameter | 570 mm |
| Drum Width | 610/850 mm |
| Peak Pressure, Drive System | 25 MP |
| Peak Pressure, Vibration System | 25 MP |
| Peak Pressure, Steering System | 10 MPa |
| Engine Model | KUBOTA D1105 |
| Engine Type | In-line 3-cylinder ater-cooling |
| Rated Power | 16.1 kW |
| Rated Speed | 2600 r/min |
