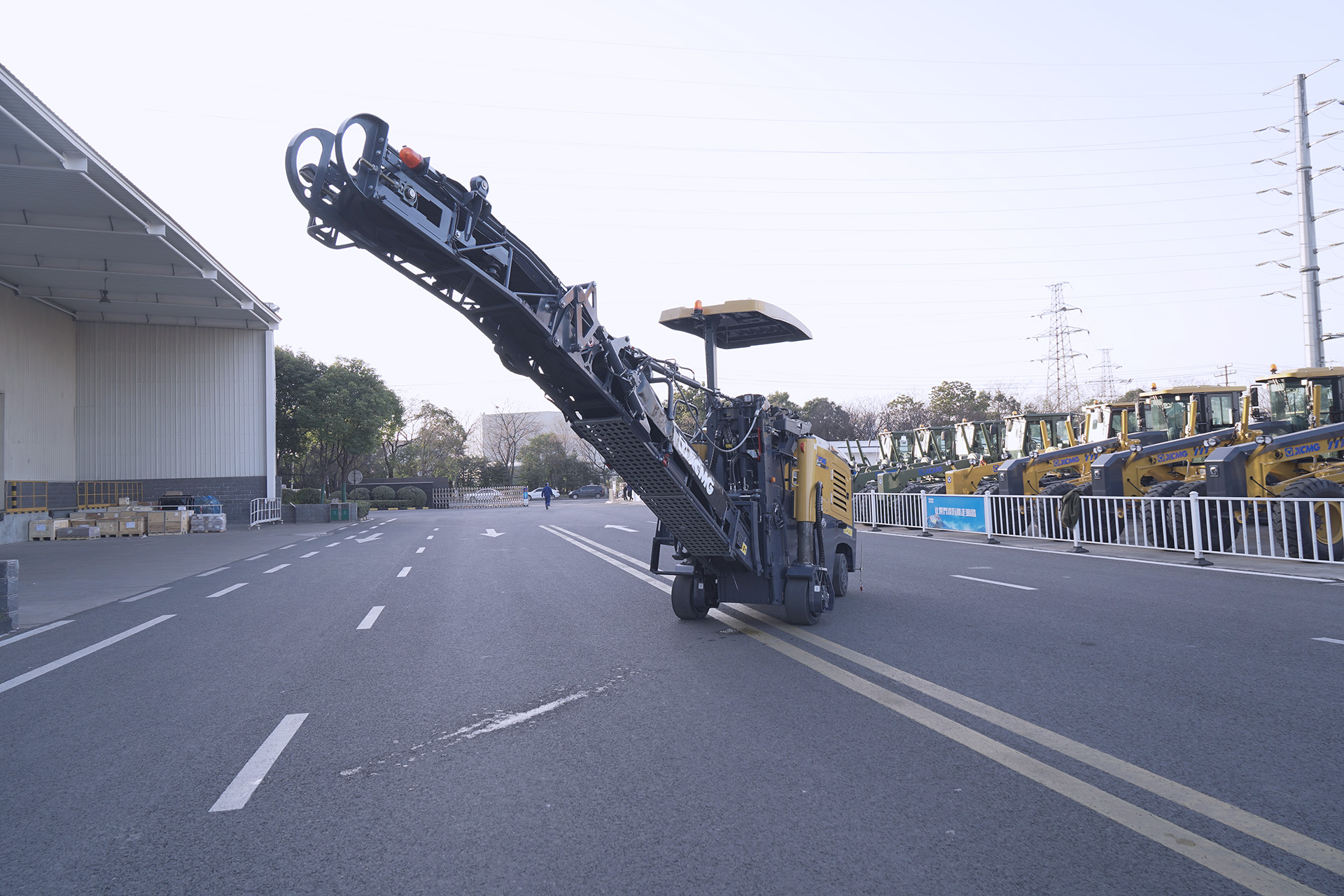

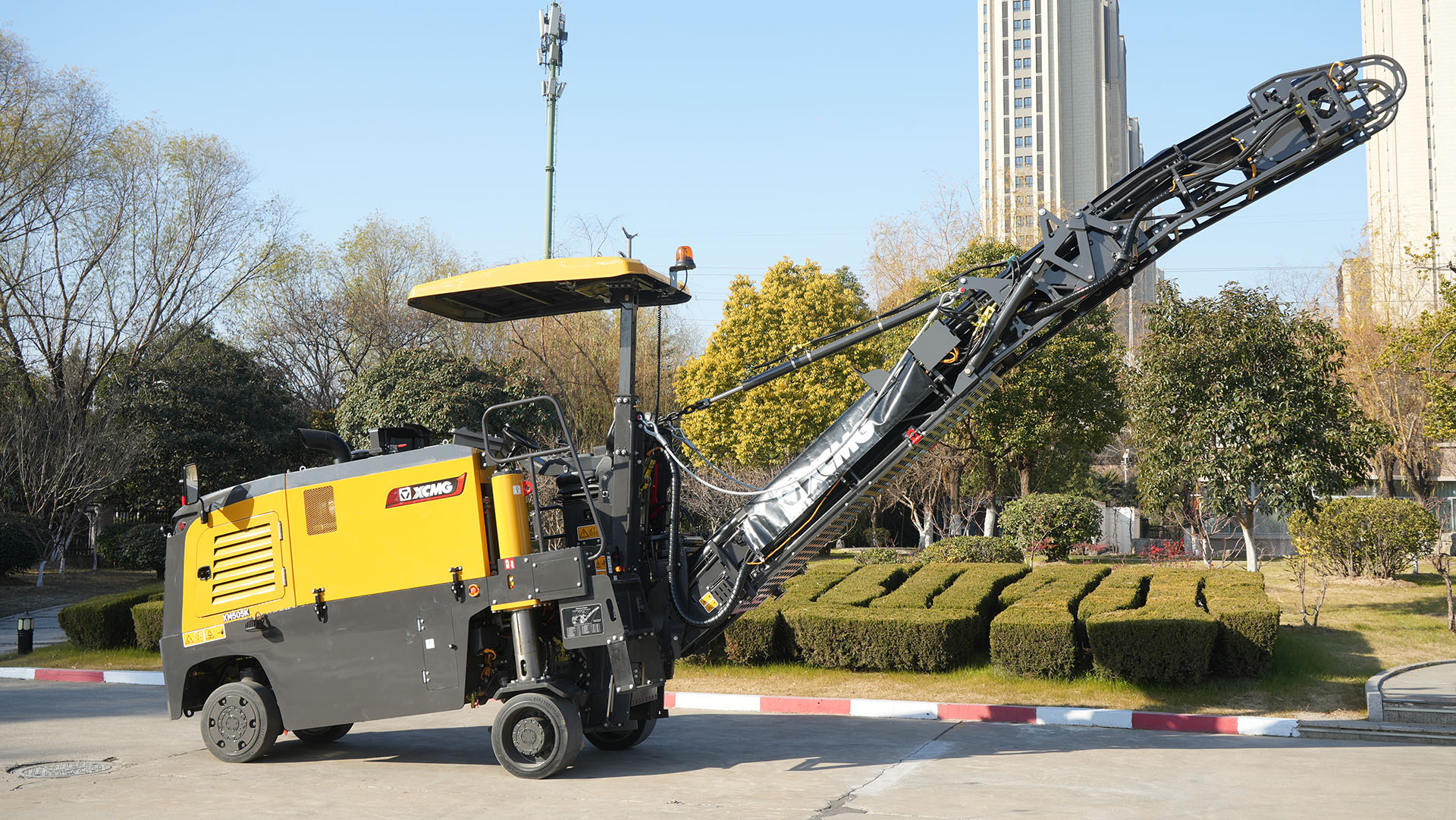

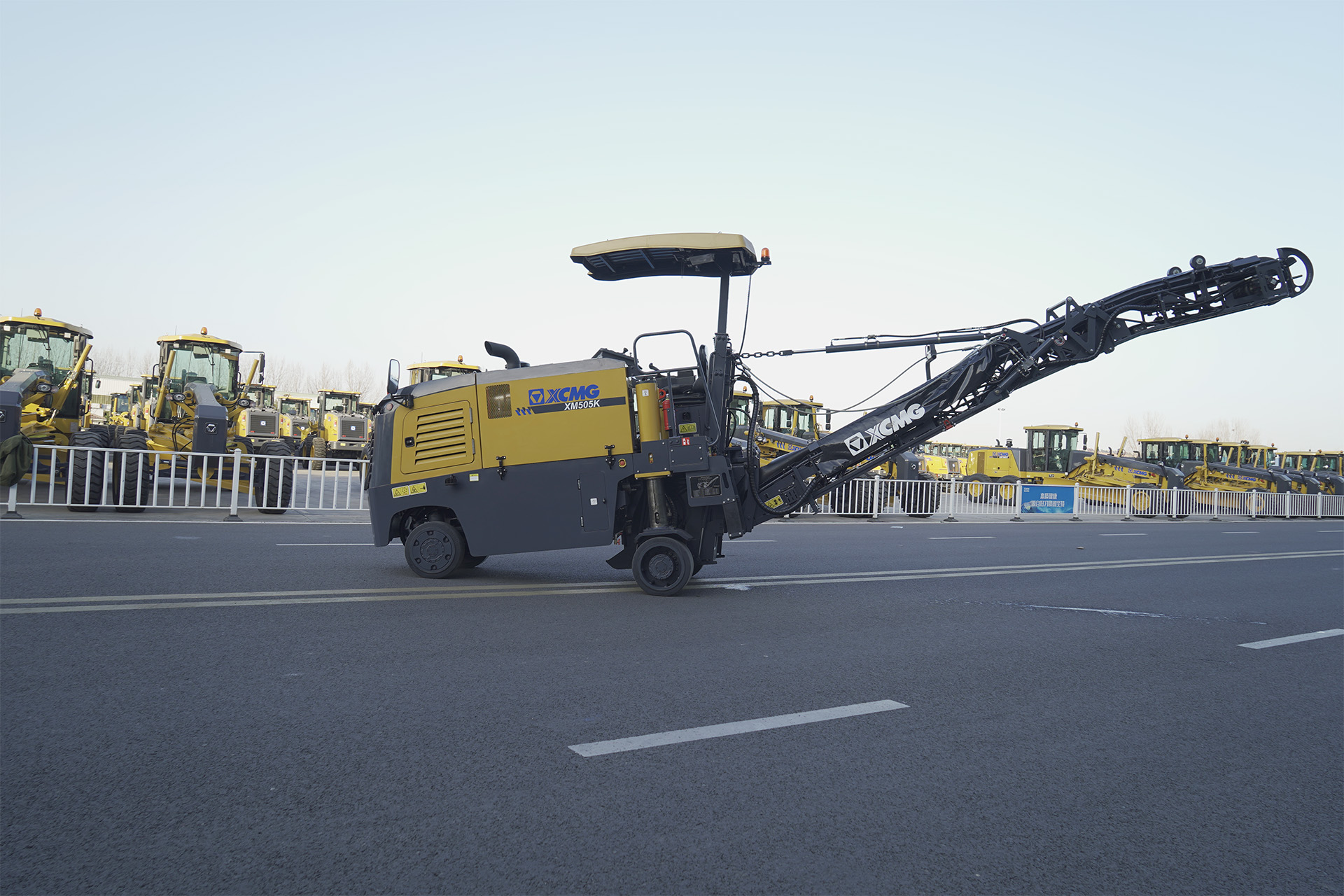

XCMG Road Milling Machine – Model: XM505KII
The XCMG XM505KII Milling Machine is a compact, high-precision asphalt milling solution designed for efficient pavement repair and surface restoration. Ideal for municipal roadwork and small-area maintenance, it delivers smooth cutting performance, accurate depth control, and excellent maneuverability.
Perfect for highways, urban roads, airports, garages, and parking lots, the XM505KII removes bumps, waves, rutting, and surface defects with ease. Optional features — including edge milling, manhole cover milling, rumble strip cutting, and hydraulic-pick pavement breaking — make it a versatile and powerful tool for modern road maintenance and rehabilitation.
Product Overview – XCMG Road Milling Machine – Model: XM505KII
| Milling Width | 500 mm |
| Maximum Milling Depth | 210 mm |
| Tip Distance | 15 mm |
| Number of Tools | 60 |
| Rotor Diameter With Picks | 750 mm |
| Manufacturer | DCEC |
| Cooling Method | Water-Cooling |
| Number of Cylinders | 4 |
| Rated Power/2200r/min | 97 kW |
| Displacement | 4.5 L |
| Rated Power | 26 L |
| Comprehensive Fuel Consumption | 10 L |
| Emission Standards | EC Stage 3a/China stage Ⅲ |
| Electrical System | 24 V |
| Fuel Tank | 230 L |
| Water Tank | 600 L |
| Hydraulic Oil Tank | 70 L |
| Milling Speed | 0～ 50 m/min |
| Travel Speed | 0—7.5 km/h |
| Theoretical Gradeability | 66% |
| Minimum Milling Radius | 340 mm |
| Ground Clearance | 220 mm |
| Unloading Belt Width | 350 mm |
| Maximum Discharge Height | 3900 mm |
| Conveyor Belt Conveyor Dimensions | 6000 mm length × 780 mm width × 600 mm height |
| Theoretical Conveying Capacity of Discharge Belt | 80 m³/h |
| Front Tire Dimension | 559 mm×178 mm |
| Rear Tire Dimension | 559 mm×254 mm |
| Overall Dimensions – No Conveyor Belt | 3838 mm length × 1740 mm width × 3050 mm height |
| Transport Dimensions – No Conveyor Belt | 3838 mm length ×174 0mm width ×2650 mm height |
| Overall Dimensions – Including Conveyor Belt | 9730 mm length ×1740 mm width ×3050 mm height |
| Transport Dimensions – Including Conveyor Belt | 7330 mm length × 1740 mm width × 2650 mm height |
| Working Weight Of The Whole Machine – Including Conveying Belt | 9000 kg |
| Transport Weight Of The Whole Machine – Including Conveyor Belt | 8700 kg |
| Working Weight Of The Whole Machine – No Conveying Belt | 8200 kg |
| Transport Weight Of The Whole Machine – No Conveyor Belt | 7800 kg |
