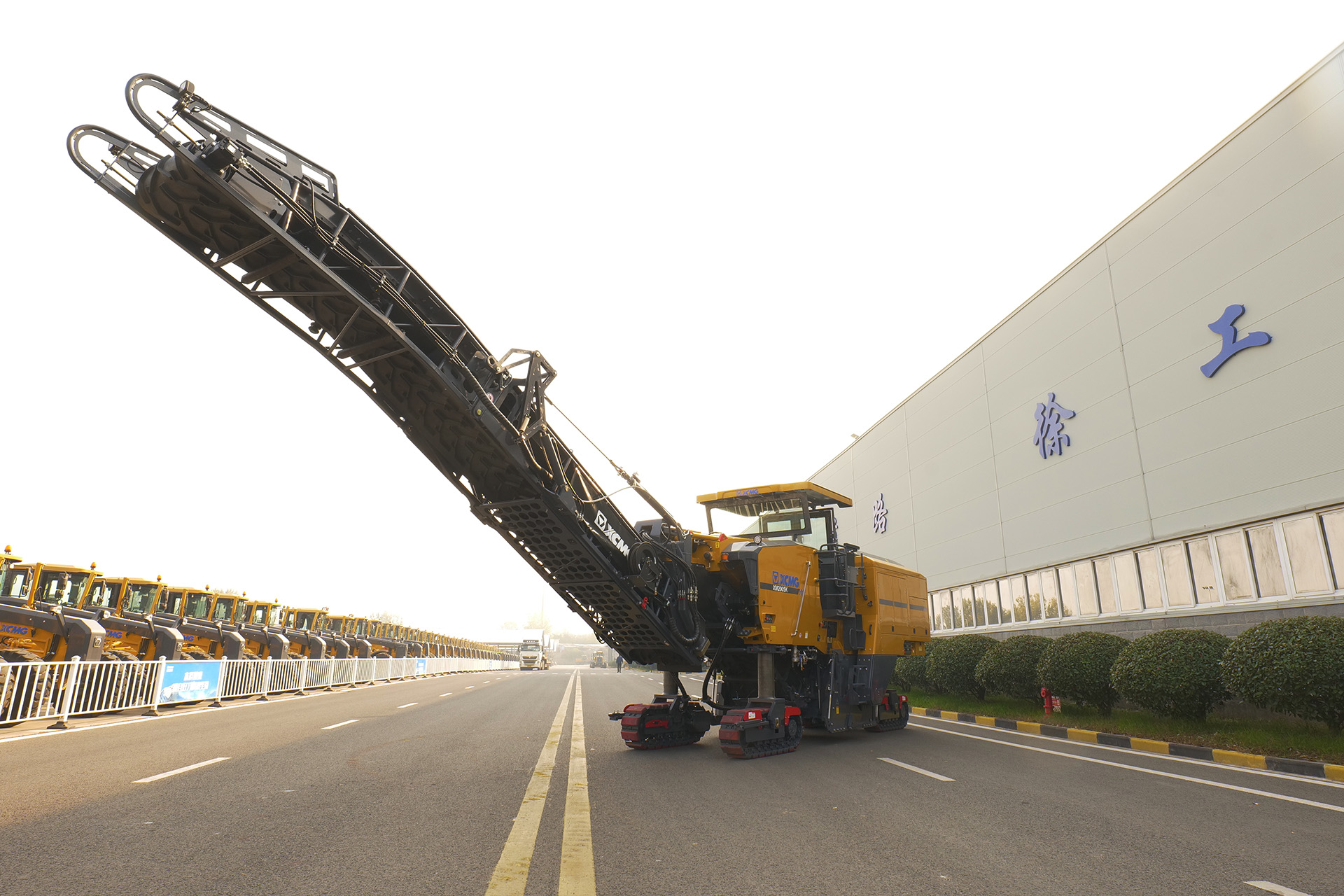

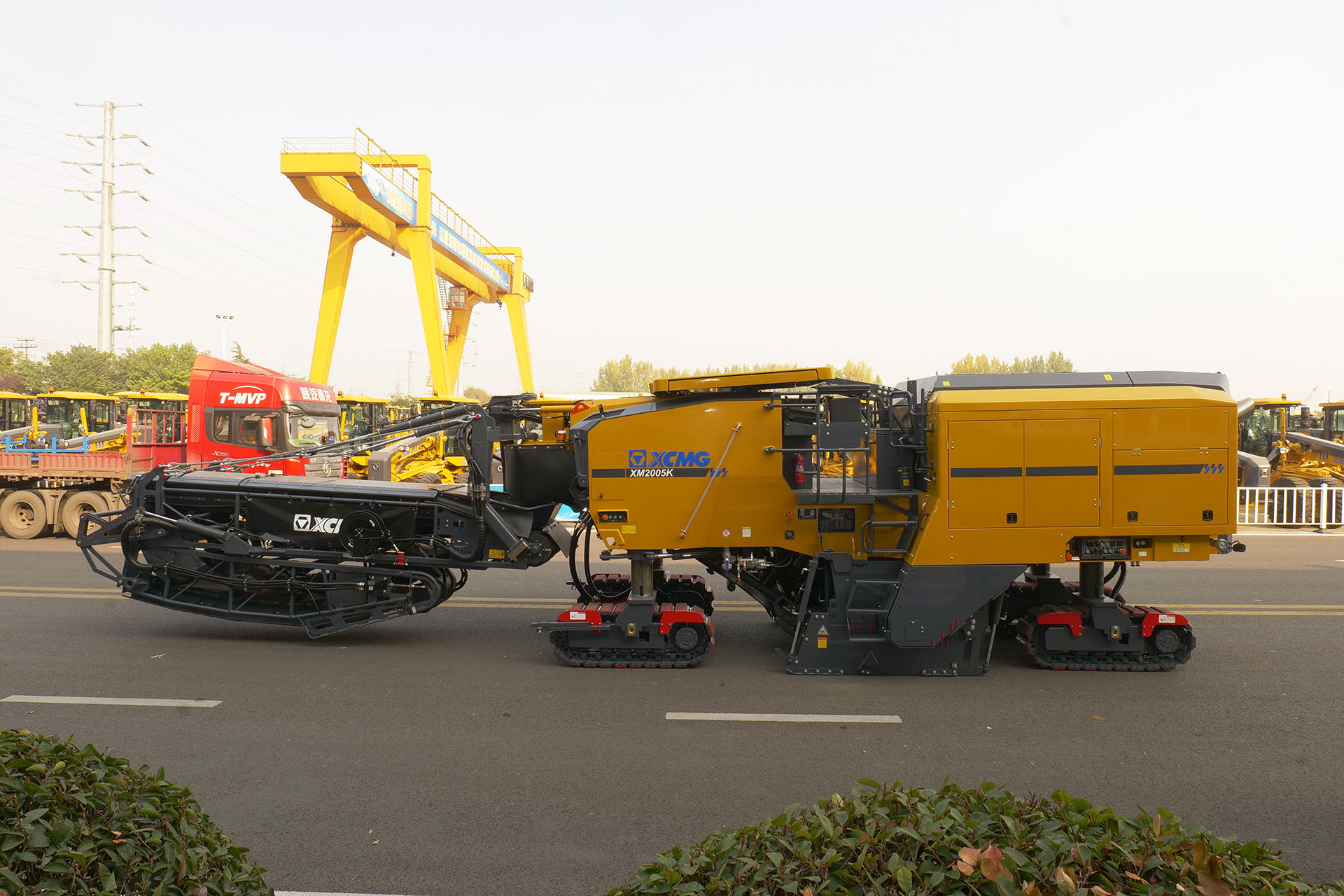

XCMG Road Milling Machine – Model: XM2005KIII

The XCMG XM2005K III Milling Machine is a high-capacity, heavy-duty asphalt milling solution engineered for large-area pavement removal and restoration. Designed for major roadworks and high-volume maintenance, it delivers powerful cutting performance, precise depth control, and exceptional operational efficiency across demanding job sites.

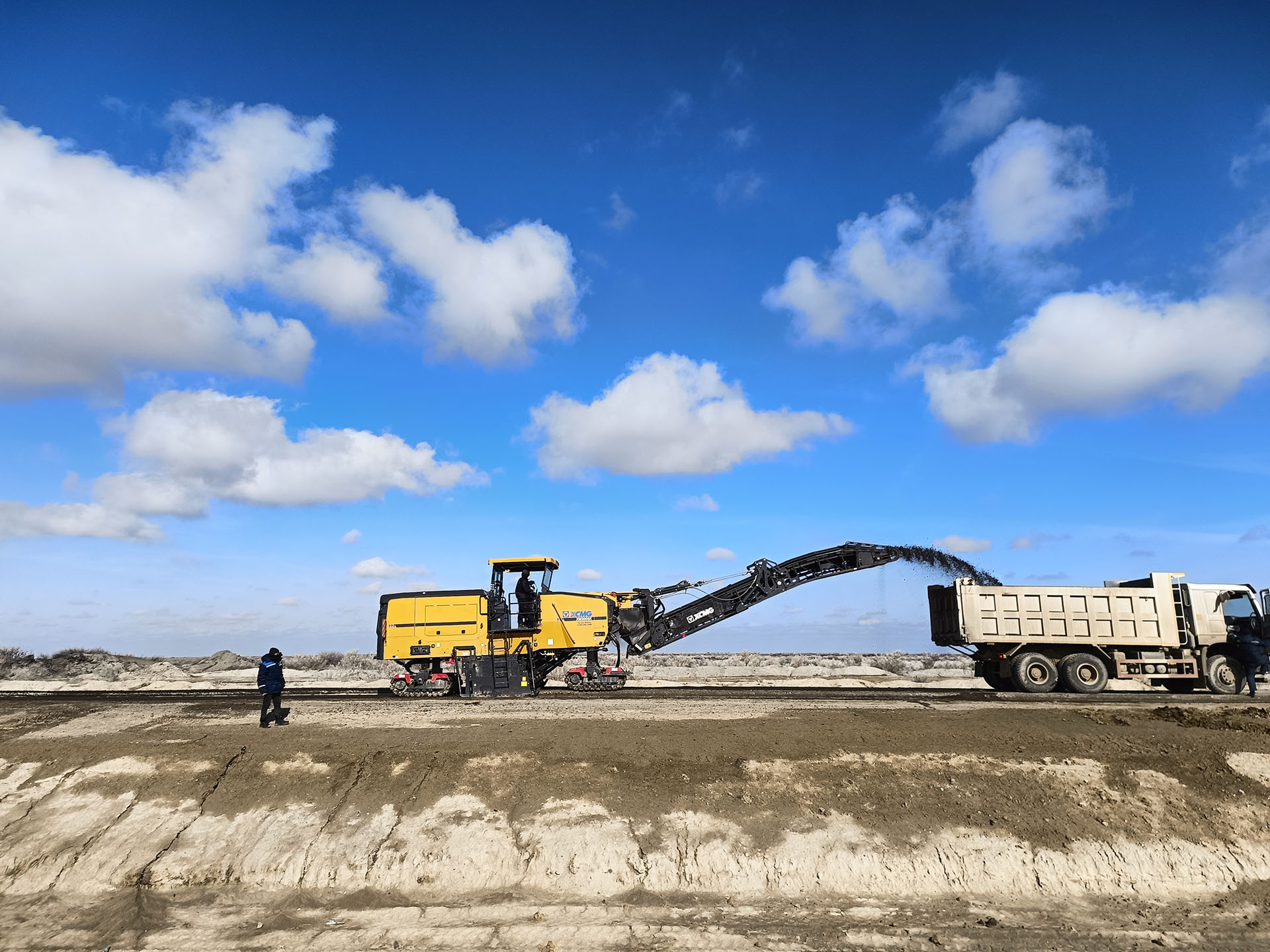

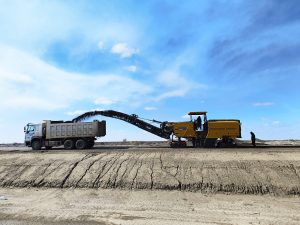

Built for highways, urban roads, airports, freight yards, and large parking facilities, the XM2005K III excels at removing asphalt layers, eliminating bumps, waves, cracks, and rutting, and preparing surfaces for new paving. Its advanced milling system also handles groove excavation, concrete fine-cutting, and correction of misaligned pavement layers with outstanding accuracy.

With its combination of strong cutting power, wide milling capability, and versatile application range, the XM2005K III is a reliable, high-performance machine for large-scale pavement rehabilitation and full-depth milling projects.

Key Specs

Milling Width

2000 mm

Milling Depth

0-330mm

Engine

Cummins M15

Emission Standards

EV Stage 3a/CN Stage 3

Product Overview – XCMG Road Milling Machine – Model: XM2005KIII

Milling Width2000 mm
Maximum Milling Depth0-330 mm
Tool Spacing18 mm
Number of Picks 146
Rotor Diameter With Picks1020 mm
Engine ManufacturerCummins M15
Cooling MethodWater-Cooling
Number of Cylinders6
Rated Power563 kW/2100 rpm
Displacement15 L
Fuel Consumption Under Full Load109 L/h
Comprehensive Fuel Consumption45 L/h
Emission StandardsEV Stage 3a/CN Stage 3
Voltage24 V
Fuel Tank1200 L
Water Tank3300 L
Hydraulic Oil Tank150 L
Operating Speed0~ 100 m/min
Travel Speed0-6 km/h
Theoretical Gradeability60%
Ground Clearance330 mm
Track Specification1720×300×620 mm Front and Rear
Unloading Belt Width850 mm
Collecting Belt Width850 mm
Theoretical Conveying Capacity375 m3/h
Shipping Weight28500 kg
Operating Weight30500 kg
