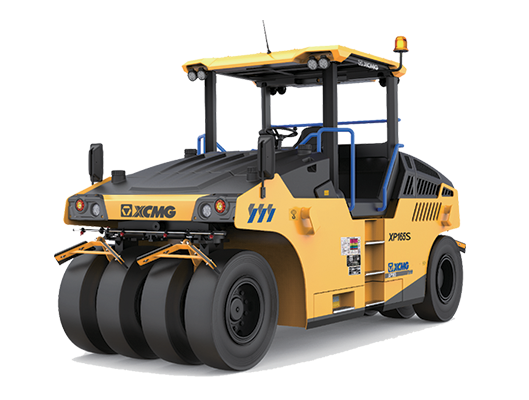

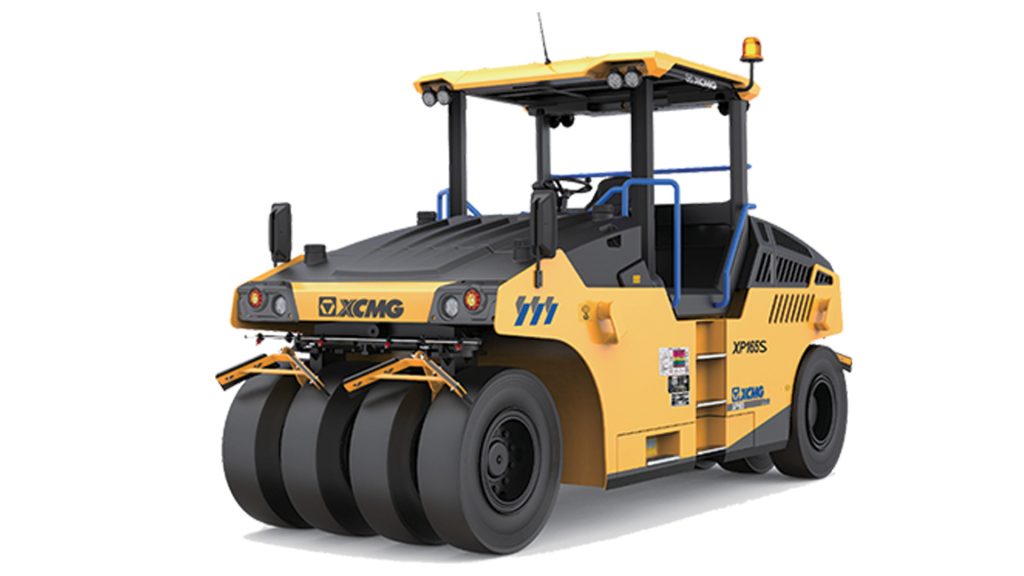

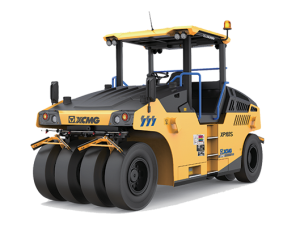

XCMG Pneumatic Tire Roller – Model: XP165S
Engineered for precision and surface uniformity, the XCMG XP165S Tire Roller is a medium-sized, self-propelled compaction machine designed for superior performance on asphalt and aggregate layers. Its pneumatic tires deliver a unique kneading effect that enhances the material’s sealing and density, ensuring a smooth, durable surface finish.
Ideal for asphalt concrete paving and finishing work, the XP165S efficiently handles surface layer compaction across highways, municipal roads, and large infrastructure projects. With balanced weight distribution, reliable traction, and operator-focused design, it combines comfort, control, and consistent compaction results — making it the go-to choice for high-quality, long-lasting road surfaces.
Product Overview – XCMG Pneumatic Tire Roller – Model: XP165S
| Operating Weight | 16000 kg |
| Operating Weight (With Roof, Without Ballast) | 8500 kg |
| Operating Weight (With Water Ballast) | 10850 kg |
| Operating Weight(With Dry Sand Ballast) | 12000 kg |
| Operating Weight(With Wet Sand Ballast) | 13200 kg |
| Operating Weight(With Water + Ballast Block)(Optional) | 13650 kg |
| Operating Weight(With Dry Sand + Ballast Block)(Optional) | 14800 kg |
| Operating Speed | 0～19 km/h |
| Theoretical Gradeability | 30% |
| Minimum Turning Radius | 5980 mm |
| Minimum Ground Clearance | 280 mm |
| Wheelbase | 3900 mm |
| Steering Angle | ±30° |
| Oscillation Angle | ±50° Front Wheel |
| Braking Distance | 7.2 m |
| Drum Width | 2075 mm |
| Overlapping Quantity | 35 mm |
| Ground Pressure | 150～350 kPa |
| Engine Model | CUMMINS QSF3.8 |
| Engine Type | Turbocharger water-cooled electrical control |
| Rated Power | 104 kW |
| Rated Speed | 2200 r/min |
