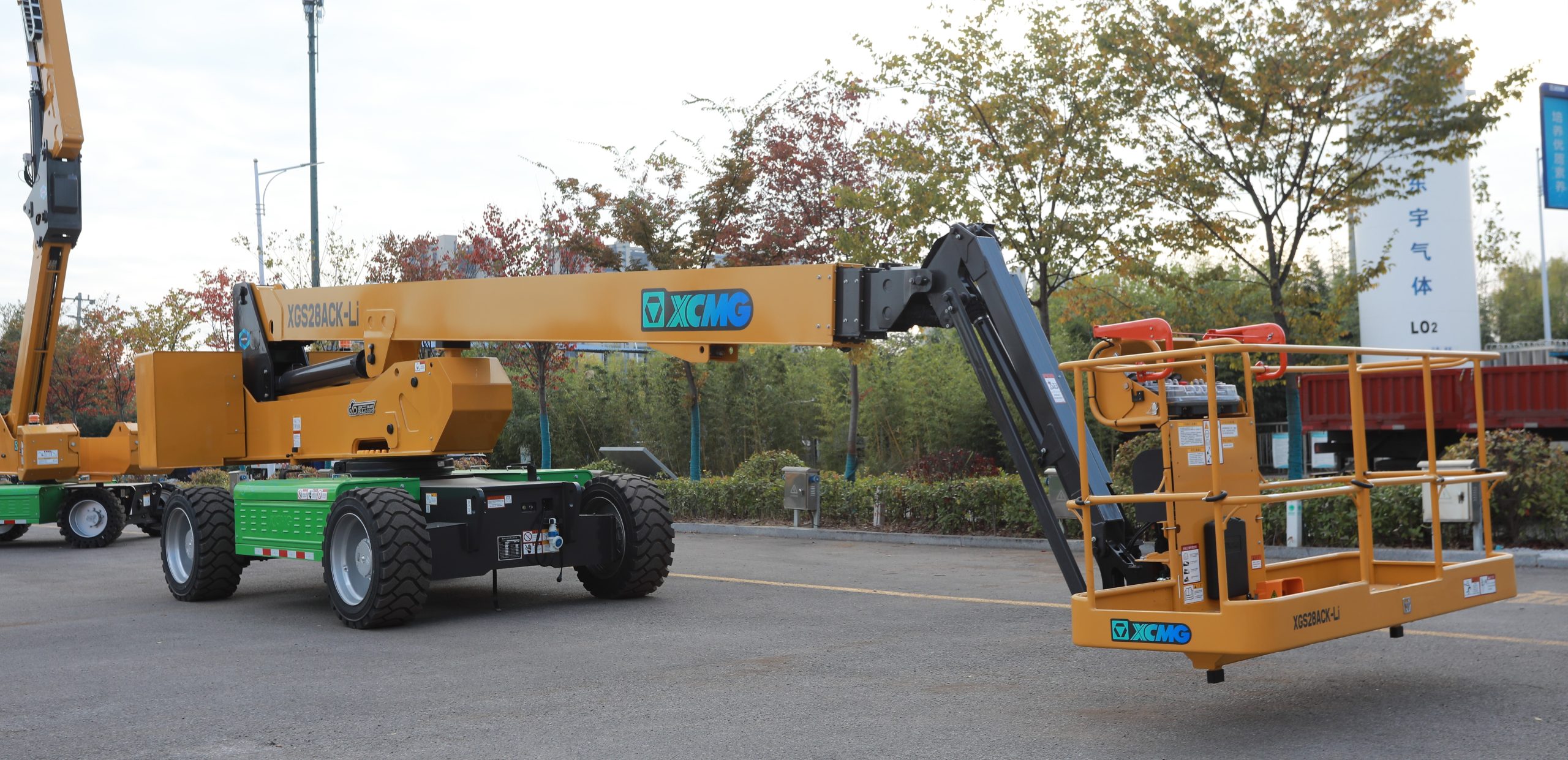

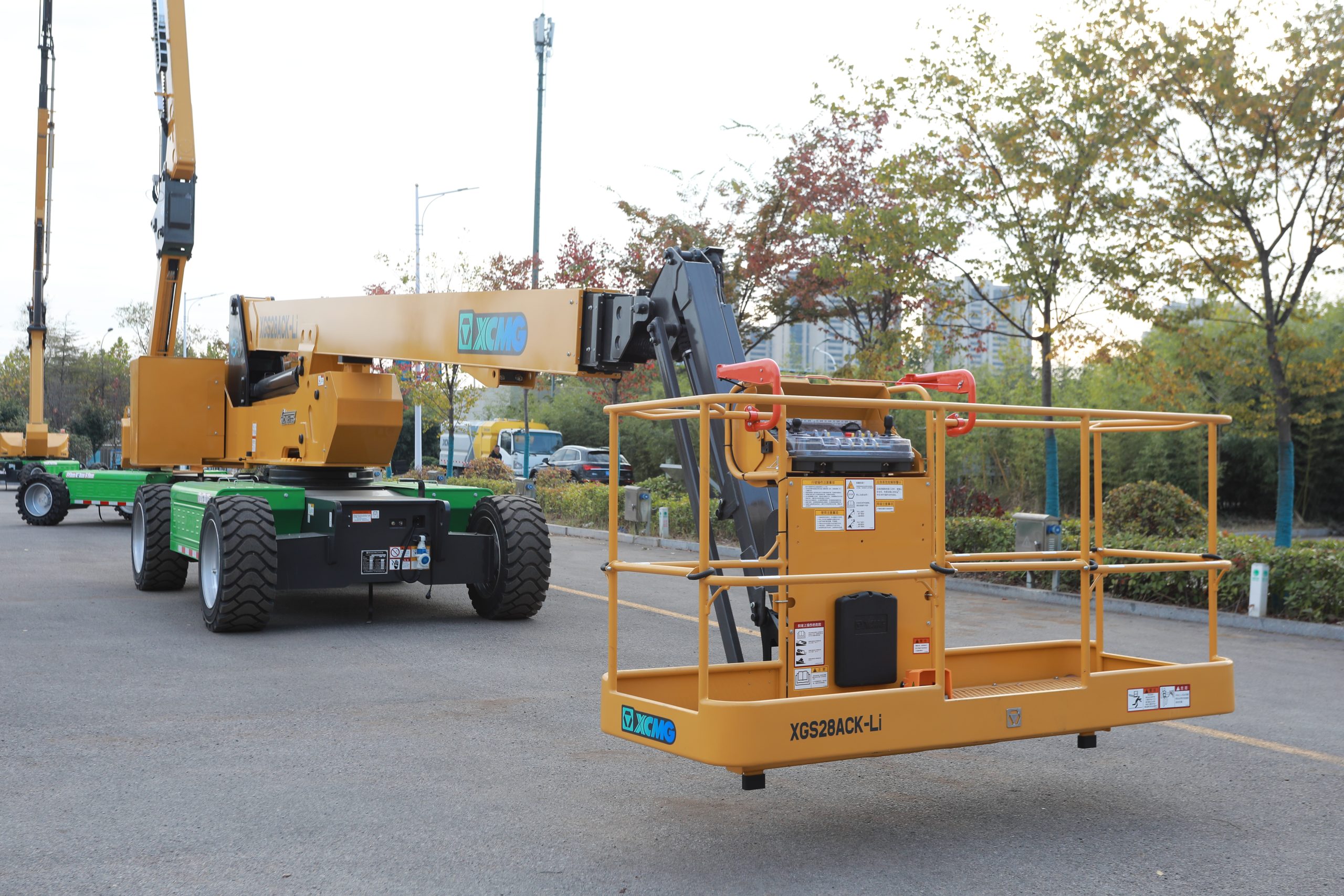

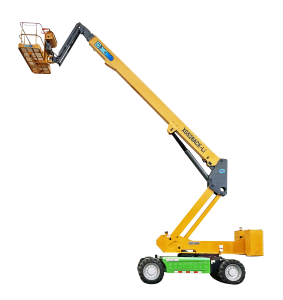

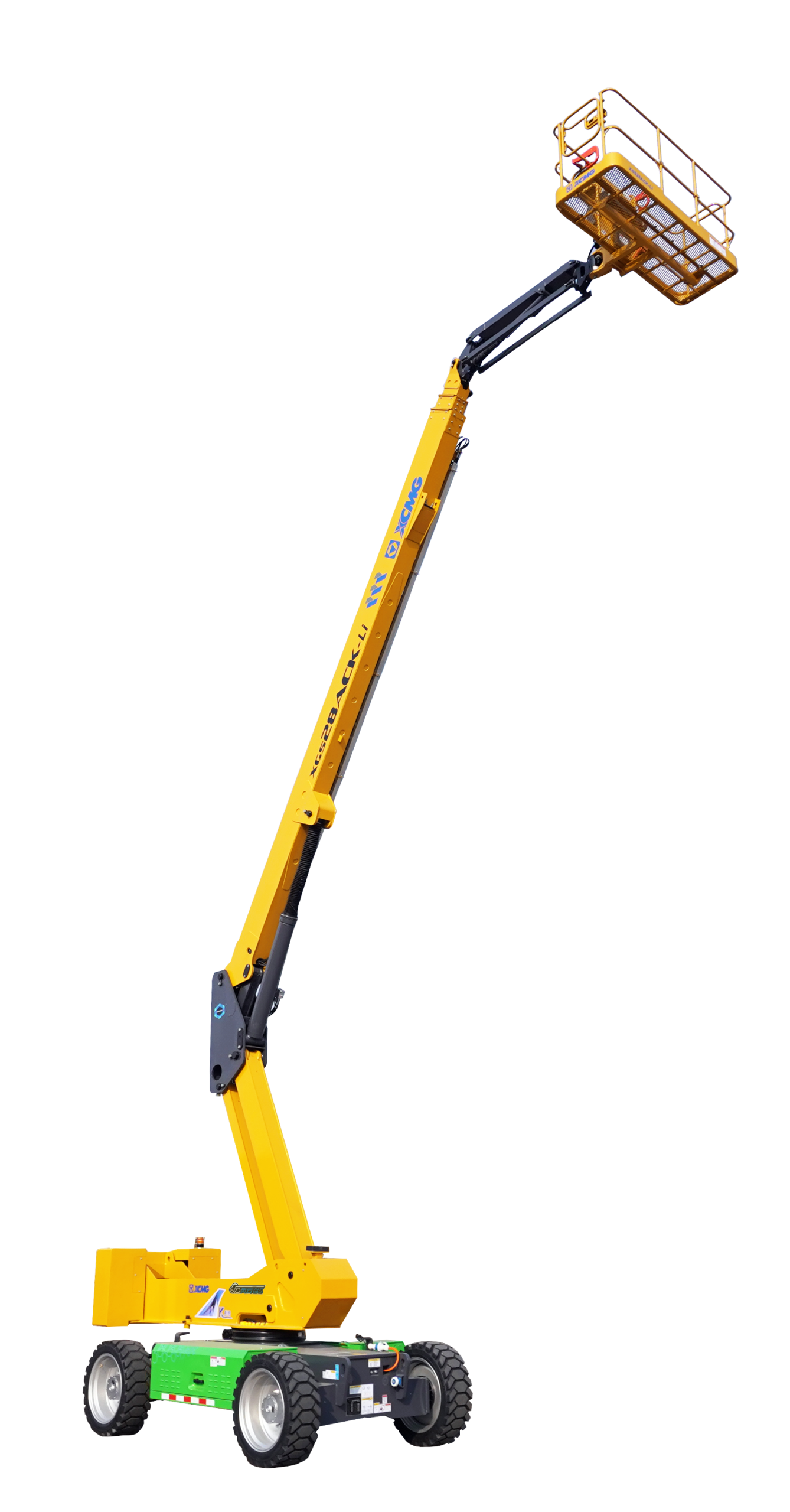

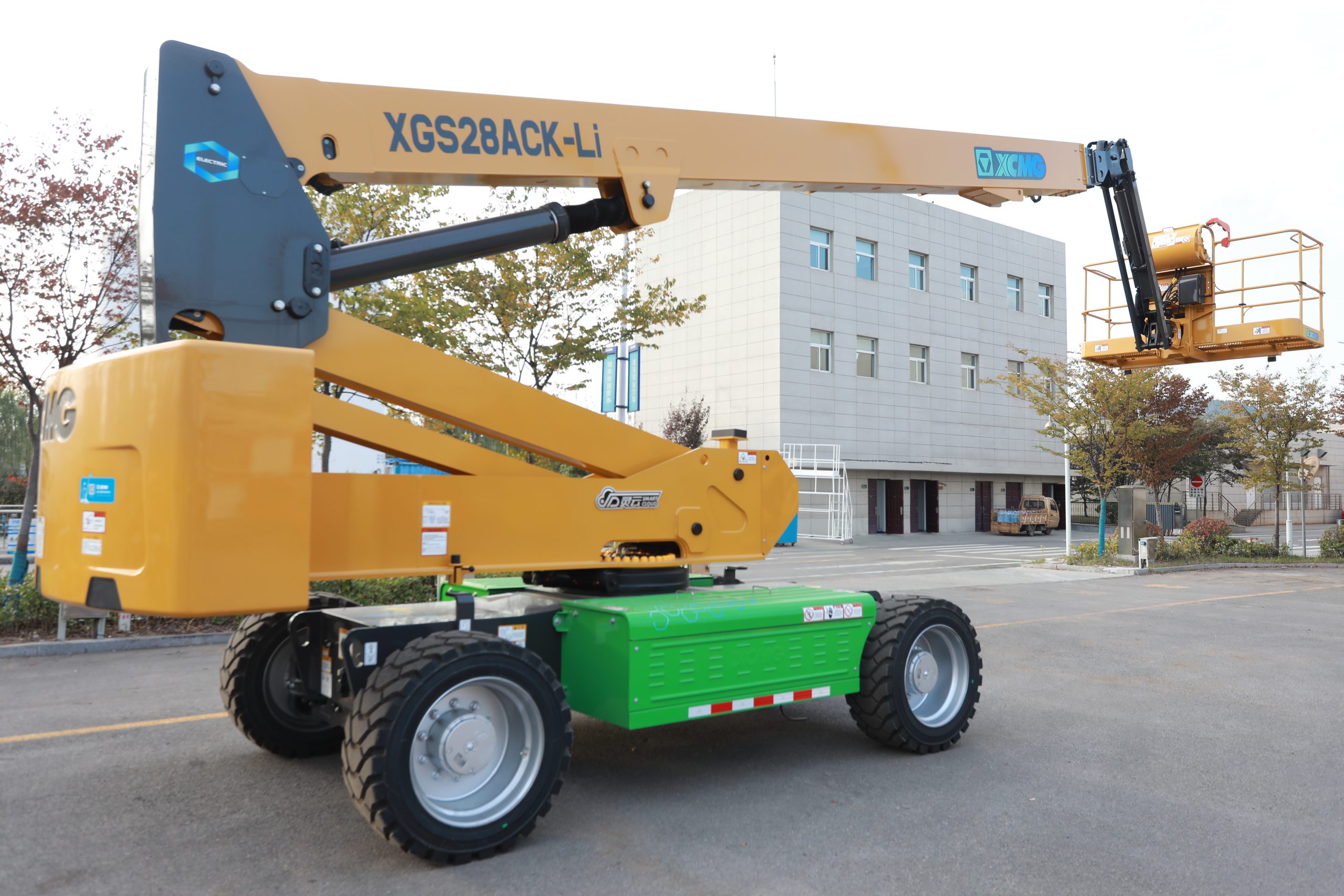

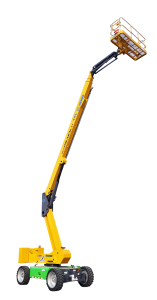

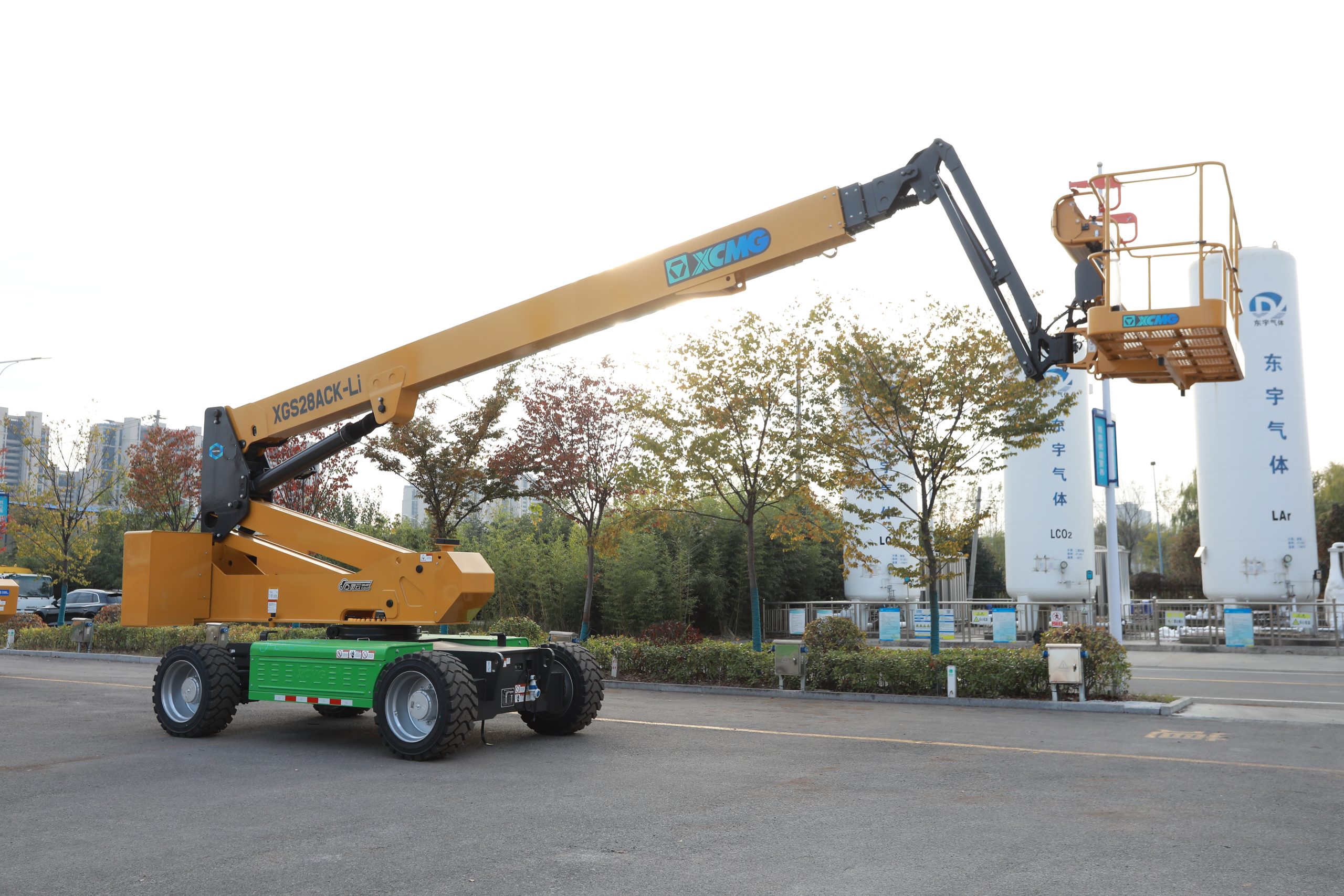

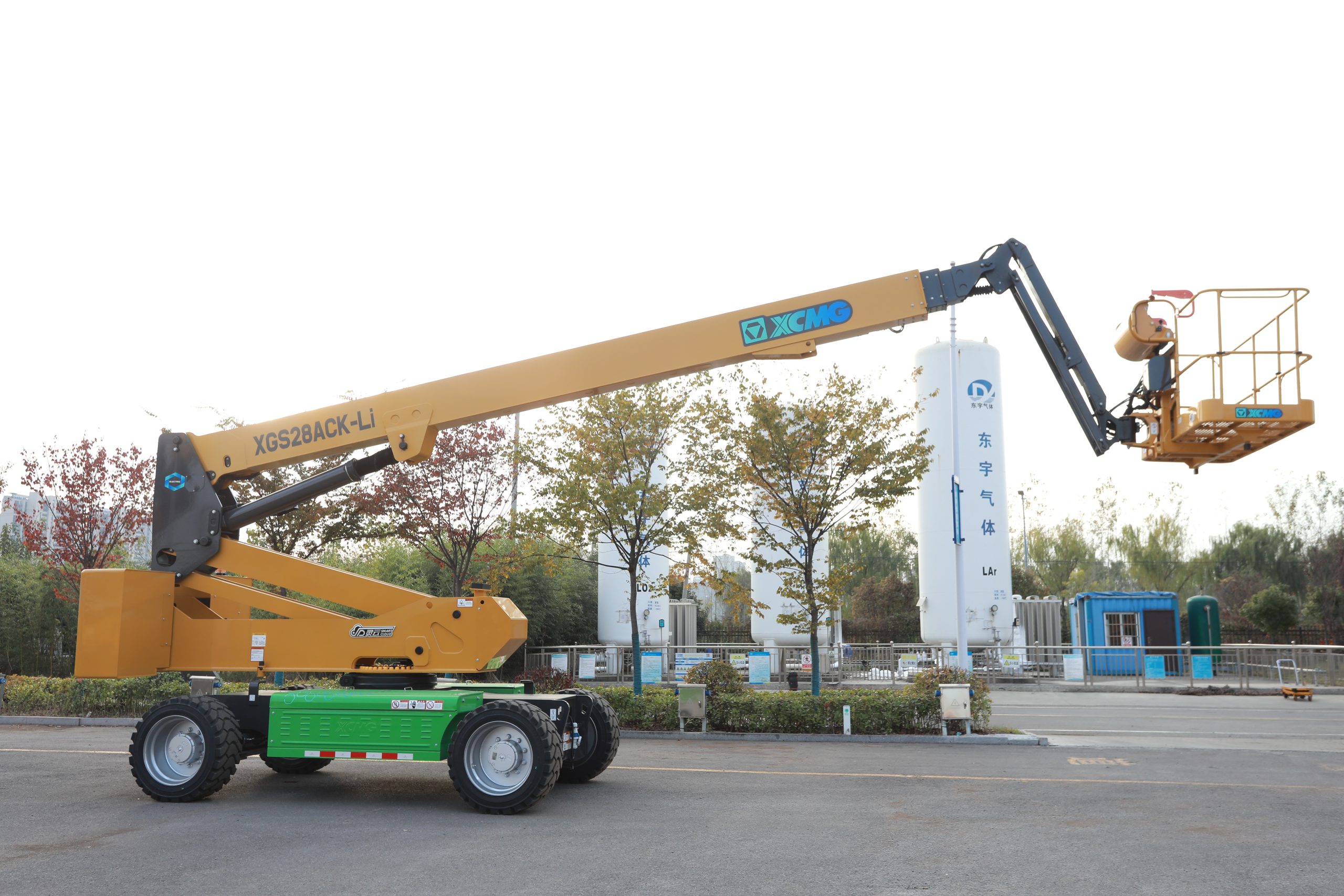

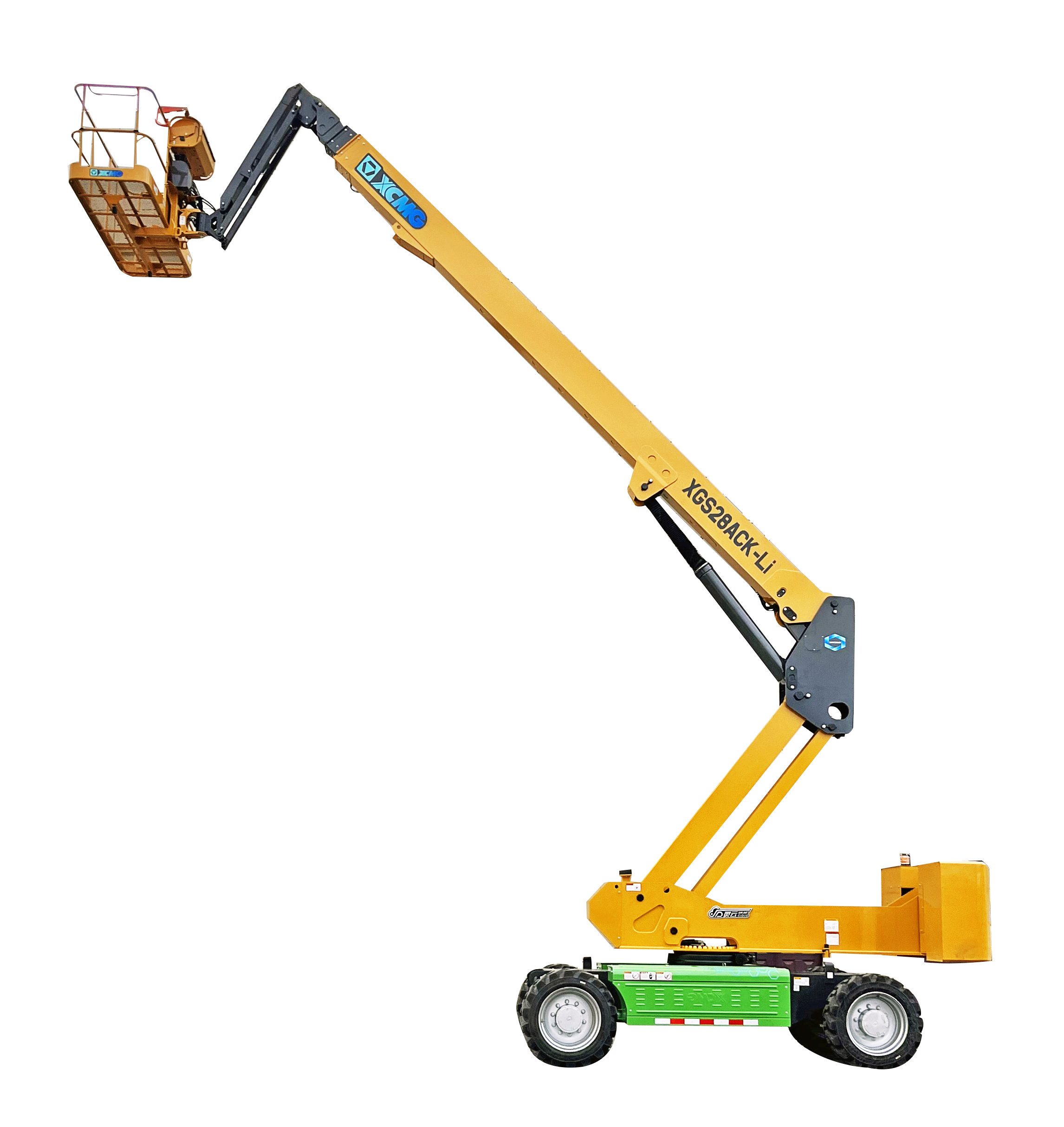

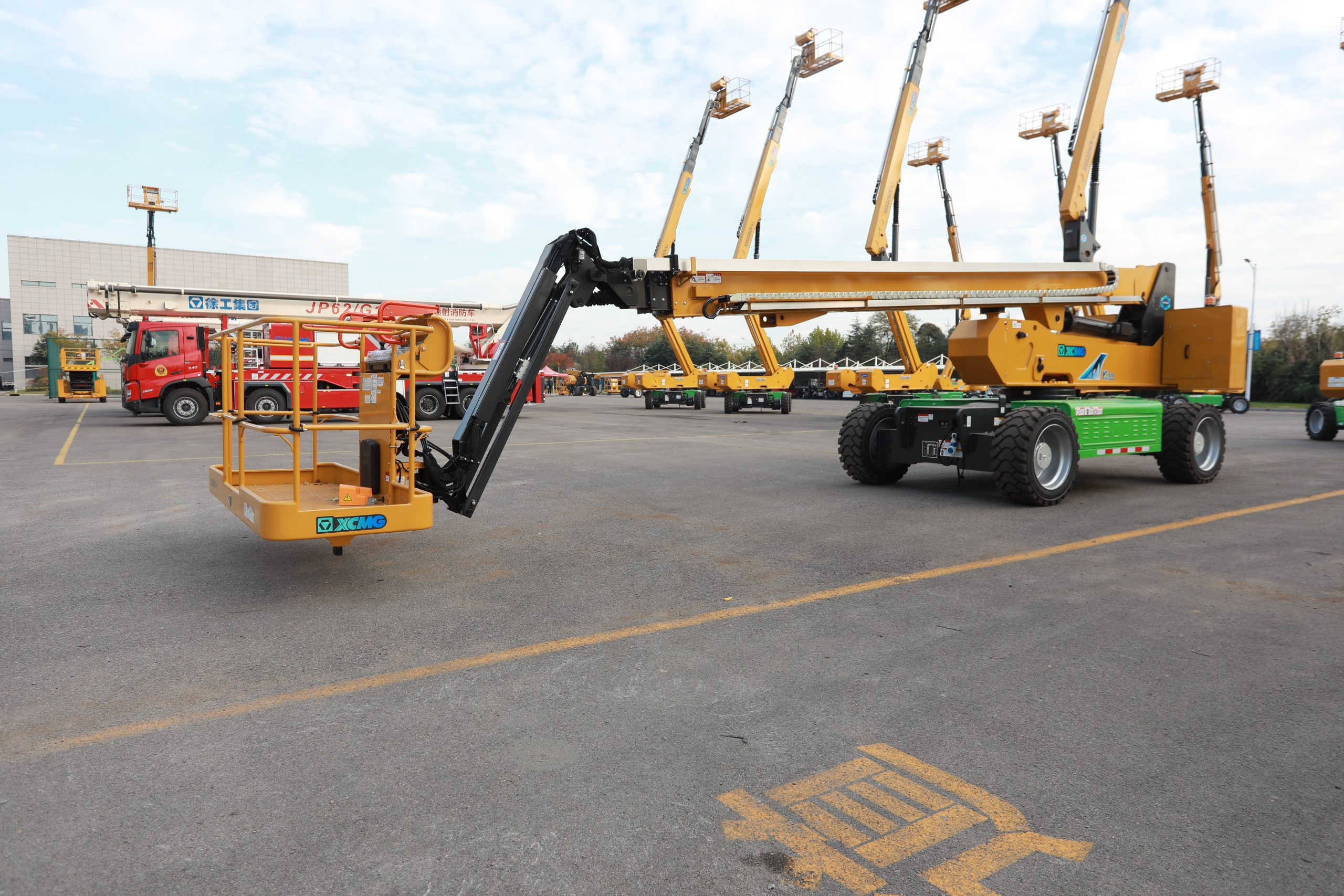

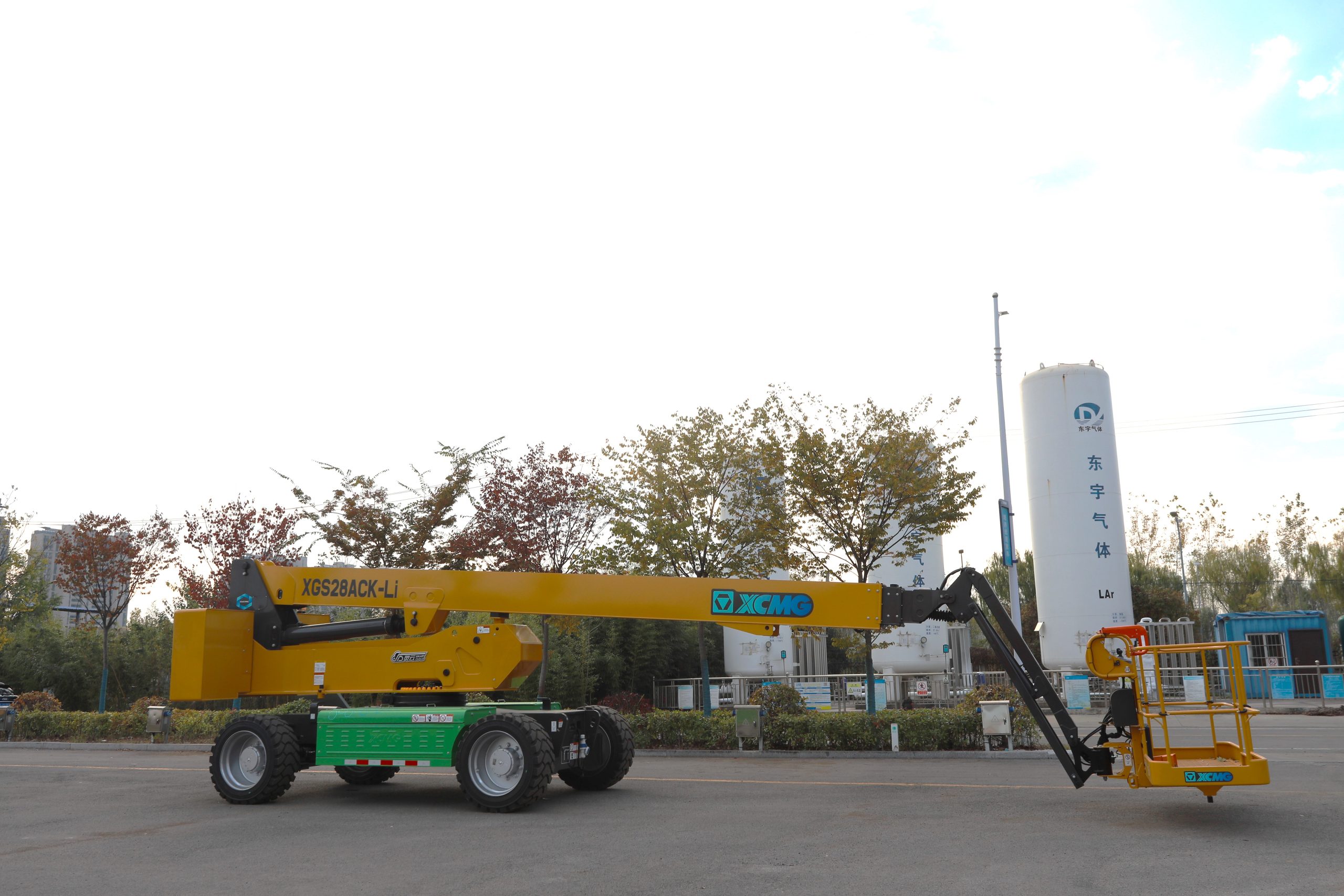

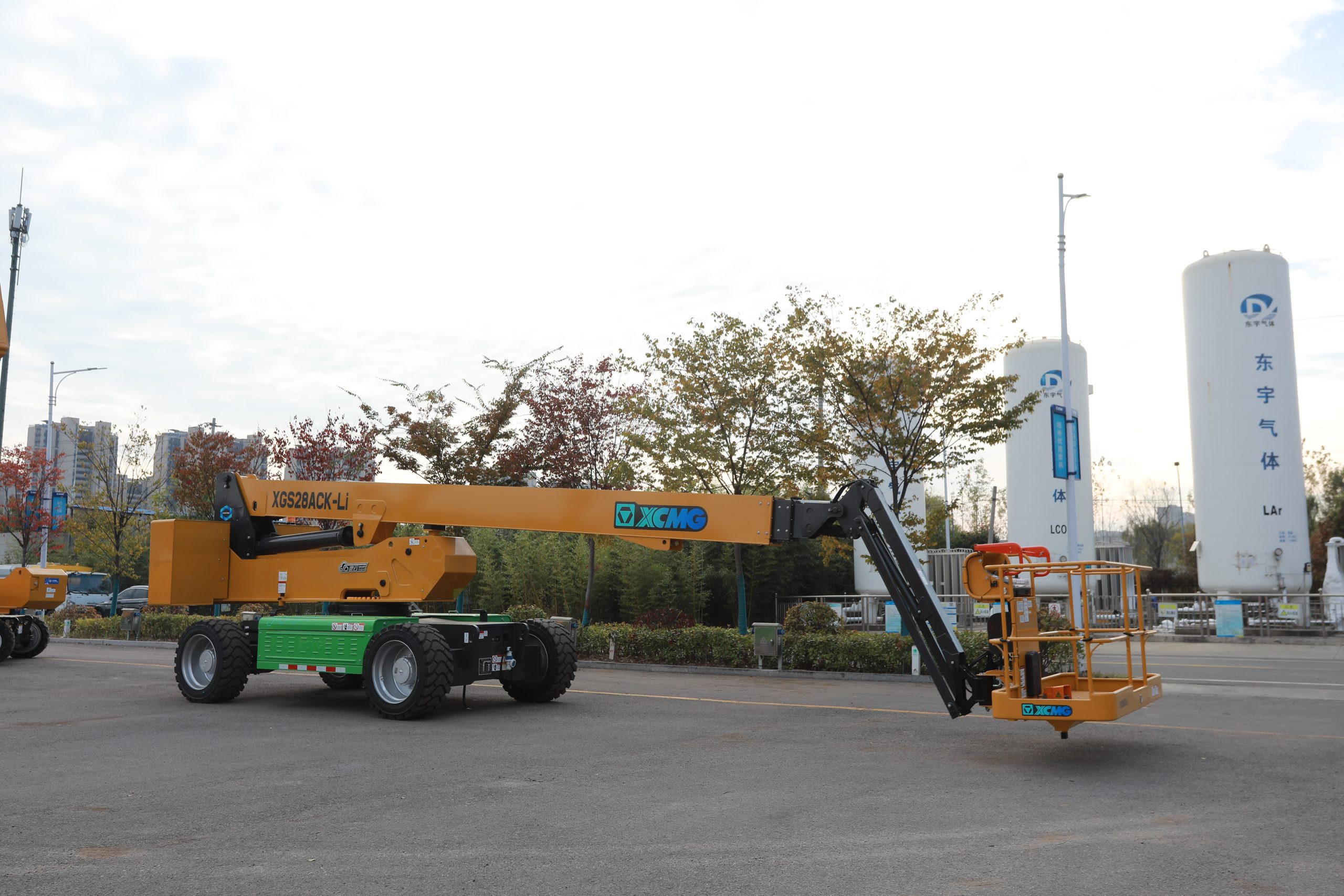

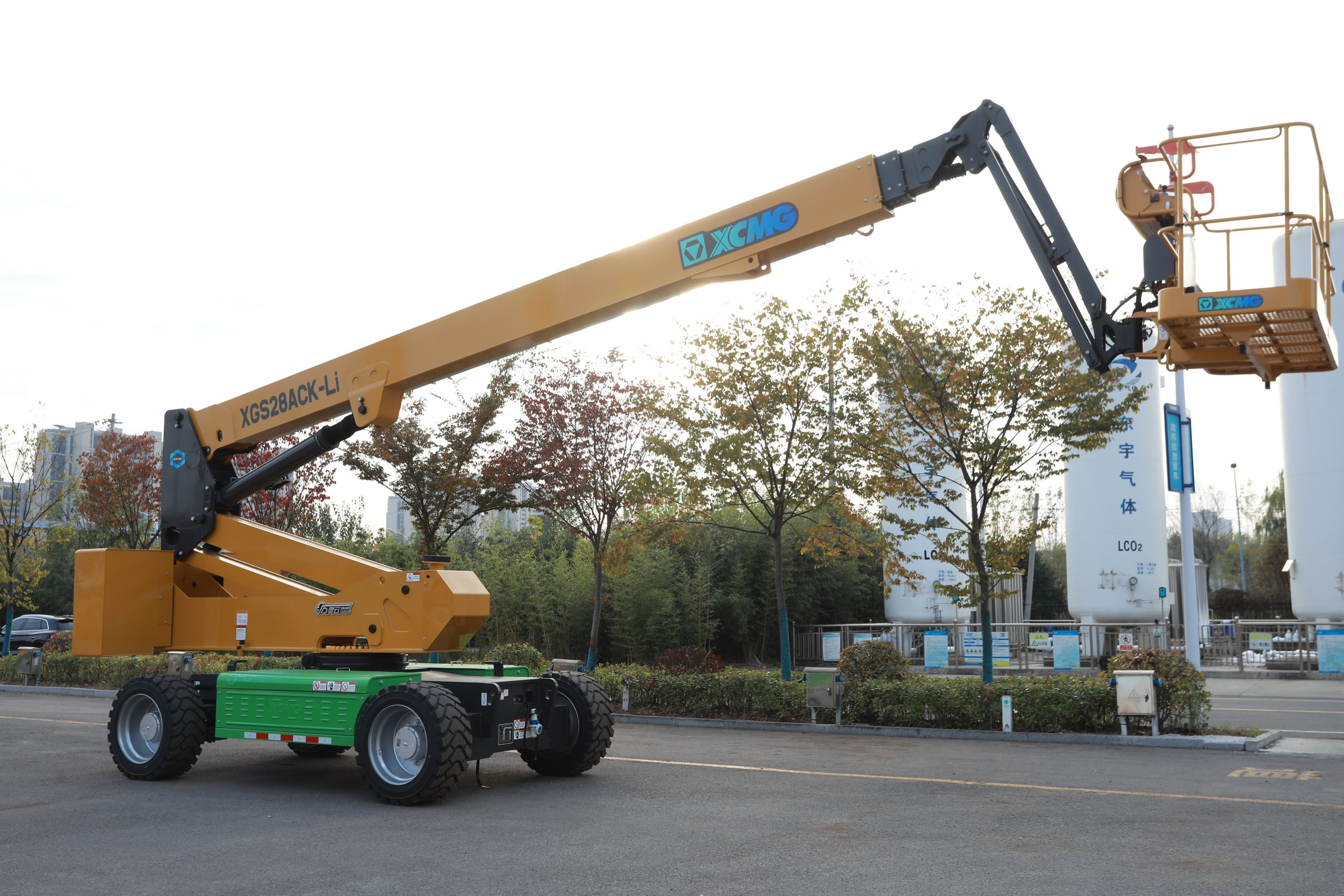

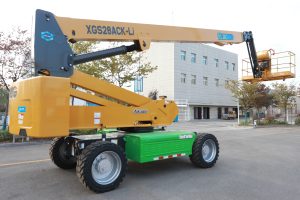

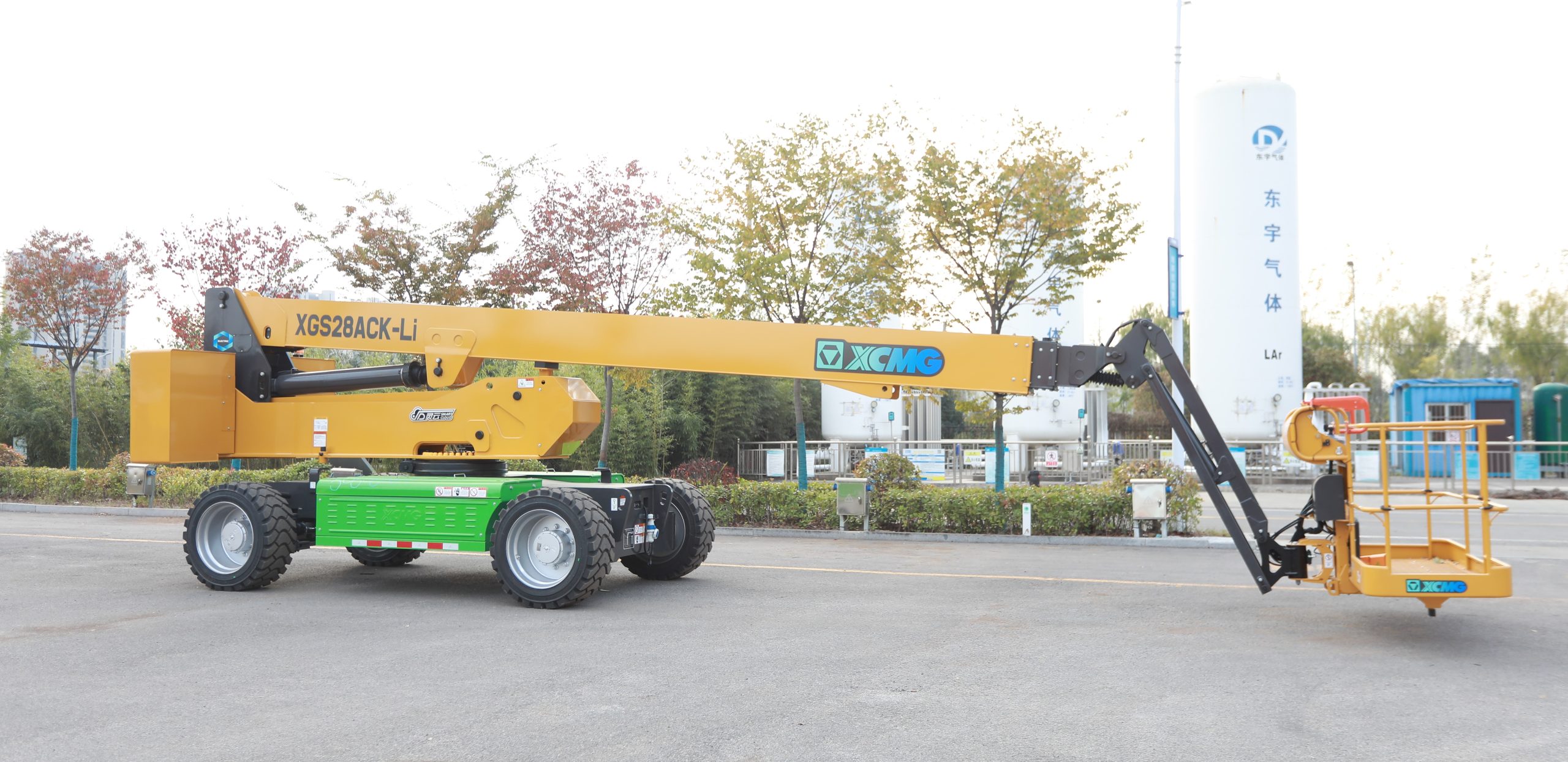

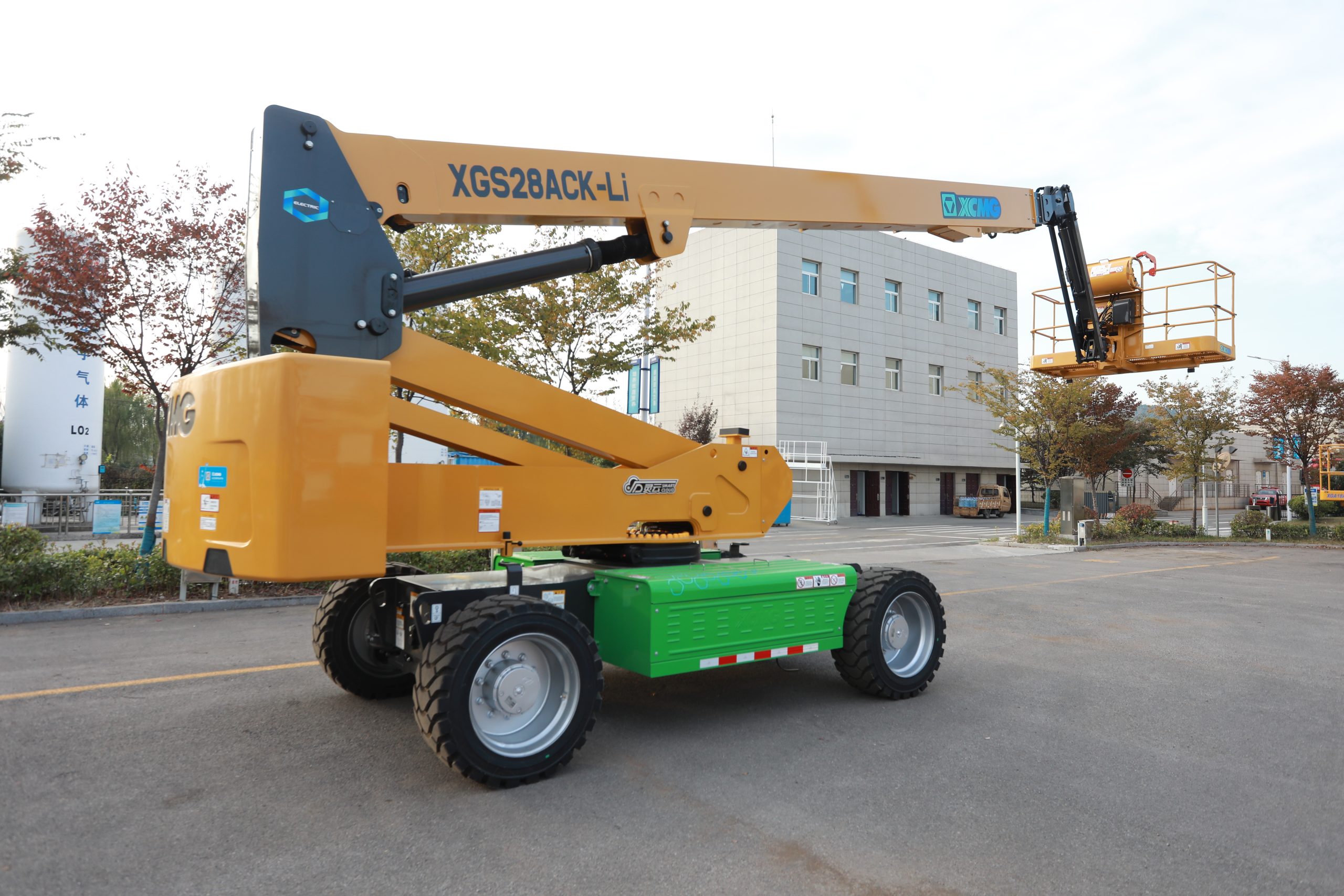

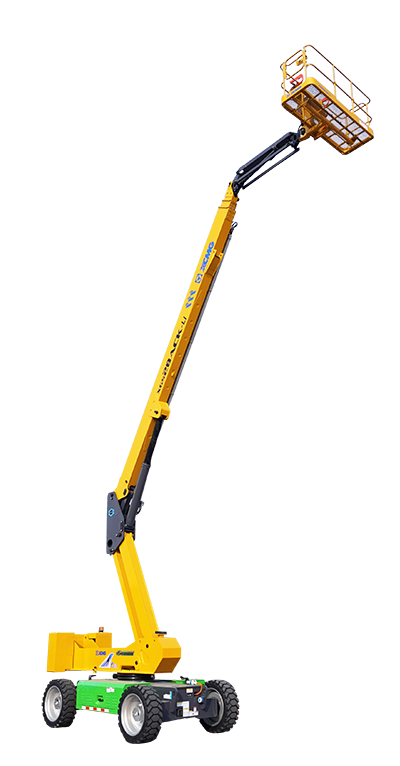

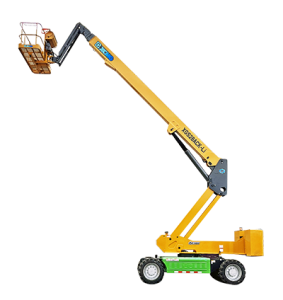

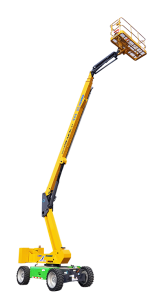

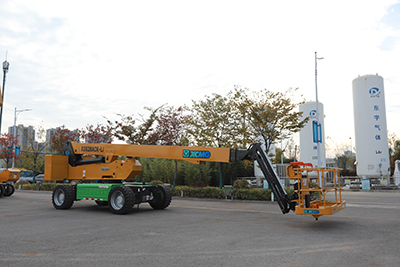

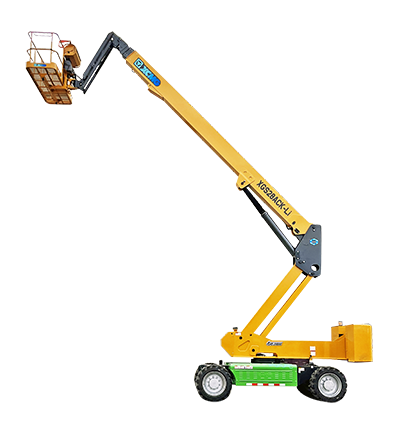

XCMG Telescopic Boom Lift – Model XGS28ACK – Electric
The XCMG Australia XGS28ACK Telescopic Boom Lift is engineered for superior reach, strength, and efficiency in demanding job sites. With an impressive working height of 28.8m and a lift capacity of 300 unlimited/460kg limited, this electric-powered boom lift offers exceptional performance for high-elevation tasks. Designed for construction, maintenance, and industrial applications, the XGS28ACK ensures smooth operation, precise maneuverability, and zero-emission efficiency. Whether you require Telescopic Boom Lifts, Elevated Work Platforms, or Advanced Height Access Solutions, XCMG Australia delivers cutting-edge lifting equipment tailored for safety and productivity. Discover the next level of elevated performance with XCMG’s innovative boom lifts today.
Product Overview – XCMG XGS28ACK Telescopic Boom Lift
| Maximum Working Height | 28.8 m |
| Maximum Platform Height | 26.8 m |
| Maximum Working Range | 22 m |
| Load Capacity | 300 kg Unlimited 460 kg Limited |
| Total Weight | 16600 kg |
| Minimum Ground Clearance | 320 mm |
| Turntable Rotation | 360 Degrees |
| Telescopic Boom Luffing Range | -4～+73 Degrees |
| Fly Jib Luffing Range | -65～+70 Degrees |
| Platform Rotation | 160o Degrees |
| Turntable Tail Swing (Stowed) | 1890 mm |
| Platform Size | 1400 mm L x 700 mm W x 2070 mm H |
| Rotation Angle of Platform | 160o |
| Power Type | Electric |
| Maximum Travel Speed | 6 km/h (Stowed) 0.6 km/h (Raised or Extended) |
| Minimum Turning Radius | 3500 mm (Inside) 6500 mm (Outside) |
| Maximum Gradeability | 45 % (24°) |
| Overall Length | 11690 mm (Stowed) 11455 mm (Transportation) |
| Overall Width | 2490 mm (Stowed) 2490 mm (Transportation) |
| Overall Height | 2925 mm (Stowed) 3000 mm (Transportation) |
| Tyre Specifications | 995 mm x 385 mm |
| Wheelbase | 3200 mm |
| Fly Jib Length | 1850 mm |
| Driving Wheels | 4 |
| Braking Wheels | 4 |
| Steering Wheels | 2 |
| Controls | 12V DC Proportional Control |
| Traveling Motor | 5.2 kW/52V |
| Emergency Power Supply | 12V/110Ah |
| Main Power Source | 76.8 V / 554 Ah Battery 80 V / 80 A Charger |
| Hydraulic Tank Capacity | 140 L |
| Tyre Ground Pressure | 9.39 kg/cm2 |
