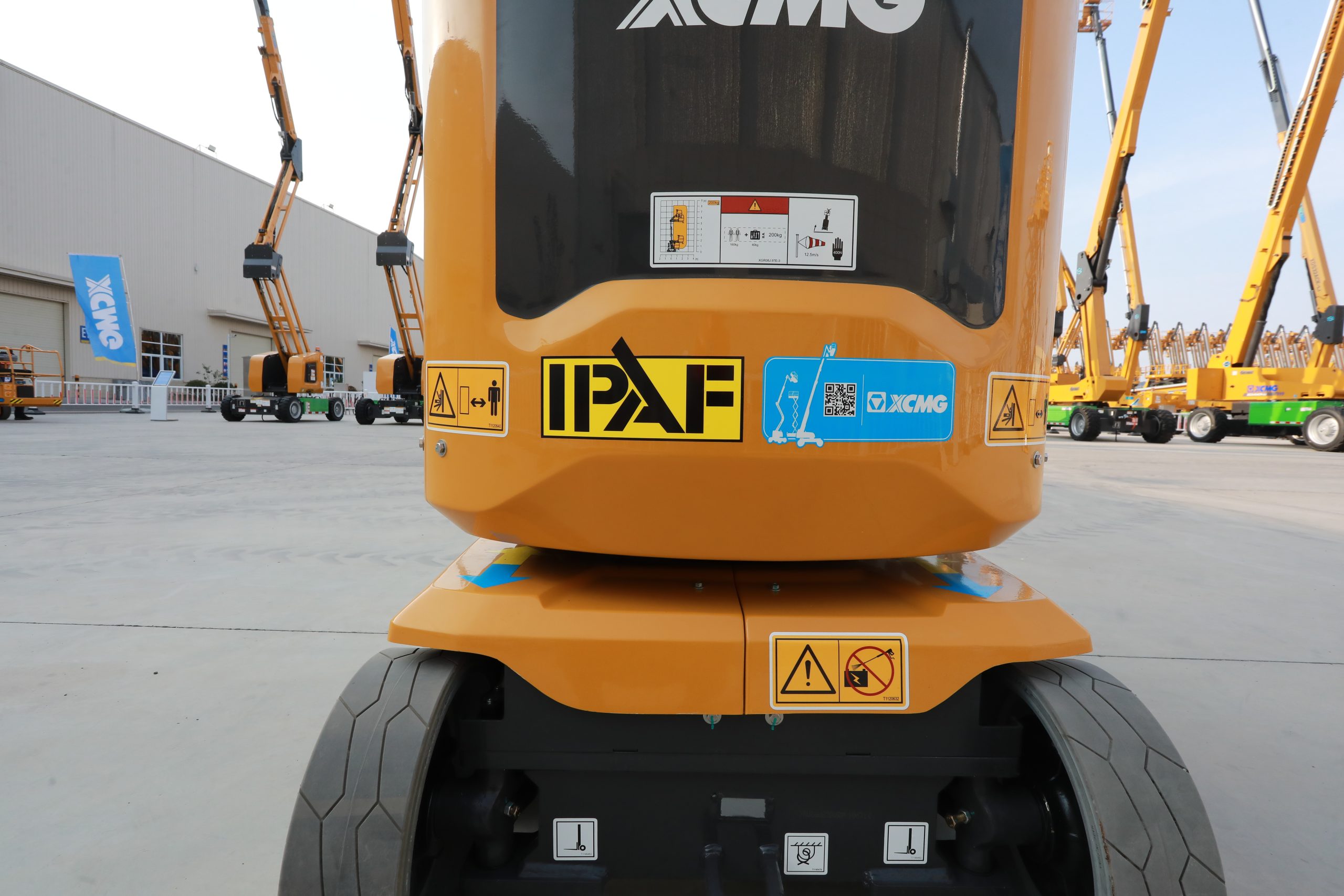

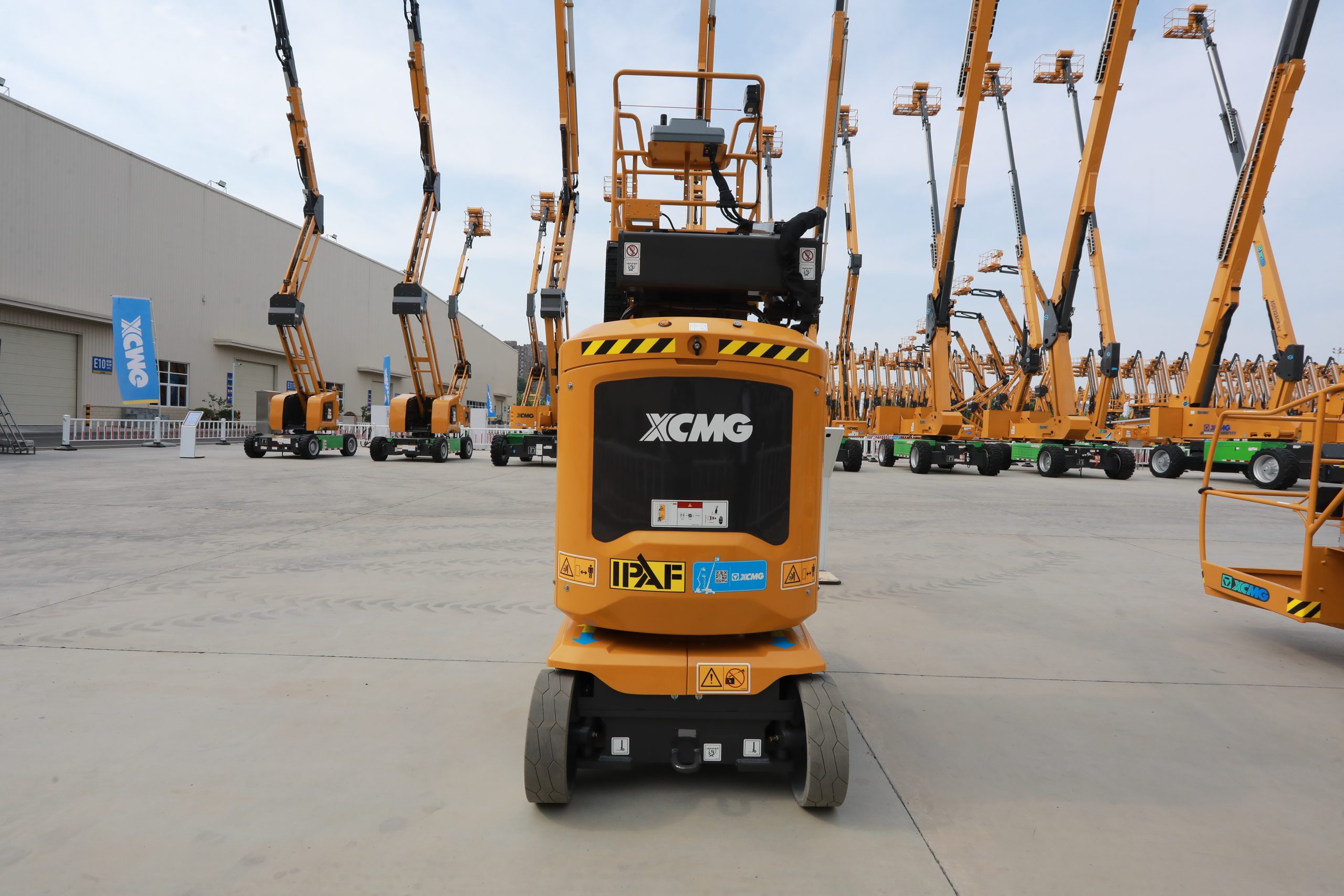

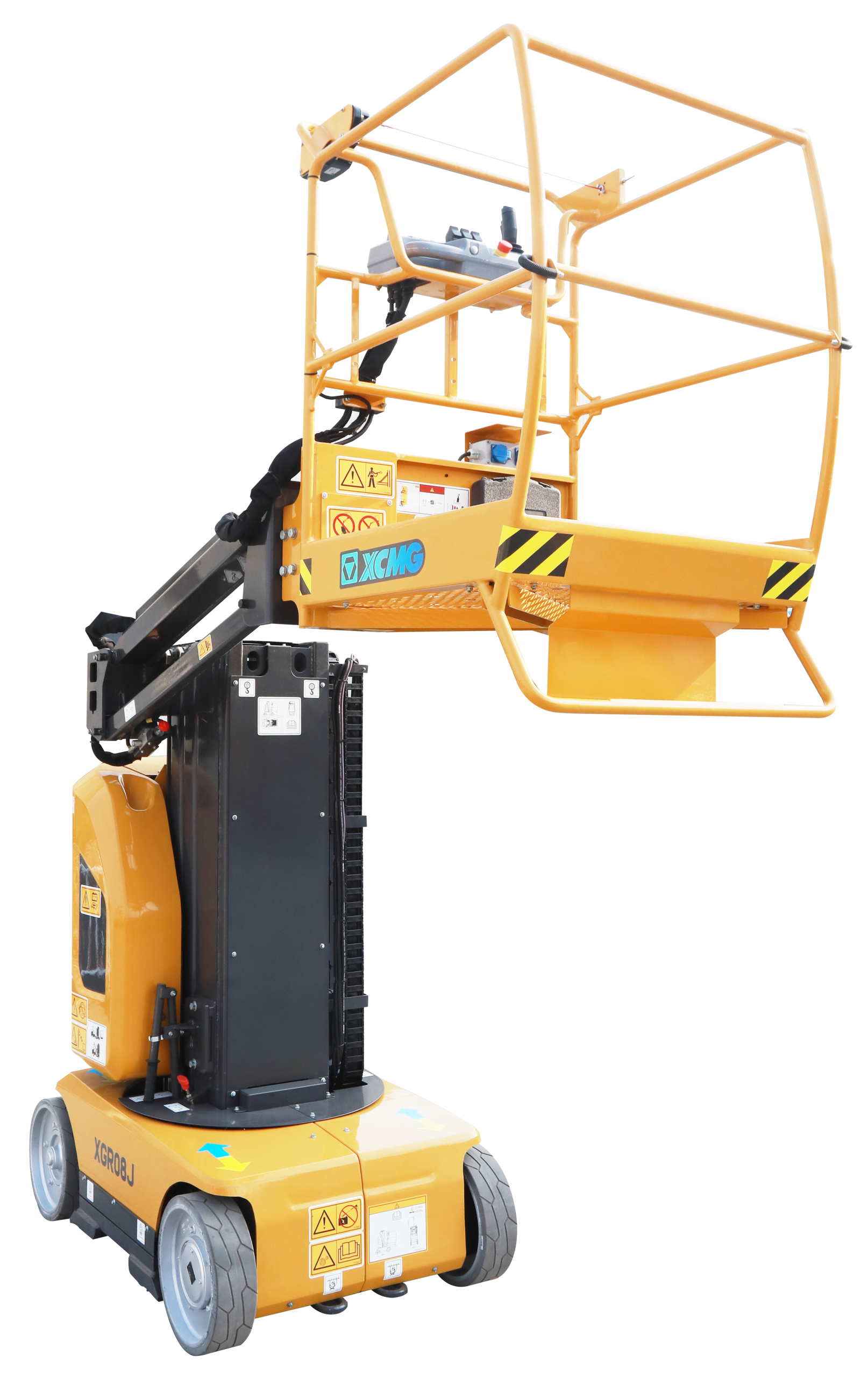

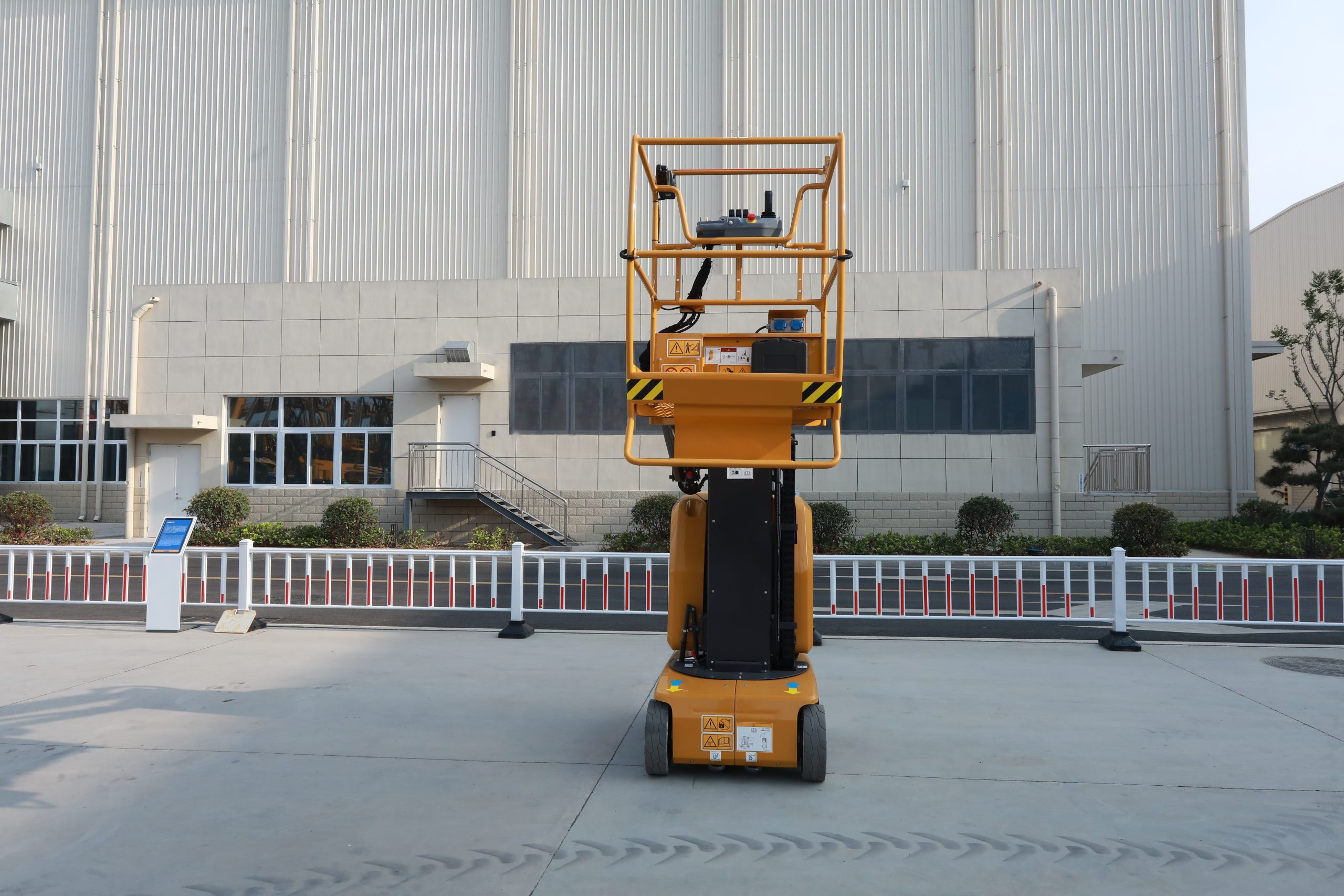

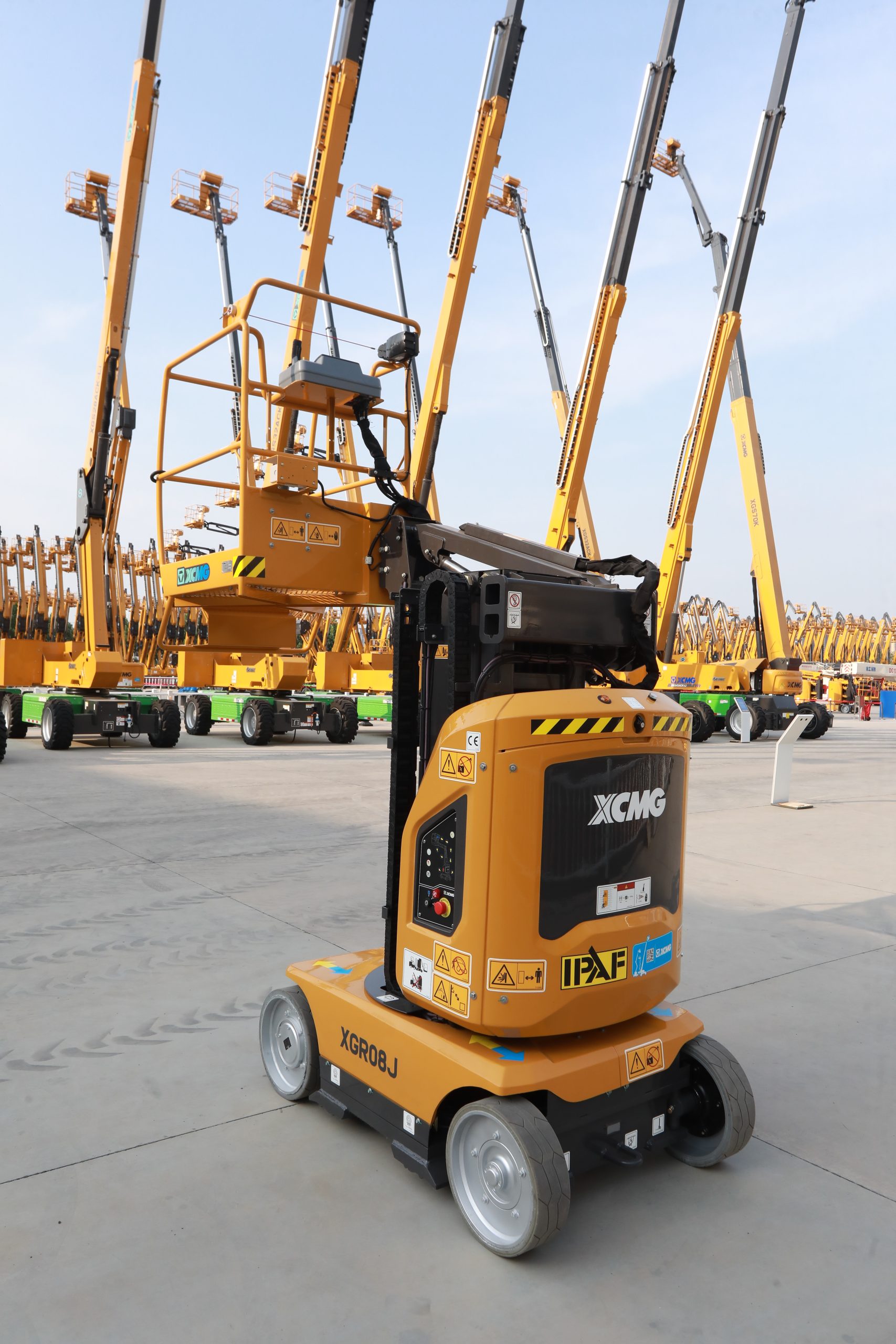

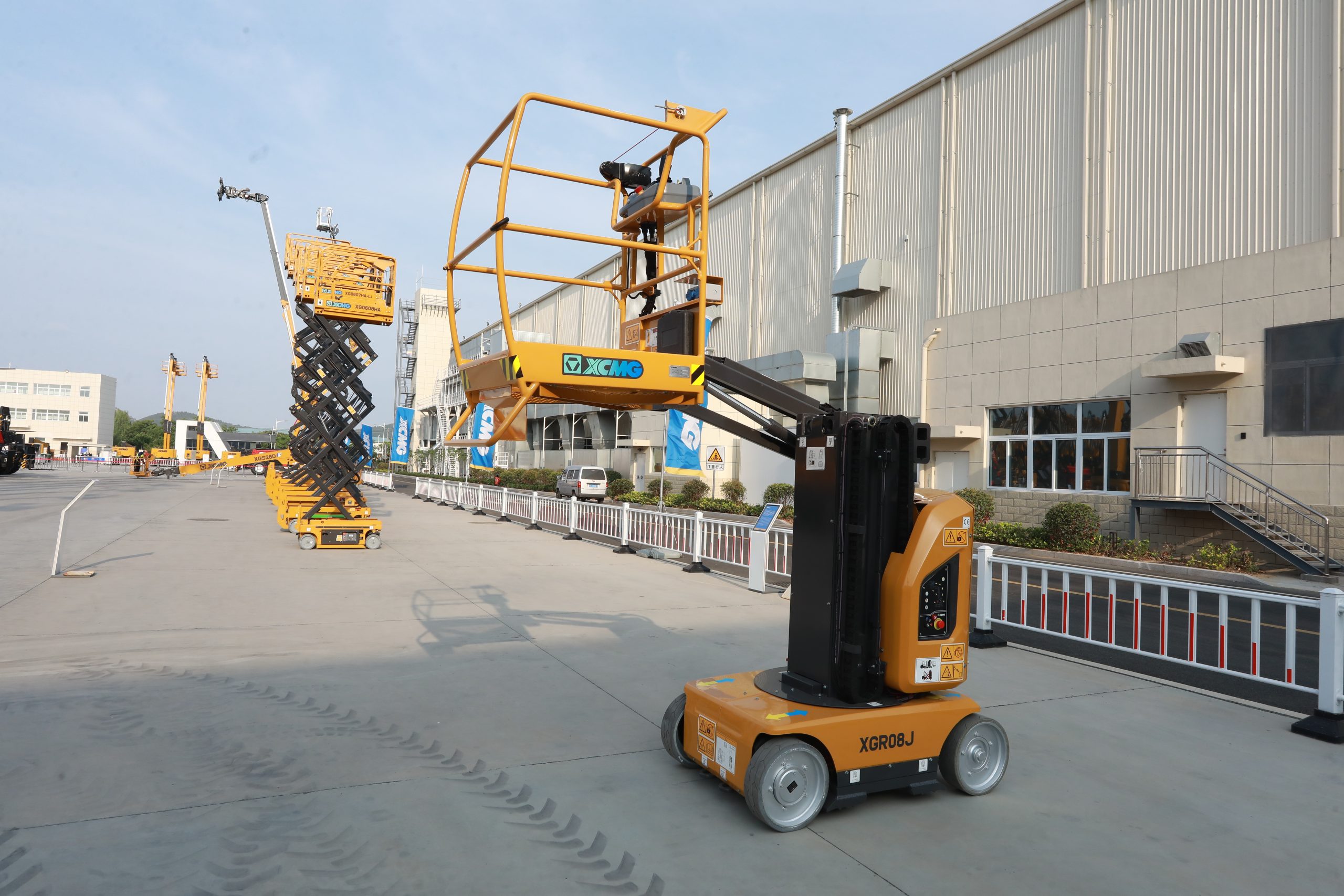

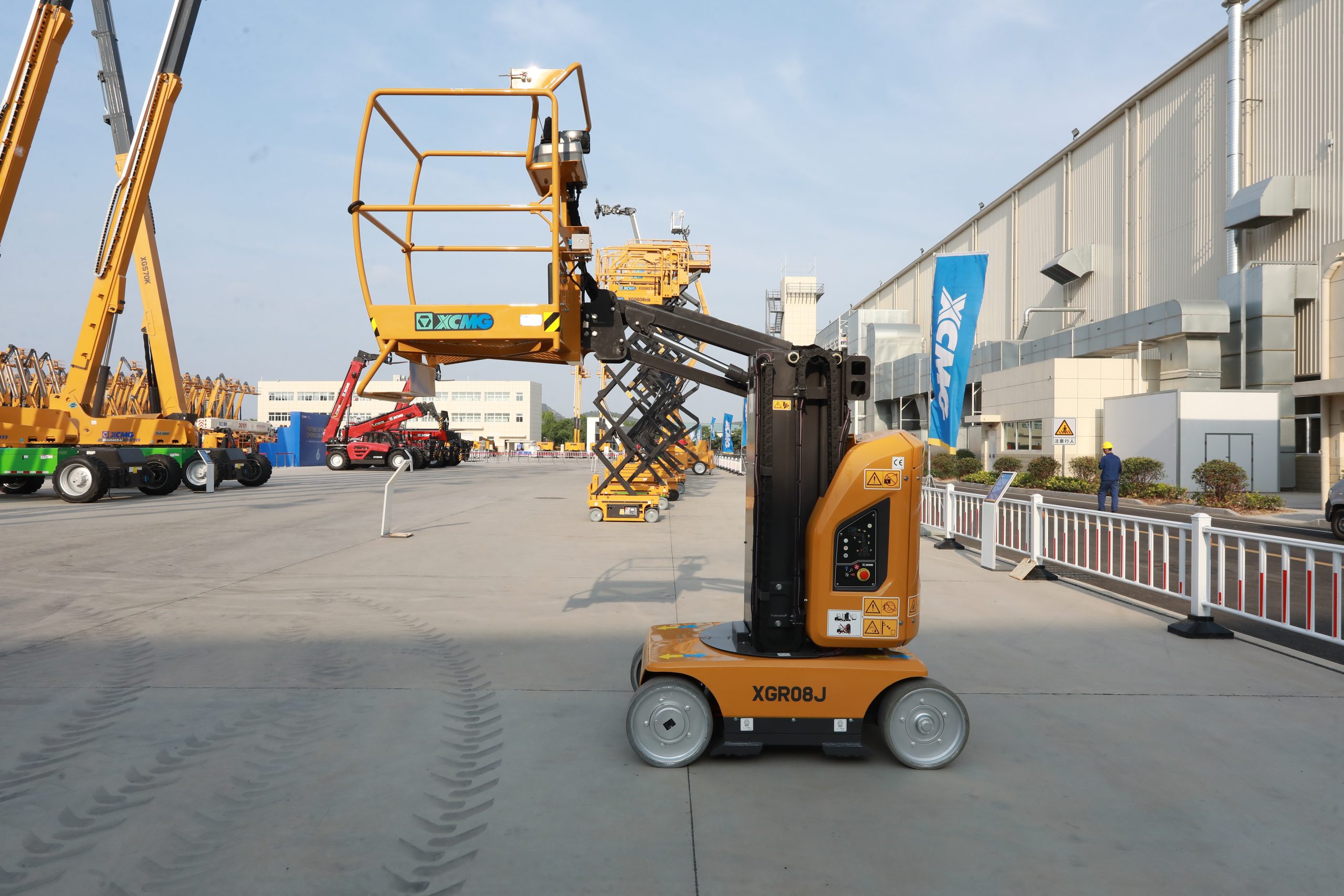

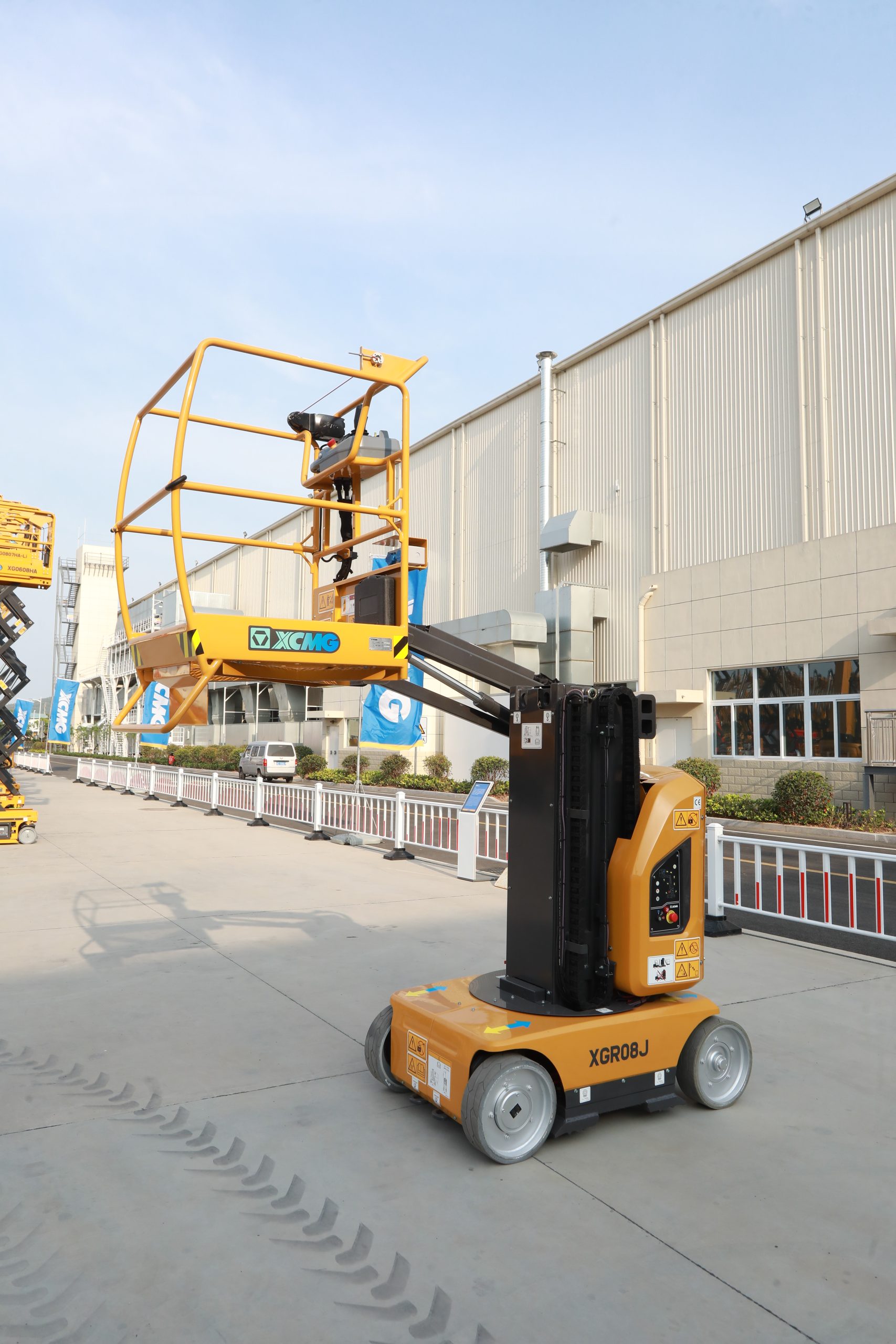

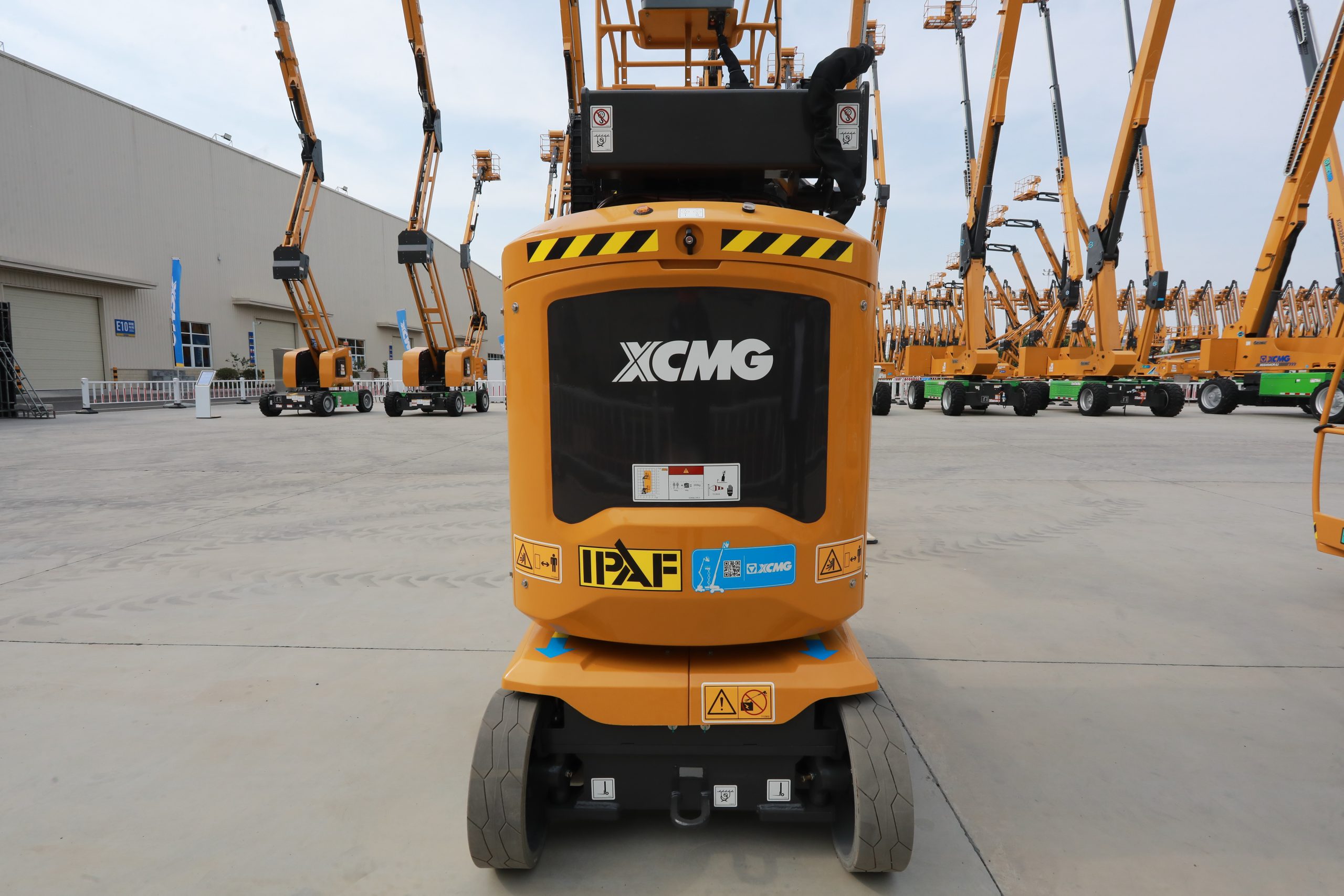

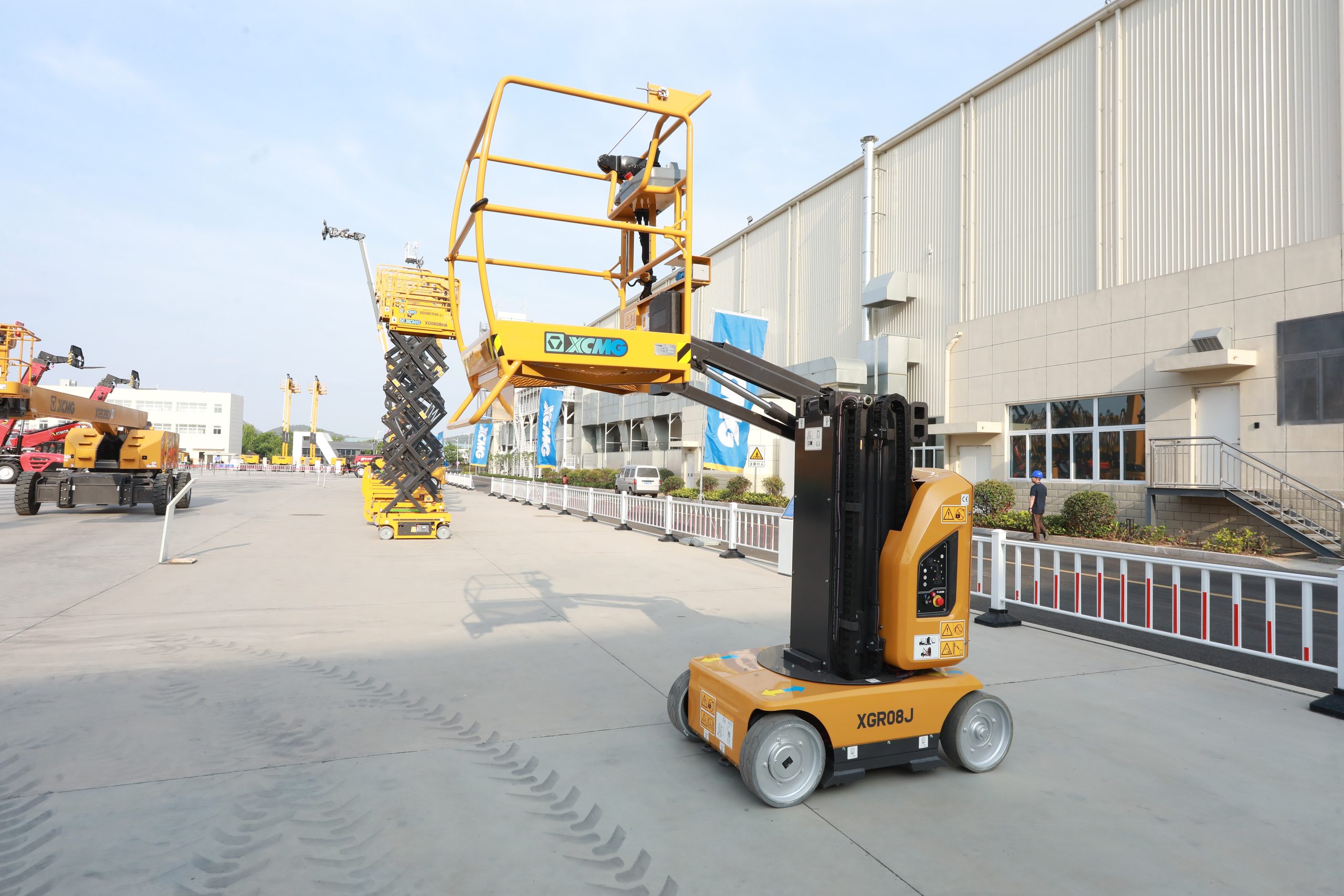

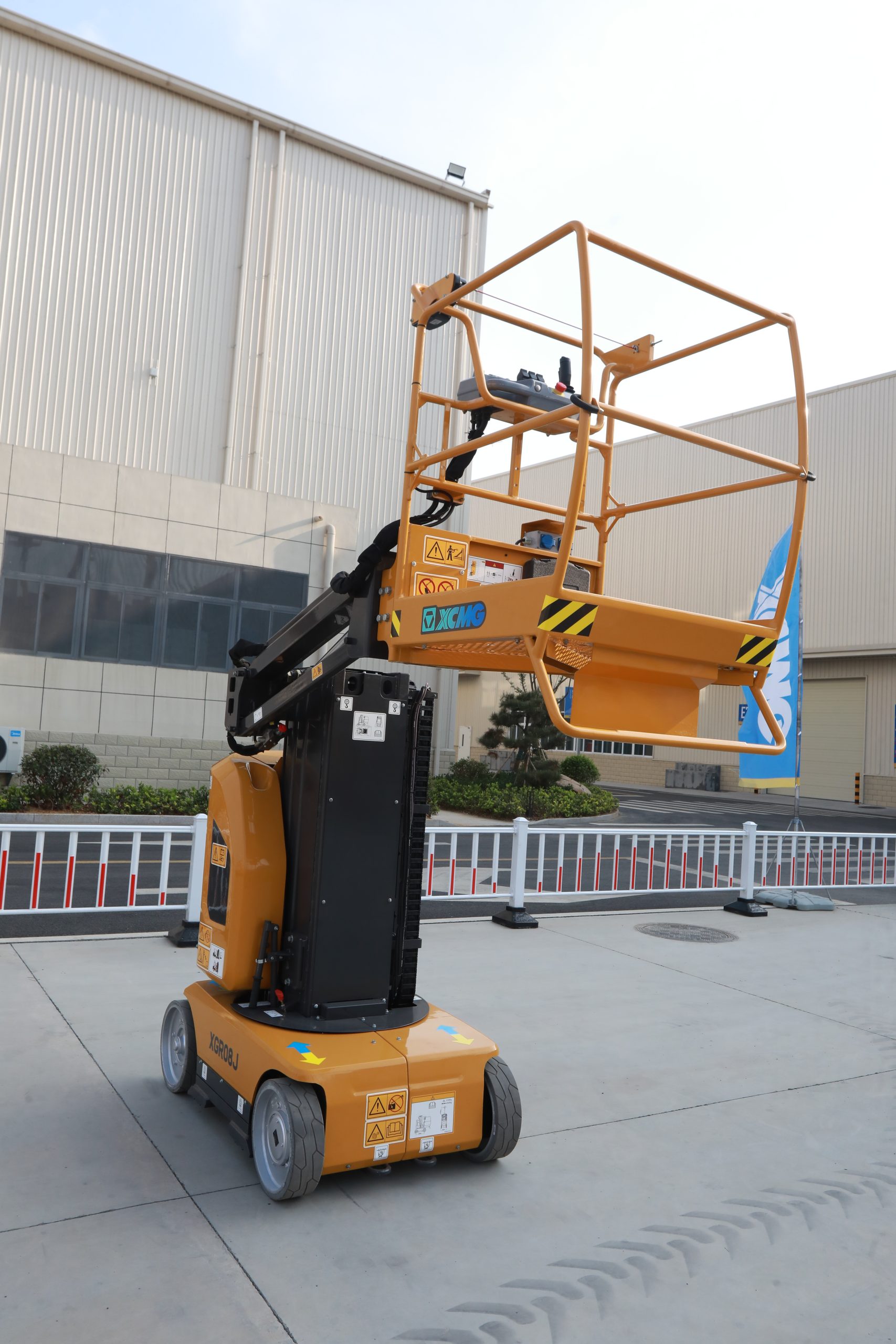

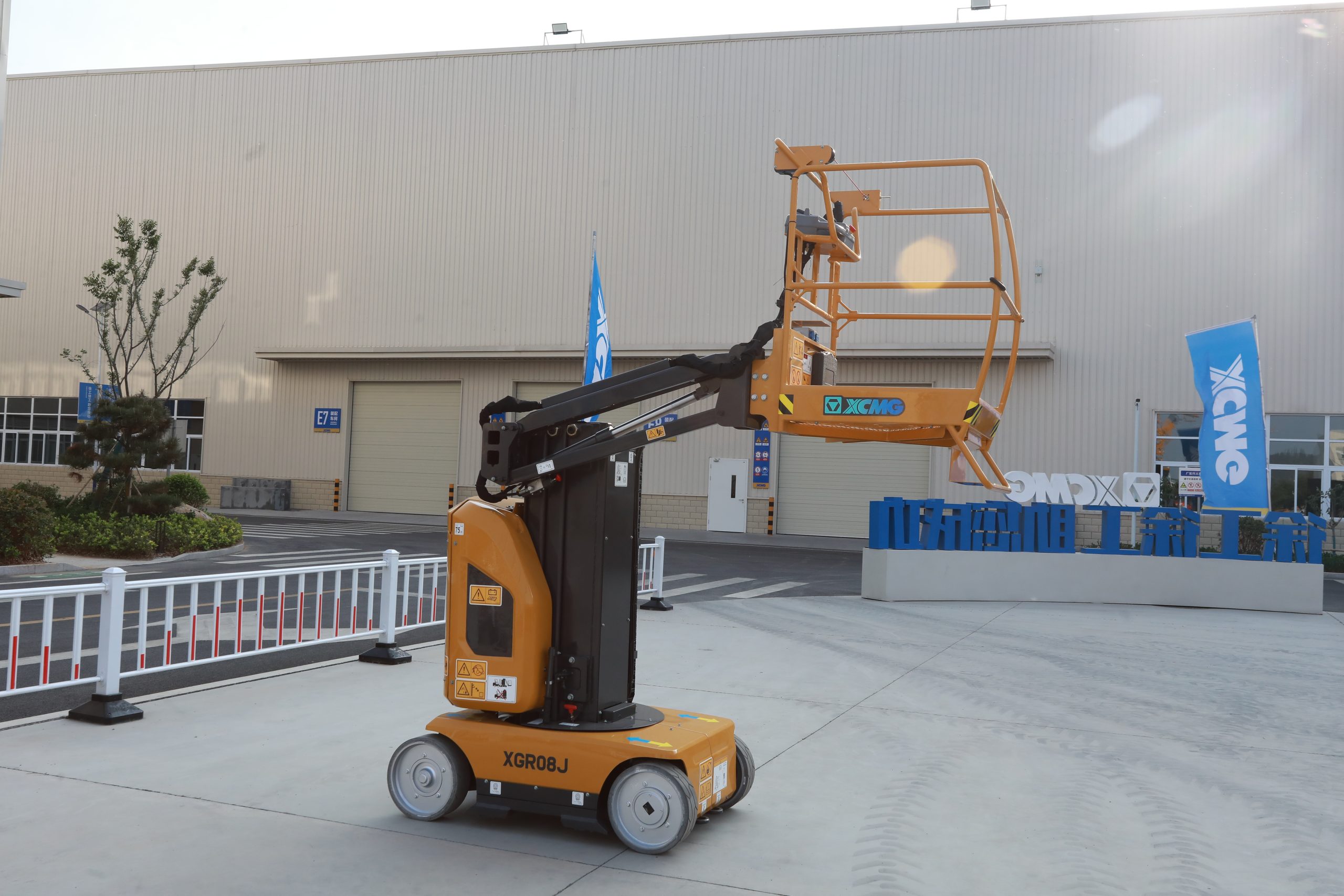

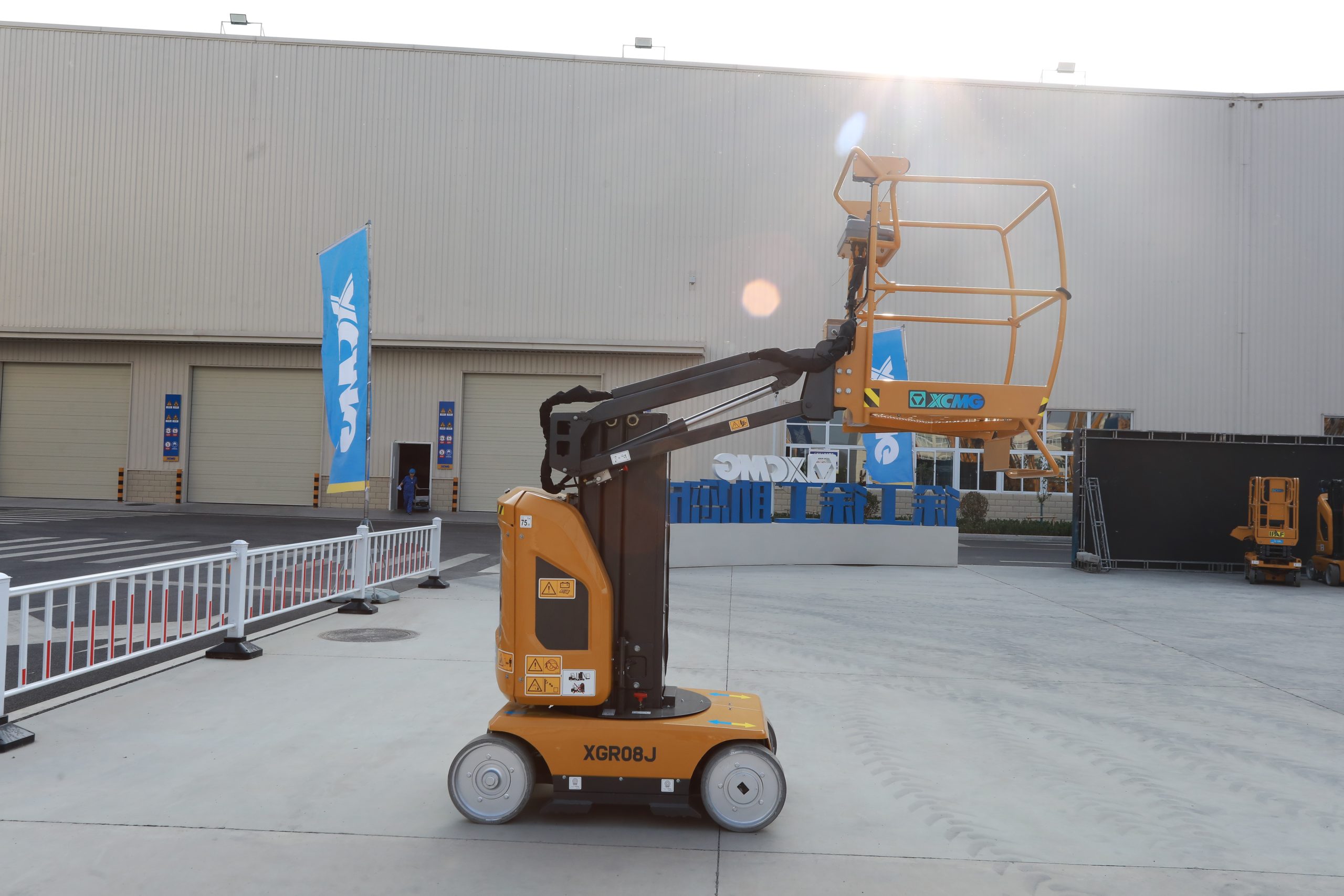

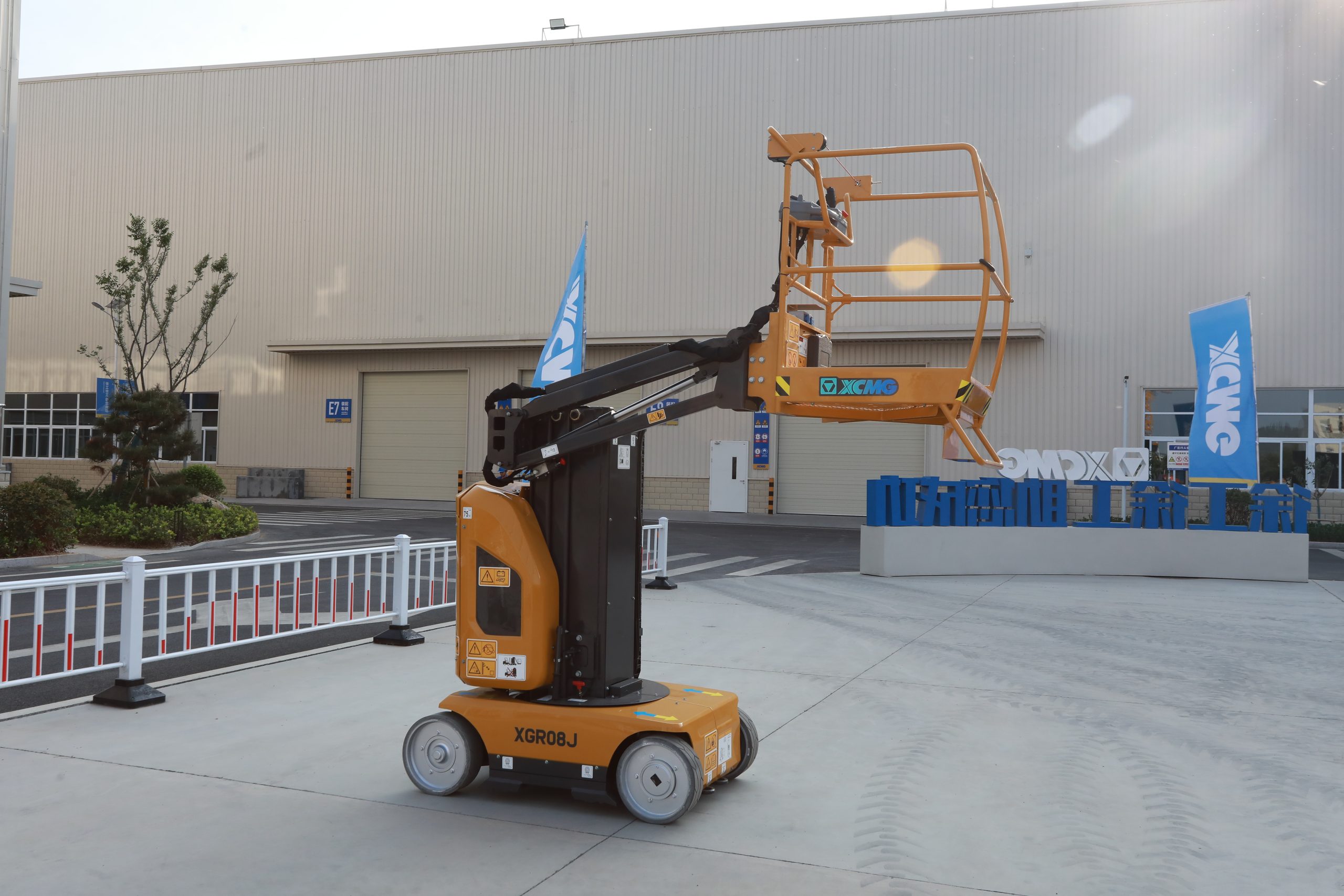

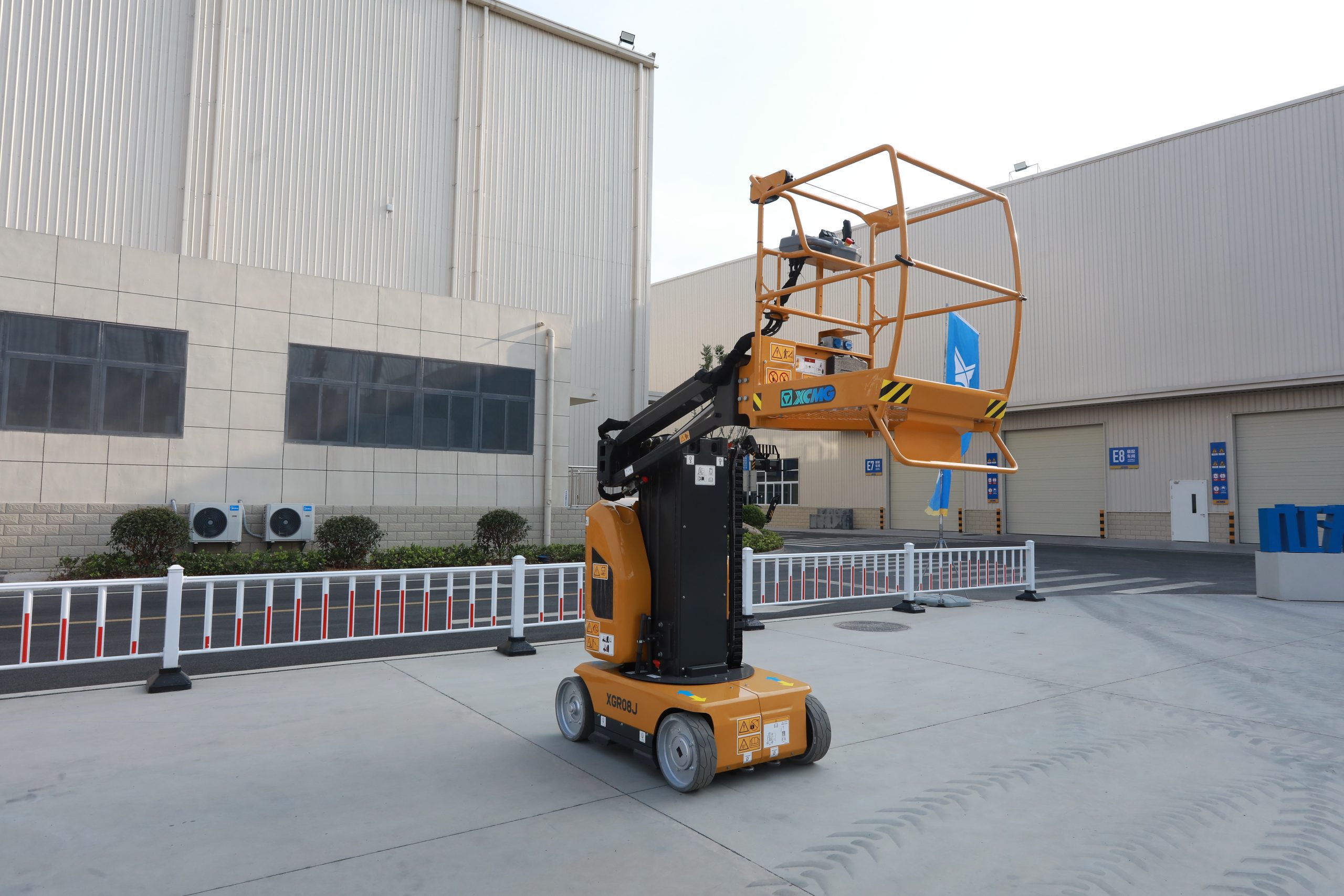

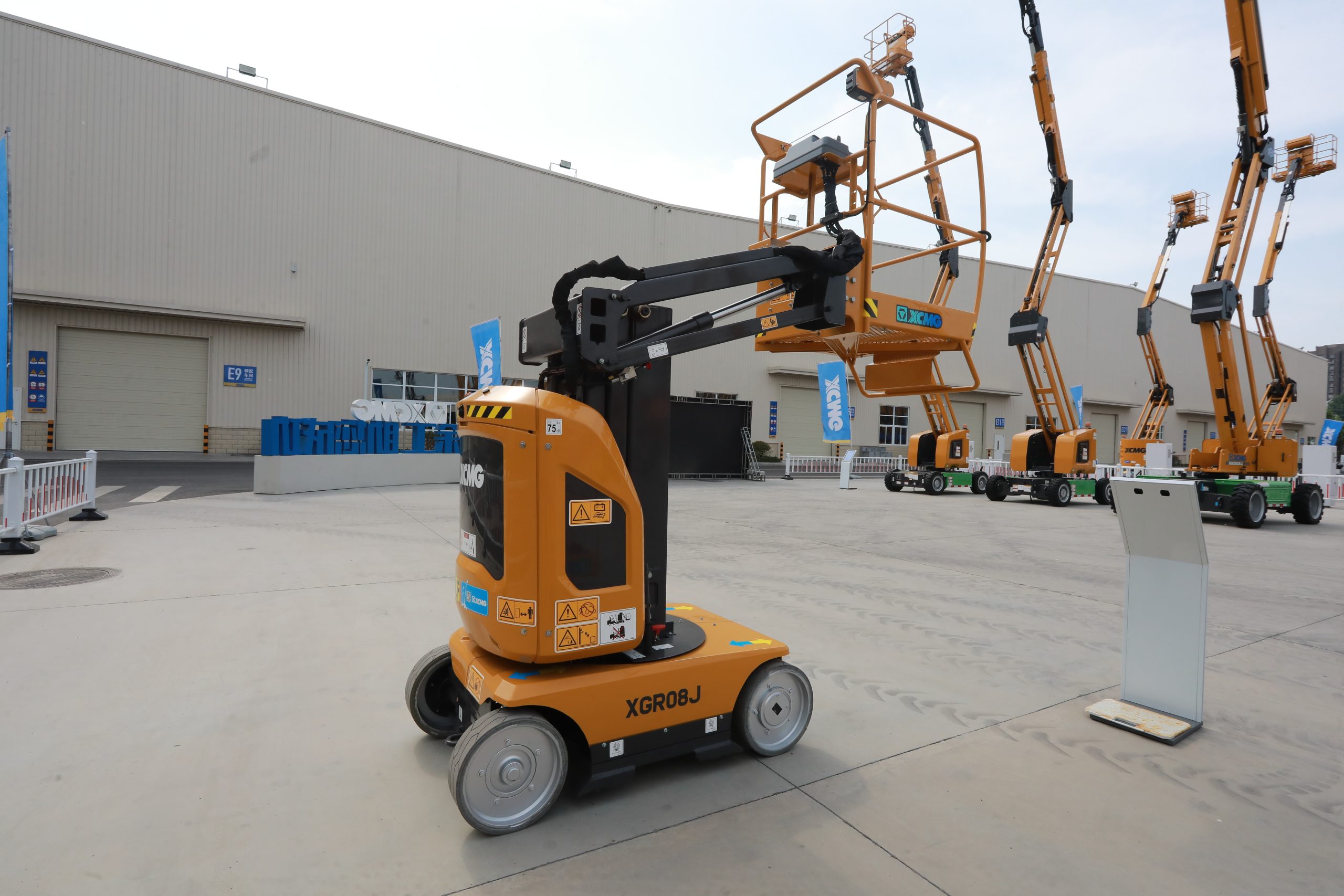

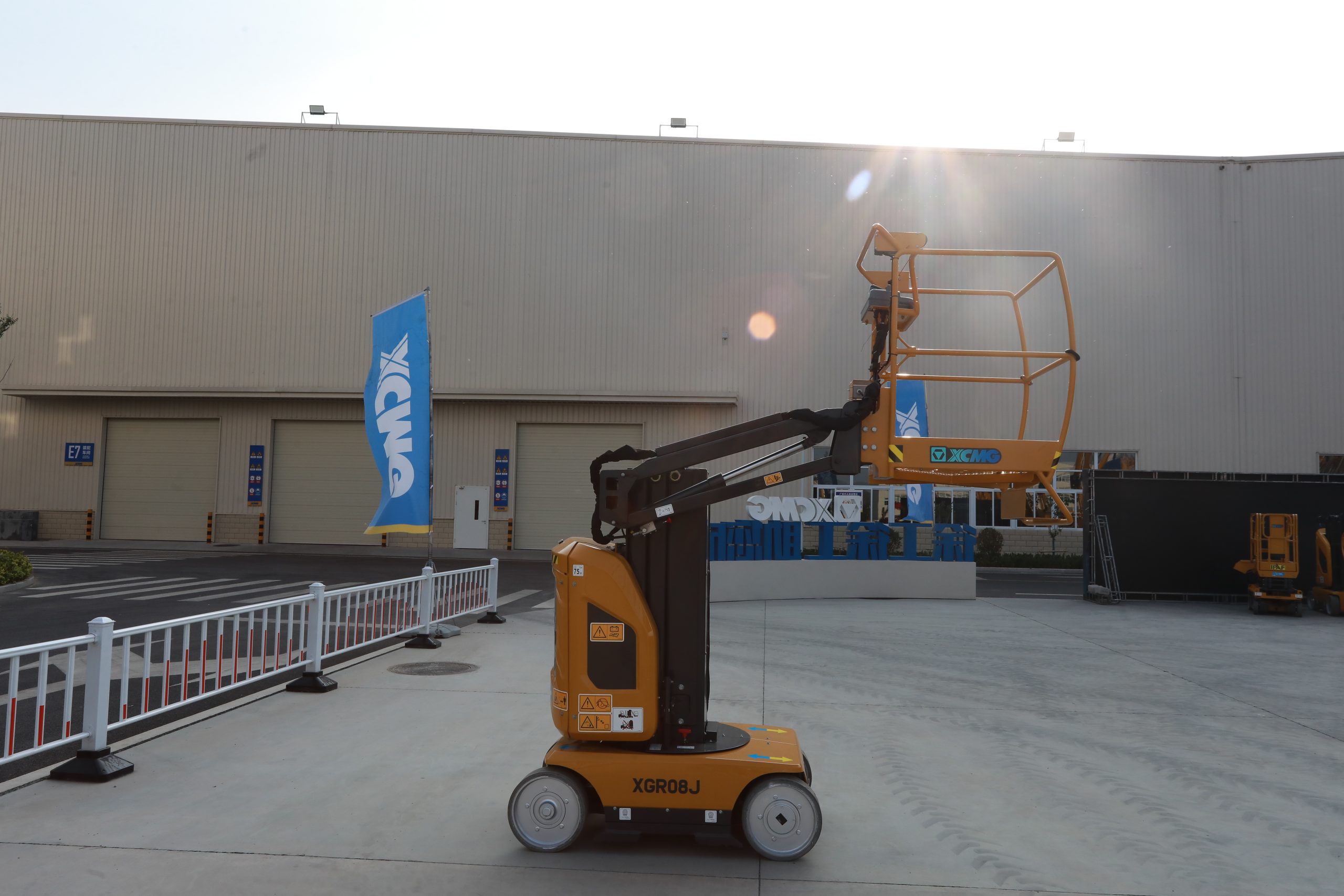

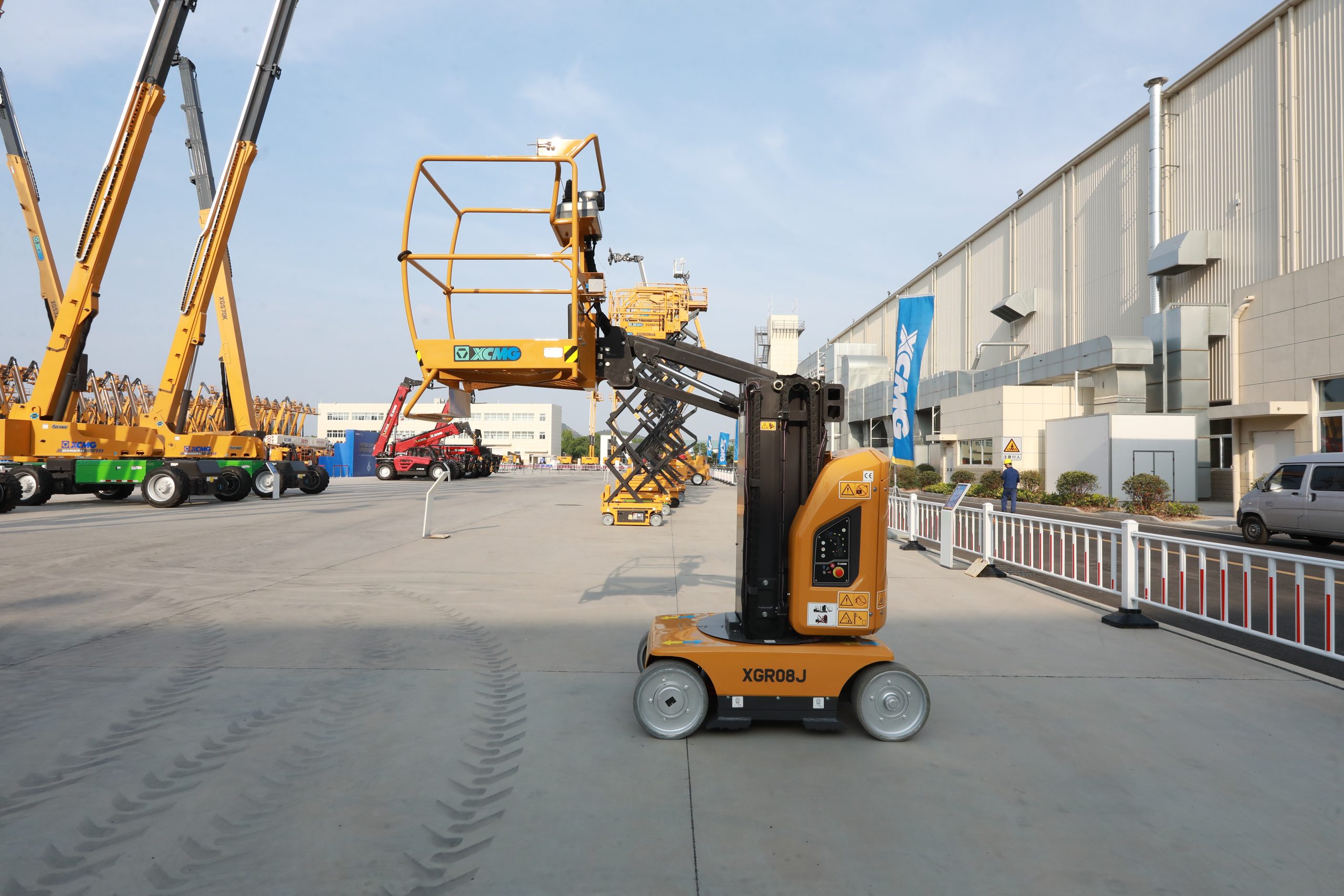

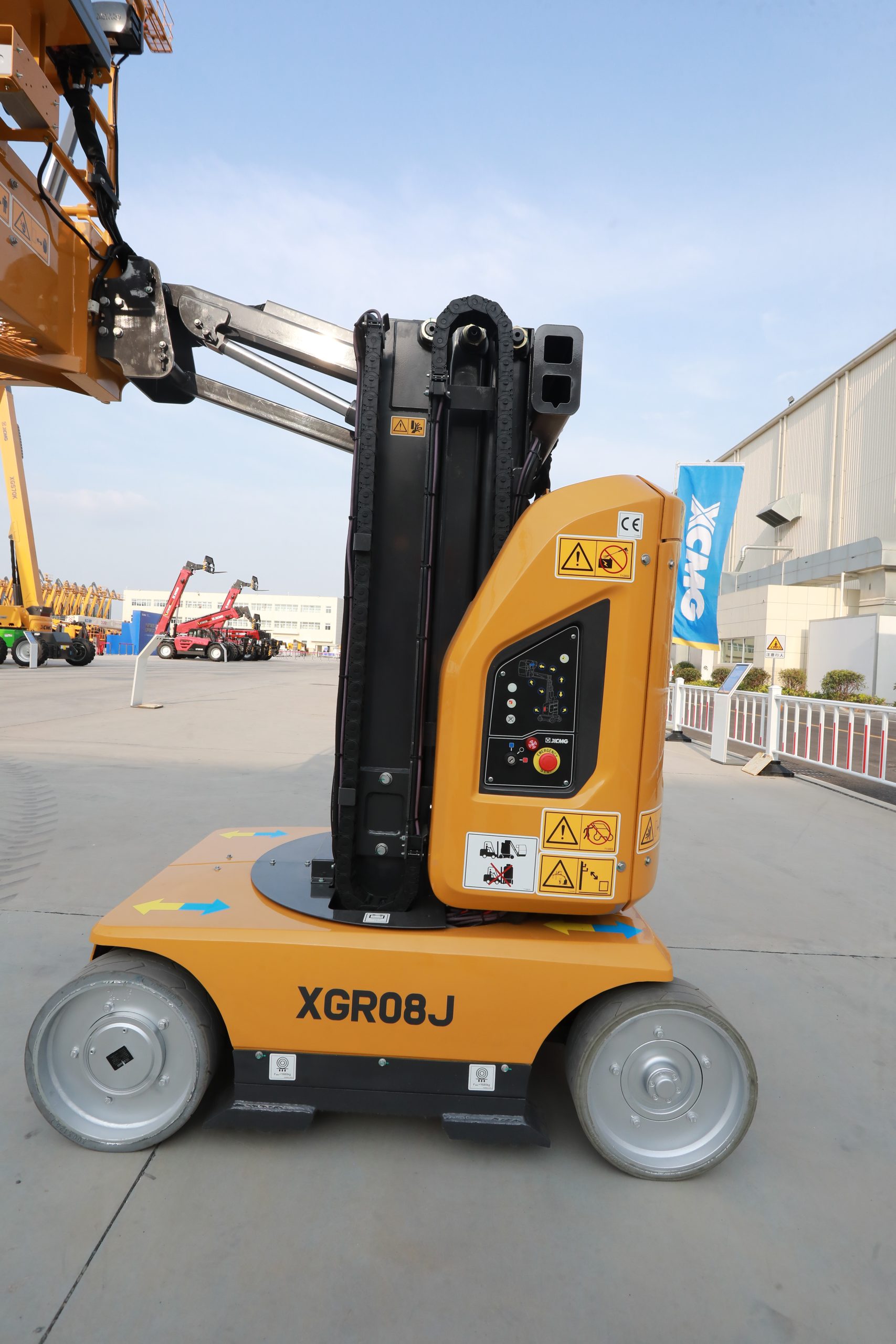

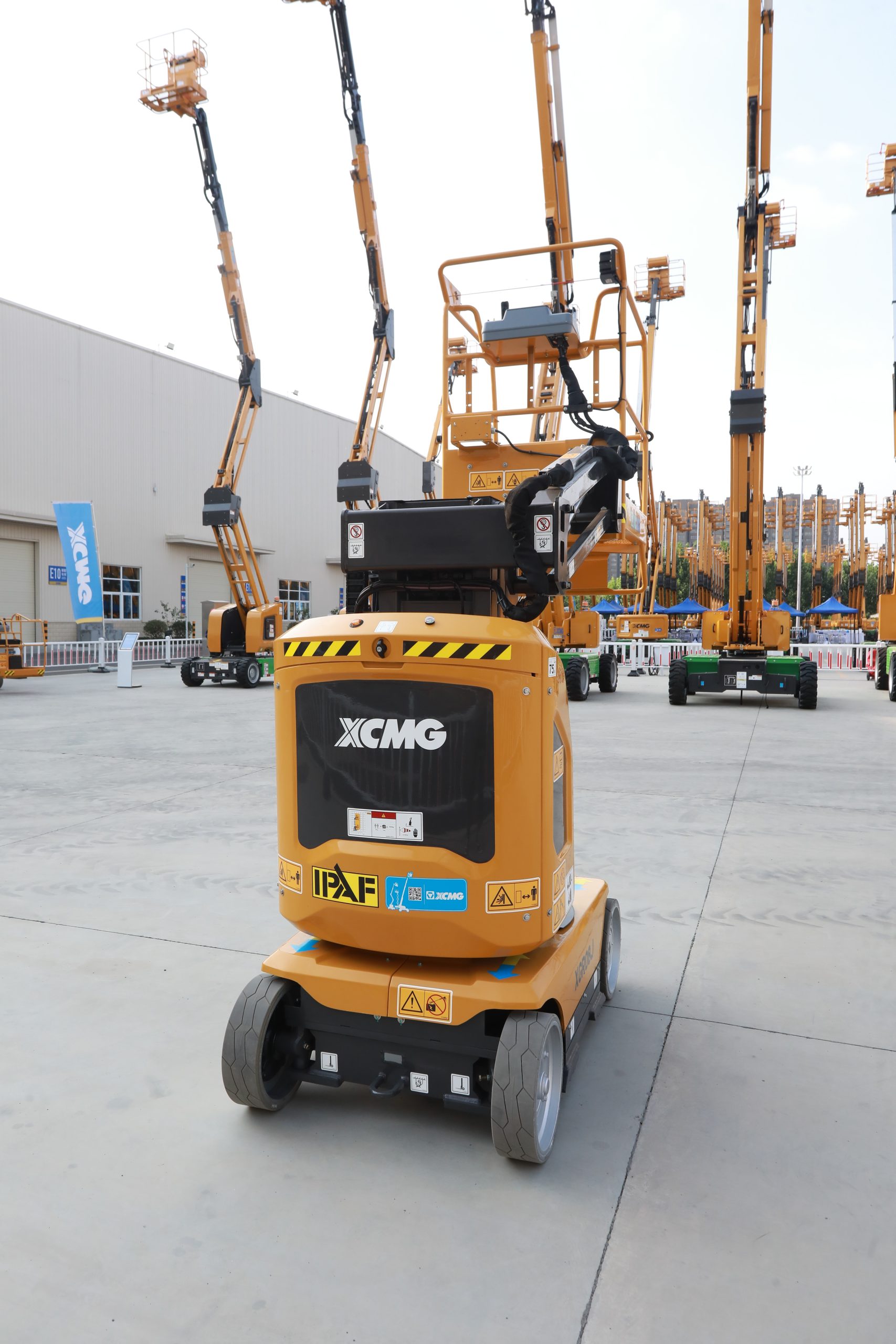

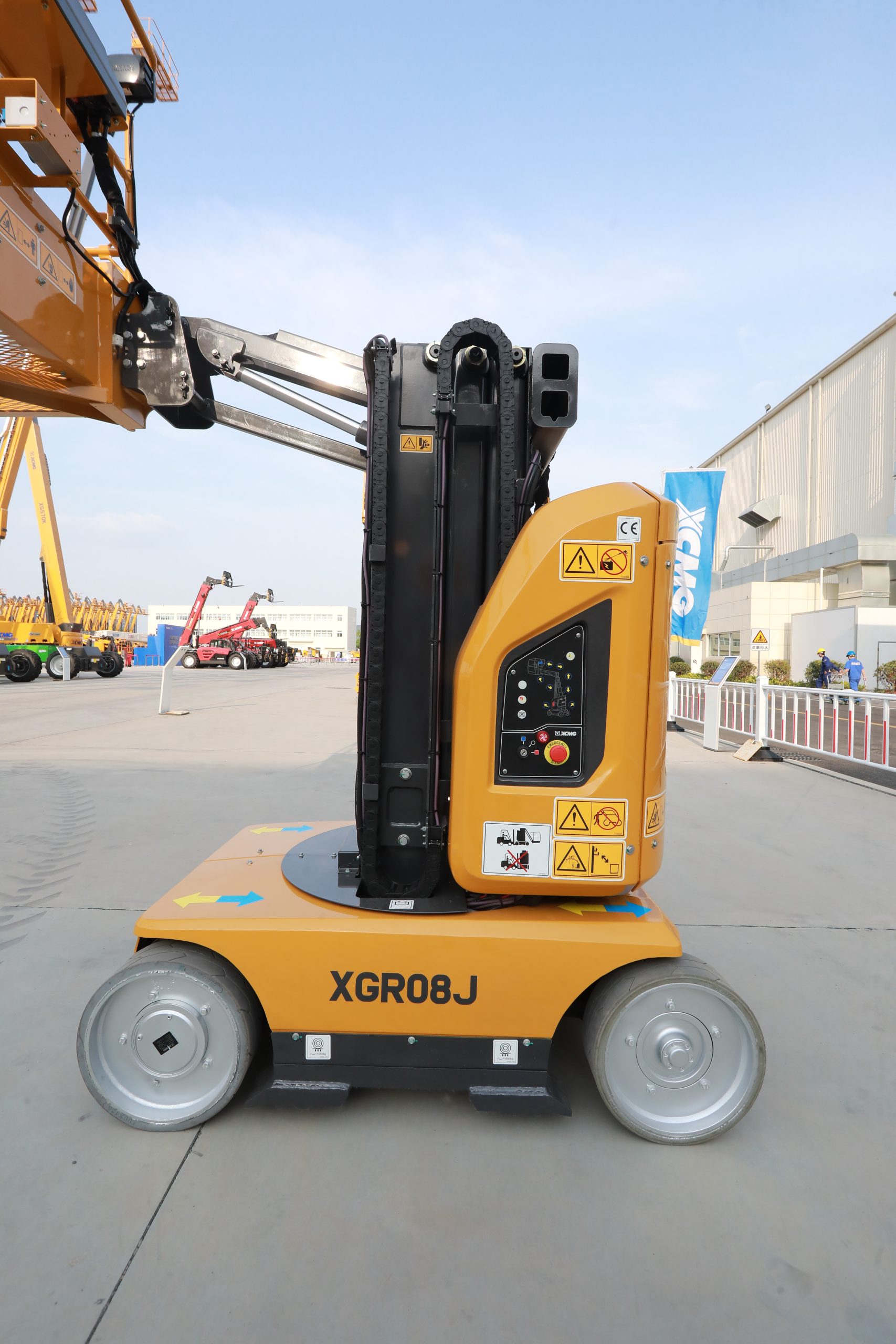

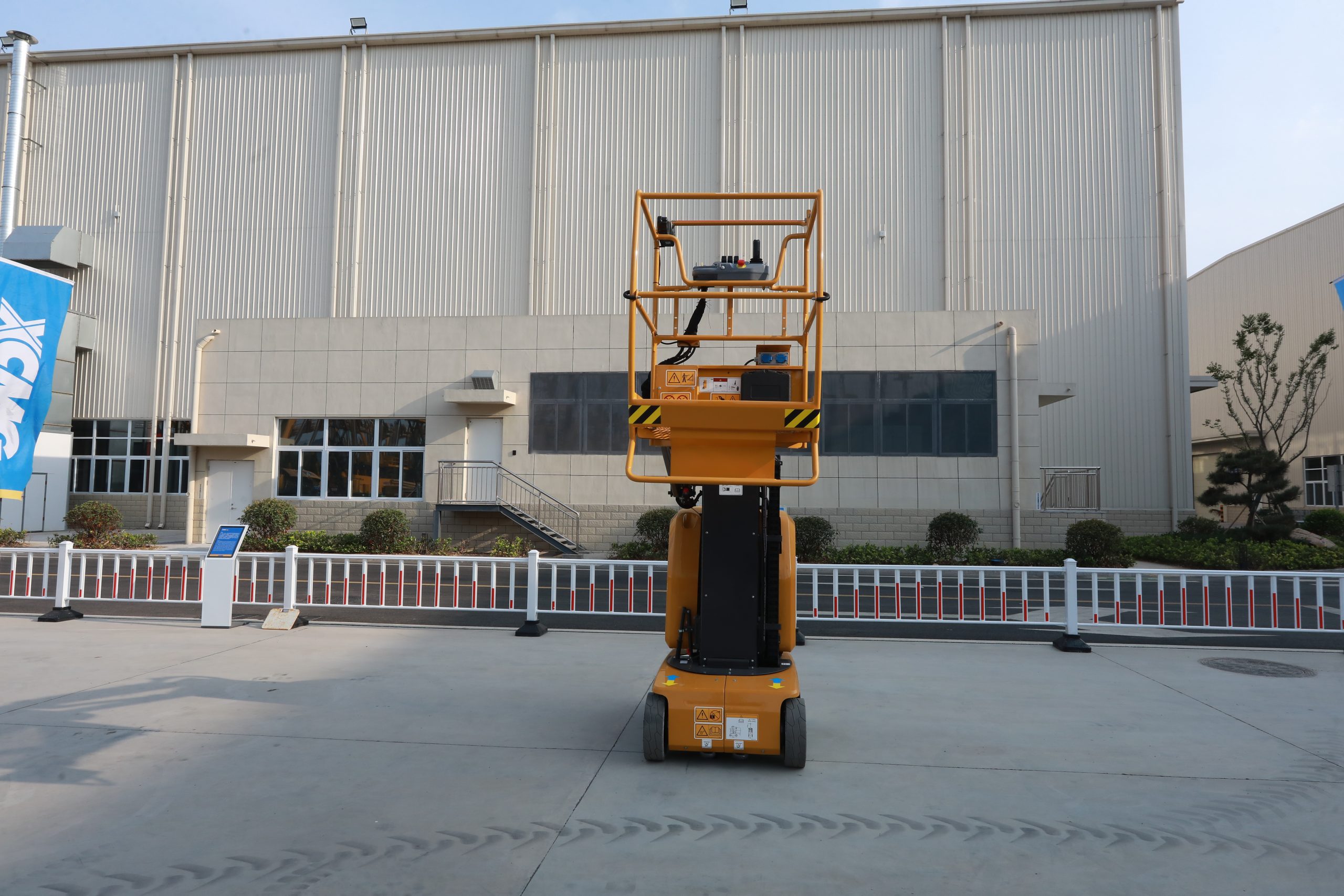

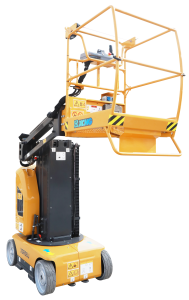

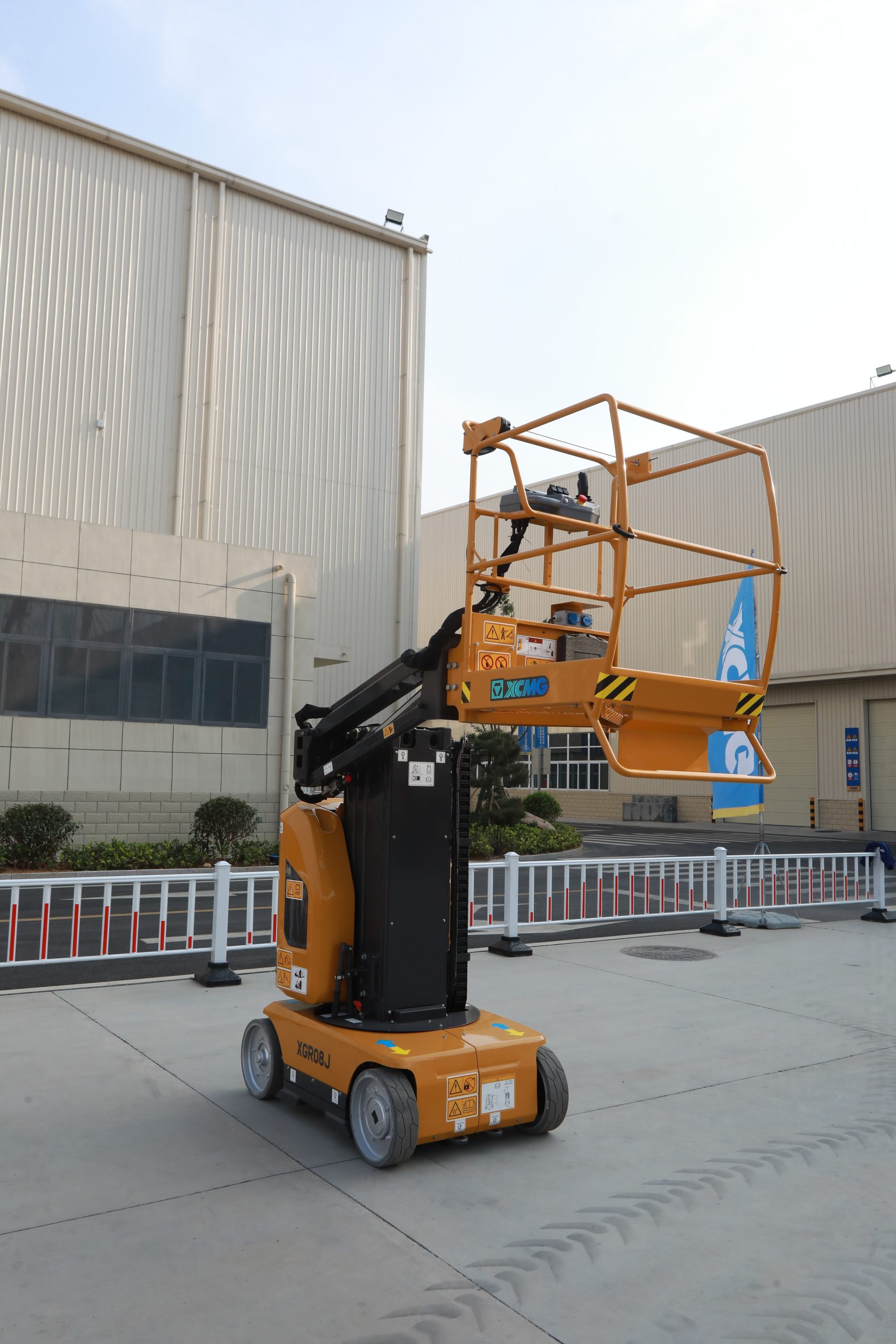

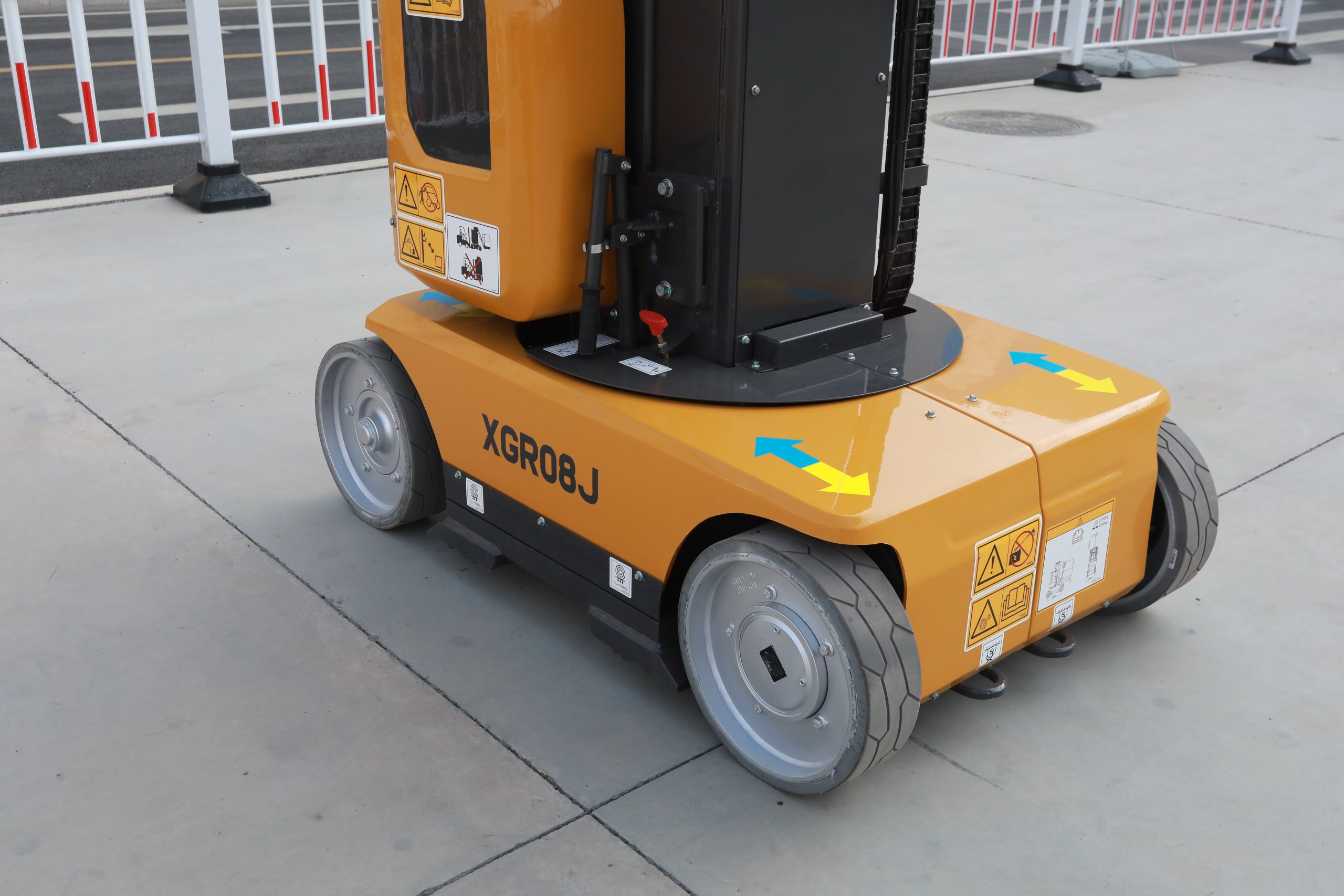

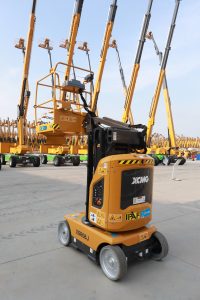

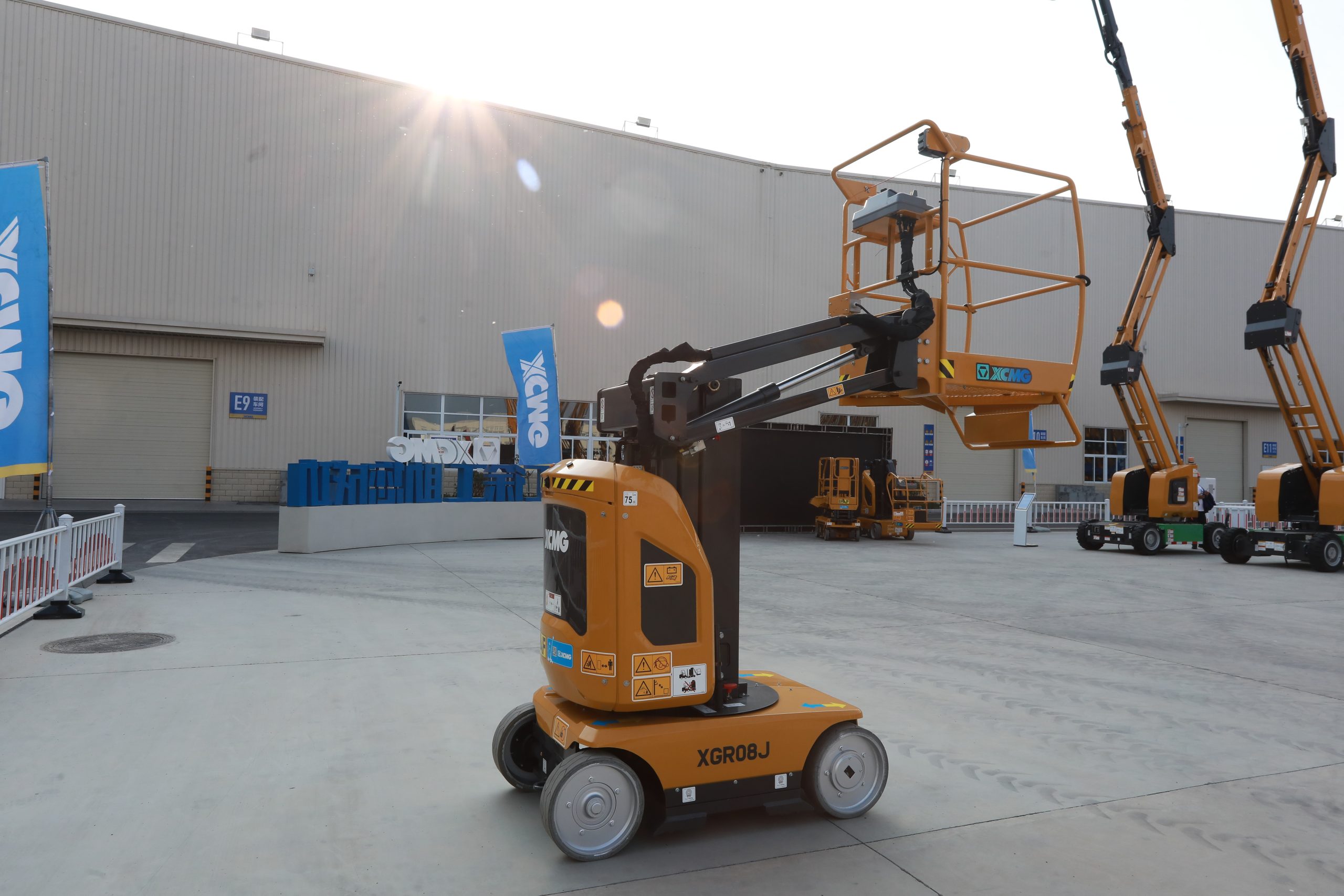

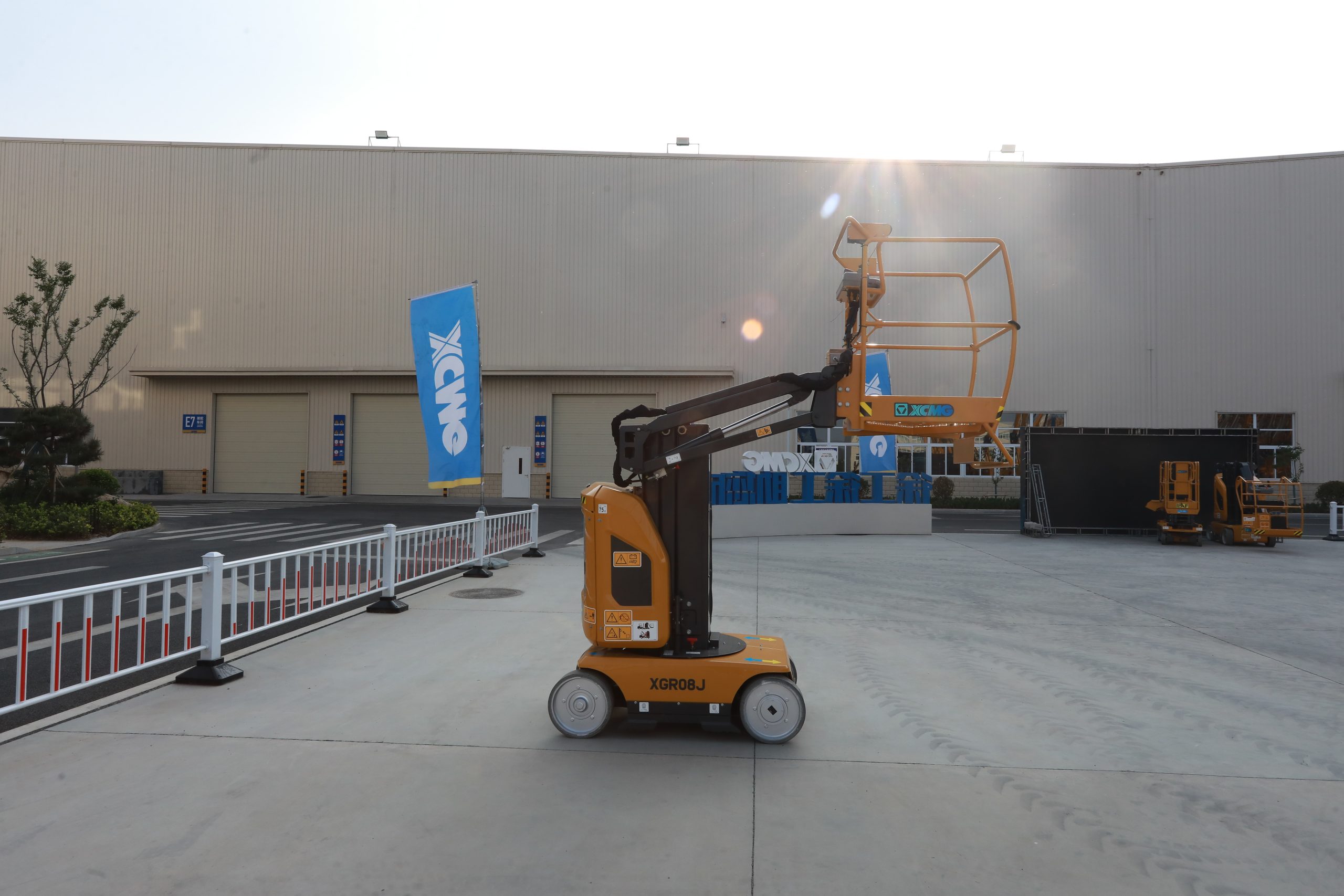

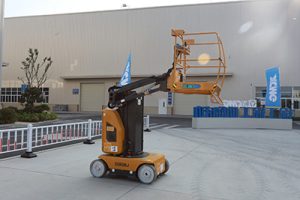

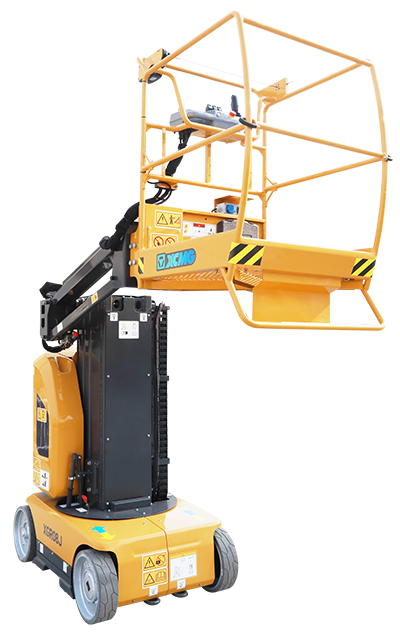

XCMG XGR08J – 2-Wheel Drive Articulating Boom Lift – Model
The XCMG XGR08J delivers precision, safety, and reliability for construction, maintenance, and industrial tasks. Built tough with advanced controls, it ensures smooth, efficient operation in any environment.
Featuring tilt and movement alarms, proportional joystick control, and a self-leveling system, it provides safe, accurate handling. With 2-wheel braking, positive traction drive, and thumb rocker steering, the XGR08J combines strength and agility to meet your elevated access needs.
Backed by XCMG’s global reputation for quality, it’s designed to boost safety, efficiency, and productivity on every project.
Product Overview – XCMG XGR08J Articulating Boom Lift
| Maximum Working Height | 8.2 m |
| Maximum Platform Height | 6.2 m |
| Load Capacity | 200 kg |
| Maximum Occupant Capacity | 2 People |
| Minimum Ground Clearance | 90 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 1300 mm / 2100 mm Front 700 mm / 1700 mm Rear |
| Lifting Motor | 1.1 kW |
| Maximum Travel Speed Low Level | 5 km/h |
| Maximum Travel Speed Hight Level | 0.6 km/h |
| Maximum Gradeability | 25 % |
| Fly Jib Luffing Range | -67°~ 45° |
| Battery | 24 V/265Ah |
| Charger | 24V/36A |
| Tyre Specifications | 406 mm x 125 mm |
| Wheels | 2 Driving 2 Braking 2 Steering |
| Total Machine Weight | 2250 kg |
| Overall Length | 2230 mm |
| Overall Width | 990 mm |
| Overall Height | 2000 mm |
| Working Platform Dimensions | 950 mm Length 900 mm Width |
| Wheelbase | 1200 mm |
| Turntable Tail Swing (Stowed) | 170 mm |
