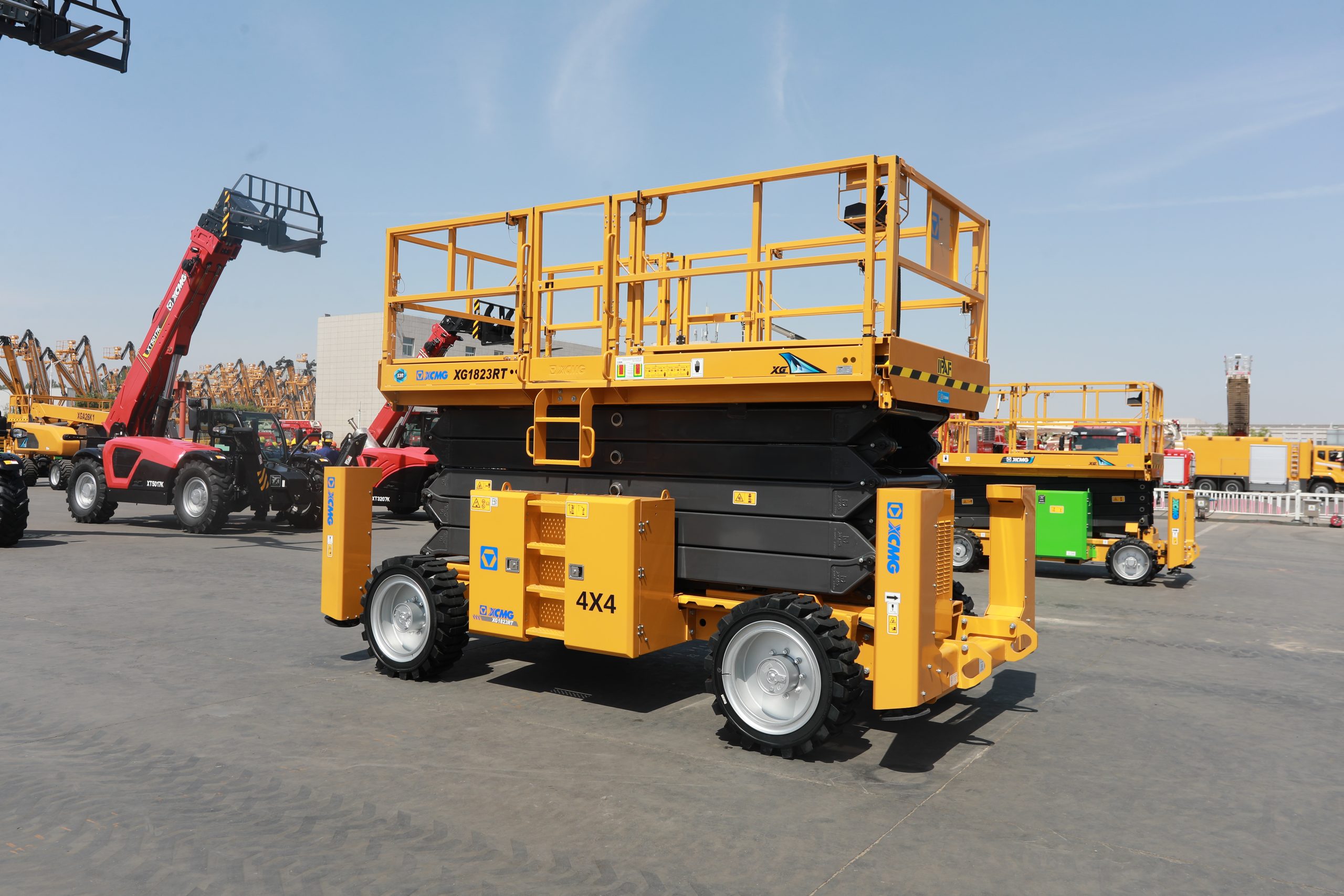

XCMG Rough Terrain Scissor Lift – Model XG1823RT – Diesel
The XCMG Australia XG1823RT Rough Terrain Scissor Lift is designed to tackle the toughest worksites with ease. Boasting an impressive 18.1m working height and a 680kg lift capacity, this diesel-powered scissor lift delivers exceptional stability, strength, and efficiency for high-reach tasks. Built for rugged terrain, it provides secure access for construction, maintenance, and industrial applications in even the most challenging environments.
When the job demands height, power, and reliability, trust XCMG Australia to deliver cutting-edge lifting solutions that boost productivity and performance. Discover our industry-leading access equipment today!
Product Overview – XCMG XG1823RT Scissor Lift
| Maximum Working Height | 18.1 m |
| Maximum Platform Height | 16.1 m |
| Minimum Platform Height | 2 m |
| Overall Length | 4860 mm |
| Overall Width | 2286 mm |
| Overall Height | 3170 mm 2510 mm Platform Folded |
| Working Platform Dimensions | 3980 mm Length 1830 mm Width |
| Wheelbase | 2850 mm |
| Load Capacity | 680 kg |
| Total Weight | 8000 kg |
| Maximum Number of Occupants | 4 Indoors 4 Outdoors |
| Maximum Driving Height | 3.6 m Standard 9.1 m Optional |
| Extended Platform Load | 230 kg |
| Sub Platform Extension Length | 1450 mm / 1140 mm |
| Guardrail Height | 1100 mm |
| Toe Board Height | 150 mm |
| Outrigger Span | 1995 mm Side to Side 4280 mm Front to Rear |
| Minimum Ground Clearance | 253 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 2.5 m Inside 5.6 m Outside |
| Maximum Travel Speed | 6.1 km/h Stowed 0 km/h Working Stowed 1.1 km/h Working Optional |
| Maximum Slope Grade | 40% |
| Maximum Working Slope | 2° Side to Side 3° Front to Rear |
| Work Platform Raising Time | 55 s |
| Work Platform Lowering Time | 55 s |
| Tyre Size | 835 mm x 290 mm |
| Driving Wheels | 4 |
| Braking Wheels | 4 |
| Steering Wheels | 2 |
| Engine Model | Kubota V2403 |
| Engine Power | 36.8 kW / (2700 r/min) |
| Maximum Engine Torque | 158 N*m |
| Hydraulic Tank Capacity | 115 L |
| Fuel Tank Capacity | 115 L |
