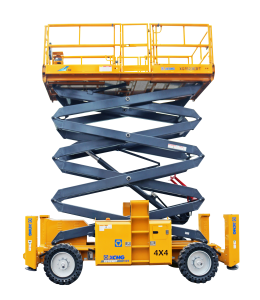

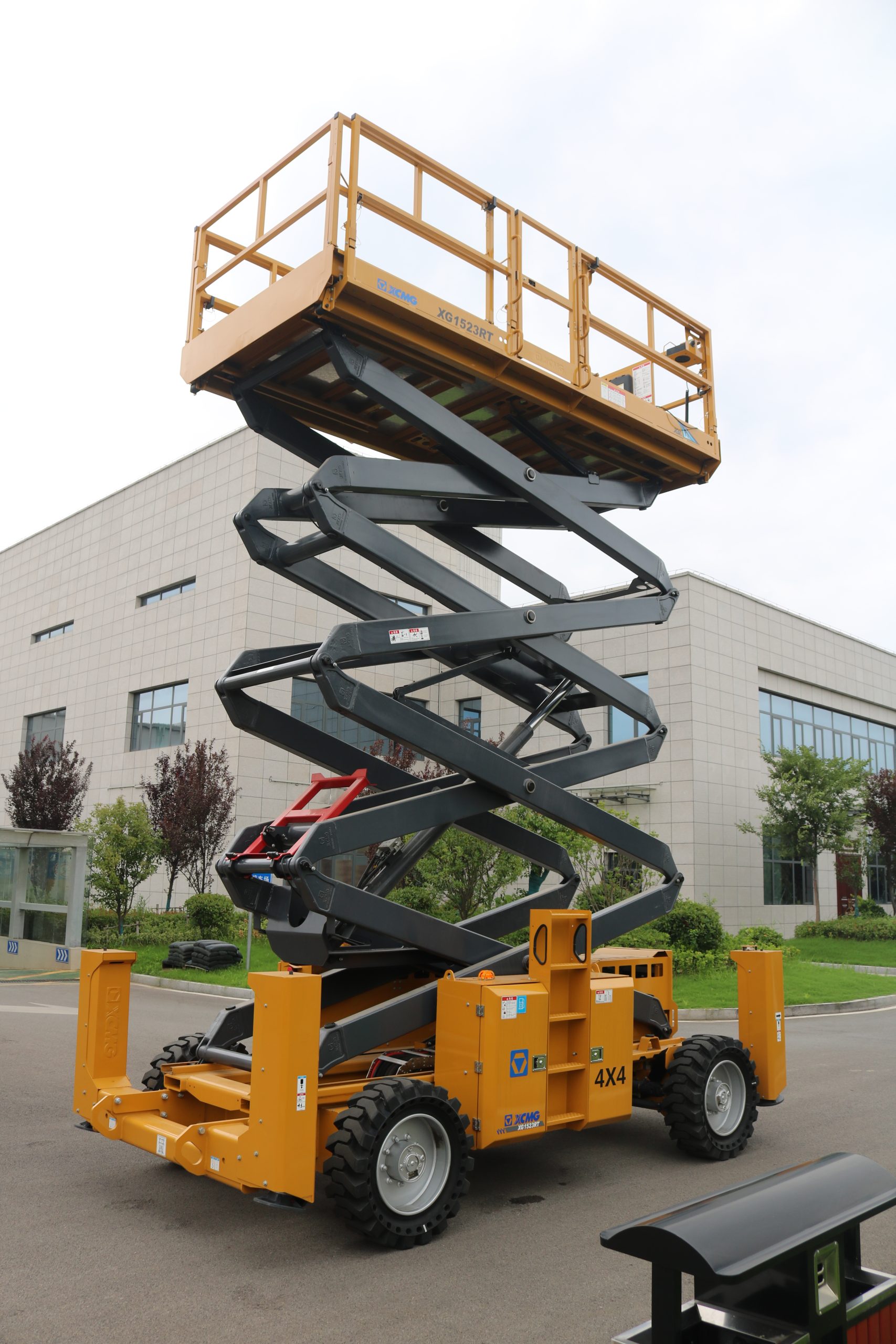

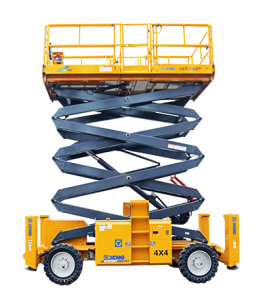

XCMG Rough Terrain Scissor Lift – Model XG1523RT – Diesel
The XCMG Australia XG1523RT Rough Terrain Scissor Lift is built for exceptional performance on demanding worksites. With a 680 kg lift capacity and reliable diesel power, this scissor lift ensures efficiency, stability, and durability in tough conditions. Offering a maximum working height of 15 m, it provides safe and secure access for construction, maintenance, and industrial applications.
Whether you need Rough Terrain Scissor Lifts, Heavy-Duty Access Platforms, or Diesel-Powered Lifting Solutions, XCMG Australia delivers high-performance equipment to enhance productivity on every job site. Explore our cutting-edge lifting solutions today!
Product Overview – XCMG XG1523RT Scissor Lift
| Maximum Working Height | 15 m |
| Maximum Platform Height | 13 m |
| Minimum Platform Height | 1.8 m |
| Overall Length | 4860 mm |
| Overall Width | 2286 mm |
| Overall Height | 2950 mm 2290 mm Platform Folded |
| Working Platform Dimensions | 3980 mm Length 1830 mm Width |
| Wheelbase | 2850 mm |
| Load Capacity | 680 kg |
| Total Weight | 7250 kg |
| Maximum Number of Occupants | 7 Indoors 7 Outdoors |
| Maximum Driving Height | 3 m Standard 13 m Optional |
| Extended Platform Load | 230 kg |
| Sub Platform Extension Length | 1450 mm / 1140 mm |
| Guardrail Height | 1100 mm |
| Toe Board Height | 150 mm |
| Outrigger Span | 1995 mm Side to Side 4280 mm Front to Rear |
| Minimum Ground Clearance | 253 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 2.5 m Inside 5.6 m Outside |
| Maximum Travel Speed | 6.1 km/h Stowed 0 km/h Working Stowed 1.1 km/h Working Optional |
| Maximum Slope Grade | 40% |
| Maximum Working Slope | 2° Side to Side 3° Front to Rear |
| Work Platform Raising Time | 45 s |
| Work Platform Lowering Time | 45 s |
| Tyre Size | 835 mm x 290 mm |
| Driving Wheels | 4 |
| Braking Wheels | 4 |
| Steering Wheels | 2 |
| Engine Model | Kubota V2403 |
| Engine Power | 36.8 kW / (2700 r/min) |
| Maximum Engine Torque | 158 N*m |
| Hydraulic Tank Capacity | 115 L |
| Fuel Tank Capacity | 115 L |
