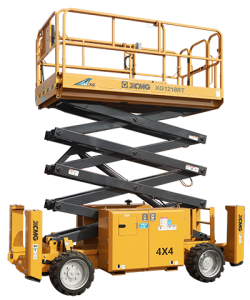

XCMG Rough Terrain Scissor Lift – Model XG1218RT – Diesel
The XCMG Australia XG1218RT Rough Terrain Scissor Lift is engineered for superior performance on challenging worksites. With a robust 455 kg lift capacity and dependable diesel power, this scissor lift ensures efficiency, stability, and durability in demanding conditions. Offering a maximum working height of 12 m, it provides safe and reliable access for construction, maintenance, and industrial applications.
Whether you need Rough Terrain Scissor Lifts, Heavy-Duty Access Platforms, or Diesel-Powered Lifting Solutions, XCMG Australia provides high-performance equipment to maximize productivity on every job site. Explore our range of cutting-edge lifting solutions today!
Product Overview – XCMG XG1218RT Scissor Lift
| Maximum Working Height | 12 m |
| Maximum Platform Height | 10 m |
| Minimum Platform Height | 1.43 m |
| Overall Length | 3835 mm |
| Overall Width | 1760 mm |
| Overall Height | 2580 mm 1830 mm Platform Folded |
| Working Platform Dimensions | 2880 mm Length 1520 mm Width |
| Wheelbase | 2290 mm |
| Load Capacity | 455 kg |
| Total Weight | 4400 kg |
| Maximum Number of Occupants | 4 Indoors 2 Outdoors |
| Maximum Driving Height | 1.9 m Standard 10 m Optional |
| Extended Platform Load | 135 kg |
| Sub Platform Extension Length | 1430 mm |
| Guardrail Height | 1105 mm |
| Toe Board Height | 150 mm |
| Outrigger Span | 1460 mm Side to Side 3645 mm Front to Rear |
| Minimum Ground Clearance | 200 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 2.3 m Inside 4.8 m Outside |
| Maximum Travel Speed | 5.0 km/h Stowed 0 km/h Working Stowed 0.4 km/h Working Optional |
| Maximum Slope Grade | 40% |
| Maximum Working Slope | 2° Side to Side 3° Front to Rear |
| Minimum Turning Radius | 2.3 m Inside 4.8 m Outside |
| Work Platform Raising Time | 38 s |
| Work Platform Lowering Time | 46 s |
| Tyre Size | 662 mm x 295 mm |
| Driving Wheels | 4 |
| Braking Wheels | 2 |
| Steering Wheels | 2 |
| Engine Model | Kubota D1105 |
| Engine Power | 18.2kW/ (3000 r/min) |
| Maximum Engine Torque | 71.5 N*m |
| Hydraulic Tank Capacity | 70 L |
| Fuel Tank Capacity | 48 L |
| Lenght of Extension Platform | 0.9 m |
