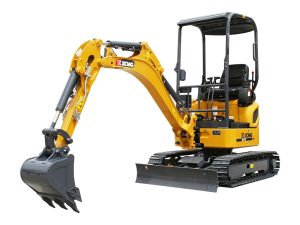

Mini Excavator – Model: XE17U
Experience peace of mind with XCMG’s E-series, crafted through rigorous strength and reliability tests.
Our machinery thrives under extreme conditions, making XCMG the trusted choice in its home market. Your projects, our commitment to lasting performance.
Product Overview
| Operating Weight | 1795 Kg |
| Transport Mass (No Attachments) | 1720 Kg |
| Engine | Kubota D902 / EU Stage V |
| Power | 11.8kW / 15.8HP |
| Max Torque | 51.3Nm / 1800 rpm |
| Flow Range | 64.4 LPM |
| Bucket Digging Force | 16 kN |
| Arm Digging Force | 10 kN |
| Swing Speed | 10 RPM |
| Main Pump Type | Rexroth |
| Emergency Stops | Included |
| Buckets | Enquire |
| Dozer Blade | Included |
| Quick Hitch | Mechanical |
| Fuel / Cooling | Diesel / Liquid, Forced Circulation |
| No of Cylinders | 3 |
| Alternator | 12V / 40A |
| Fuel Tank Size | 17L |
| Noise Level LwA (ISO 6395) | 93dB(A) |
| Travel Speed (Low – High) | 2.1 – 3.1 km/h |
| Traction Force | 15.6 kN |
| Gradeability | 30o |
| Overall Width | 990 – 1240 mm |
| Overall Height | 1135 mm |
| Overall Track length | 1590 mm |
| Overall Height of Engine Hood | 1135 mm |
| Minimum Ground Clearance | 145 mm |
| Tail Slew Radius | 620 mm |
| Tumbler Length | 1270 mm |
| Dozer Blade (Maximum reach at ground level) | 1055 mm |
| Undercarriage Length | 1880 mm |
| Dozer Blade Height | 258 mm |
| Track Gauge | 706/1010 mm |
| Track Height | 380 mm |
| Counterweight Ground Clearance | 455 mm |
| Working Width at Maximum Right-Hand Rotation | 1300 mm |
| Working Width at Maximum Left-Hand Rotation | 1235 mm |
| Track Shoe Width | 230 mm |
| Dipper Length | 950 mm |
| Boom Length | 1830 mm |
| Dig Depth & Reach | 2290 / 3900 mm |
| Maximum Boom Offset to the Right | 335 mm |
| Maximum Boom Offset to the Left | 500 mm |
| Maximum Boom Swing Angle to the Right | 50 |
| Maximum Boom Swing Angle to the Left | 60 |
| Maximum Digging Height – Std Arm | 3475 mm |
| Maximum Digging Height – Long Arm | 3495 mm |
| Maximum Digging Depth – Std Arm | 2290 mm |
| Maximum Digging Depth – Long Arm | 2450 mm |
| Maximum Dumping Height – Std Arm | 2415 mm |
| Maximum Dumping Height – Long Arm | 2550 mm |
| Maximum Vertical Wall Digging Depth – Std Arm | 1750 mm |
| Maximum Vertical Wall Digging Depth – Long Arm | 1970 mm |
| Minimum Swing Radius – Std Arm | 1550 mm |
| Minimum Swing Radius – Long Arm | 1580 mm |
| Maximum Digging Reach at Ground Level – Std Arm | 3840 mm |
| Maximum Digging Reach at Ground Level – Long Arm | 3950 mm |
| Maximum Digging Reach – Std Arm | 3900 mm |
| Maximum Digging Reach – Long Arm | 4005 mm |
| Maximum Dozer Lifting Height | 260 mm |
| Maximum Dozer Cutting Depth | 180 mm |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Engine |
| Kubota Engine D902, EU Stage V |
| Hydraulic system |
| Single or Dual Way Pipeline (AUX1) |
| Dozer Blade Safety Lock Valve |
| Canopy |
| OPG/TOPS/ ROPS(ISO 3471) Canopy |
| Adjustable Seat With Retractable Belt |
| Colour LCD Monitor |
| AUX1 Control Foot Pedal |
| Foldable Ergonomic Pedals |
| Undercarriage |
| Extendable Undercarriage (990/1240 mm) |
| Easy Extended Blade |
| Tie Down Bracket |
| Rubber Tracks 230 mm |
| Safety |
| Engine Overheat Warning and Restart Prevention System |
| Hydraulic Safety Locking Lever |
| Work Light (1 on boom) |
| Battery Switch Off |
| Other |
| Standard Arm 950 mm |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Undercarriage |
| Steel Tracks 230 mm |
| Other |
| Long Arm 1120 mm |
| General Purpose Bucket 0.04 m³ |
| Quick Coupler Attachments i.e: Hammer or Clamshell (Contact Us for More Options) |
