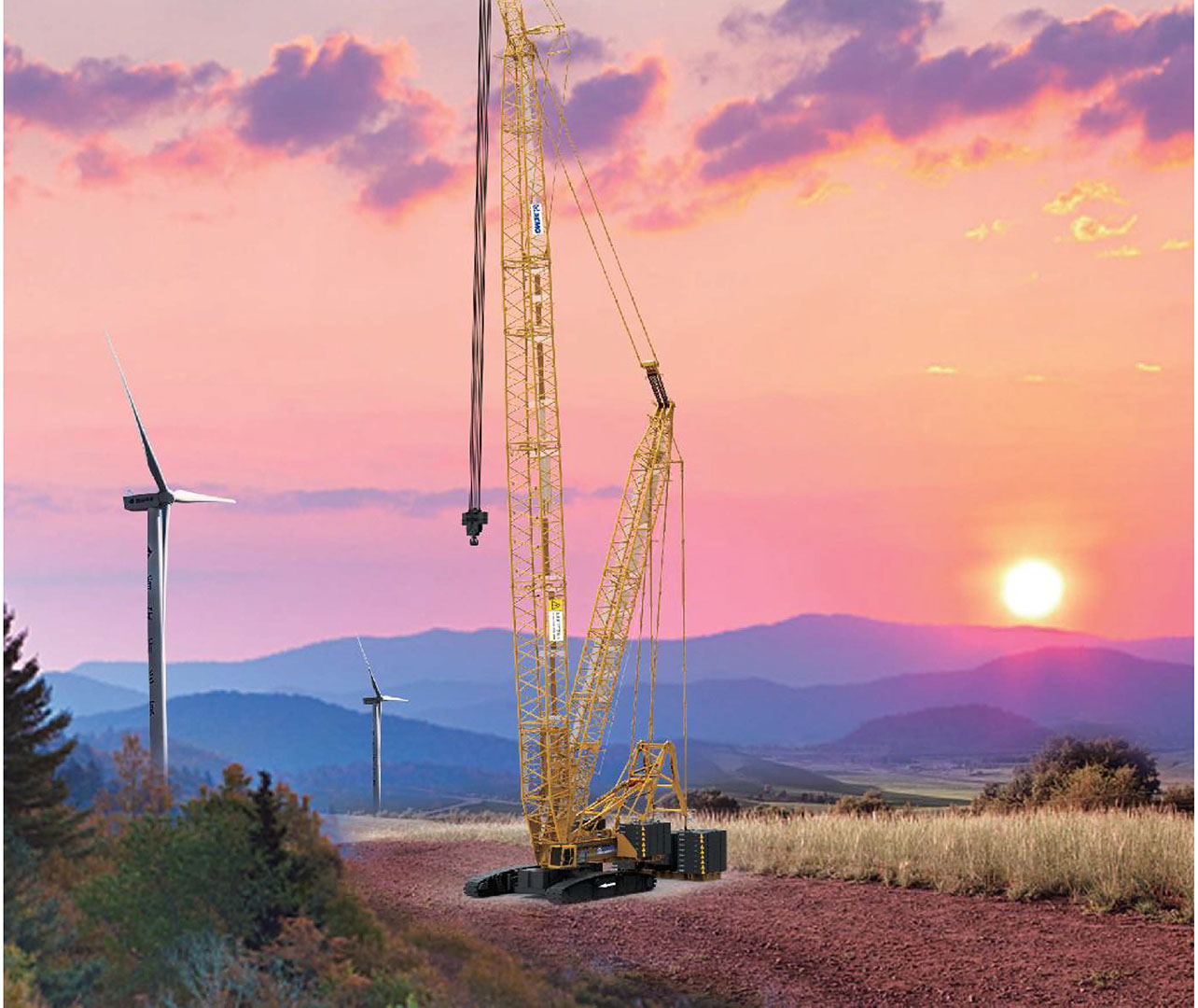

XCMG XGC15000 Crawler Crane – Pushing Boundaries in Heavy Lifting
Step into the future of mega lifting with the XGC15000, XCMG’s 1,000-ton crawler crane designed for high-rise infrastructure, energy projects, and industrial lifting. Engineered for unmatched performance, advanced safety, and modular efficiency, this powerhouse maximizes lifting precision, stability, and adaptability in the toughest conditions.
XCMG XGC15000 Crawler Crane – Powering the Future of Heavy Lifting
Engineered for mega lifting projects, the XGC15000 sets new standards in strength, adaptability, and efficiency. With a 1,000-ton lifting capacity, an enhanced superlift system, and a maximum boom + jib configuration of 192 meters, this crane delivers unmatched precision and power in wind energy, high-rise construction, and large-scale industrial applications.
Designed for maximum performance in extreme conditions, the XGC15000 features intelligent load monitoring, cutting-edge safety systems, and modular transport design, ensuring superior mobility, control, and operational efficiency on every project.
Built for the Toughest Challenges
- 1,000-ton max lifting capacity – Unrivaled strength for complex heavy lifts
- 192m maximum boom + jib height – Extended reach for the most demanding projects
- Optimized for wind energy & infrastructure – Designed for high-altitude efficiency
- Smart load monitoring & advanced safety systems – Maximum protection and operational precision
- Modular transport-ready design – Efficient assembly, transport, and site adaptability
Trust XCMG to elevate your next project with world-class engineering, reliability, and cutting-edge technology.
Contact us today to learn how the XGC15000 can redefine your lifting capabilities!
Product Overview
| Overall Length | 14500 mm |
| Overall Width | 3450 mm – Transport 9600 mm – Working |
| Overall Height | 3600 mm Transport 3580 mm – Working |
| Maximum Lifting Capacity | 1000 t – Standard Boom |
| Maximum Lifting Moment | 15,000 t·m |
| Main Boom Length | 24m – 168m |
| Superlift Wind Power Jib Length: | 87m – 168m + 12m |
| Maximum Tip Height: | 168m – Main Boom Up to 192m – With Fly Jib |
| Track Width (each side) | 1500 mm |
| Track Length | 14500 mm |
| Car-body Counterweight | 100t |
| Turntable Counterweight | 300t |
| Superlift Counterweight | 500t |
| Maximum Hook Block Capacity | 800t (Can be split into 400t) 500t (Can be split into 250t) 240t (Can be split into 100t) 50t & 16t available |
| Engine Manufacture | Weichai Power |
| Engine Model | WP17G770E302 |
| Rated Power | 600 kW |
| Rated Speed | 2100 r/min |
| Maximum Torque | 3,200 Nm @ 1,200-1,500 r/min |
| Emission Standard | China III (equivalent to Tier 3) |
| Fuel Tank Capacity | 1000L |
| Maximum Travel Speed | 1.2 km/h |
| Maximum Slewing Speed | 0.5 rpm |
| Mean Ground Pressure | 0.18 MPa |
| Gradeability | 18% |
| Maximum Transport Weight (Per Component) | 60t – Crawler Frame 52t – Basic Machine 25t – Superlift Mast |
| Cab Features | Air-conditioned, adjustable seat, sliding door Can tilt upward 20° for better visibility Equipped with safety glass and sun shield Rearview Mirror & Lighting System: Ensures visibility in all working conditions. |
| Safety Features | |
| Boom Backstop Devices | Prevents the boom and strut from tilting backward. |
| Hoist Height Limiter | Automatically stops hoisting at a predefined height to prevent over-winding. |
| Load Moment Limiter | Automatically detects boom angle and lifting load, with pre-warning and overload stop functions. |
| Hydraulic System Protection | Equipped with overflow valves, balance valves, and two-way hydraulic locks to ensure safe operation. |
| Emergency Stop Function | Instantly stops all crane movements in case of an emergency. |
| Anti-Mis operation Function | Safety protection switch prevents unintended movements. |
| Slewing and Travel Warning System | Audio and visual alerts for slewing and traveling movements to enhance site safety. |
| Anemometer | Monitors wind speed and alerts the operator. |
| Slewing and Luffing Lock System | Locks movements when the crane is parked or not in operation. |
| Rope Over-Release Protection | Prevents excessive wire rope unwinding, ensuring controlled lowering operations. |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Need more information about the XCMG XGC15000 Crawler Crane?
Download the brochure below for detailed load capacity charts, specifications, and more!
