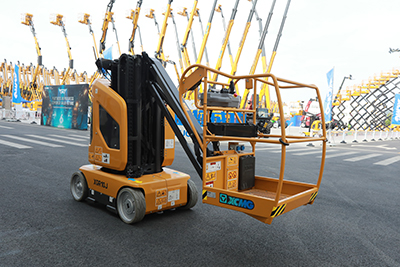

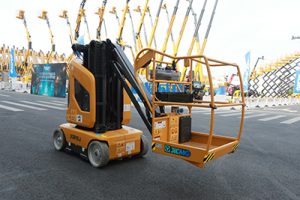

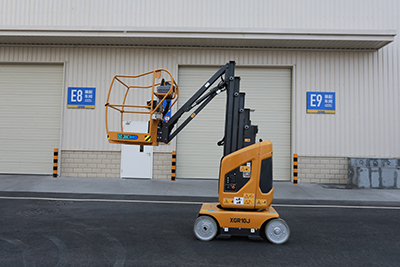

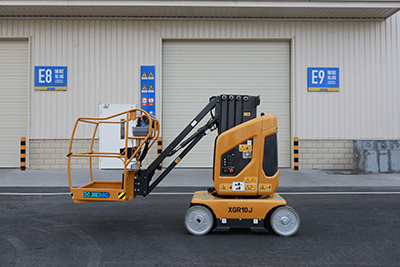

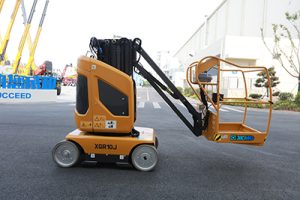

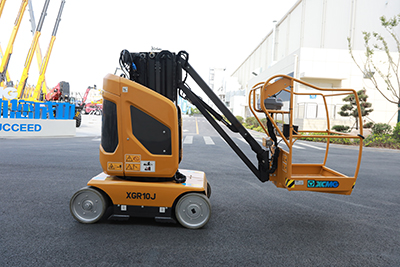

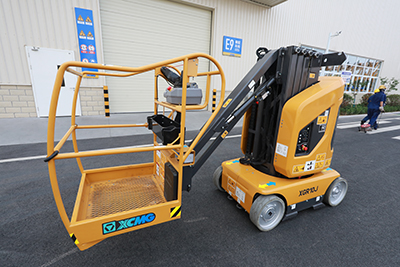

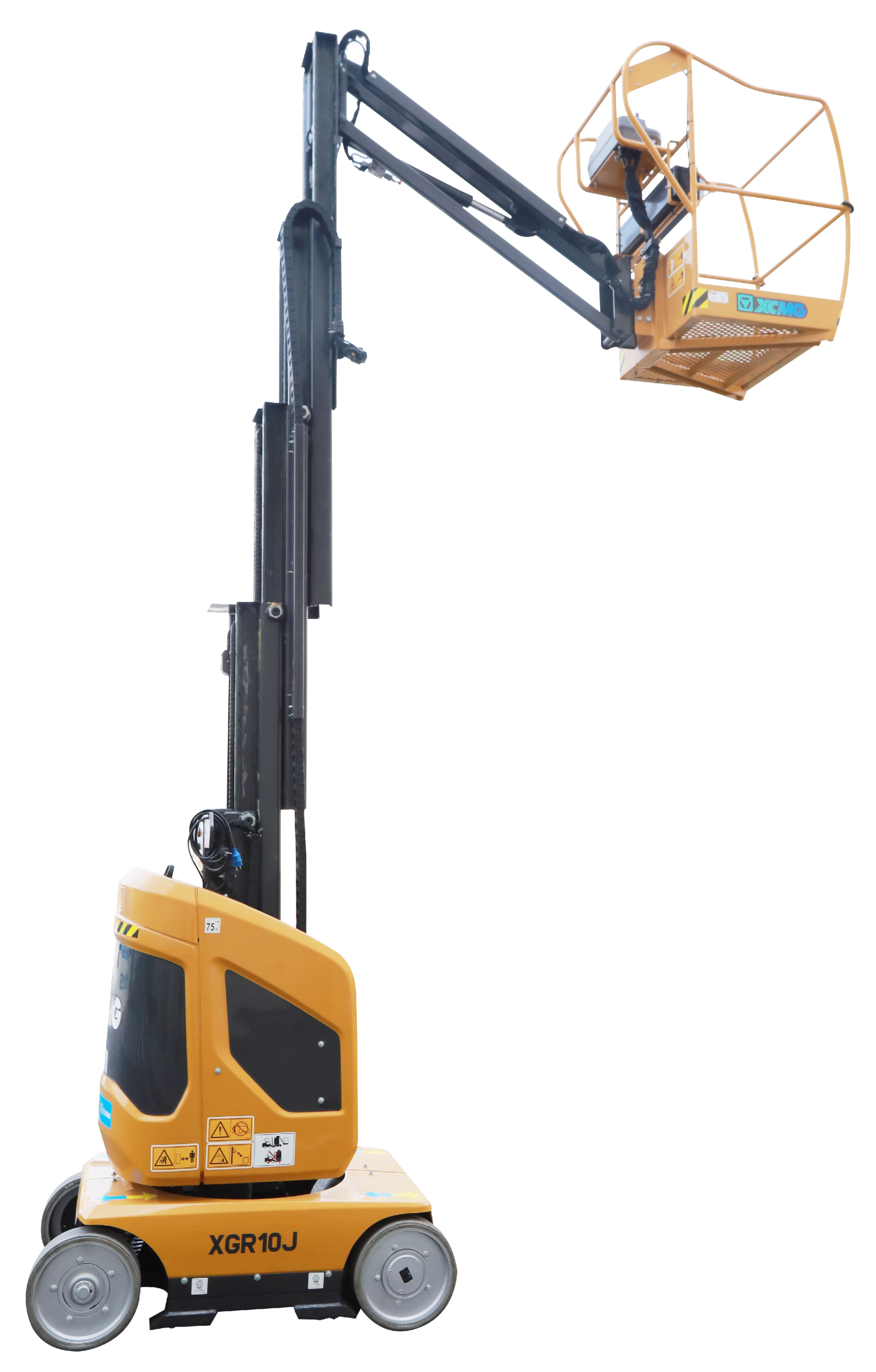

XCMG XGR10J – 2-Wheel Drive Articulating Boom Lift – Model
The XCMG XGR10J combines precision, safety, and strength for construction, maintenance, and industrial work. With a durable 2-wheel drive system and advanced operator controls, it delivers smooth, reliable performance in any environment.
Featuring tilt and movement alarms, emergency stop functions, and anti-extrusion protection, the XGR10J prioritizes safety at every stage. Proportional joystick control, self-leveling, and thumb rocker steering ensure accurate handling, while positive traction drive and harsh environment kits provide dependable performance across demanding worksites.
Backed by XCMG’s global reputation, the XGR10J is built to enhance efficiency, safety, and productivity.
Product Overview – XCMG XGR10J Articulating Boom Lift
| Maximum Working Height | 10.1 m |
| Maximum Platform Height | 6.2 m |
| Maximum Working Range | 3.5 m |
| Load Capacity | 200 kg |
| Maximum Occupant Capacity | 2 People |
| Minimum Ground Clearance | 90 mm |
| Minimum Turning Radius (Inner/Outer Wheel) | 1300 mm / 2100 mm Front 700 mm / 1700 mm Rear |
| Lifting Motor | 1.1 kW |
| Maximum Travel Speed Low Level | 5 km/h |
| Maximum Travel Speed Hight Level | 0.6 km/h |
| Maximum Gradeability | 25 % |
| Fly Jib Luffing Range | -60°~ 66° |
| Fly Jib Length | 1600 mm |
| Battery | 24 V/265Ah |
| Charger | 24V/36A |
| Tyre Specifications | 406 mm x 125 mm |
| Wheels | 2 Driving 2 Braking 2 Steering |
| Total Machine Weight | 3050kg |
| Overall Length | 3010 mm |
| Overall Width | 990 mm |
| Overall Height | 2000 mm |
| Working Platform Dimensions | 850 mm Length 900 mm Width |
| Wheelbase | 1200 mm |
| Turntable Tail Swing (Stowed) | 120 mm |
