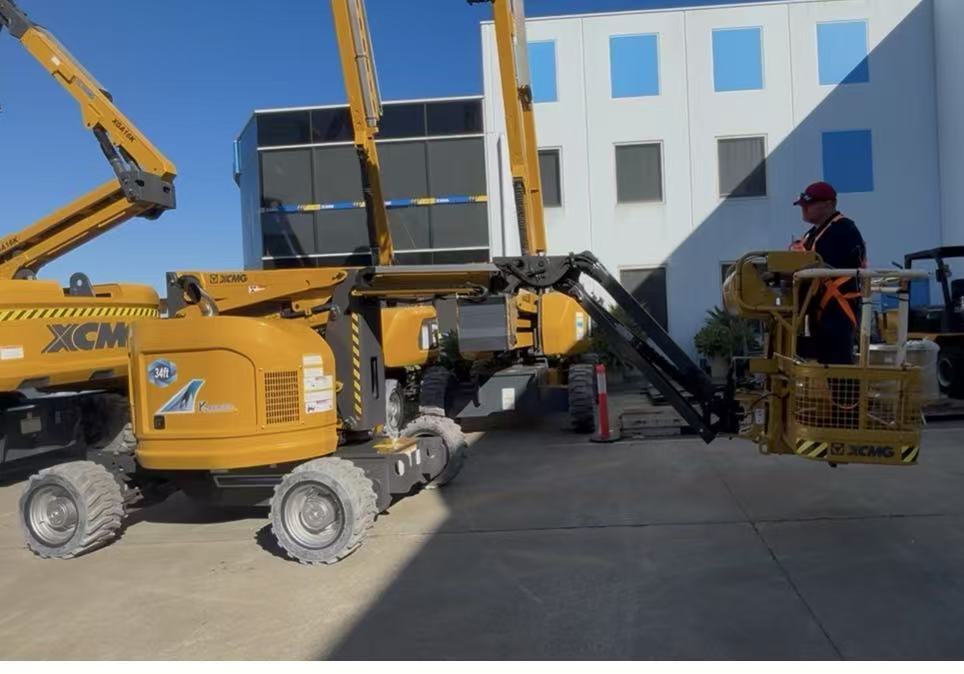

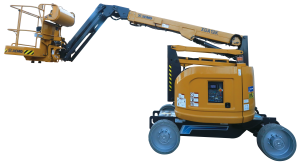

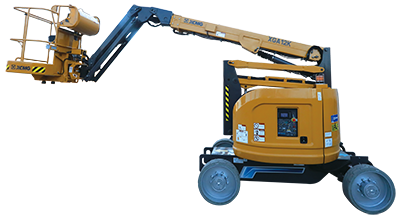

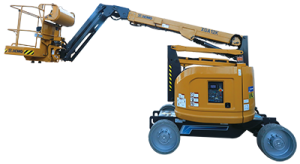

XCMG Articulated Boom Lift – Model XGA12K – Diesel
The XCMG Australia XGA12K Articulated Boom Lift is built for powerful performance in demanding worksites. With a robust 230 kg lift capacity and reliable diesel power, this boom lift ensures efficiency, precision, and durability. Offering a maximum working height of 12.55 m, it provides safe and stable access for maintenance, construction, and industrial applications. Whether you need Diesel Boom Lifts, Maintenance Platforms, or Outdoor Access Equipment, XCMG Australia delivers cutting-edge solutions to boost productivity. Explore our range of high-performance lifting equipment today.
Product Overview – XCMG XGA12K Articulated Boom Lift
| Maximum Working Height | 12.55 m |
| Maximum Platform Height | 10.55 m |
| Load Capacity | 230 kg |
| Total Weight | 5600 kg |
| Minimum Ground Clearance | 200 mm |
| Turntable Rotation | 355 Degrees |
| 1st Boom Luffing Range | -6～+69 Degrees |
| 2nd Boom Luffing Range | -1.5～+75 Degrees |
| Fly Jib Luffing Range | -65～+70 Degrees |
| Platform Rotation | 160o Degrees |
| Turntable Tail Swing (Stowed) | 0 mm |
| Platform Size | 1400 mm L x 700 mm W x 2070 mm H |
| Rotation Angle of Platform | 160o |
| Power Type | Diesel |
| Maximum Travel Speed | 5 km/h (Stowed) 1.1-km/h (Raised or Extended) |
| Minimum Turning Radius | 2320 mm (Inside) 3980 mm (Outside) |
| Maximum Gradeability | 35 % (19°) |
| Overall Length | 5950 mm (Stowed) 5950 mm (Transportation) |
| Overall Width | 1860 mm (Stowed) 1860 mm (Transportation) |
| Overall Height | 2024 mm (Stowed) 2024mm (Transportation) |
| Tyre Specifications | 687 mm x 245 mm |
| Wheelbase | 2060 mm |
| Fly Jib Length | 1420 mm |
| Driving Wheels | 4 |
| Braking Wheels | 4 |
| Steering Wheels | 2 |
| Controls | 12V DC Proportional Control |
| Engine Model | Kubota D 1105 |
| Engine Power | 18.5 kW (3000 r/min) |
| Engine Emissions Standard | CN IV/Tier 4/EUV |
| Emergency Power Supply | 12V/110Ah |
| Max Engine Torque | 71.5 N * m (2200 r/min) |
| Hydraulic Tank Capacity | 39 L |
| Fuel Tank Capacity | 40 L |
| Tyre Ground Pressure | 5.51 kg/cm2 |
