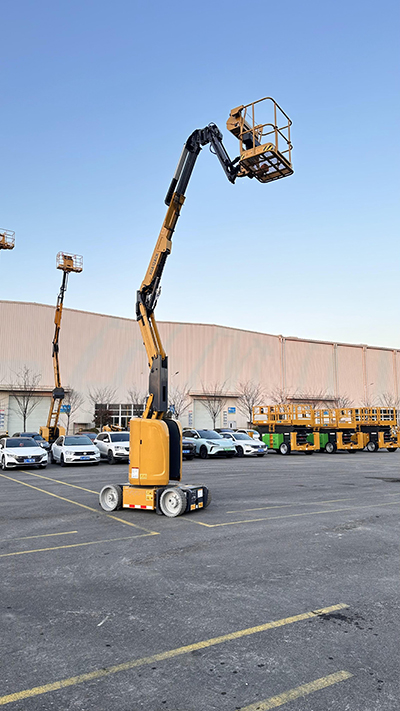

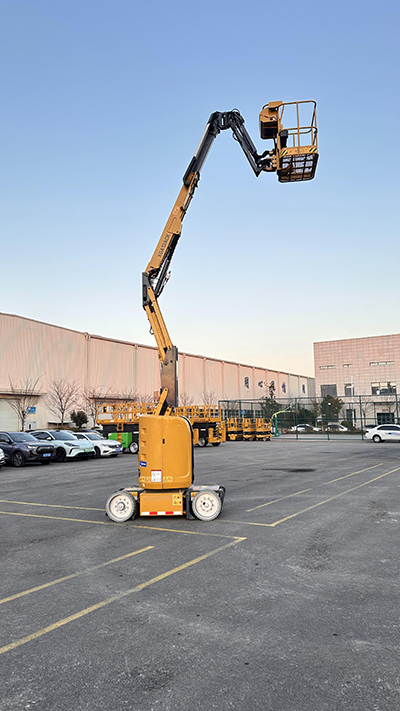

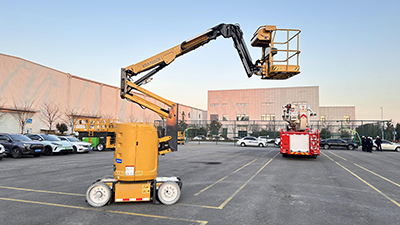

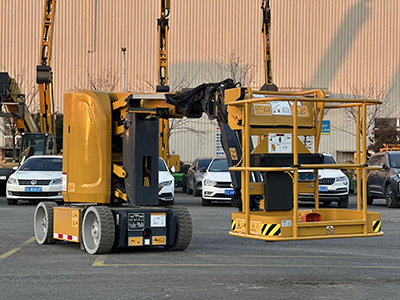

XCMG Articulated Boom Lift – Model XGA12ACK – Electric
The XCMG Australia XGA12ACK Articulated Boom Lift is engineered for superior performance in tight and complex workspaces. With an impressive lift capacity of 230 kg and an electric power system, this boom lift delivers precision, efficiency, and eco-friendly operation. Offering a working height of 11.56 m, it ensures safe and reliable access for maintenance, facility management, and industrial applications. Whether you need Electric Boom Lifts, Maintenance Platforms, or Outdoor Access Equipment, XCMG Australia provides cutting-edge solutions to enhance productivity. Explore our range of innovative lifting equipment today.
Product Overview – XCMG XGA12ACK Articulated Boom Lift
| Maximum Working Height | 11.56 m |
| Maximum Platform Height | 9.56 m |
| Load Capacity | 230 kg |
| Total Weight | 7000 kg |
| Minimum Ground Clearance | 85 mm |
| Turntable Rotation | 355 Degrees |
| 1st Boom Luffing Range | -12.5～+70 Degrees |
| 2nd Boom Lufffing Range | -5.5～+75 Degrees |
| Fly Jib Luffing Range | -70～+70 Degrees |
| Platform Rotation | 160o Degrees |
| Turntable Tail Swing (Stowed) | 0 mm |
| Platform Size | 1170 mm L x 760 mm W x 1150 mm H |
| Rotation Angle of Platform | 160o |
| Power Type | Electric |
| Maximum Travel Speed | 5 km/h (Stowed) 0.6 km/h (Raised or Extended) |
| Minimum Turning Radius | 1760 mm (Inside) 3250 mm (Outside) |
| Maximum Gradeability | 35 % (19.3°) |
| Overall Length | 5600 mm (Stowed) 5360 mm (Transportation) |
| Overall Width | 1190 mm (Stowed) 1190 mm (Transportation) |
| Overall Height | 2015 mm (Stowed) 1150 mm (Transportation) |
| Tyre Specifications | 557 mm x 178 mm |
| Wheelbase | 1650 mm |
| Fly Jib Length | 1150 mm |
| Driving Wheels | 2 |
| Braking Wheels | 2 |
| Steering Wheels | 2 |
| Controls | 12V DC Proportional Control |
| Traveling Motor | 3.3 kW/32V |
| Emergency Power Supply | 12V/110Ah |
| Main Power Source | 48V/400Ah Battery 48V/35A Charger |
| Hydraulic Tank Capacity | 16 L |
